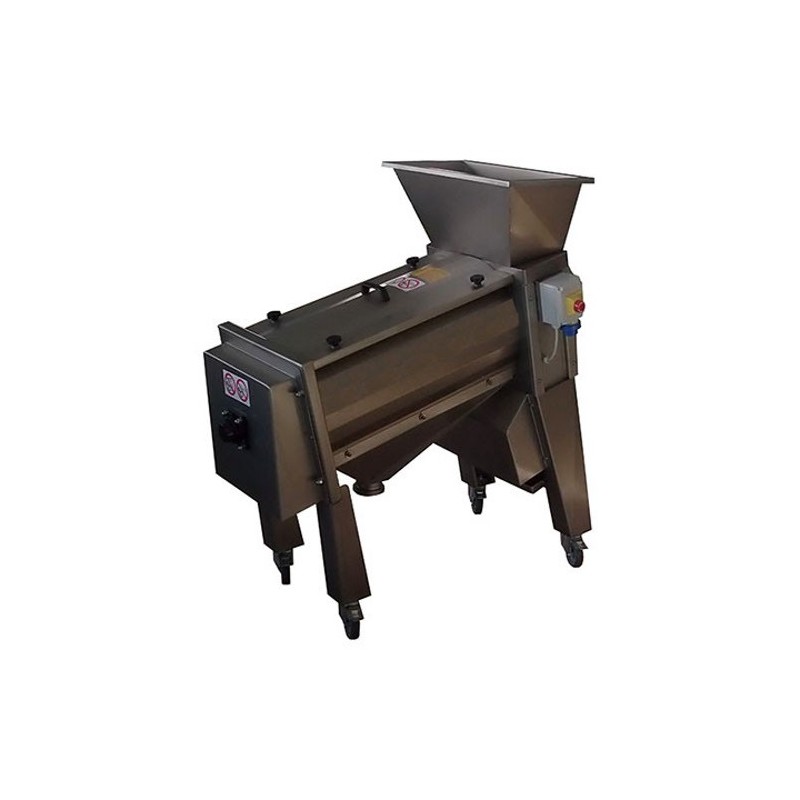

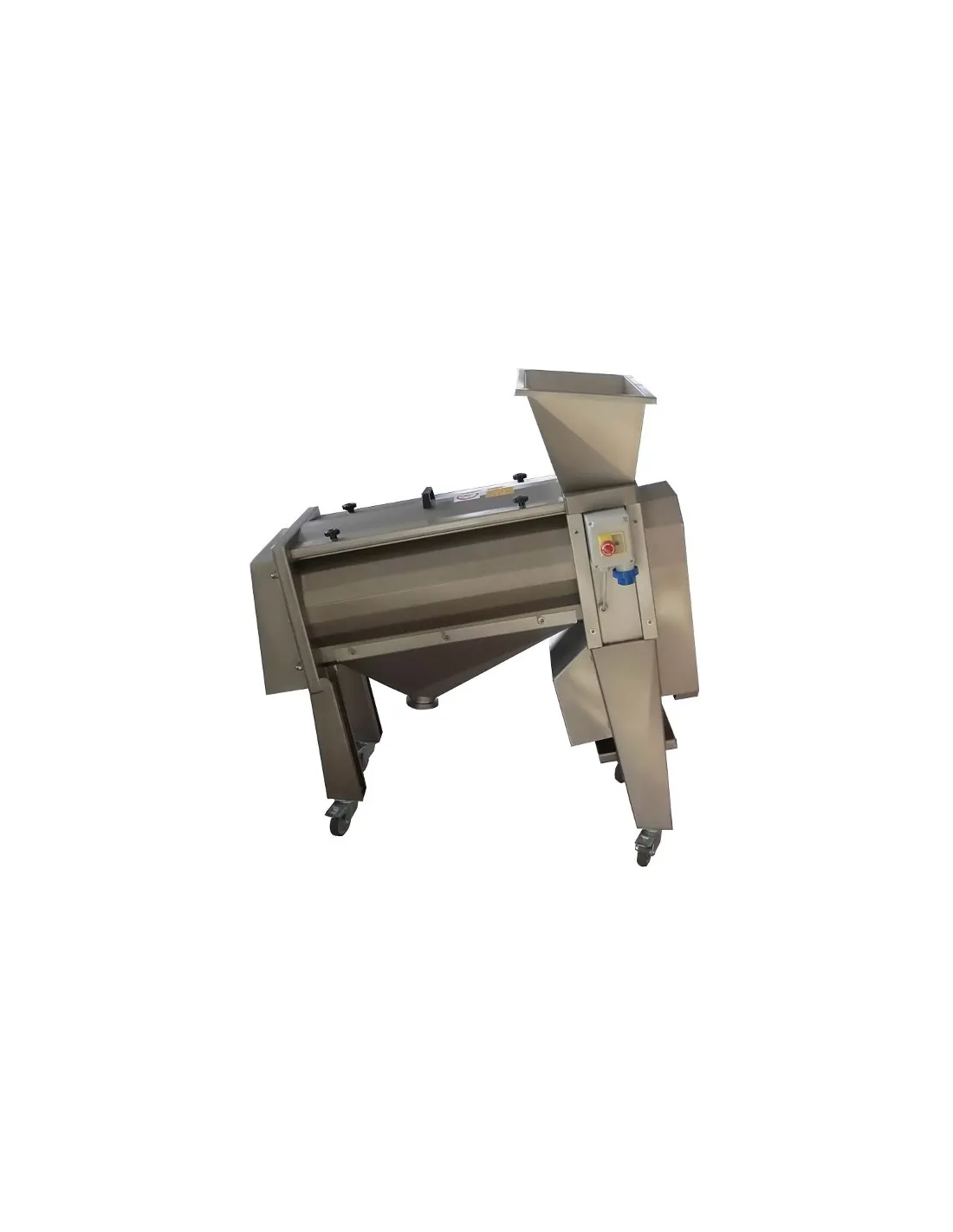

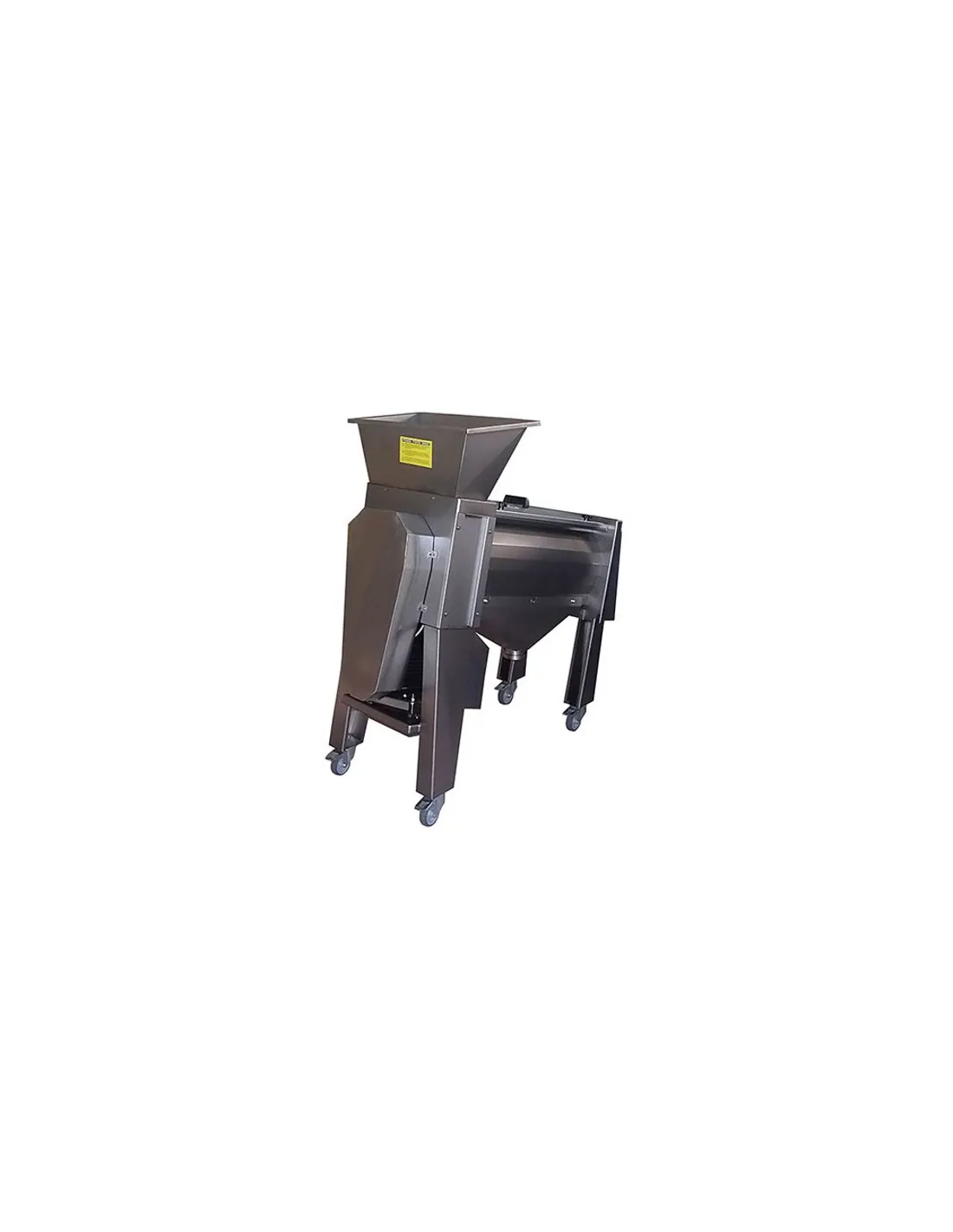

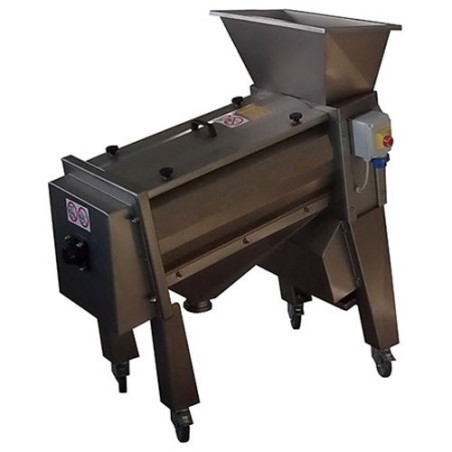

Fruit destoner-pulper 2000 kg/h

The fruit destoner-pulper 2000 kg/h is a professional machine designed to separate pulp from stones while crushing fruit. It is suitable for processing larger quantities of fruit and vegetables, including cherries, apricots, plums, peaches, olives, tomatoes and cooked vegetables.

The machine produces a fruit mash suitable for jams, preserves and fermentation. By fitting special screens, the resulting product can also be prepared for fruit juice production.

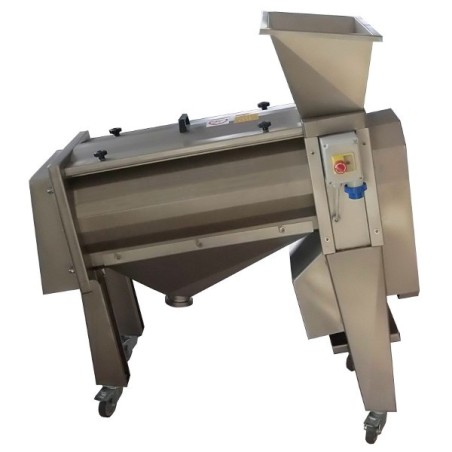

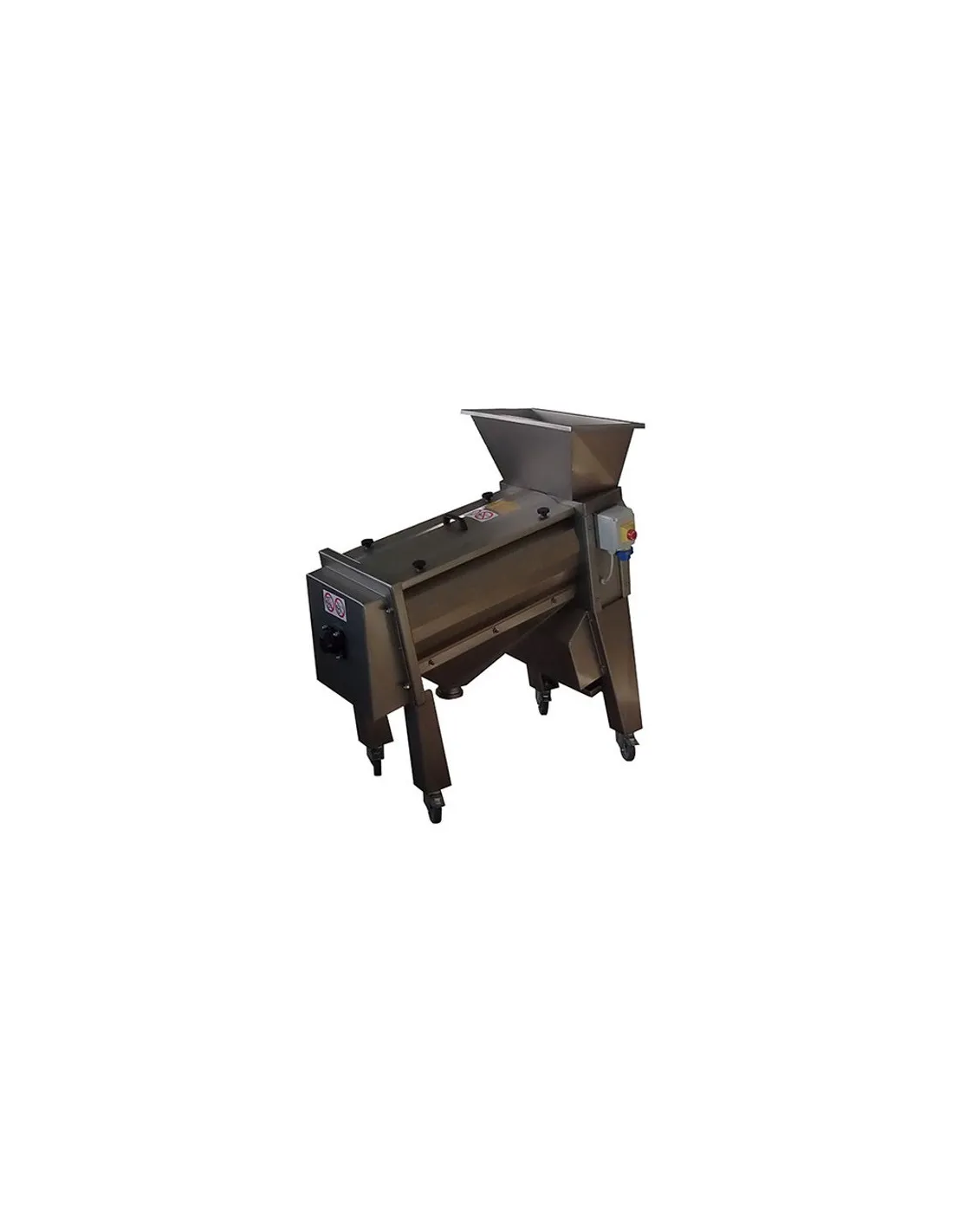

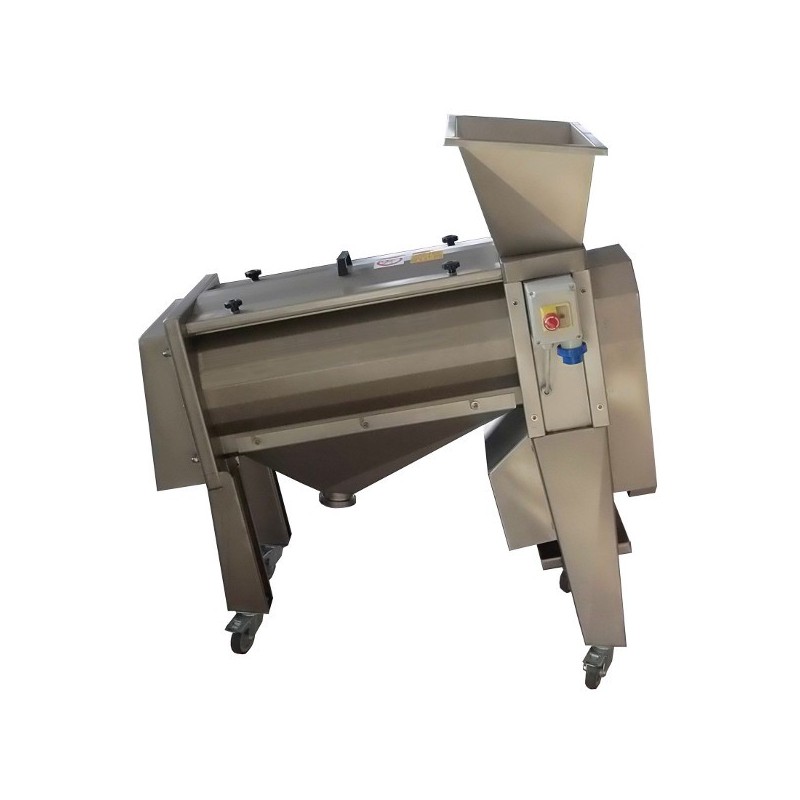

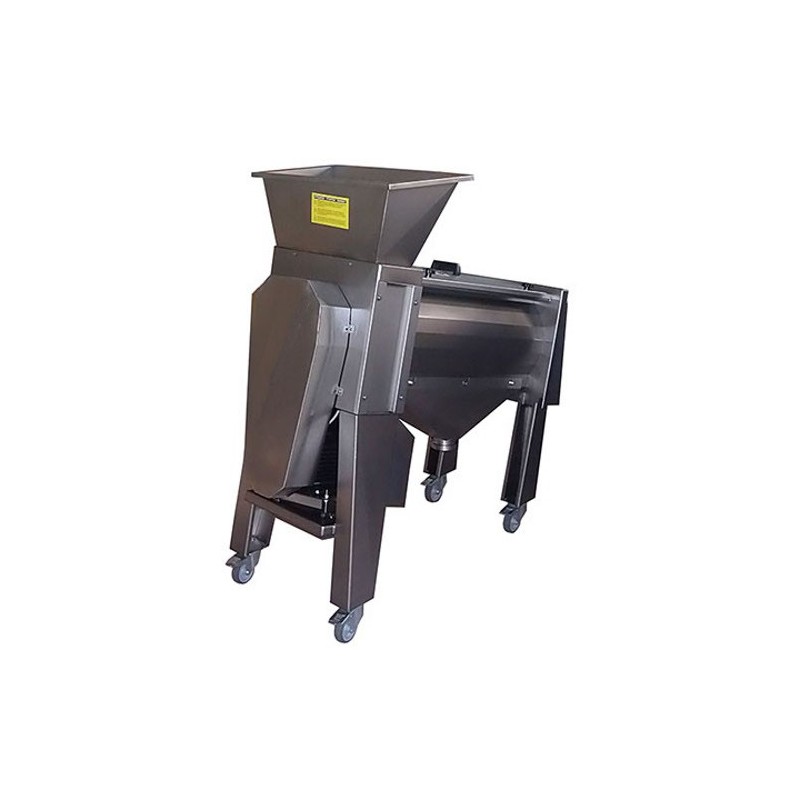

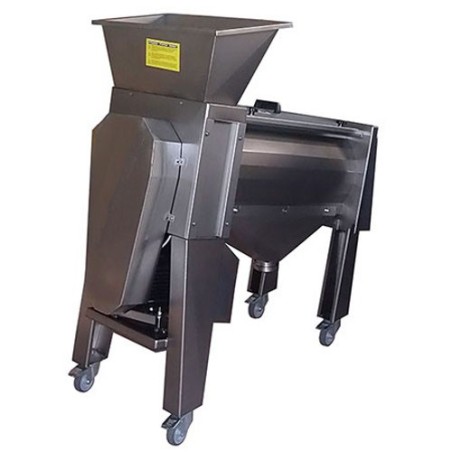

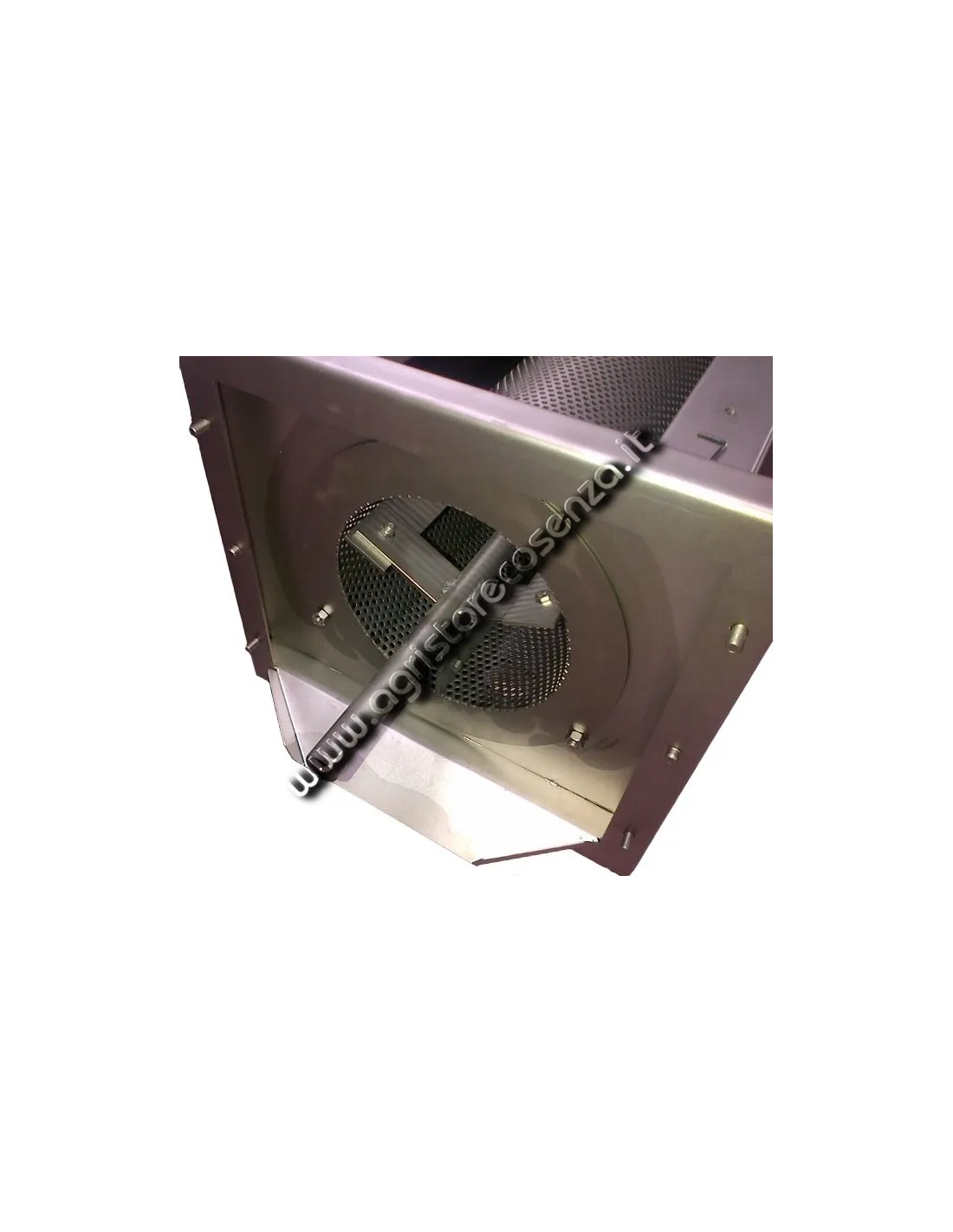

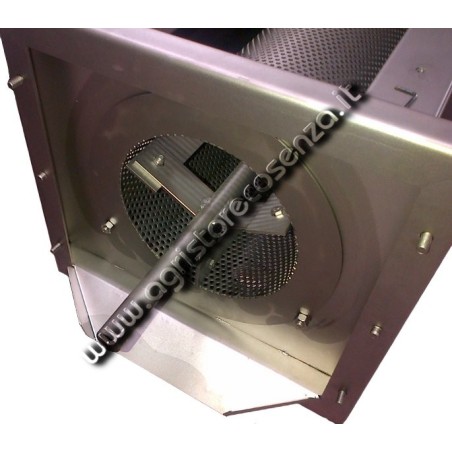

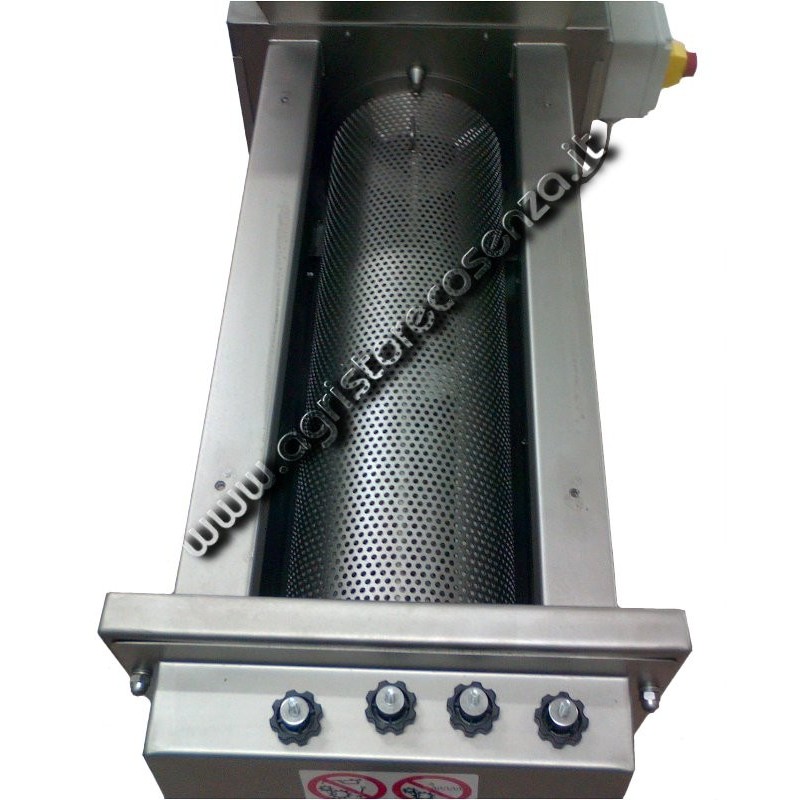

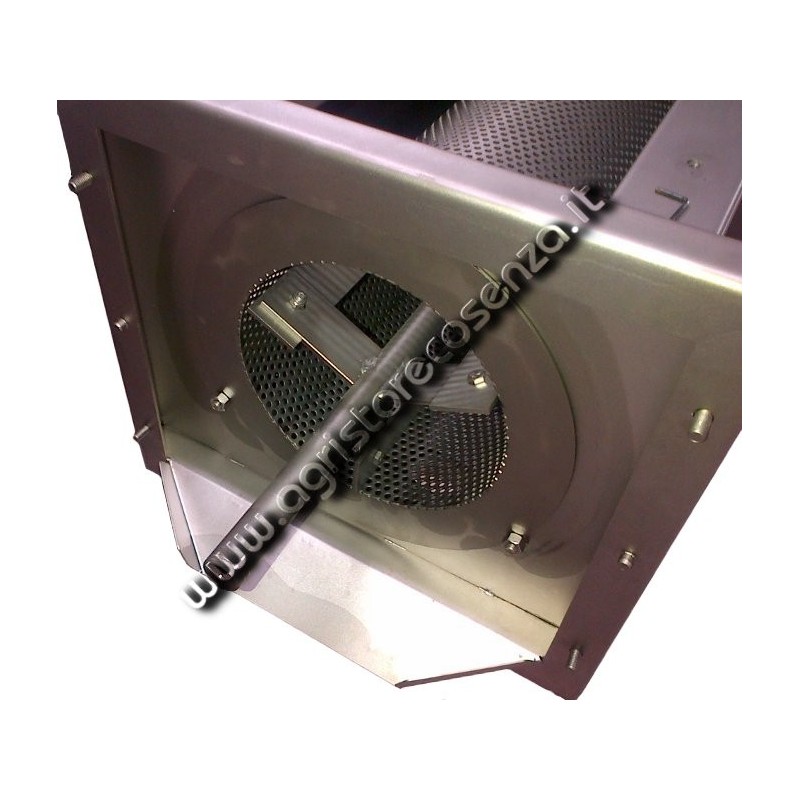

Made entirely of AISI 304 stainless steel, the fruit pulper features a loading hopper with an internal safety grid, a separation drum with a dedicated stone discharge, an electric motor with emergency stop and four swivelling wheels with brakes for easier handling.

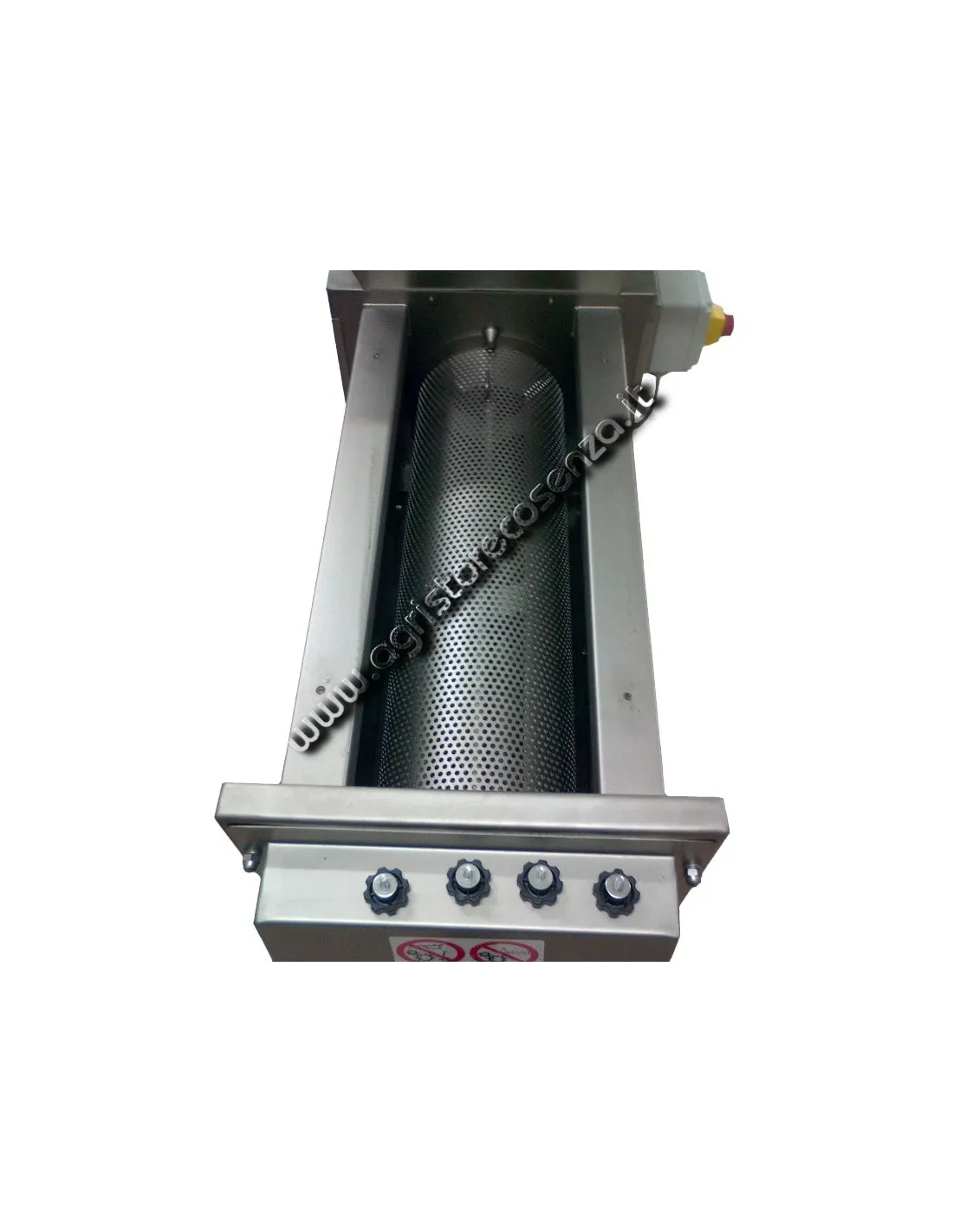

The machine is supplied with one stainless steel screen, with perforations selectable from 0.8 to 12 mm. Select the required hole size from the product menu. Additional screens are available separately in the "You may also like" section at the bottom of the page.

Fruit requirements: the fruit must be ripe and soft. The stated maximum fruit diameter is 18 cm; the loading-hopper configuration required for this size should be confirmed before ordering.

Technical specifications

• Construction: entirely in AISI 304 stainless steel;
• Loading hopper: with feed auger;
• Hopper dimensions: 82 × 54 cm;
• Shaft: stainless steel with adjustable food-grade rubber paddles;
• Electric motor: 5.5 HP (4 kW);
• Power supply: three-phase;
• Electrical system: CE-compliant, with emergency stop;
• Outlet connection: DIN 80;
• Included screen: 1 stainless steel screen, with selectable perforations from 0.8 to 12 mm;
• Wheels: 4 swivelling wheels with brakes;
• Stone discharge height: 480 mm;
• Juice discharge height: 370 mm;
• Loading height from floor: 1,620 mm;
• Throughput: 2,000 kg/h;
• Dimensions: 180 × 85 × 165 cm;
• Weight: 250 kg.

Supplied with the user manual and CE Machinery Directive conformity certification. Food-use compliance is also stated in the product specifications.

Optional accessories and versions

• Additional stainless steel screens with perforations from 0.8 to 12 mm. Select the number of screens required and specify the hole sizes in the order comments at checkout;
• Additional screen with 0.6 mm perforations;
• Set of replacement rubber scrapers for the paddles;
• Replacement screen gasket;
• Upgraded 5.5 kW motor;
• Upgraded version for tropical fruit processing.

Most requested screen perforations

The following screen sizes are the most frequently requested for different fruit processing applications:

• 8 mm: apricots and peaches;
• 6 mm: plums;
• 3 mm: cherries, fruit mash, pears, apples, sour cherries and morello cherries;
• 2–3 mm: olives (in combination with a variable-speed drive and an inlet slide gate for product dosing);
• 1.5 mm: tomatoes and prickly pears;
• 1.2 mm: tomatoes, strawberries, raspberries, blackberries, redcurrants and grapes;
• 0.6 mm: pomegranates, when used in combination with a pomegranate deseeder.

User manual

Download the user manual from the Useful Documents tab for information on preparation before use, installation, cleaning and maintenance.

The same manual applies to all three available models.
