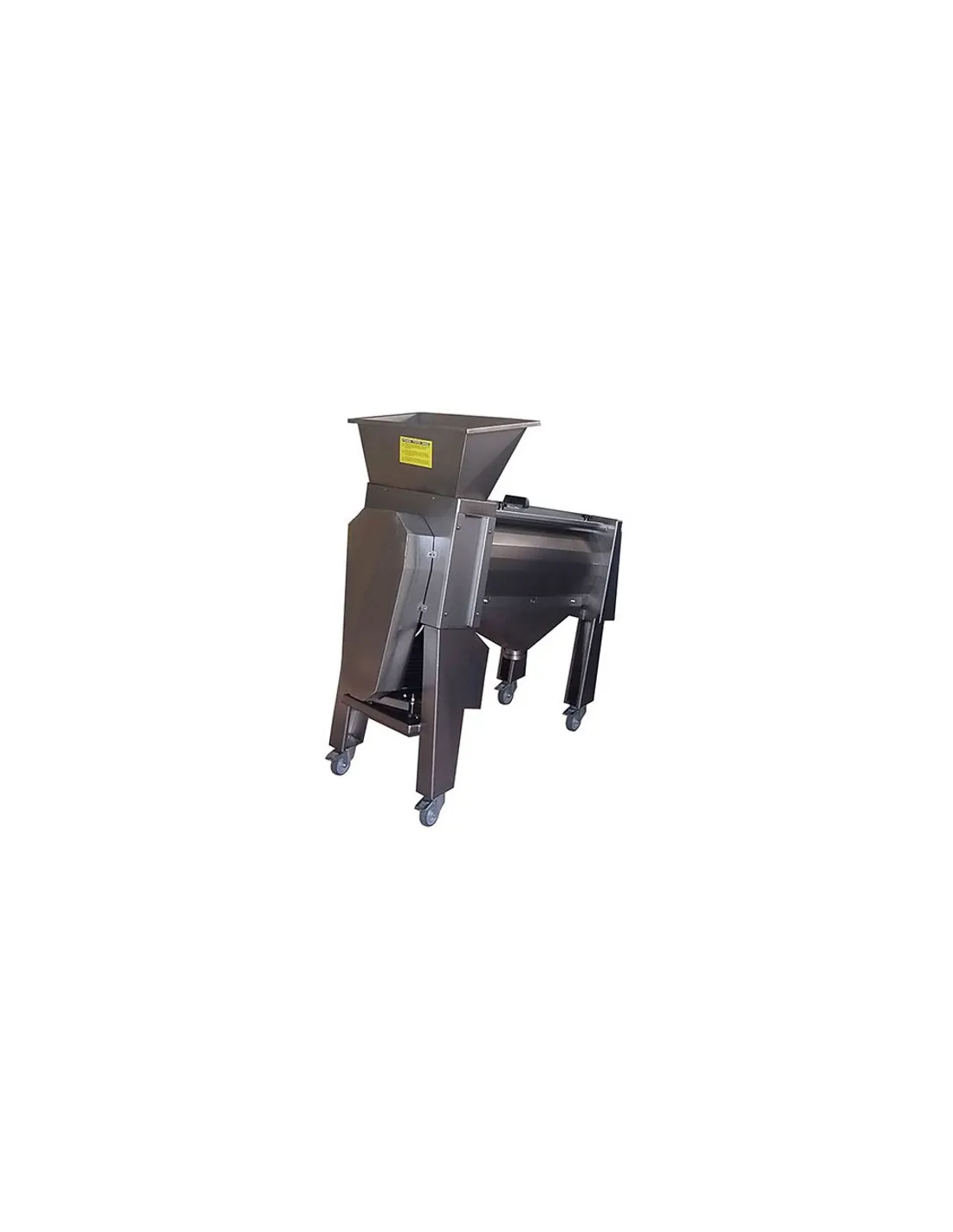

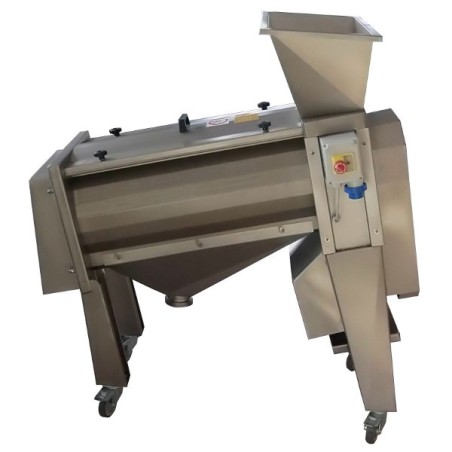

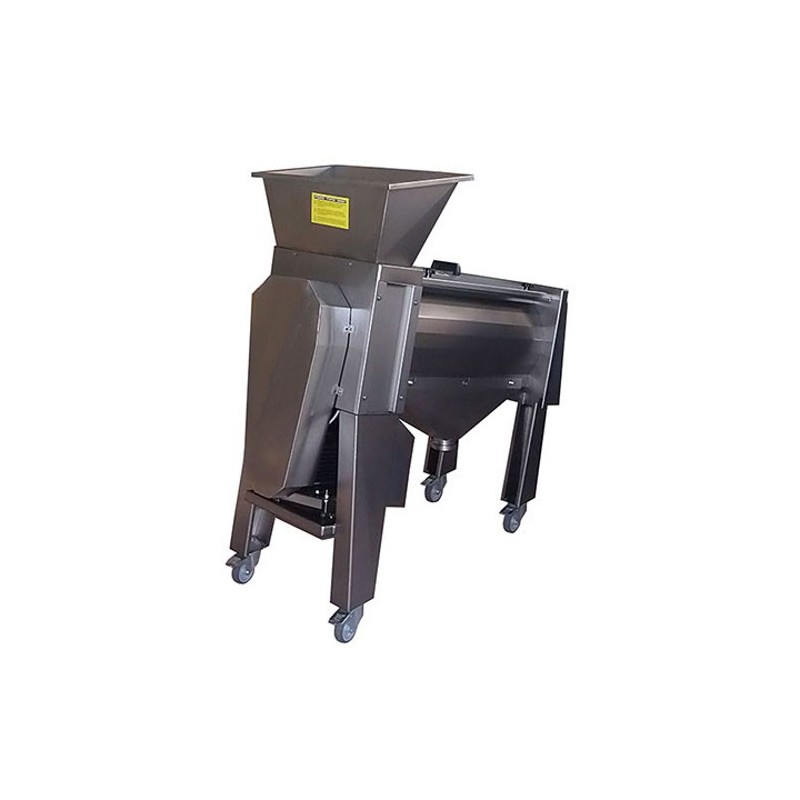

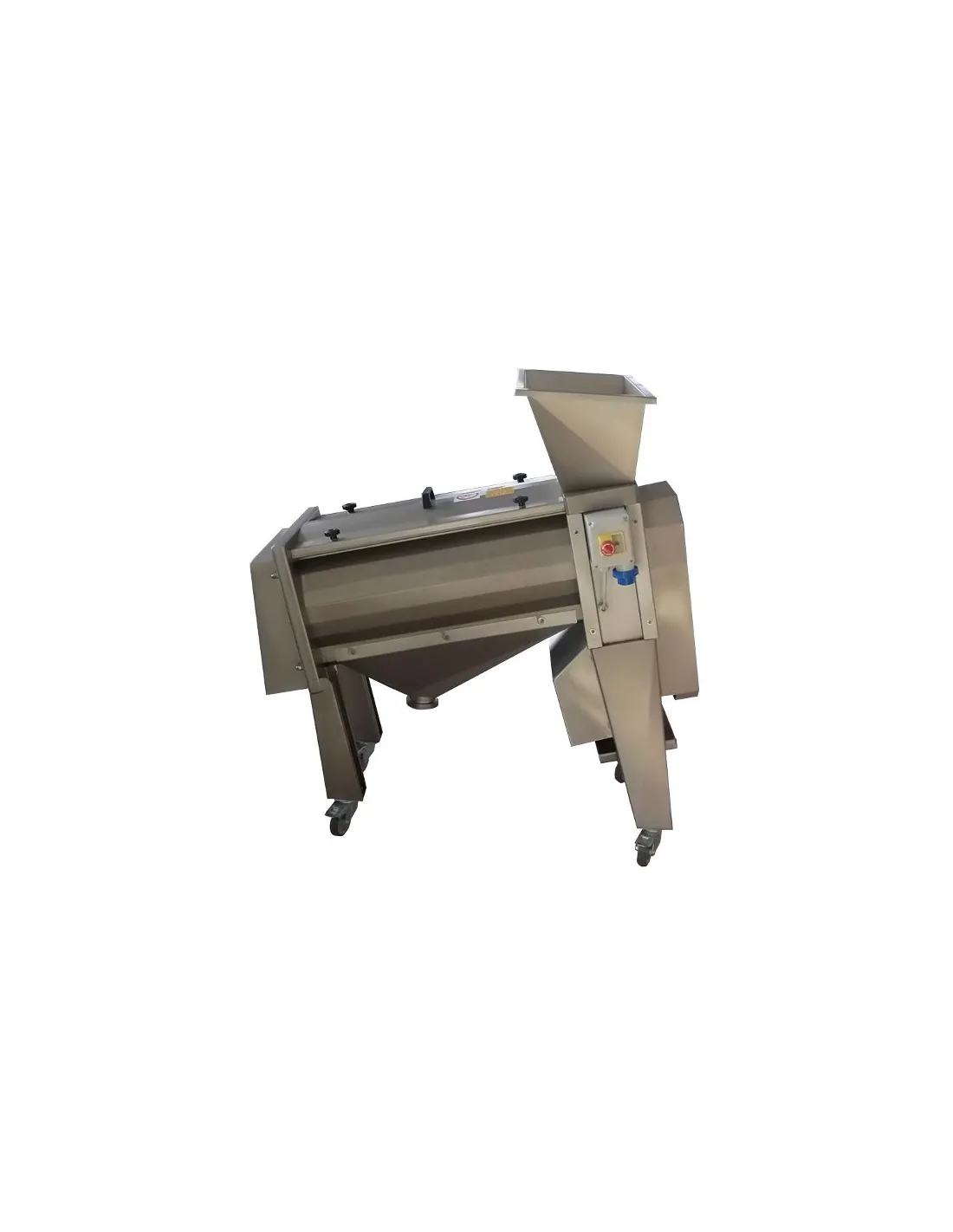

Fruit destoner-pulper 1000 kg/h

The fruit destoner-pulper 1000 kg/h is designed to separate pulp from stones while crushing fruit. It can be used as a cherry destoner, olive destoner and fruit pulper for processing apricots, plums, peaches, tomatoes and cooked vegetables.

The machine produces a fruit mash suitable for jams, fruit preserves and fermentation. By fitting special screens, the resulting product can also be prepared for fruit juice production.

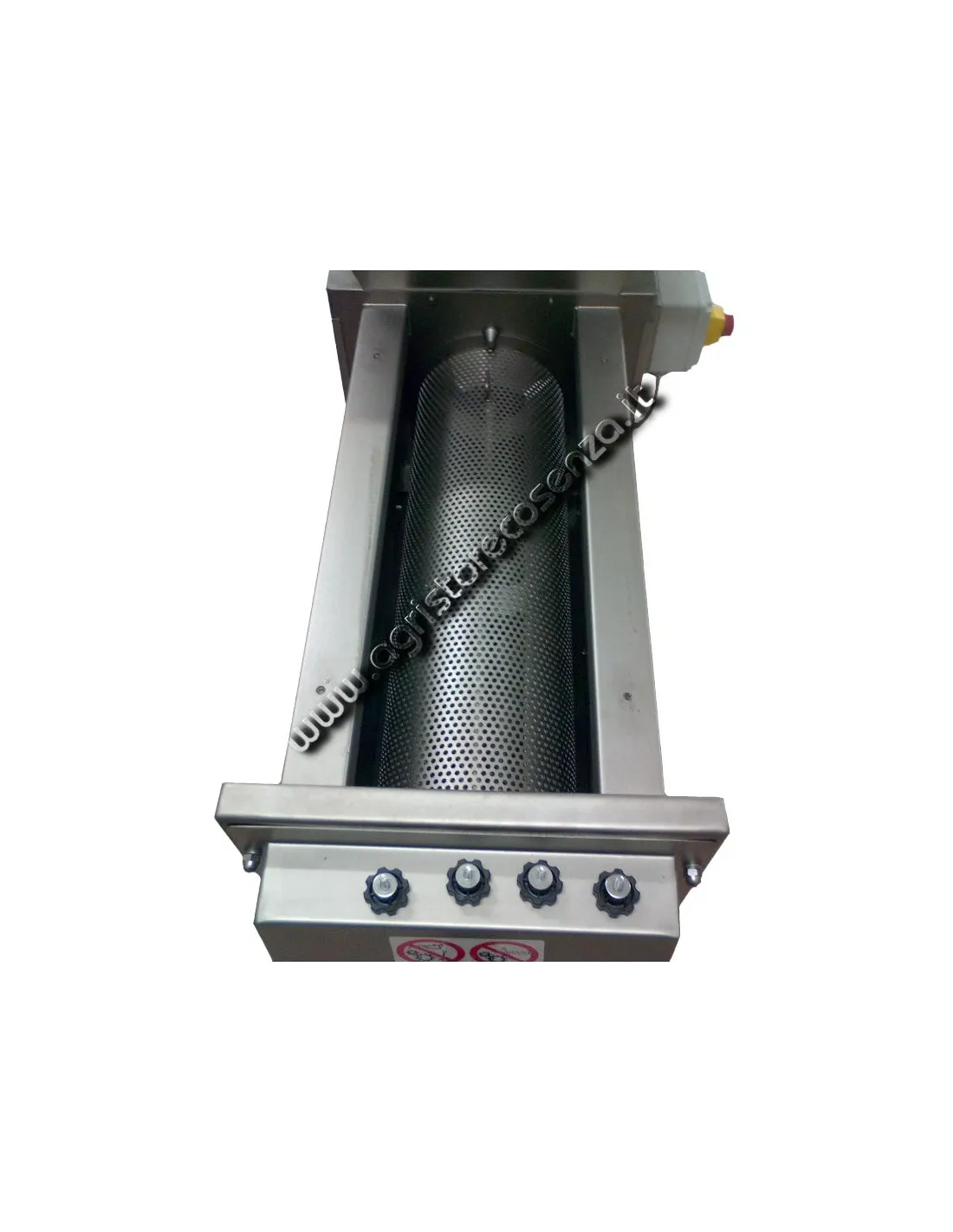

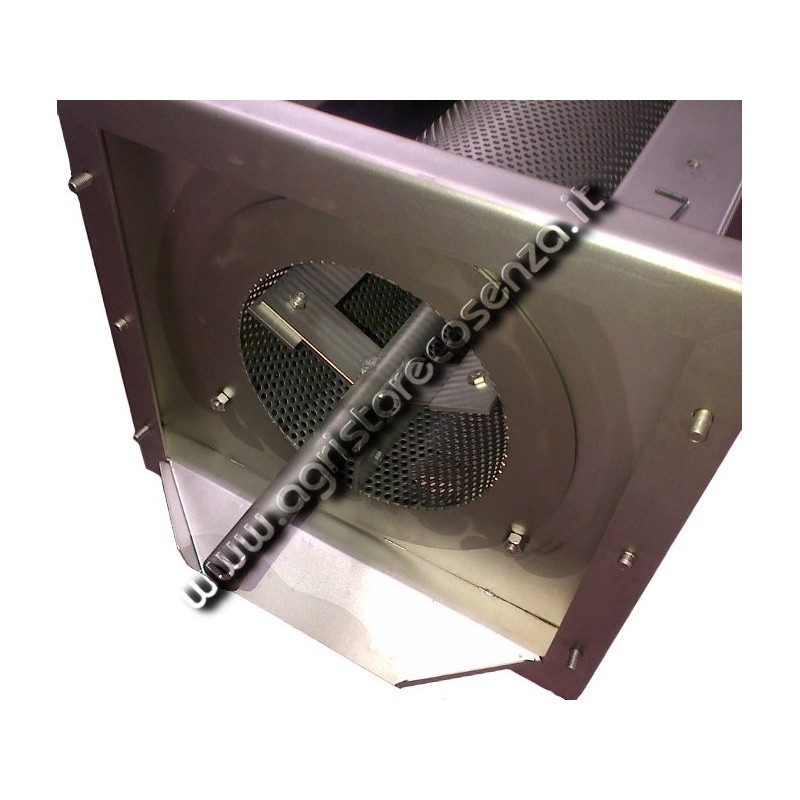

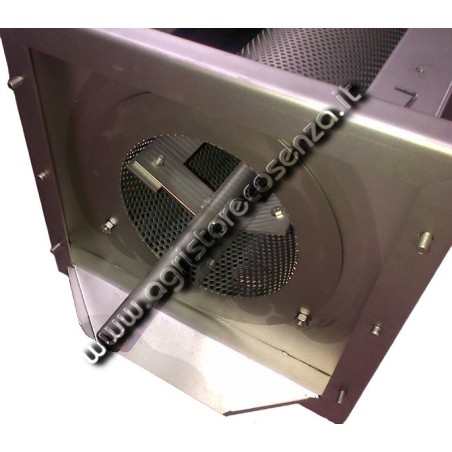

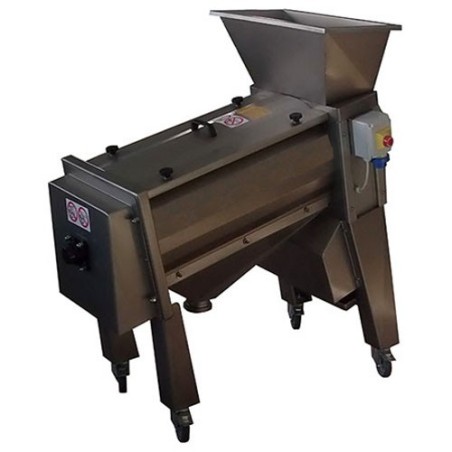

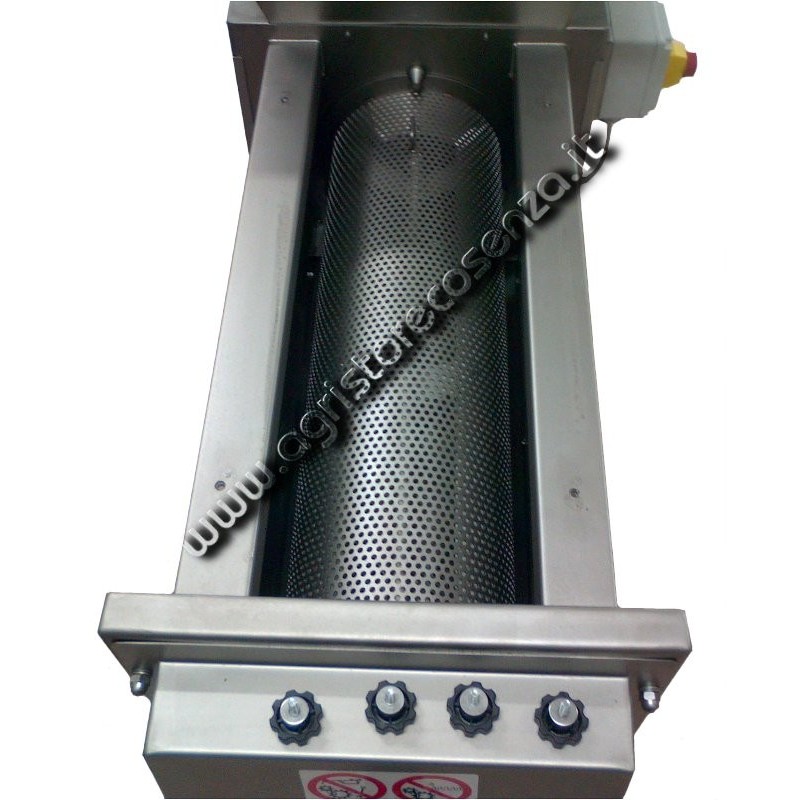

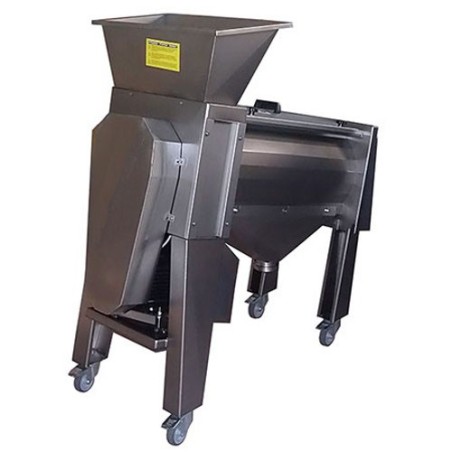

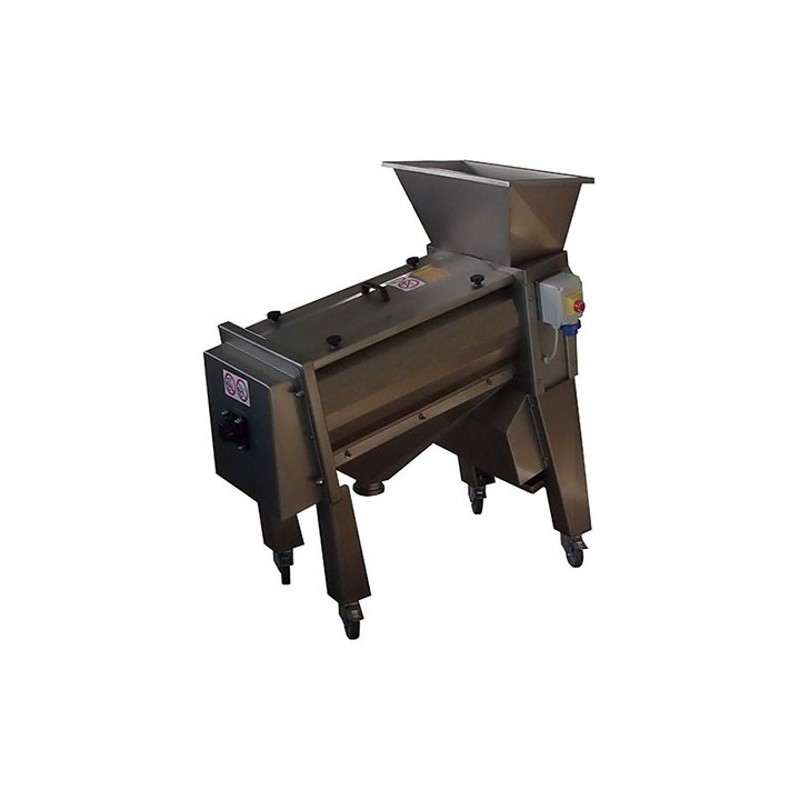

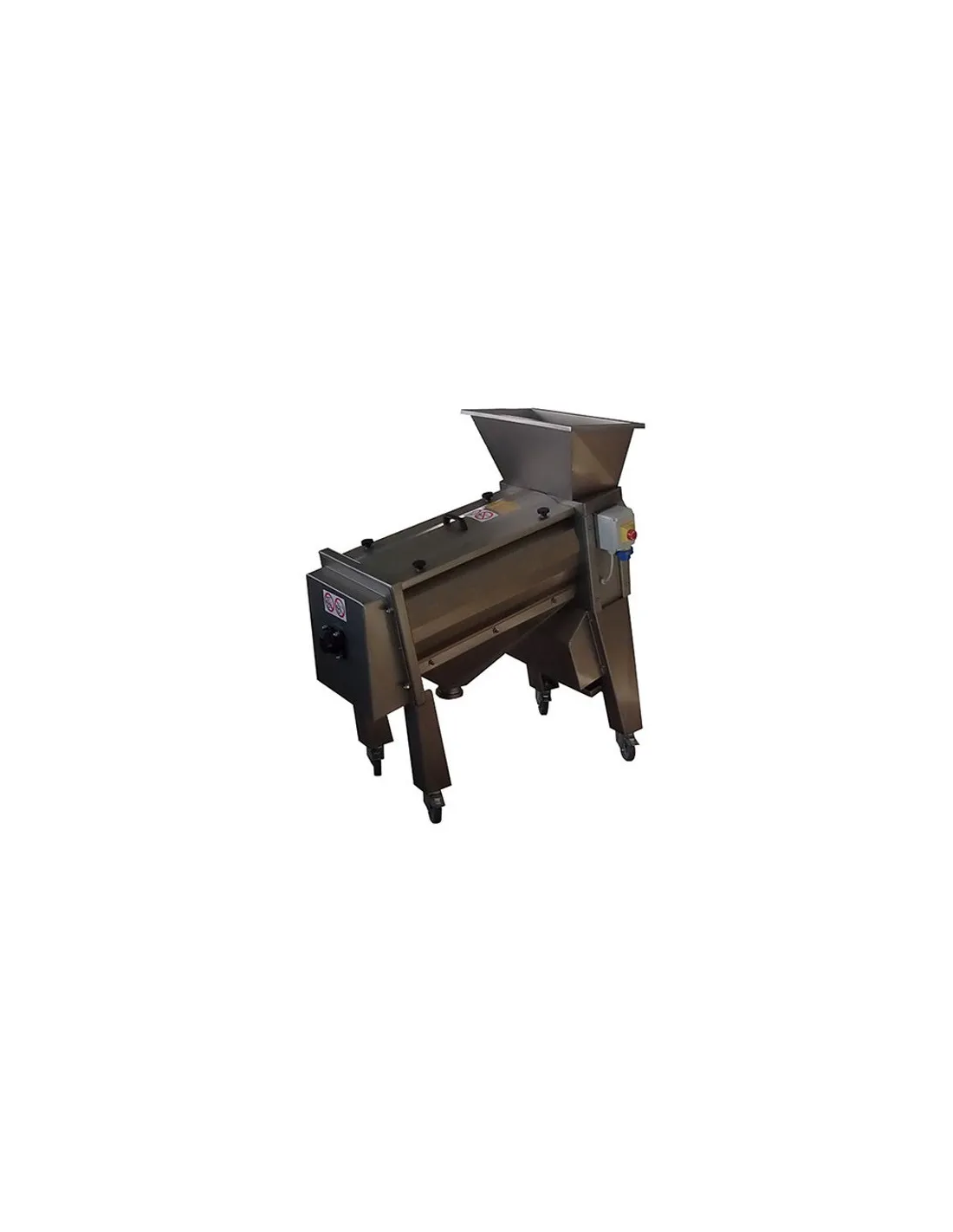

Made entirely of AISI 304 stainless steel, the destoner-pulper features a loading hopper with a safety grid, a separation drum with a dedicated stone discharge, an electric motor with emergency stop and four swivelling wheels with brakes.

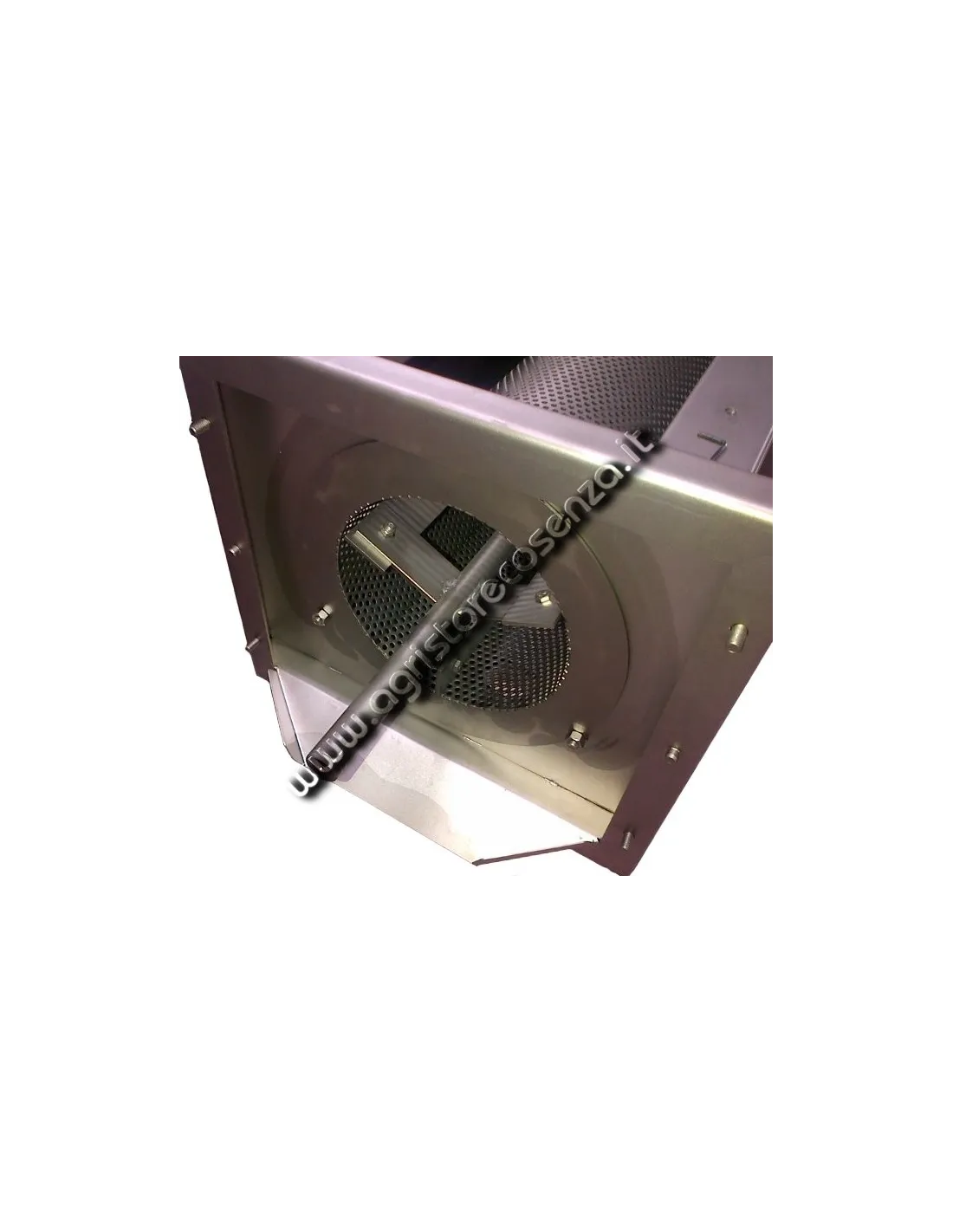

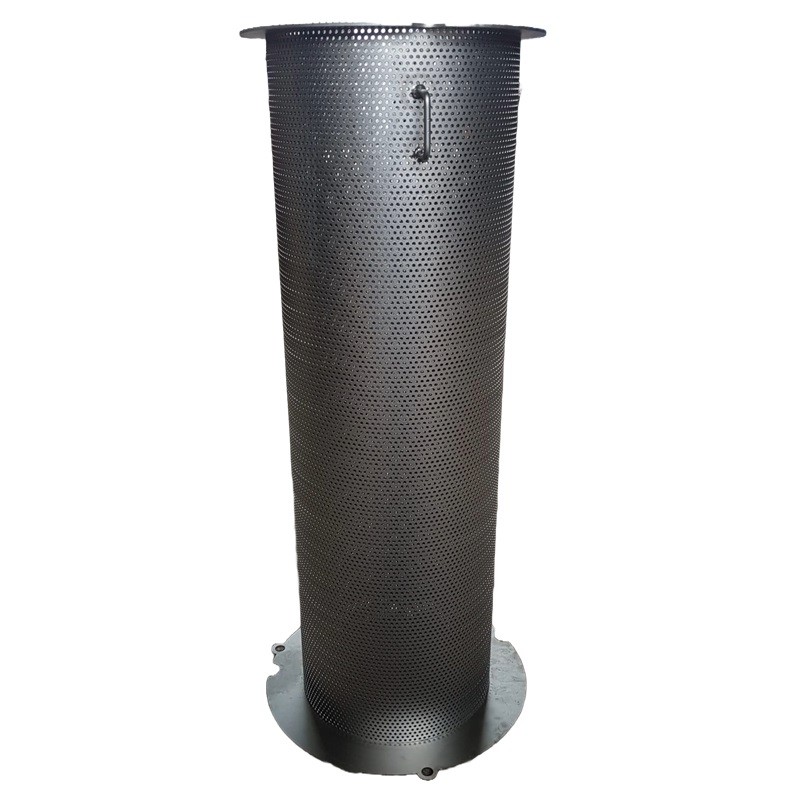

The machine is supplied with one stainless steel screen, with perforations selectable from 0.8 to 12 mm. Select the required hole size from the product menu. Additional screens are available separately.

Fruit requirements: the fruit must be ripe and soft, with a maximum diameter of 12 cm. For larger fruit, the 2000 kg/h destoner is recommended.

Technical specifications

• Construction: entirely in AISI 304 stainless steel;
• Loading hopper: with feed auger;
• Hopper dimensions: 65 × 49 cm;
• Shaft: stainless steel with adjustable food-grade rubber paddles;
• Electric motor: 4 HP (3 kW);
• Power supply: three-phase;
• Electrical system: CE-compliant, with emergency stop;
• Outlet connection: DIN 80;
• Included screen: 1 stainless steel screen, with selectable perforations from 0.8 to 12 mm;
• Wheels: 4 swivelling wheels with brakes;
• Stone discharge height: 480 mm;
• Juice discharge height: 370 mm;
• Loading height from floor: 1,420 mm;
• Throughput: 1,200 kg/h;
• Dimensions: 140 × 70 × 142 cm;
• Weight: 150 kg.

Supplied with the user manual, CE Machinery Directive conformity certification and food-use compliance.

Optional accessories

• Three-phase control panel for external pump control;
• Additional screen with 0.6 mm perforations;
• Replacement screen gasket.

Most requested screen perforations

The following screen sizes are the most frequently requested for different fruit processing applications:

• 8 mm: apricots and peaches;
• 6 mm: plums;
• 3 mm: cherries, fruit mash, pears, apples, sour cherries and morello cherries;
• 2–3 mm: olives (in combination with a variable-speed drive and an inlet slide gate for product dosing);
• 1.5 mm: tomatoes and prickly pears;
• 1.2 mm: tomatoes, strawberries, raspberries, blackberries, redcurrants and grapes;
• 0.6 mm: pomegranates, when used in combination with a pomegranate deseeder.

User manual

Download the user manual from the Useful Documents tab for information on preparation before use, installation, cleaning and maintenance.

The same manual applies to all three available models.
