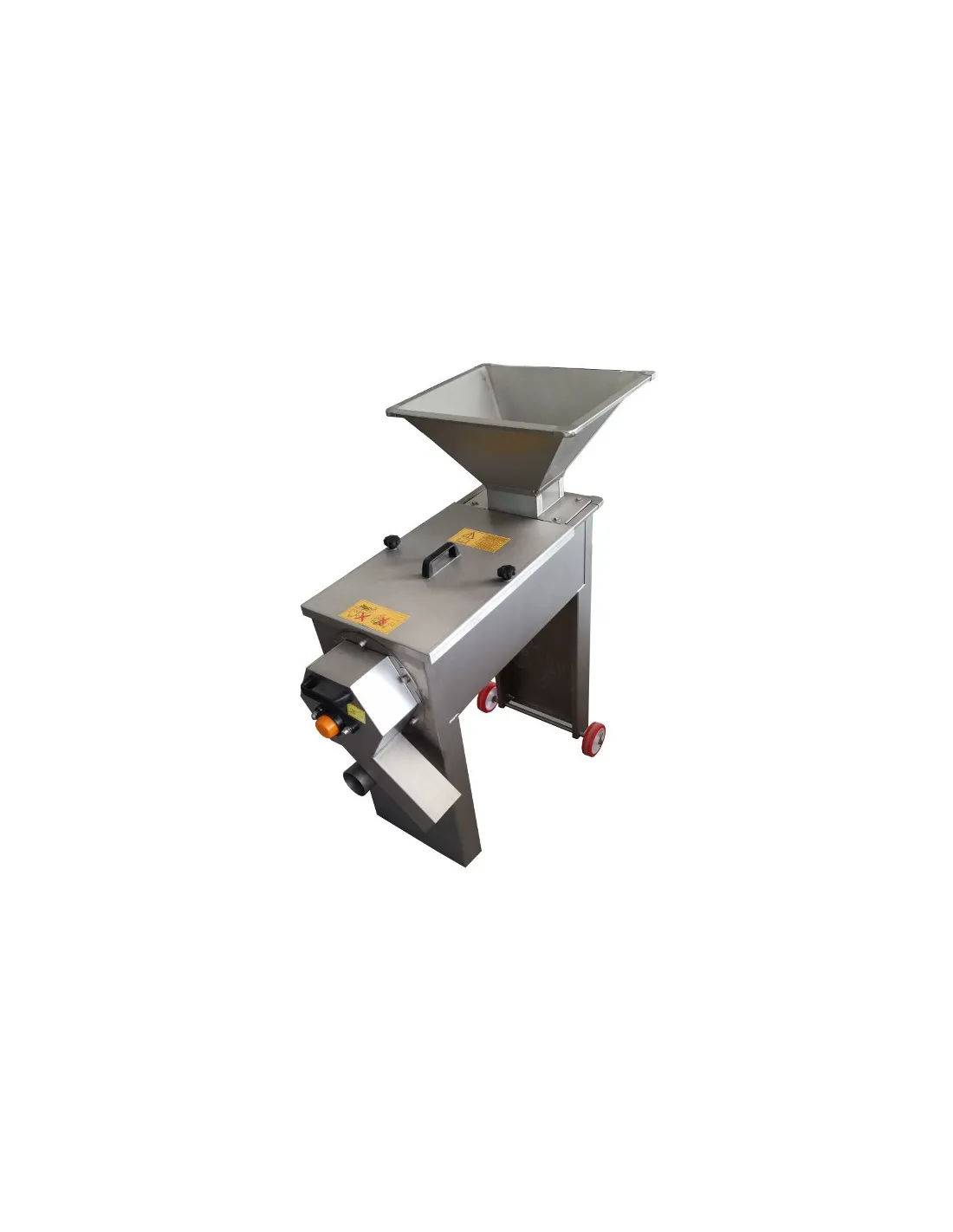

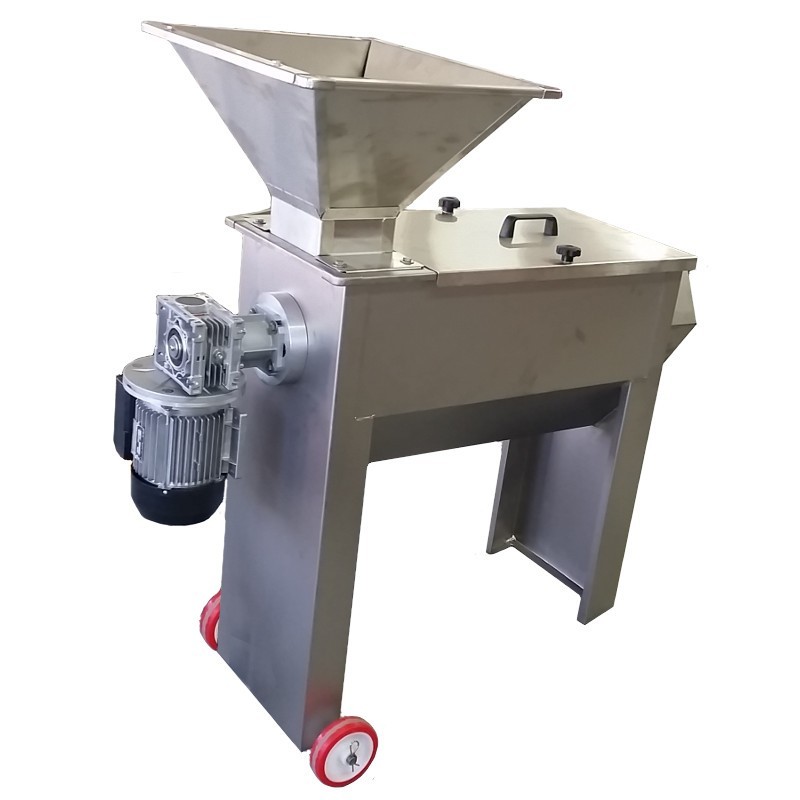

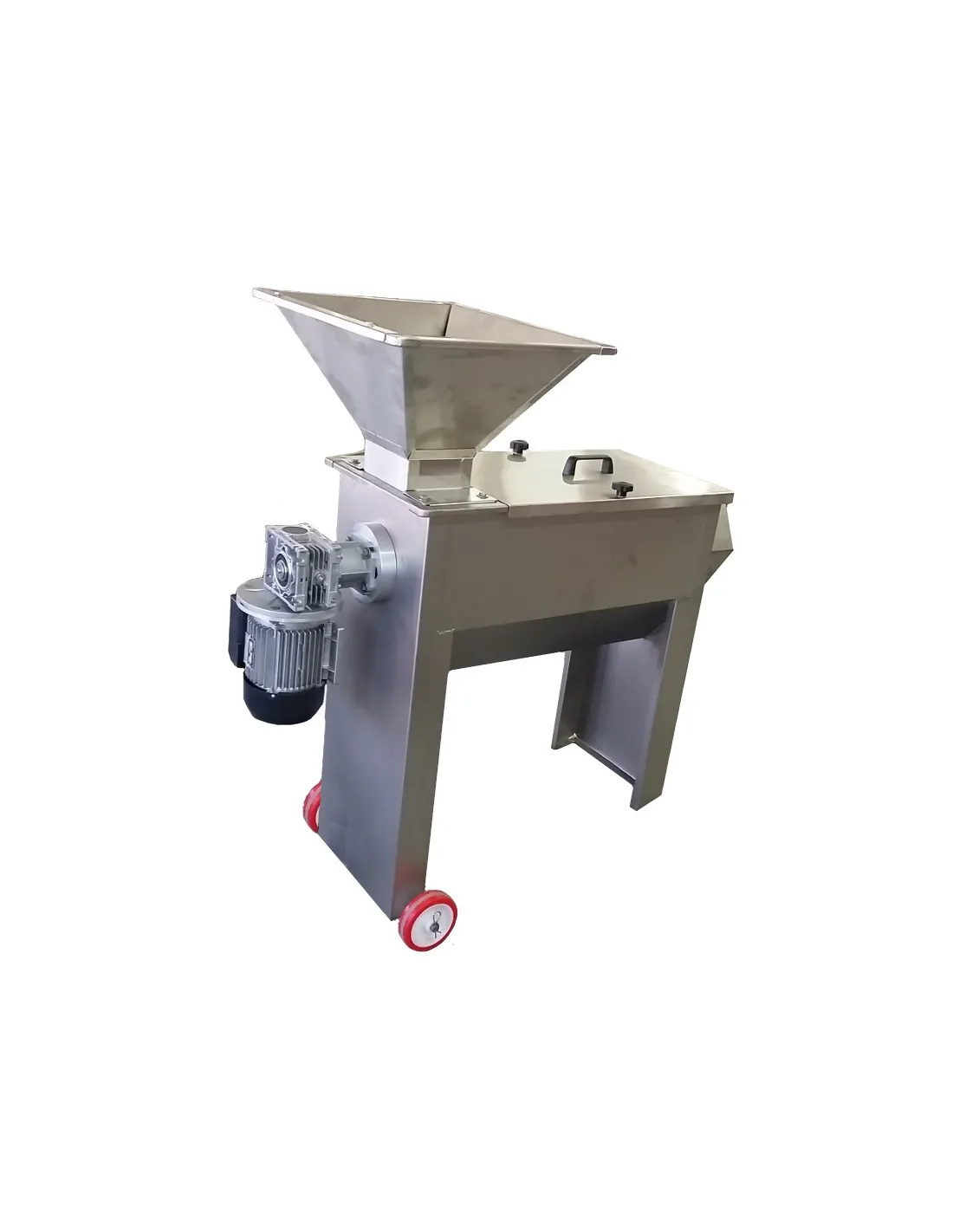

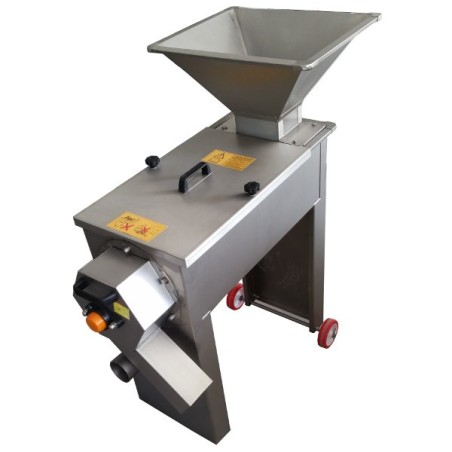

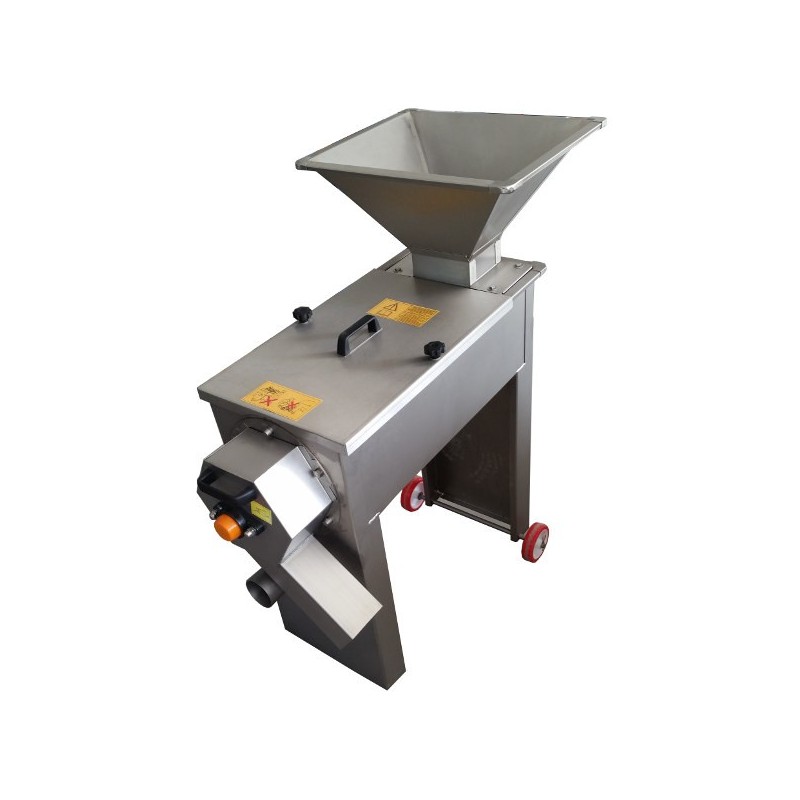

Fruit destoner-pulper 550 kg/h

The fruit destoner–pulper 550 kg/h is designed to separate pulp from stones while crushing fruit. Made entirely of AISI 304 stainless steel, it can be used as a cherry destoner, olive destoner and fruit pulper for processing apricots, plums and peaches. It can also pulp tomatoes and cooked vegetables.

The machine produces a fruit mash suitable for jams, preserves and fermentation. By fitting special screens, the resulting product can also be prepared for fruit juice production.

The destoner–pulper features a loading hopper with a safety grid, an internal feed auger and a separation drum with a dedicated stone discharge. It is equipped with an electric motor, a CE-compliant electrical system with emergency stop and two fixed wheels.

One stainless steel screen is included, with perforations selectable from 0.8 to 12 mm. Additional screens are available as optional accessories.

Technical specifications

• Construction: entirely in AISI 304 stainless steel;
• Loading hopper: with internal feed auger;
• Hopper dimensions: 55 × 46 cm;
• Shaft: stainless steel with adjustable food-grade rubber paddles;
• Electric motor: 1.5 HP (1.1 kW);
• Power supply: single-phase / three-phase;
• Power transmission: mechanical reducer;
• Electrical system: CE-compliant, with emergency stop;
• Included screen: 1 stainless steel screen, with selectable perforations from 0.8 to 12 mm;
• Wheels: 2 fixed wheels;
• Stone discharge height: 400 mm;
• Juice discharge height: 300 mm;
• Loading height from floor: 1,300 mm;
• Throughput: 550 kg/h;
• Operating speed: approximately 550 rpm;
• Dimensions: 110 × 65 × 130 cm;
• Weight: 80 kg.

Supplied with the user manual, CE Machinery Directive conformity certification and food-use compliance.

Optional accessories

• Additional stainless steel screens with perforations from 0.8 to 12 mm. Select the number of screens required and specify the hole sizes in the order comments at checkout;
• Additional screen with 0.6 mm perforations;
• Set of replacement rubber scrapers for the paddles;
• Replacement screen gasket.

Recommended screen perforations by fruit type

The following screen sizes are the most frequently requested for different processing applications:

• 8 mm: apricots and peaches;
• 6 mm: plums;
• 3 mm: cherries, fruit mash, pears, apples, sour cherries and morello cherries;
• 2–3 mm: olives. (combined with a variable speed drive and an inlet guillotine for product dosing. For green olives, the 1000 kg/h version is recommended, along with the inclusion of the previously suggested optional features);
• 1.5 mm: tomatoes and prickly pears;
• 1.2 mm: tomatoes, strawberries, raspberries, blackberries, redcurrants and grapes;
• 0.6 mm: pomegranates, when used in combination with a pomegranate deseeder.

User manual

Download the user manual from the Useful Documents tab for information on preparation before use, installation, cleaning and maintenance.

The same manual applies to all three available models.
