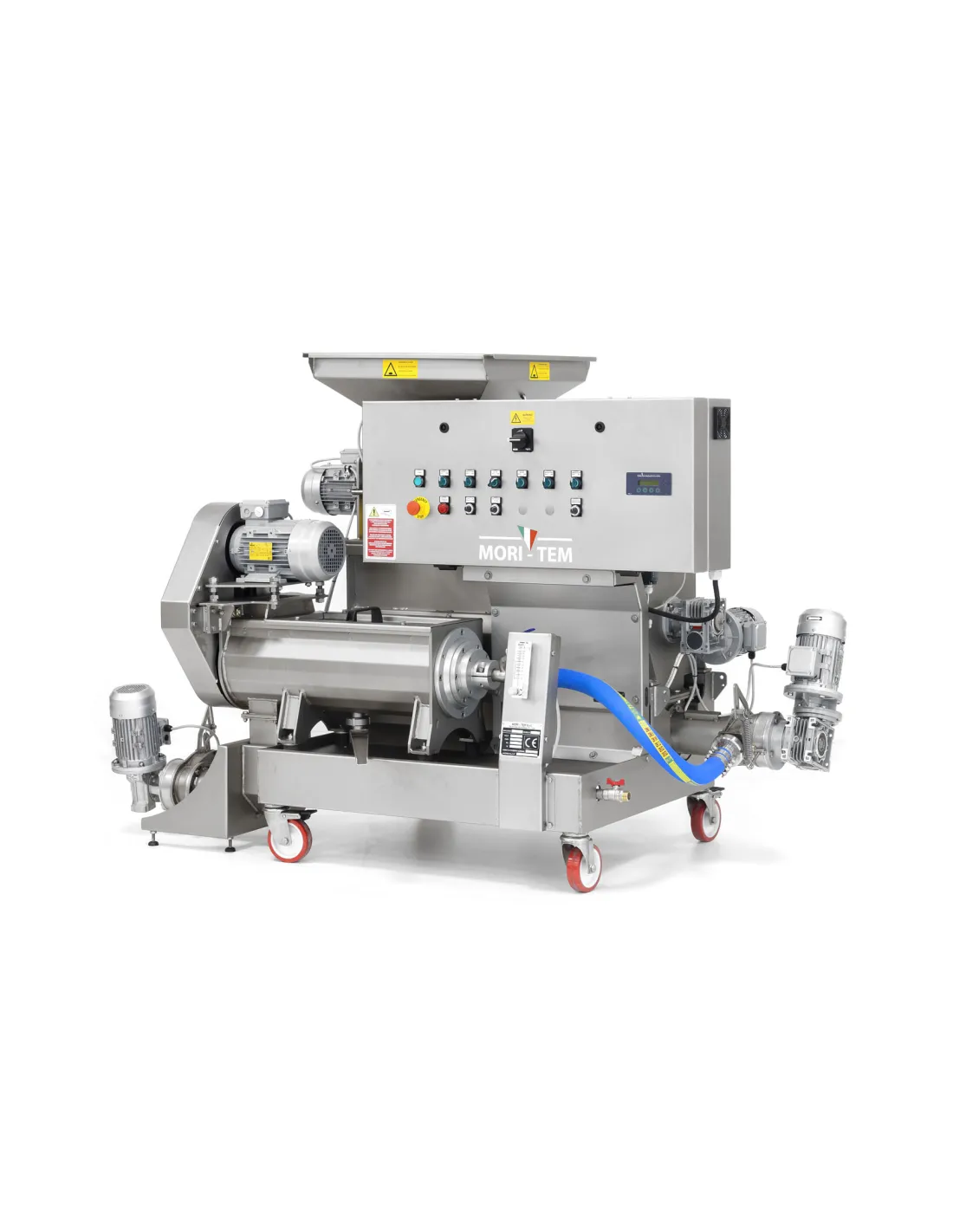

Oliomio Gold Mini Olive Mill - With Pump
Mori-TEMThe OLIOMIO GOLD Mini Olive Mill with pump is designed to meet the needs of producers of extra virgin olive oil with 8-hour daily runs up to 800 kg. Operation is very simple: defoliated and well-washed olives are fed into the receiving hopper, where an auger supplies the crusher, which is equipped with a fixed grid with external cleaner and a hollow-blade impeller. The resulting paste falls into the malaxer underneath, where continuous preparation takes place by means of a helical agitator. A pump located beneath the malaxer is fitted with a variable speed drive and sends the paste to the decanter, where separation occurs: oil exits on one side, and water and pomace on the other. The entire structure is made of AISI 304 stainless steel and food-grade materials.
- Motor: 3.5 kW
- Power supply: Single-phase or Three-phase
- Hourly throughput: 80–100 kg
- Processing type: Cold extraction
- Inverters on crusher/decanter
- Flowmeter for water regulation and automatic washing group
- Pomace discharge pump
- Temperature control management
- Variable feed rate for paste and olives
- Continuous operation
- Malaxer capacity: 100 kg
- Dimensions: H 167 × W 161 × D 90 cm
- Weight: 400 kg
- Lead time to be confirmed at order
