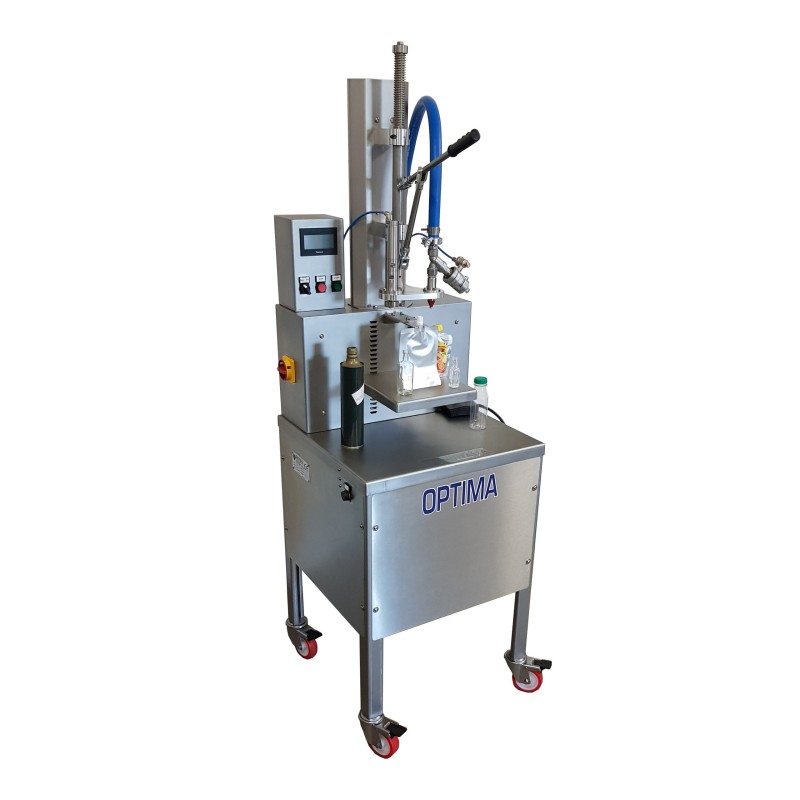

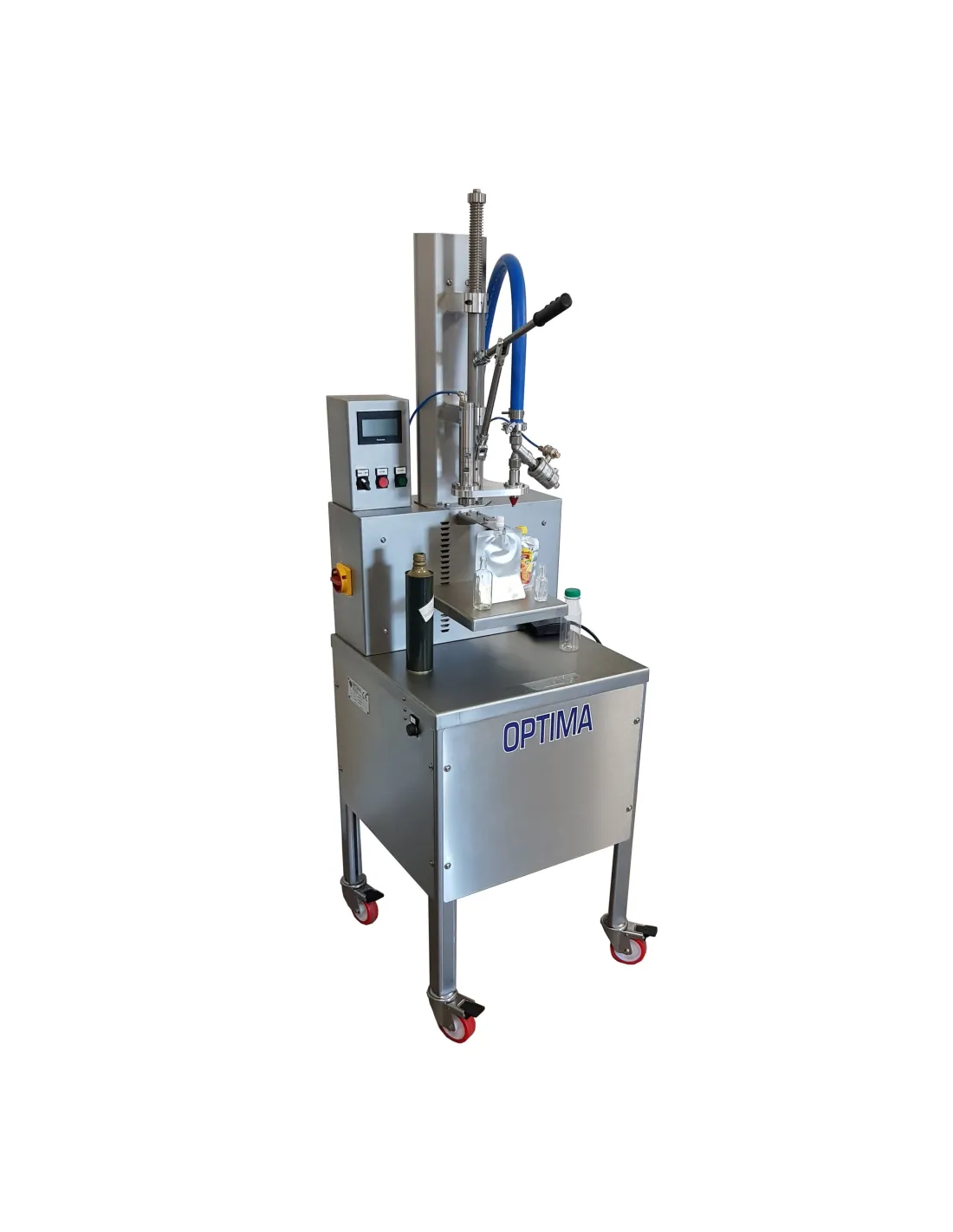

Oil Filling and Dosing Machine for Food Liquids

The oil filling and dosing machine is a programmable solution for olive oil, wine, fruit juices and other compatible liquid food products. Its touchscreen PLC and self-priming stainless steel gear pump with magnetic drive control the quantity dispensed into each container. The standard model is specified for filling quantities of 5 to 1,000 mL and has an indicative output of 380 one-litre containers per hour.

Designed for compatible glass, aluminium and PET containers, the machine combines an electronic variable-speed drive, stored filling programmes and a height-adjustable support table. The operator can choose an individual filling cycle or an automatic sequence with a programmable pause between fills.

Programmable filling for different products and containers

The PLC has a self-learning function and 10 preset filling programmes. Select the required format on the touchscreen, adjust the filling settings and use the foot-pedal control to start the cycle. The electronic speed control helps adapt dosing to the product and container.

• Automatic or manual operation: choose a single filling cycle or repeated cycles with an adjustable pause.
• Stored settings: recall filling programmes when changing container formats.
• Adjustable support: set the table height to suit compatible bottles and containers.
• Self-priming pump: stainless steel gear dosing pump with magnetic drive.
• Variable speed: electronic control of the filling rate.

Technical specifications

• Stainless steel frame with four lockable wheels.
• Touchscreen PLC with self-learning function and 10 preset programmes.
• Self-priming stainless steel gear pump with magnetic drive.
• Electronic variable-speed drive.
• Automatic/manual filling selector and foot-pedal start control.
• Height-adjustable container support table.
• Specified filling range: 5 to 1,000 mL.
• Indicative output: 380 one-litre containers per hour.
• Power supply: 220 V, single-phase.
• Power: 1.2 kW.
• Dimensions: 60 x 60 x 160 cm.
• Weight: 110 kg.

Output is indicative and depends on the product, container and operating settings. Check the appropriate machine configuration if you need to fill quantities above the standard specified range.

Suitable products and optional configurations

The standard configuration is intended for compatible liquid products such as olive oil, wine and fruit juices. Product characteristics and container compatibility should be checked before ordering.

For sauces, jams and similar thicker products, an optional filling kit is available. It includes an 800 L/h lobe pump mounted on a trolley and an anti-drip filling head. This kit is not part of the standard machine.

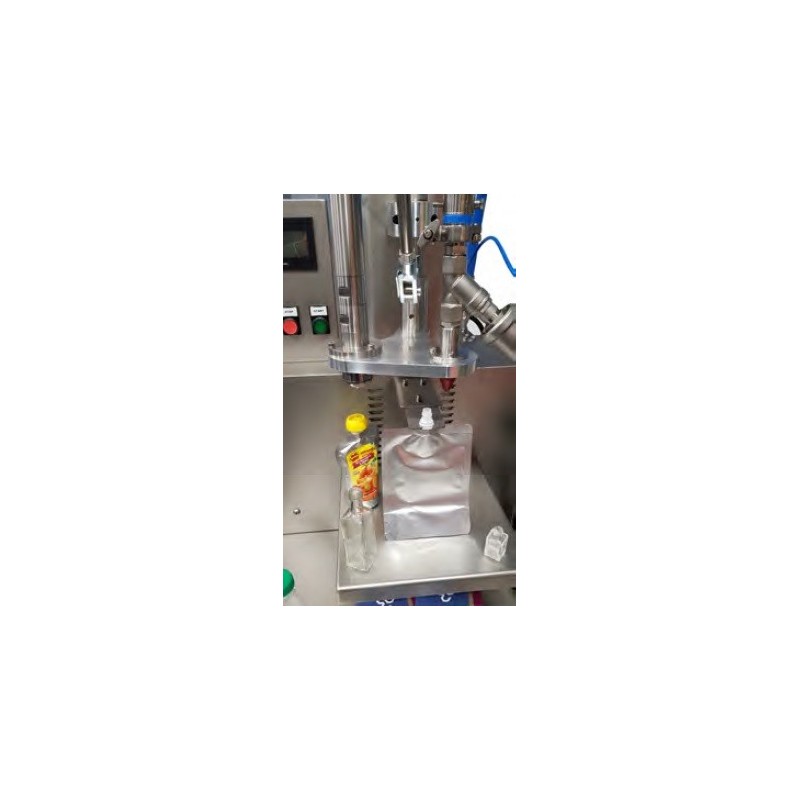

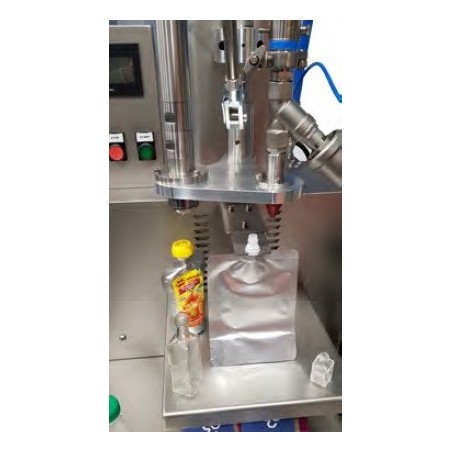

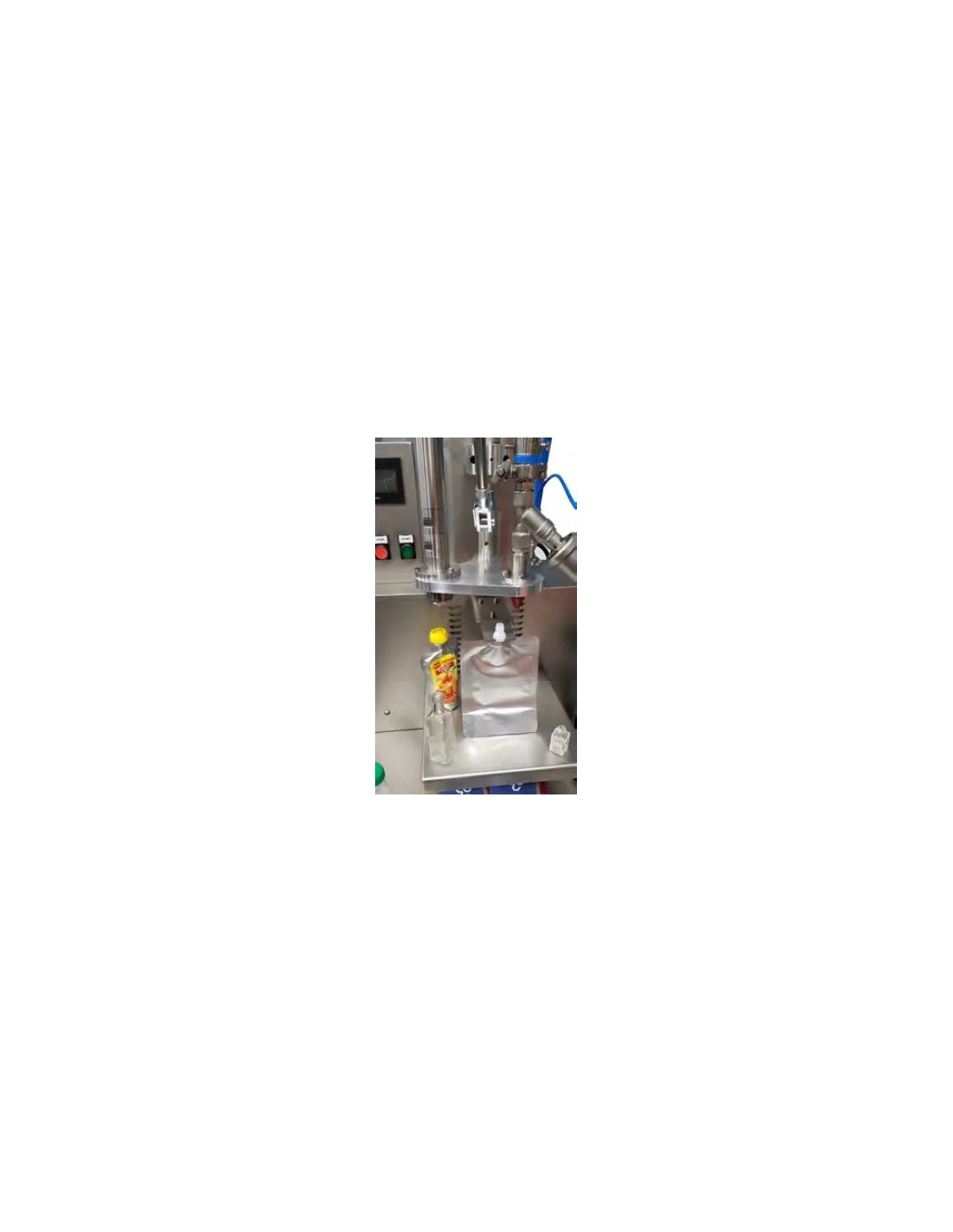

An optional kit is also available for filling and capping compatible Dosypack flexible containers. Bag positioning remains manual; the kit provides the dedicated filling and capping configuration.

Optional accessories

• Sauces, jams and condiments filling kit: 800 L/h lobe pump on a trolley with anti-drip head.
• Dosypack filling and capping kit.
• Silenced oil-free compressor.

Oil filling and dosing or gravimetric filling?

This model controls dosing through a programmable pump and electronic filling settings. If your process specifically requires dosing by weight using an integrated scale, compare it with our gravimetric oil filler with variable speed.

Browse the olive oil filling machines category to compare other systems before choosing a configuration.

Frequently asked questions

What is the standard filling range?

The published technical specification for the standard model is 5 to 1,000 mL. Contact AgriStore to confirm a suitable configuration if you need larger fills.

Can the machine fill sauces and jams?

A dedicated optional kit is available for these products, with an 800 L/h lobe pump, trolley and anti-drip head. Do not assume that the standard configuration is suitable for every product viscosity.

Can it fill flexible Dosypack containers?

Yes, with the optional Dosypack filling and capping kit. The required container and closure compatibility should be confirmed before ordering.

Does the machine support repeated filling cycles?

Yes. The automatic mode allows the operator to set the pause between cycles; manual operation is also available.

For help selecting the machine and optional accessories, contact AgriStore at info@agristorecosenza.it.
