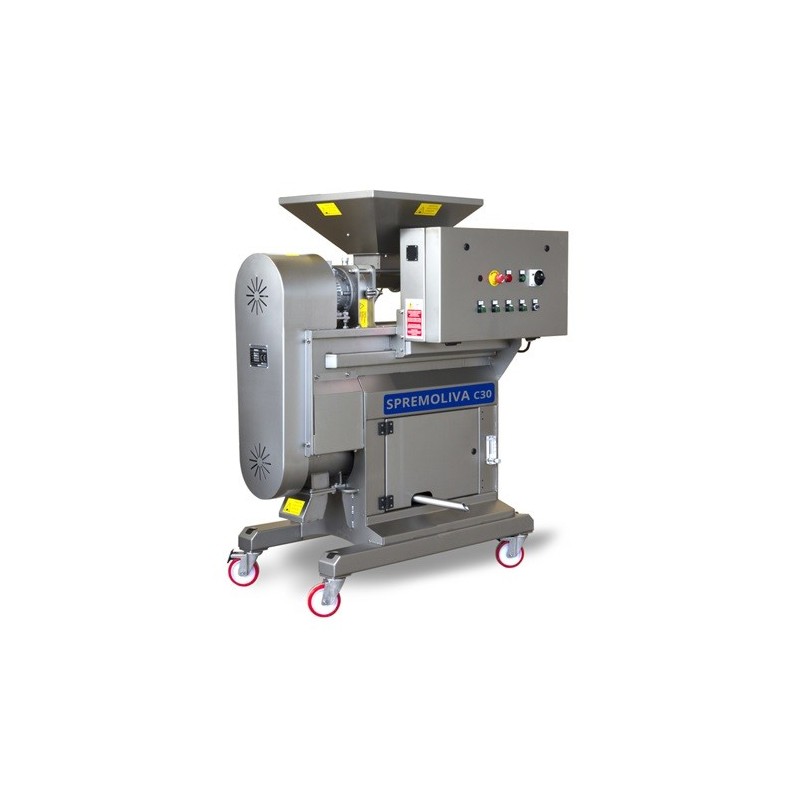

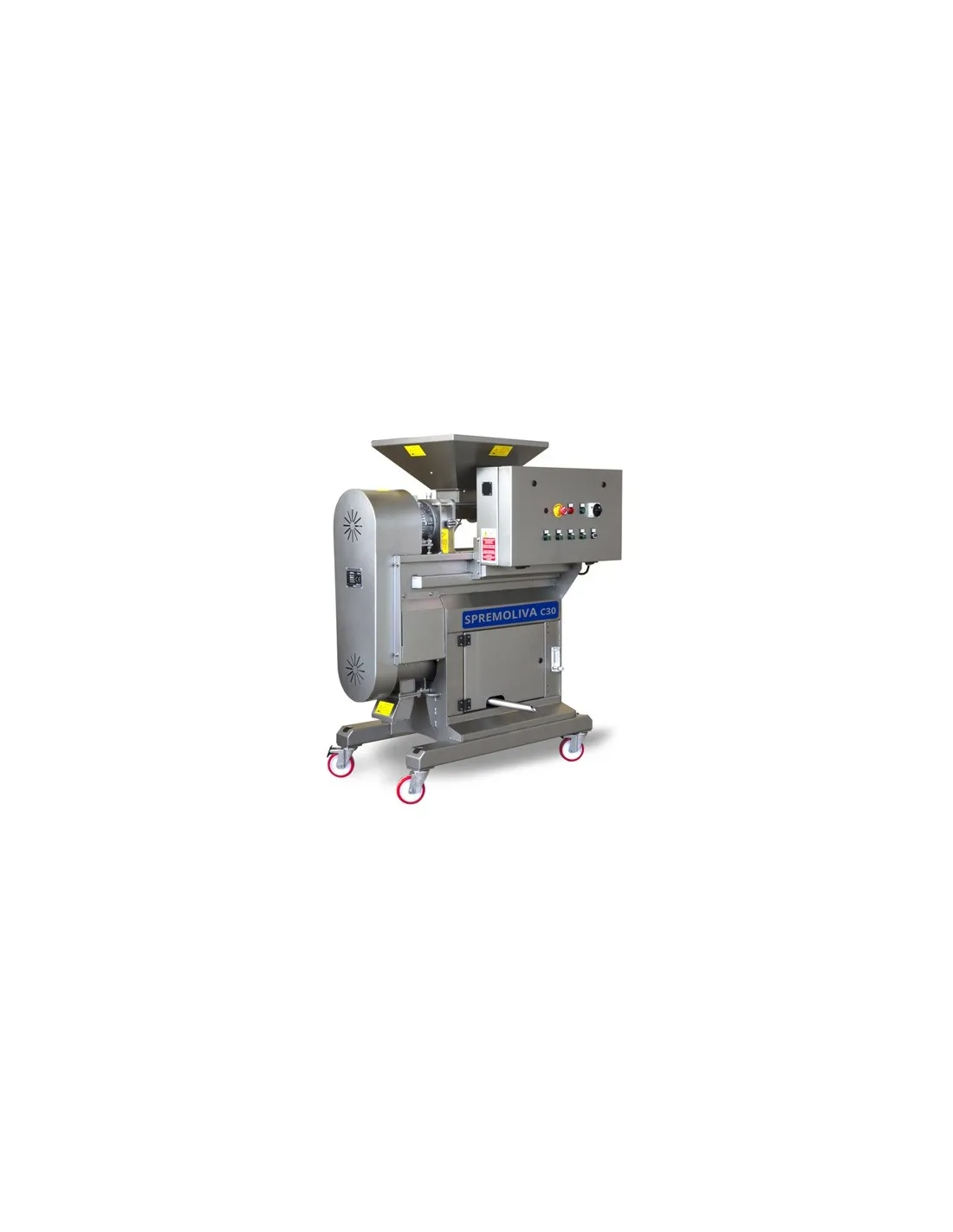

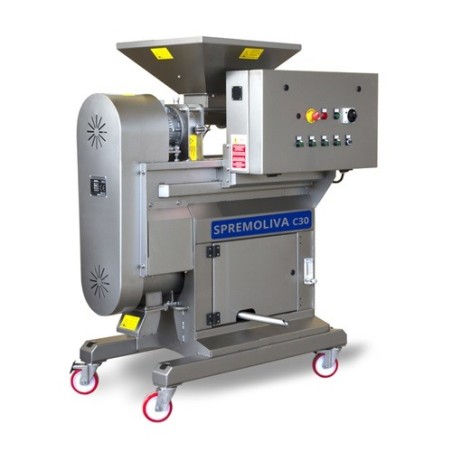

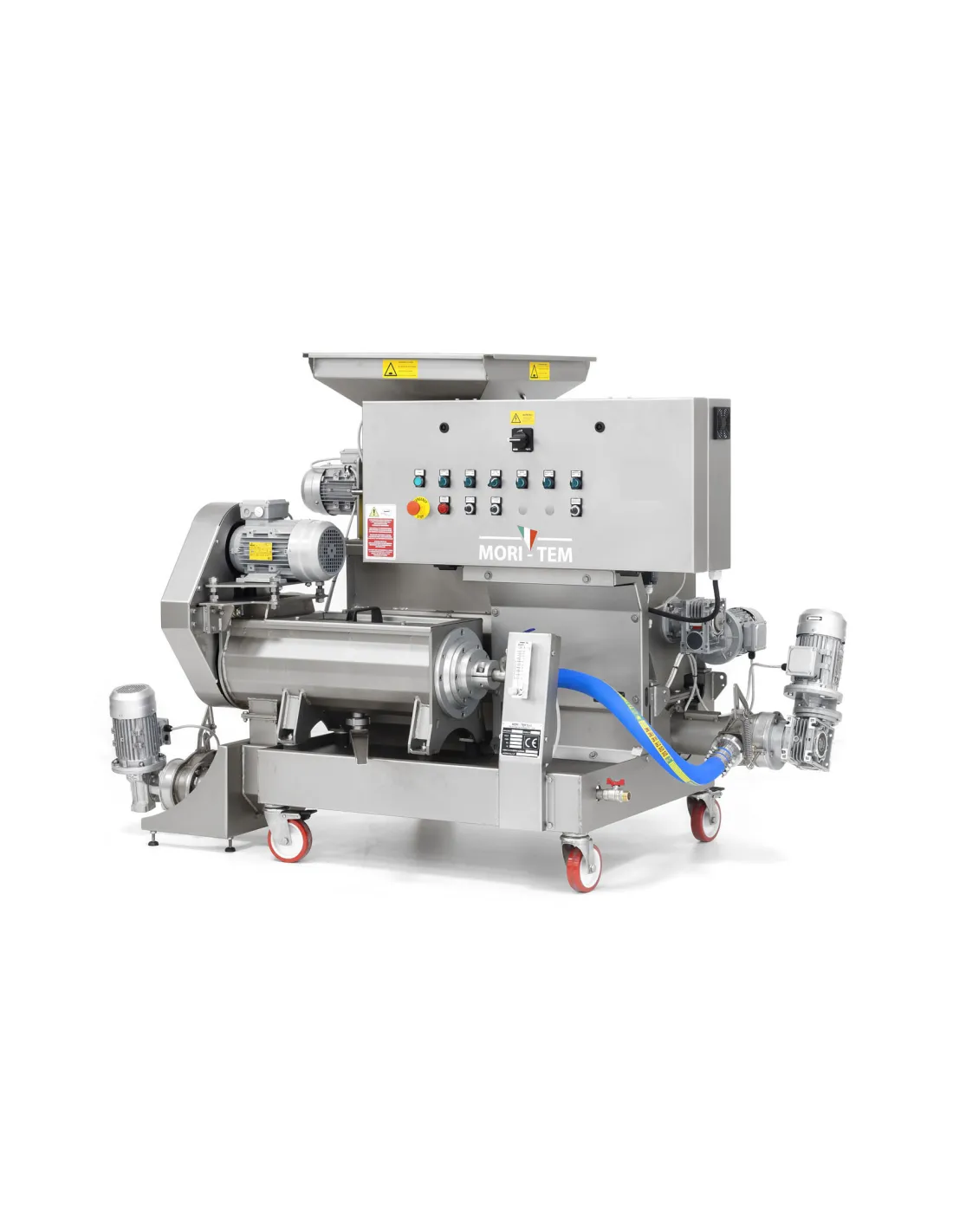

Spremoliva Mini Olive Mill
Mori-TEM
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information
The Spremoliva mini olive oil mill is designed for small producers, farms and businesses that want to produce extra virgin olive oil independently, processing olives immediately after harvesting.
The machine integrates the main processing stages: crushing, malaxing and extraction. It is particularly suitable for family production, small farm batches and more continuous processing.
After being defoliated and washed, the olives are loaded into the receiving hopper and sent to the crusher. The olive paste then passes into the horizontal malaxer and subsequently into the 2-phase decanter, where the oil is separated from water and pomace. The structure is made from AISI 304 stainless steel and materials suitable for food contact.
For a more complete processing line, we recommend combining the mini oil mill with a olive washer & leaf remover and an oil filtration solution.
Features of the 30 - 40 kg/h mini oil mill:
- Motor: 3 kW 50 Hz (3-pin plug – 16 Ampere)
- Power supply: Single-phase
- Operation with power generator. Minimum power 10 kW
- Hourly output: 30-40 kg (for 8-hour daily production up to 300 kg)
- Processing type: Cold processing
- Inverter for adjusting olive paste feed speed
- Water regulation flow meter
- Cylinder washing kit
- Olive paste feed variator
- Fixed decanter nozzles
- Malaxer capacity: 100 kg with divider and level sensor
- Overall dimensions: H 141 x W 200 x D 117 cm
- Weight: 330 kg
- Delivery times to be confirmed at the time of order

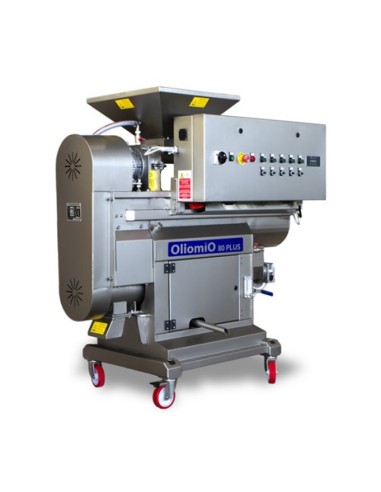

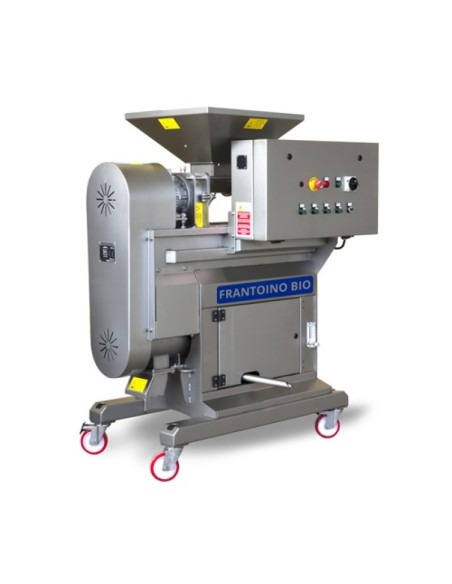

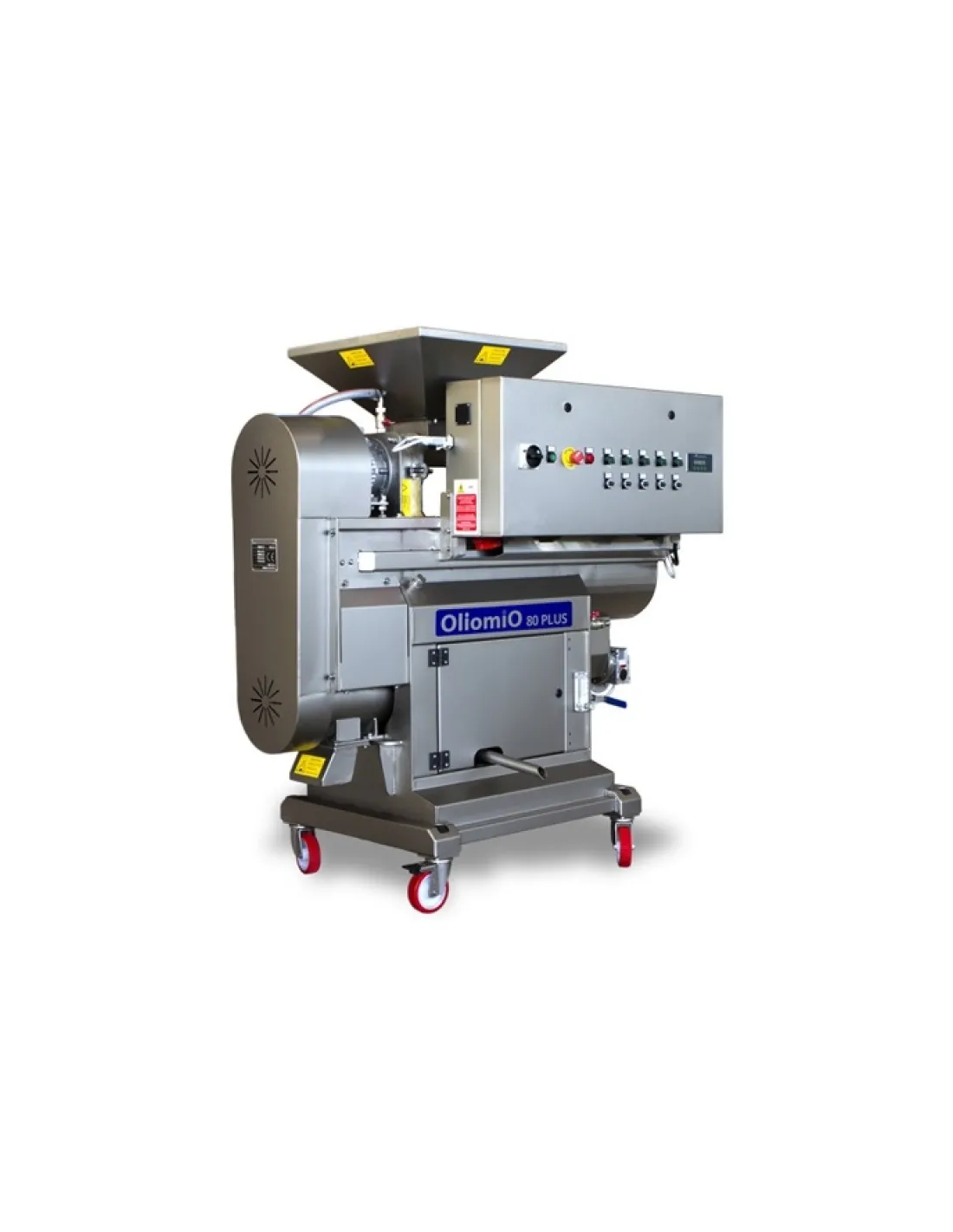

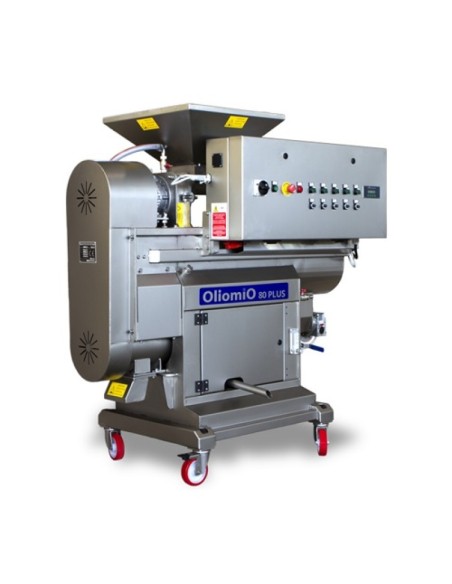

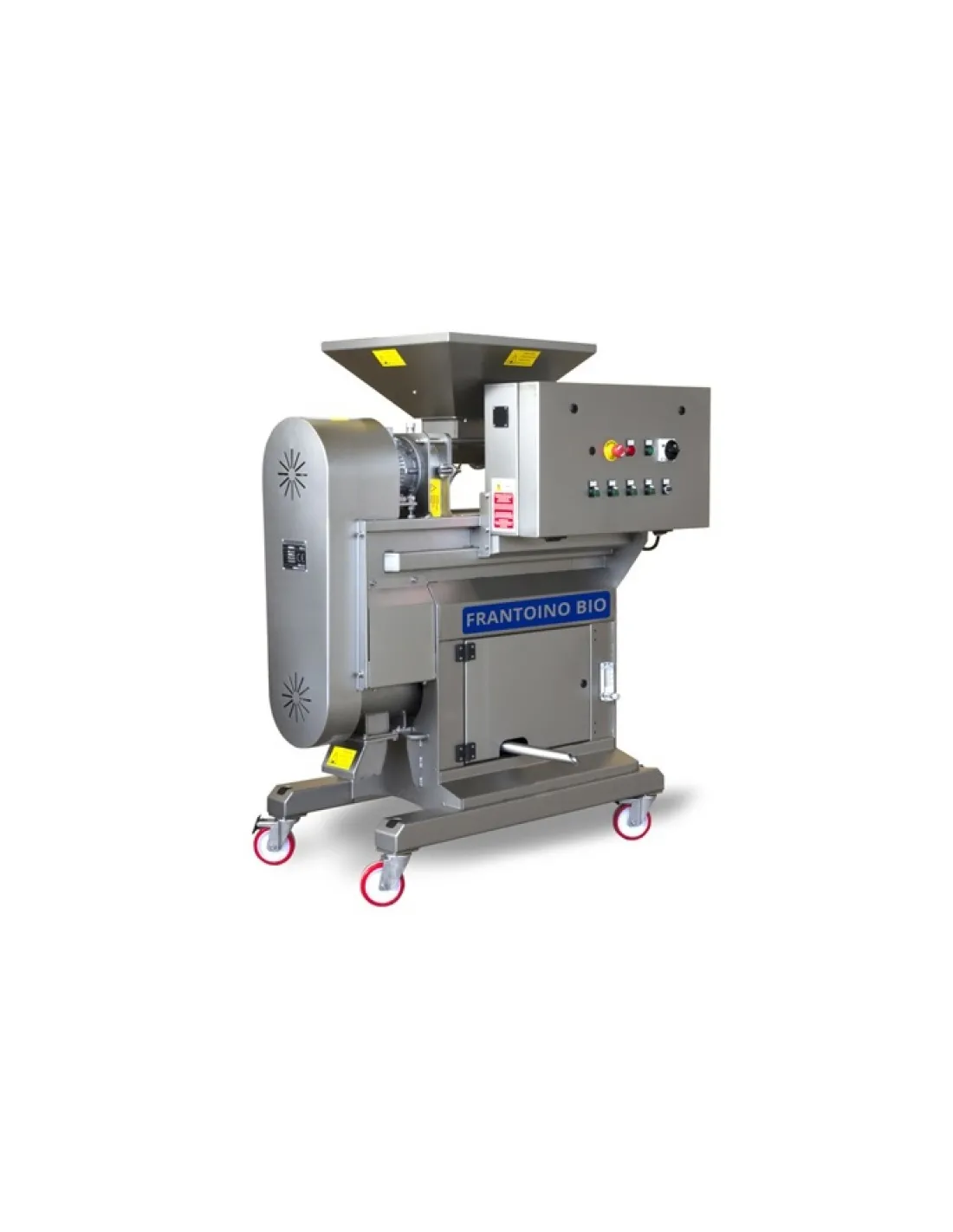

For higher production needs, we recommend the Frantoino Bio 50 kg/h model or the Oliomio 80 kg/h mini oil mill.
- Working capacity
- Engine
- Weight
- Power supply
- Single phase
- Indicative capacity in 8 hours
- Gramolina capacity
- Olive pomace drain pump
- Crusher
- Adjusting the olive paste speed
- Crusher speed adjustment
- Olive inlet regulation
- Water dosing flowmeter
- Cylinder flushing kit
- Adjusting the olive paste input into the decanter
- Decanter
- Gramoline washing kit
- Heating in the cavity of the kneaders
