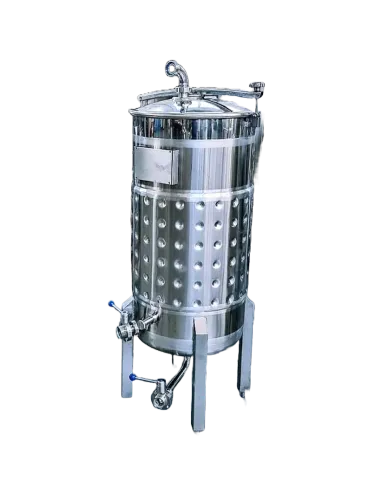

180 L Stainless Steel Temperature-Controlled Beer Fermenter
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information

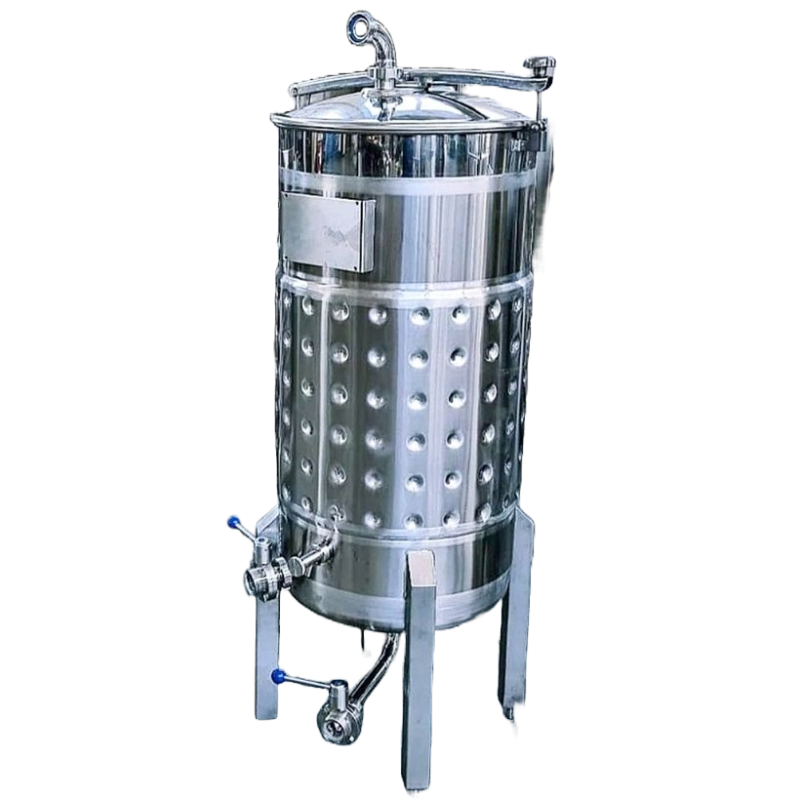

The 180 L stainless steel temperature-controlled beer fermenter is designed for craft beer production and professional breweries. With a total capacity of approximately 180 litres, it is made from AISI 304 stainless steel and equipped with a heating/cooling jacket for temperature management during fermentation.
Key features
- Capacity: approximately 180 litres total;
- External dimensions: 500 mm external diameter and 1400 mm overall height;
- Internal finish: mirror-polished with satin-finished welds;
- External finish: satin-finished with satin-finished welds;
- Construction material: AISI 304 BA stainless steel for the inner cylinder;
- Welding: TIG welded with shielding gas;
- Bottom: dished bottom designed to facilitate sediment collection and drainage during fermentation;
- Legs: 4 legs, 400 mm high;

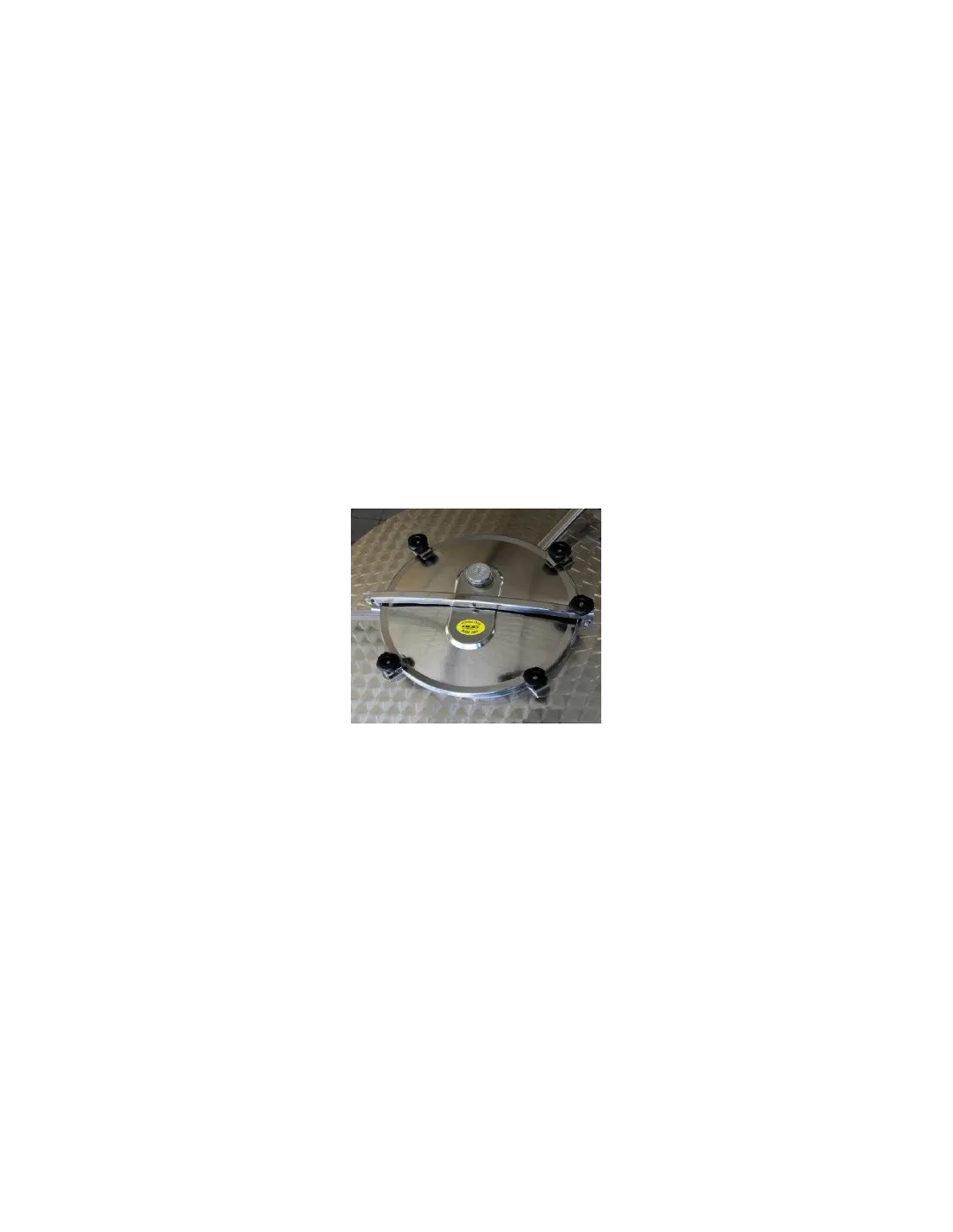

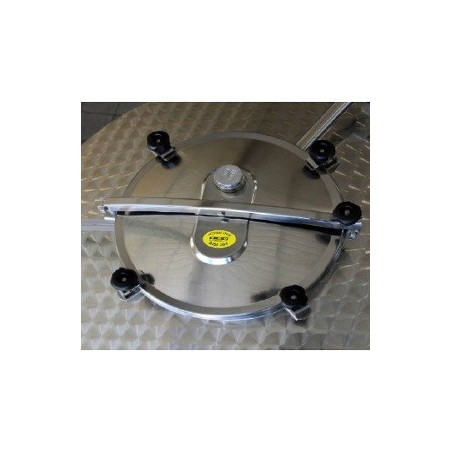

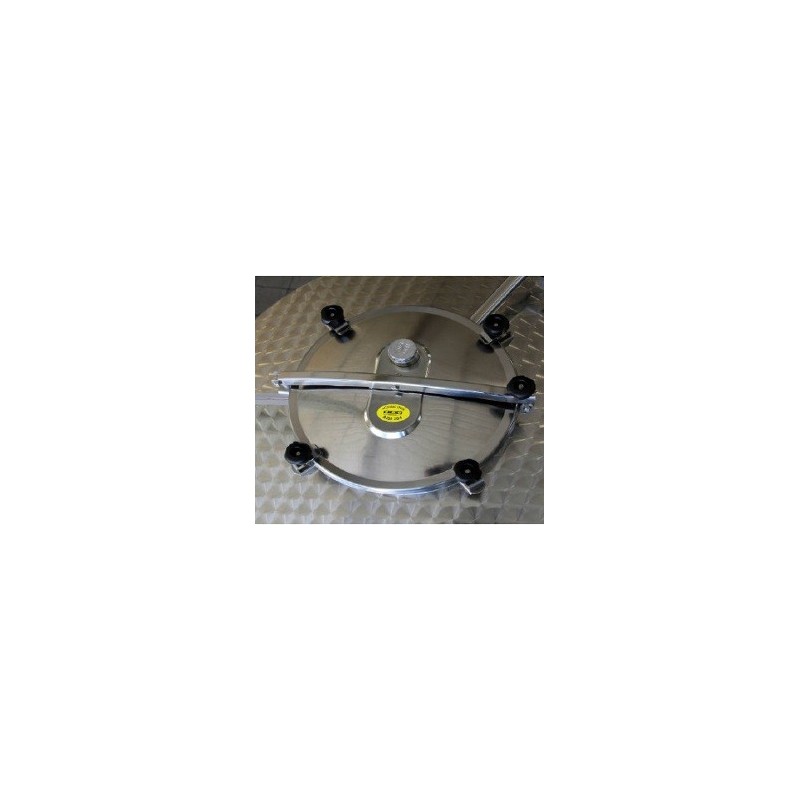

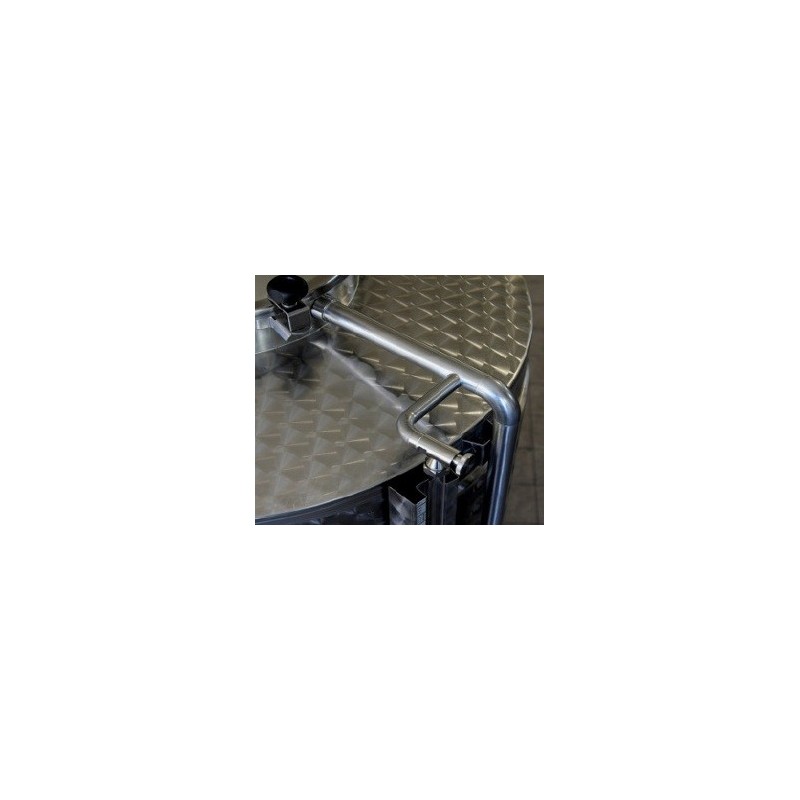

- Manway: AISI 304 stainless steel manway with side opening and hinged cover;
- Total and partial drain: butterfly valve with DIN 32 ferrule;
- Heating/cooling jacket: honeycomb-stamped AISI 304 stainless steel jacket, 12/10 thickness, with two 1" female couplings for coolant inlet and outlet;
- Maximum jacket working pressure: 1.5 bar;
- Probe port: AISI 304 stainless steel, 200 mm long, for temperature monitoring.
The heating/cooling jacket and temperature probe port allow the fermentation temperature to be monitored and managed during the brewing process.
- Fund type
- Conico 10 e 30°
- Cylinder thickness
- 2 mm
- Bottom thickness
- 1,5 mm
- Total discharge
- Din 32
- Cooling
- Yes
- Insulation
- No
- Operating pressure
- Atmospheric
- Equipment

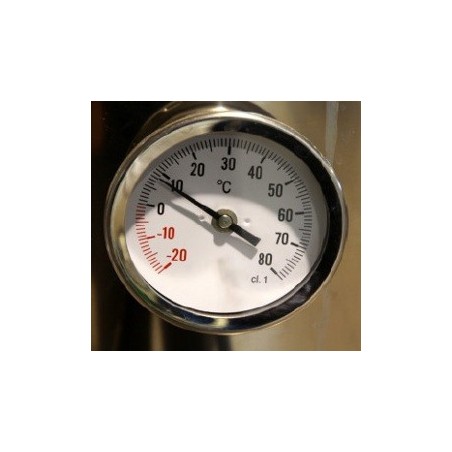

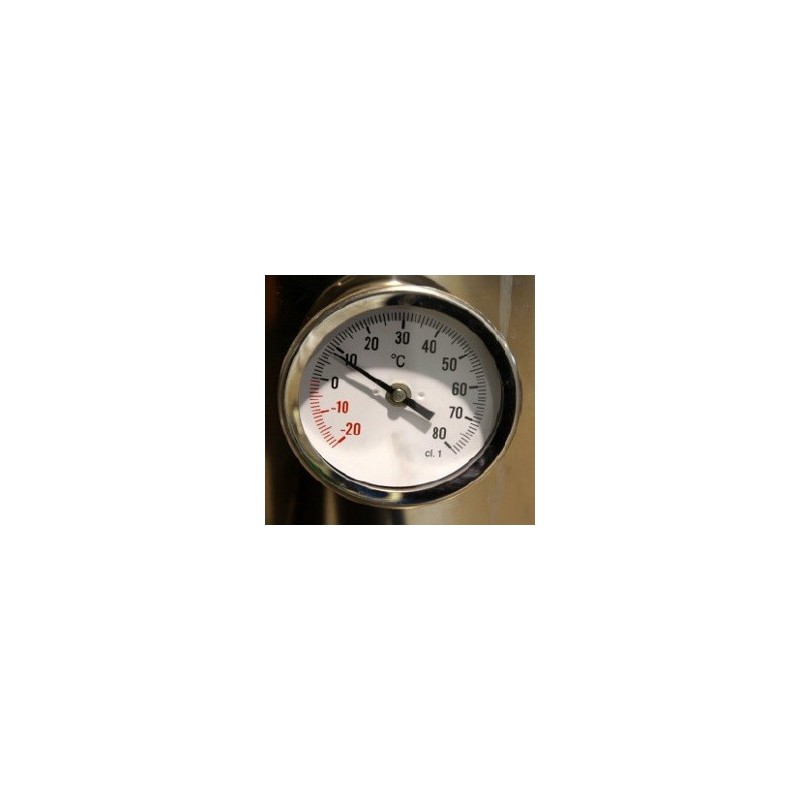

- Sample collector, level, adjustable feet, thermometer, probe holder
- Partial discharge
- Din 32
- Legs
- Welded on the bottom
