Professional Stainless Steel Conical Fermenter for Beer

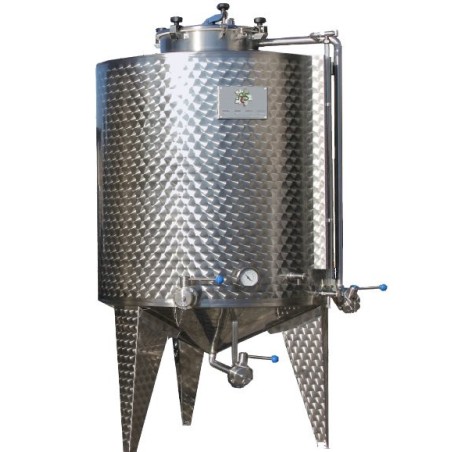

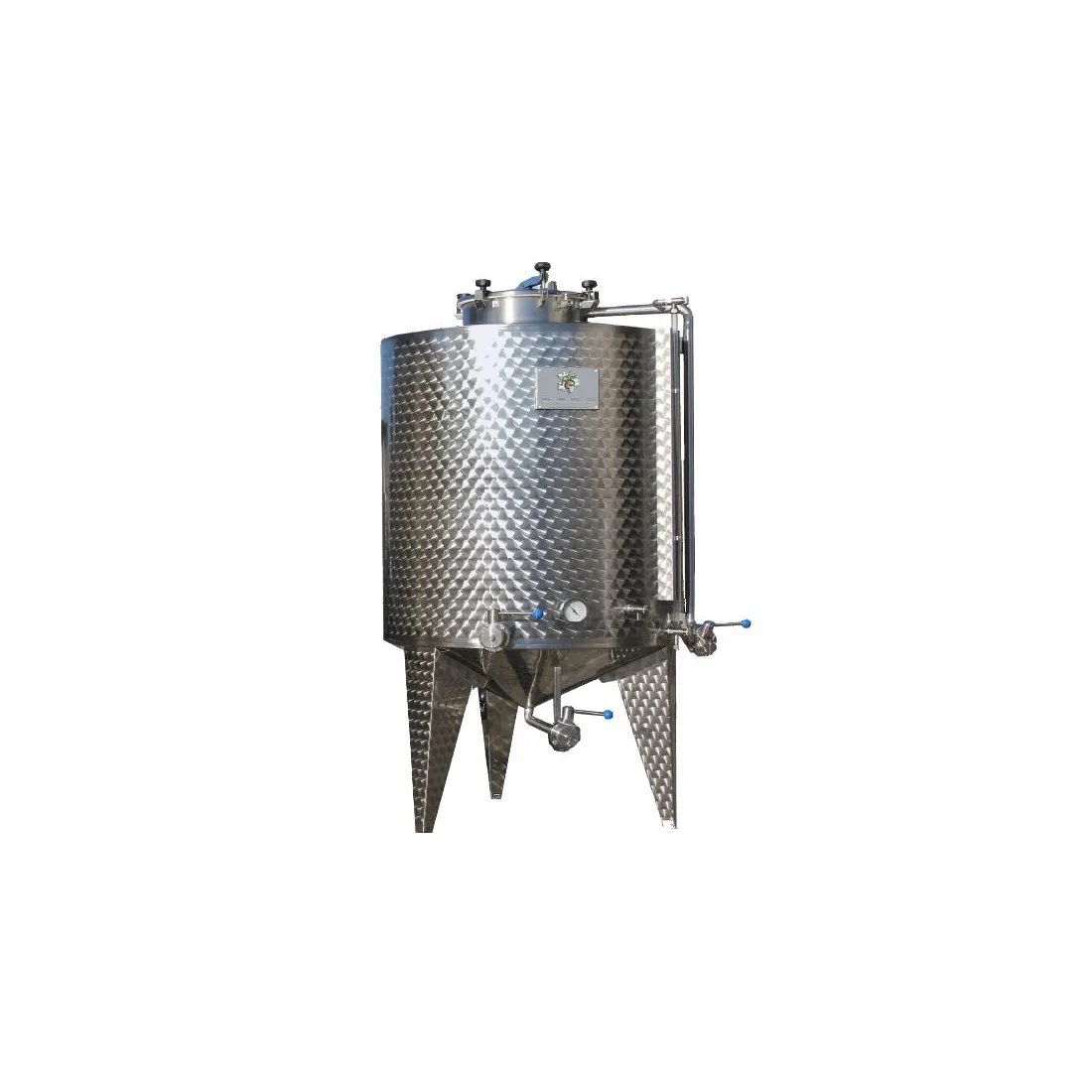

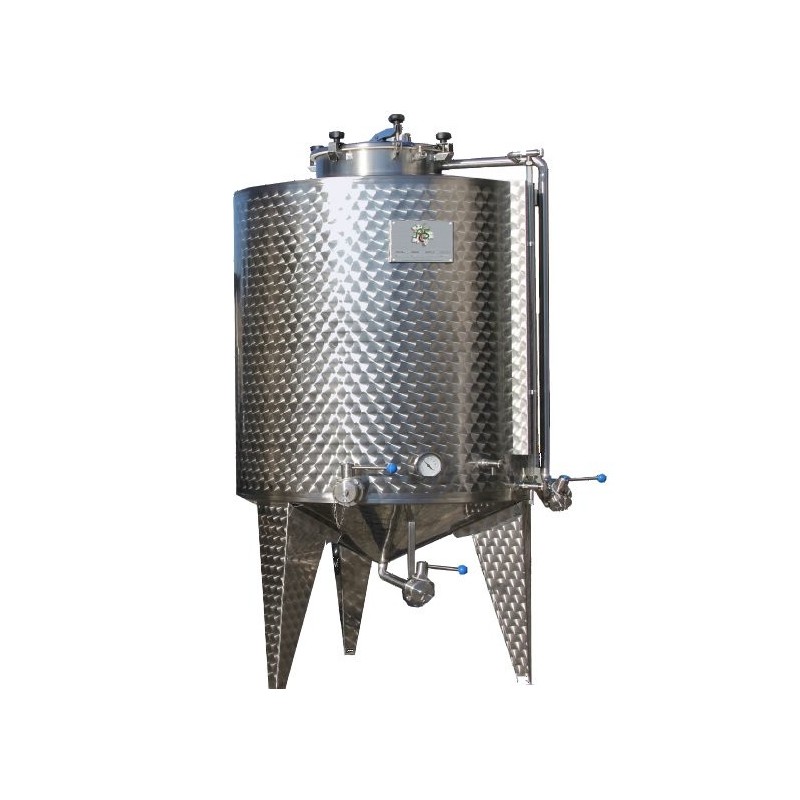

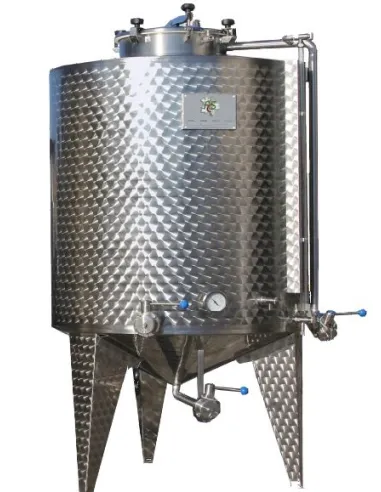

The professional stainless steel conical fermenter is a tank made of AISI 304 stainless steel, designed for use during the beer fermentation and maturation stages. This beer fermenter is entirely manufactured in Italy, a guarantee of quality, reliable workmanship and careful material selection.

The tank is available in multiple capacities and features a mirror-polished internal finish and a “fiorettata” external finish. Versions are available with a 10° conical bottom or a 30° conical bottom, depending on your process requirements.

Construction and equipment

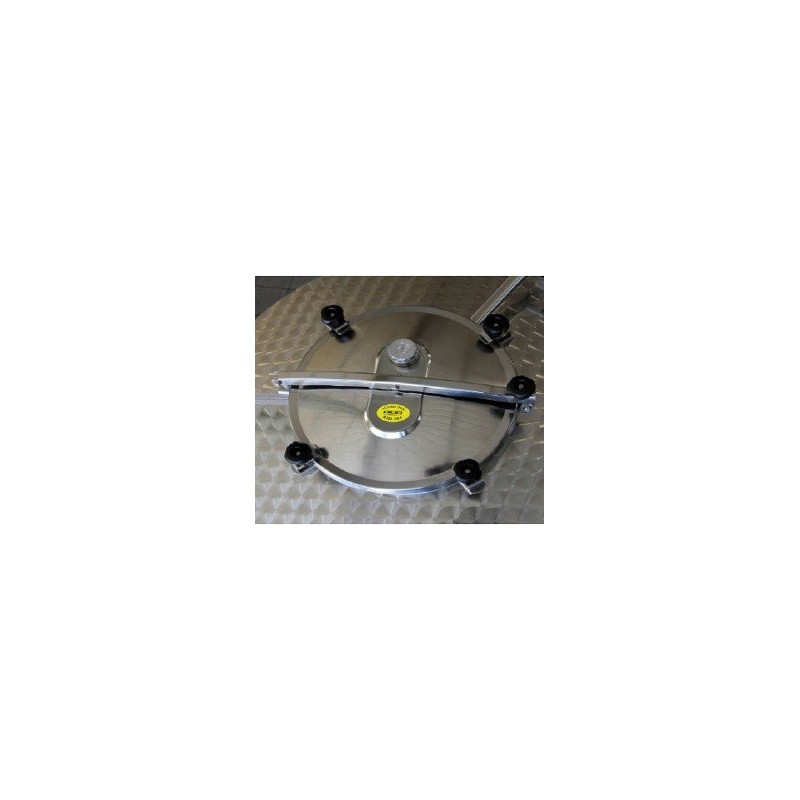

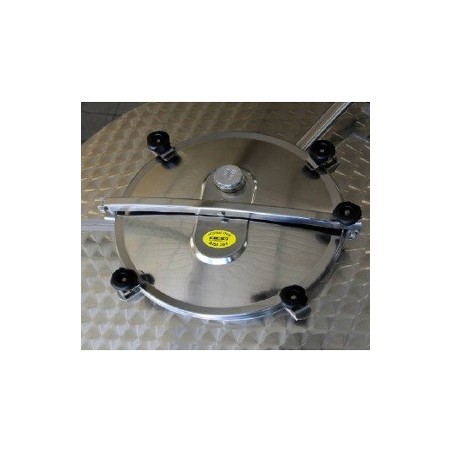

The top manway has a 40 cm diameter and is prepared for inert gas, with a reinforced 4-wing-nut closure. The fermenter also includes partial and total drain valves, an analog thermometer, a sample valve, a sight level with stainless steel protection and a return line on the wash pipe to make cleaning operations easier.

Available versions (cone angle and capacity in liters)

• 10° - 300 liters;
• 10° - 400 liters;
• 10° - 500 liters;
• 10° - 700 liters;
• 10° - 850 liters;
• 10° - 1100 liters;
• 30° - 350 liters;
• 30° - 450 liters;
• 30° - 550 liters;
• 30° - 750 liters;
• 30° - 900 liters;
• 30° - 1150 liters;

Technical features common to all versions

• Built in AISI 304 stainless steel;
• Mirror-polished internal finish;
• “Fiorettata” external finish;
• 40 cm top manway prepared for inert gas, with reinforced 4-wing-nut closure;
• 3/8'' stainless steel valve for inert gas inlet;
• 1'' stainless steel wash pipe;
• DN 30 DIN 32 MG/32 DIN female butterfly valve at the wash pipe inlet;

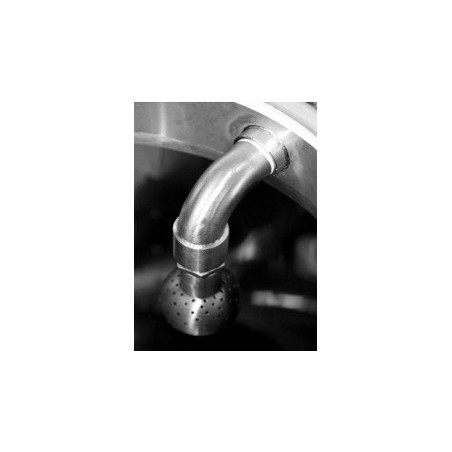

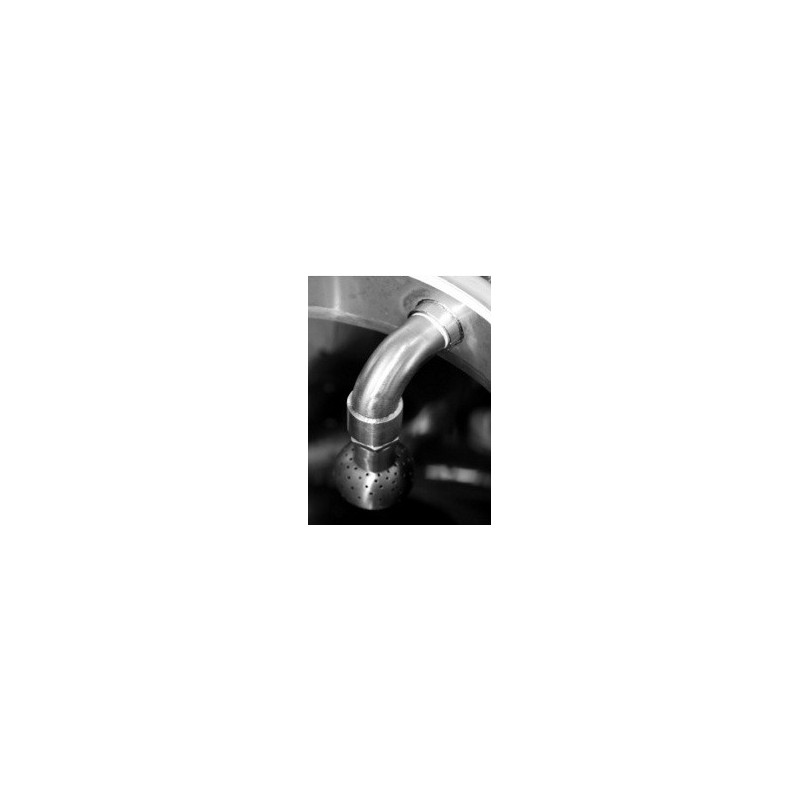

• Fully perforated 65 mm stainless steel spray ball at the wash pipe outlet inside the manway;
• Sight level with stainless steel protection and return on the wash pipe for easier cleaning;

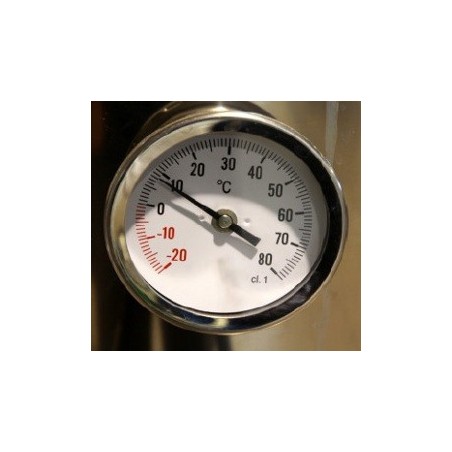

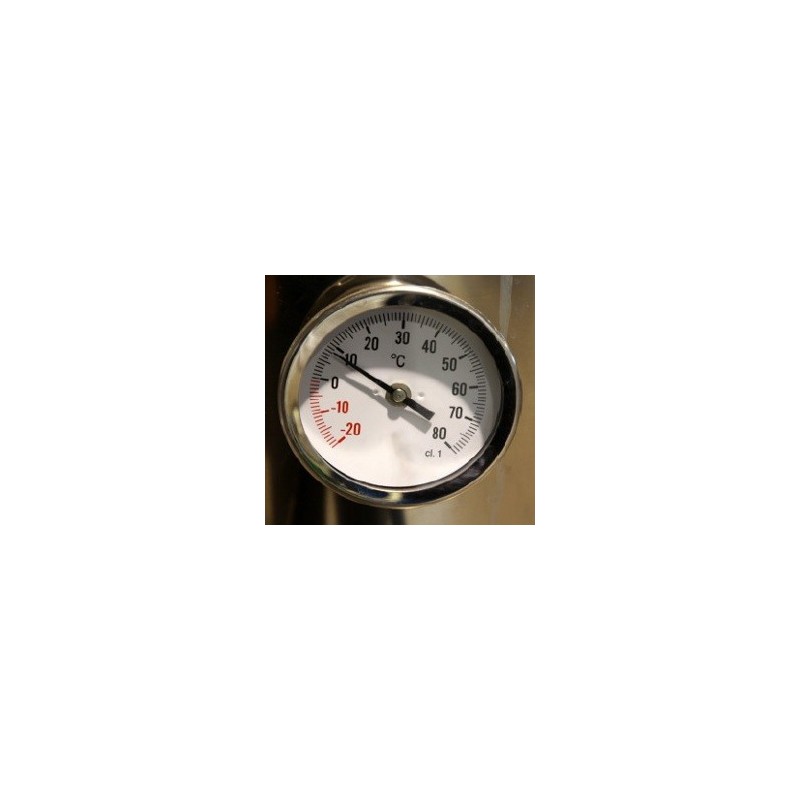

• Stainless steel analog thermometer with protective housing;
• 3/8'' stainless steel sample valve;
• Partial drain with DN 30 DIN 32 MG/32 DIN female butterfly valve;
• Total drain with DN 30 DIN 32 MG/32 DIN female butterfly valve;

For each available version, please find the technical specifications below:

Stainless Steel Conical Fermenter 300 L – 10°

• Capacity: 300 liters;
• Total height: 190 cm;
• Cylinder diameter 64 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 50 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 400 L – 10°

• Capacity: 400 liters;
• Total height: 190 cm;
• Cylinder diameter 72 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 500 L – 10°

• Capacity: 500 liters;
• Total height: 190 cm;
• Cylinder diameter 80 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 700 L – 10°

• Capacity: 700 liters;
• Total height: 190 cm;
• Cylinder diameter 93 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 850 L – 10°

• Capacity: 850 liters;
• Total height: 190 cm;
• Cylinder diameter 102.5 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 1100 L – 10°

• Capacity: 1100 liters;
• Total height: 190 cm;
• Cylinder diameter 115 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 10° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 350 L – 30°

• Capacity: 350 liters;
• Total height: 190 cm;
• Cylinder diameter 64 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 450 L – 30°

• Capacity: 450 liters;
• Total height: 190 cm;
• Cylinder diameter 72 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 550 L – 30°

• Capacity: 550 liters;
• Total height: 190 cm;
• Cylinder diameter 80 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 750 L – 30°

• Capacity: 750 liters;
• Total height: 190 cm;
• Cylinder diameter 93 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 900 L – 30°

• Capacity: 900 liters;
• Total height: 190 cm;
• Cylinder diameter 102.5 cm, height 115 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.

Stainless Steel Conical Fermenter 1150 L – 30°

• Capacity: 1150 liters;
• Total height: 180 cm;
• Cylinder diameter 115 cm, height 100 cm, thickness 1.2 mm on sides and 1.5 mm on the bottom;
• 30° conical bottom;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom.
