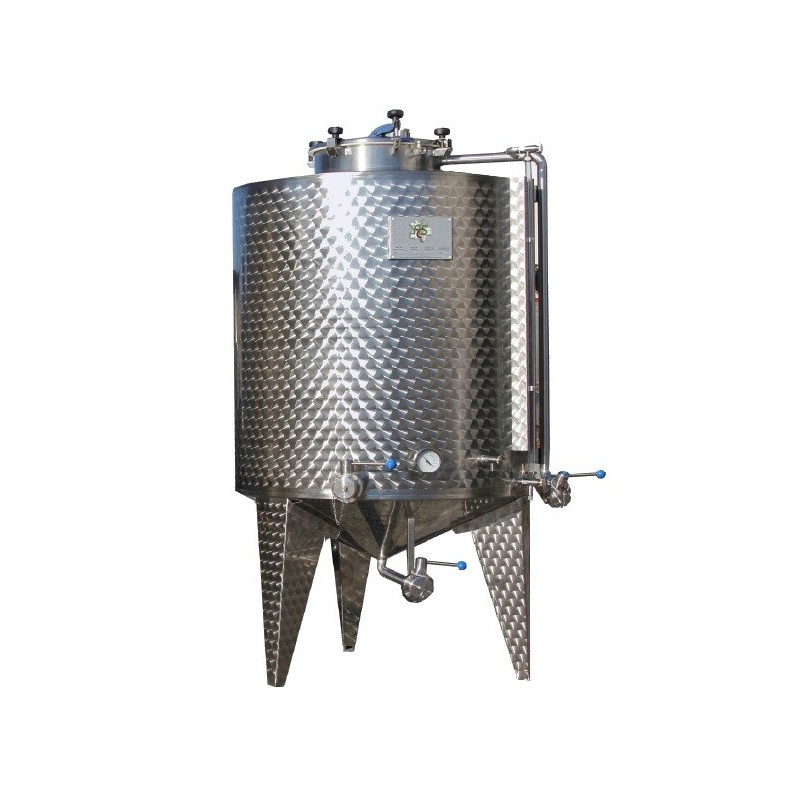

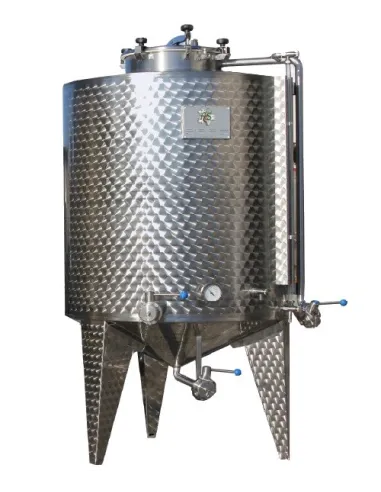

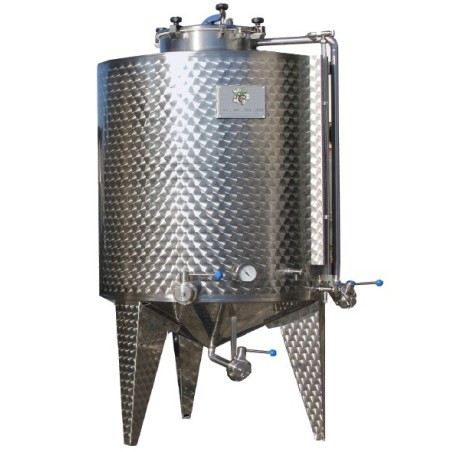

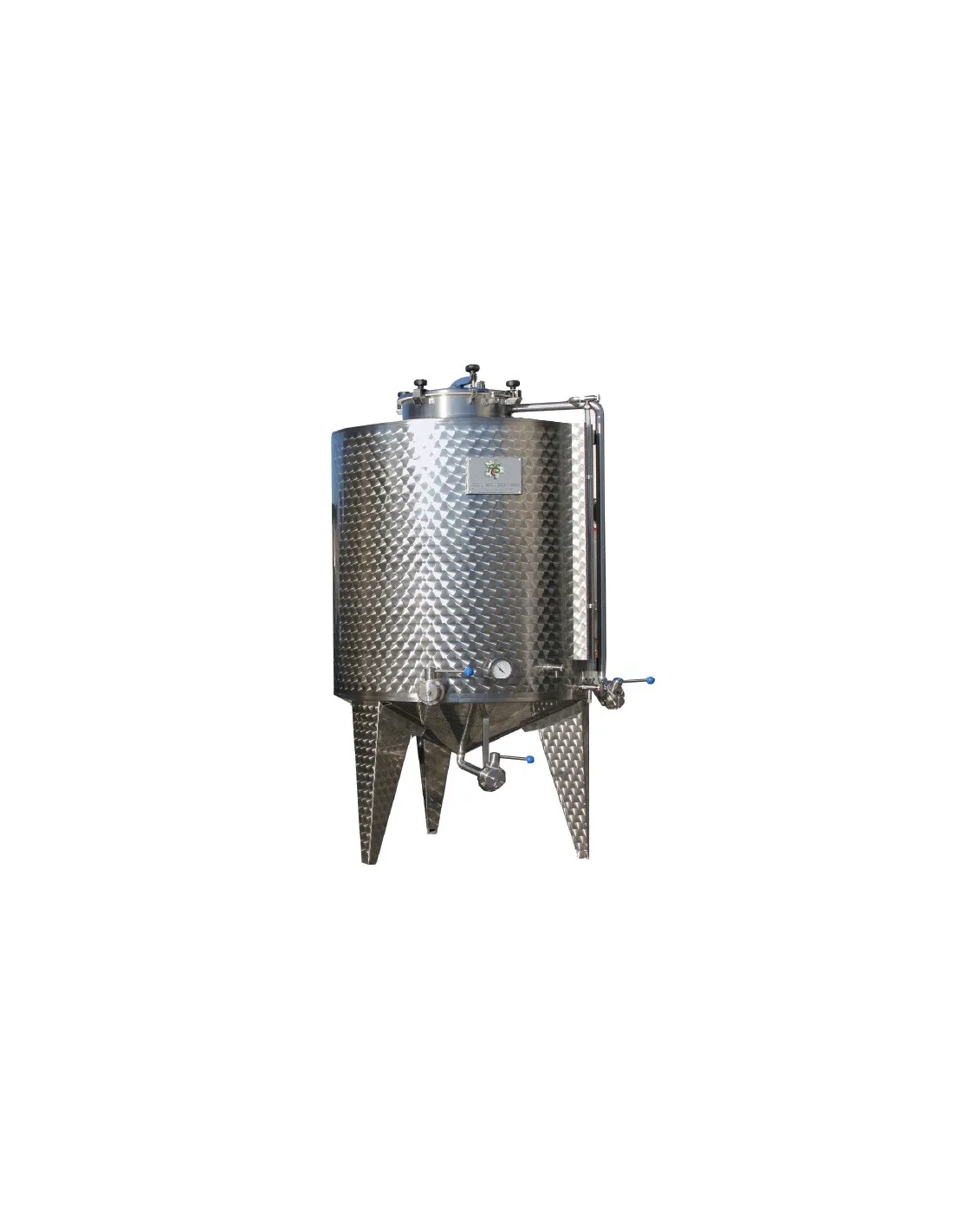

Insulated Refrigerated Stainless Steel Conical Fermenter for Beer

The insulated, refrigerated conical frustum fermenter is built entirely from AISI 304 stainless steel and is designed to best support professional beer production, making it suitable for businesses such as breweries and microbreweries.

The tank is equipped with a cooling system thanks to a formed cooling (or heating) jacket band, with a maximum operating pressure of 1.5 BAR.

This is a product of unquestionable quality, designed and manufactured entirely in Italy, engineered to perform at its best during beer fermentation and maturation.

Our insulated refrigerated fermenter features a 10° inclined conical bottom, 1.5 mm thick, on which three pyramid-shaped stainless steel legs, 1.5 mm thick, are fixed. The cylinder has a 2 mm thickness with a mirror-polished internal finish and a knurled external finish, while the upper section is fitted with a reinforced 40 cm manway.

Finally, in addition to the cooling jacket, it is fully insulated with 40 mm of insulation.

Available versions (conical bottom angle and capacity in liters):

• 10° - 300 liters;
• 10° - 400 liters;
• 10° - 500 liters;
• 10° - 700 liters;
• 10° - 850 liters;
• 10° - 1100 liters;
• 30° - 350 liters;
• 30° - 450 liters;
• 30° - 550 liters;
• 30° - 750 liters;
• 30° - 900 liters;
• 30° - 1150 liters;

Technical specifications common to all versions:

• Made of AISI 304 stainless steel;
• Mirror-polished internal finish;
• Knurled external finish;

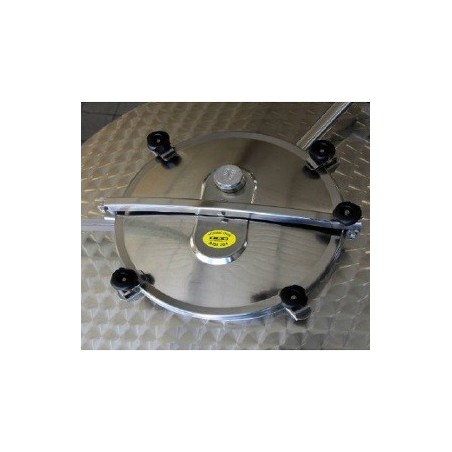

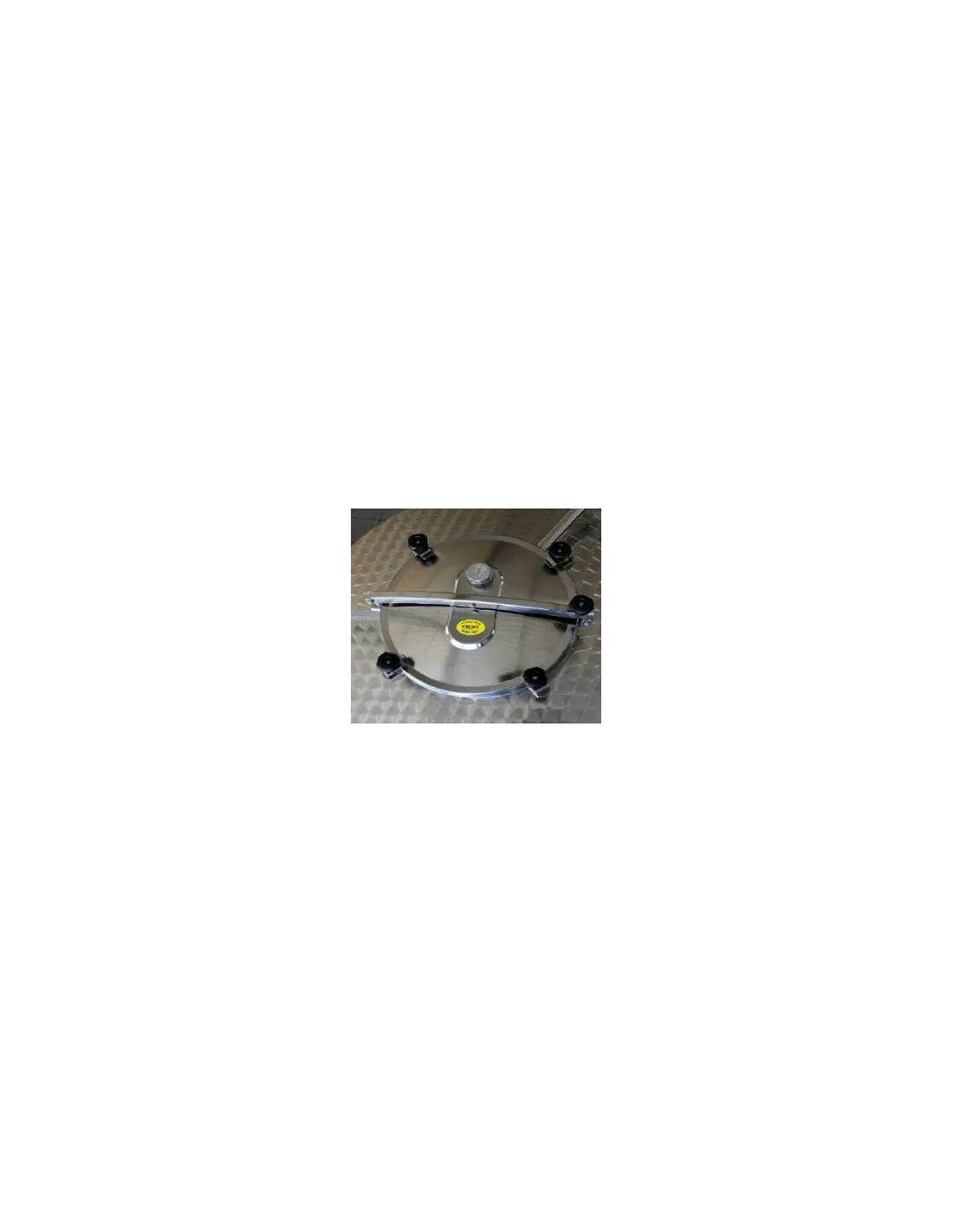

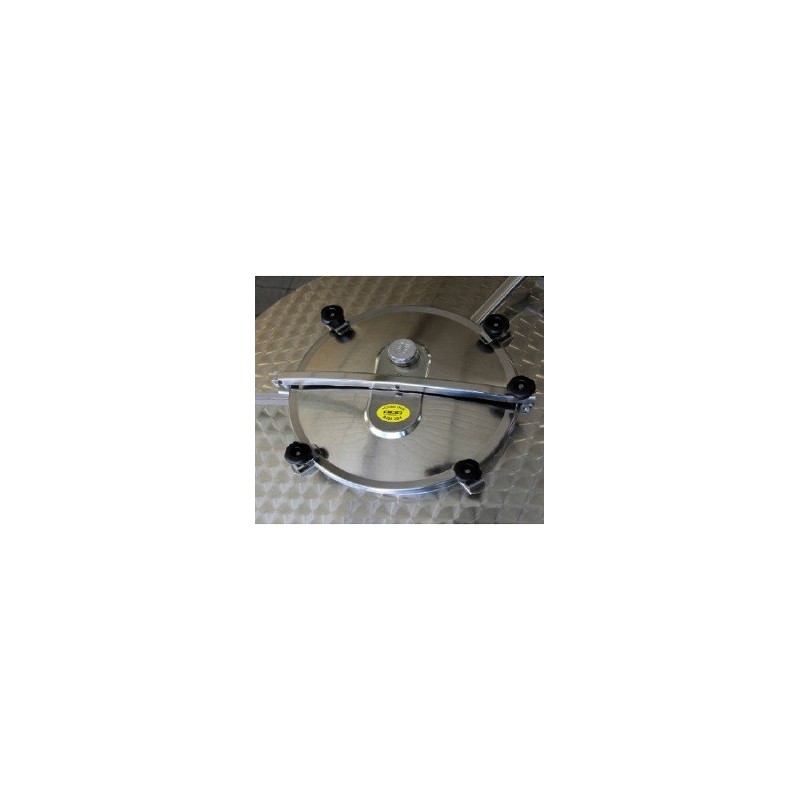

• 40 cm anti-retention top manway, prepared for inert gas, with reinforced 4-clamp closure;
• 3/8'' stainless steel valve for inert gas inlet;

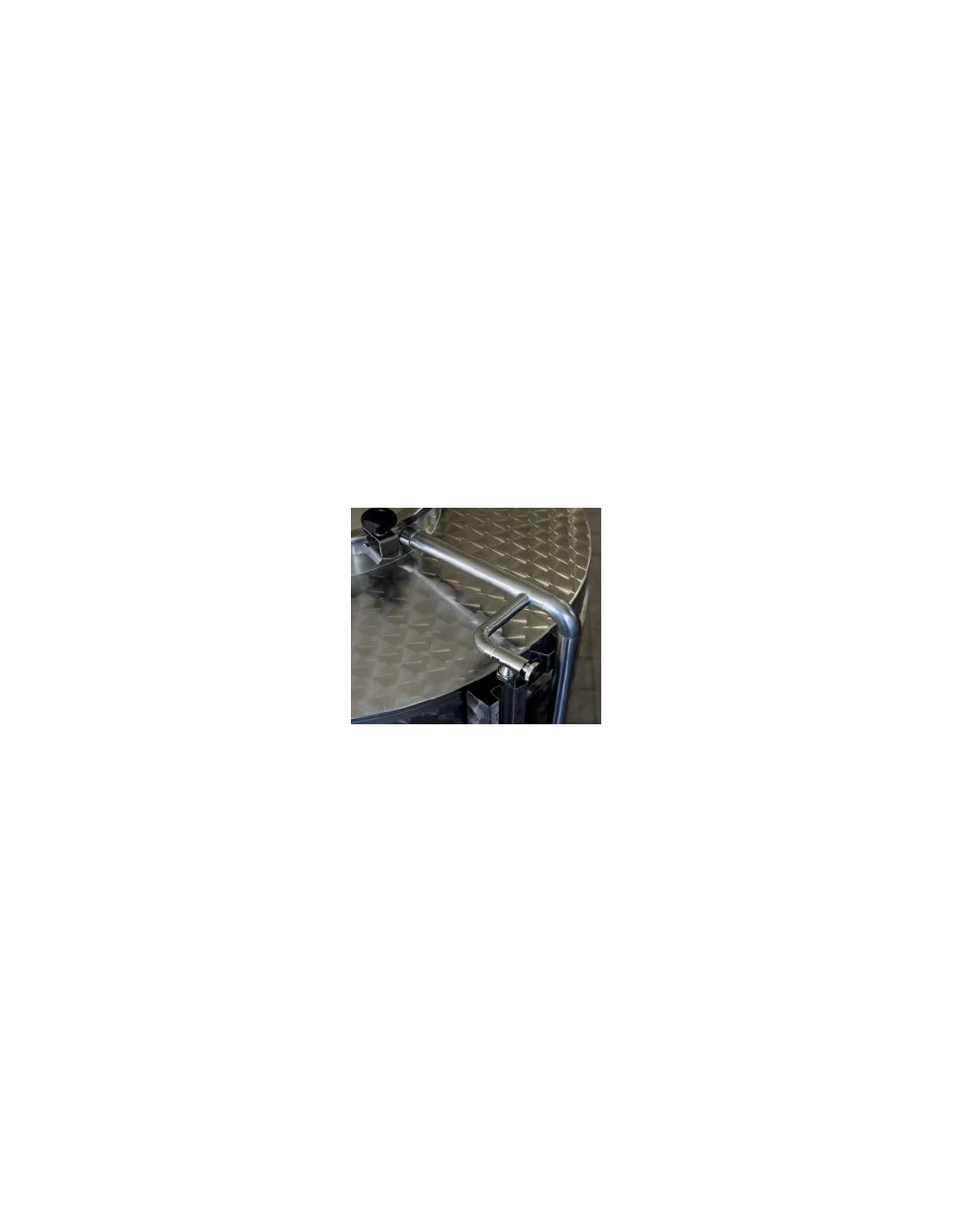

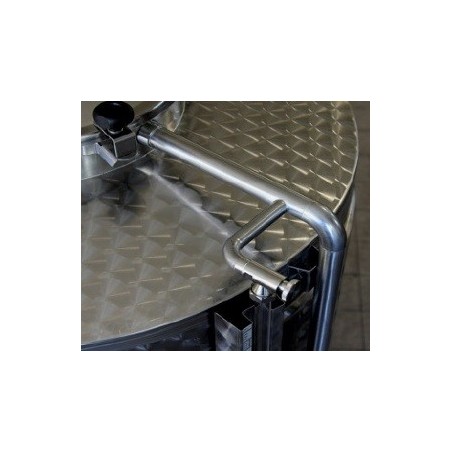

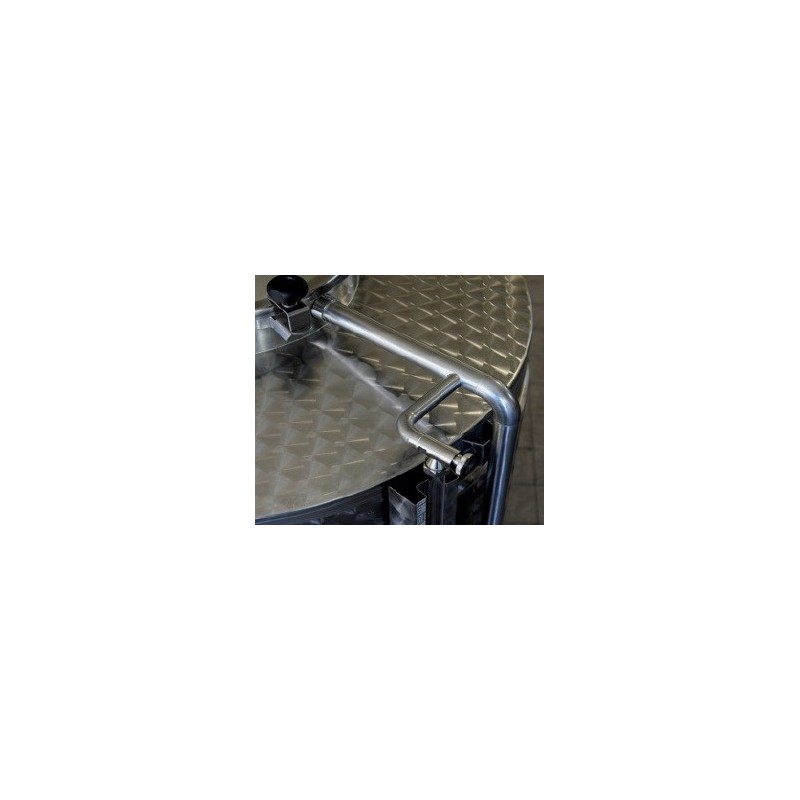

• 1'' stainless steel wash pipe;
• DN 30 DIN 32 male / 32 DIN female butterfly valve at the wash-pipe inlet;

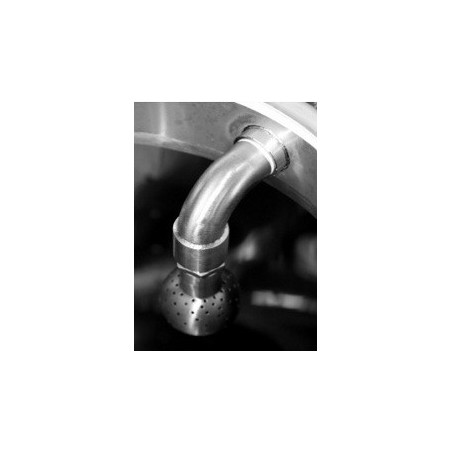

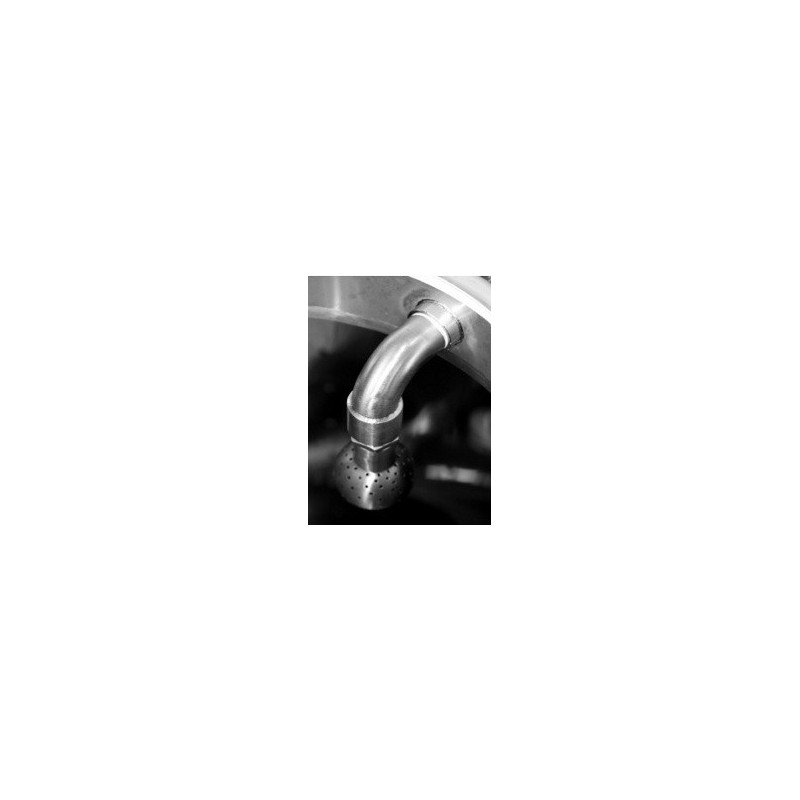

• Fully perforated 65 mm diameter stainless steel spray ball fitted at the outlet of the wash pipe inside the manway;
• Sight level with stainless steel protection and return to the wash pipe for easier cleaning;

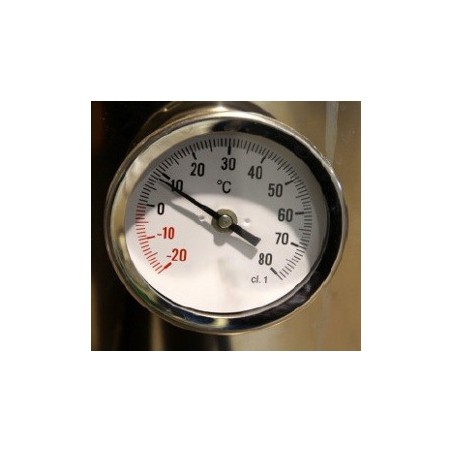

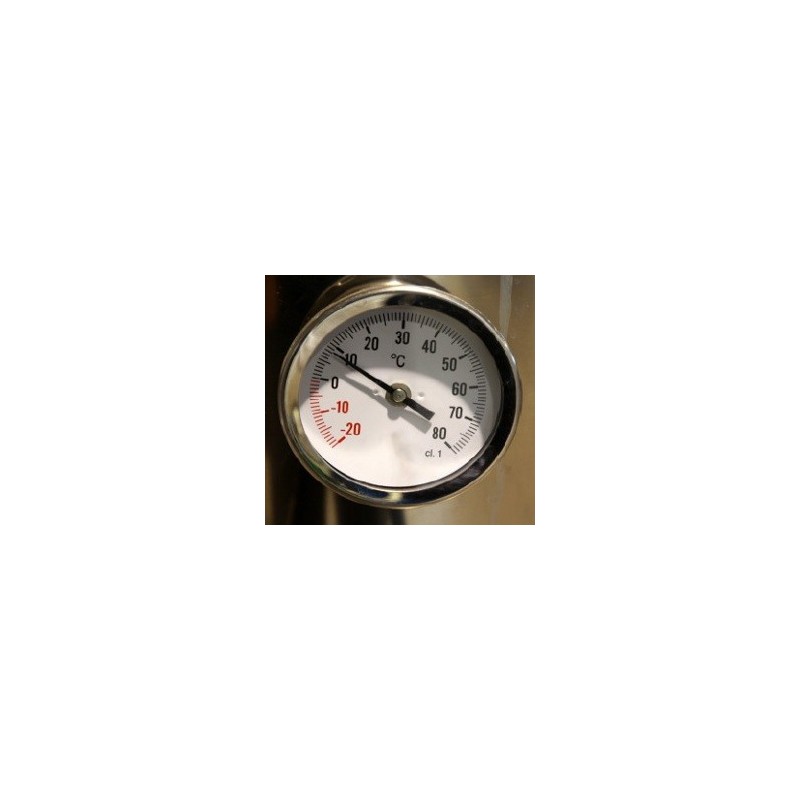

• Analog stainless steel thermometer complete with protection;
• 3/8'' diameter stainless steel sampling valve;
• Partial drain with DN 30 DIN 32 male / 32 DIN female butterfly valve;
• Total drain with DN 30 DIN 32 male / 32 DIN female butterfly valve;
• No. 3 stainless steel legs, 60 cm high, 1.5 mm thick, pyramid-shaped, welded to the bottom;
• Formed-type heating/cooling jacket band, max operating pressure 1.5 bar, height 750 mm;
• Full tank insulation with 40 mm Armaflex-type insulation.

For each available version, you can find the technical specifications below:

Insulated refrigerated fermenter 300 liters 10°

• Capacity: 300 liters;
• Total height: 210 cm;
• Inner cylinder: 64 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 72 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 10° conical bottom.

Insulated refrigerated fermenter 400 liters 10°

• Capacity: 400 liters;
• Total height: 210 cm;
• Inner cylinder: 72 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 79.6 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 10° conical bottom.

Insulated refrigerated fermenter 500 liters 10°

• Capacity: 500 liters;
• Total height: 210 cm;
• Inner cylinder: 79.6 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 93 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 10° conical bottom.

Insulated refrigerated fermenter 700 liters 10°

• Capacity: 700 liters;
• Total height: 210 cm;
• Inner cylinder: 93 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 102.5 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 10° conical bottom.

Insulated refrigerated fermenter 850 liters 10°

• Capacity: 850 liters;
• Total height: 210 cm;
• Inner cylinder: 102.5 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 115 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 1100 liters 10°

• Capacity: 1100 liters;
• Total height: 210 cm;
• Inner cylinder: 1 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 127 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 10° conical bottom.

Insulated refrigerated fermenter 350 liters 30°

• Capacity: 350 liters;
• Total height: 210 cm;
• Inner cylinder: 64 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 72 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 450 liters 30°

• Capacity: 450 liters;
• Total height: 210 cm;
• Inner cylinder: 72 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 79.6 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 550 liters 30°

• Capacity: 550 liters;
• Total height: 210 cm;
• Inner cylinder: 79.6 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 93 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 750 liters 30°

• Capacity: 750 liters;
• Total height: 210 cm;
• Inner cylinder: 93 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 102.5 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 900 liters 30°

• Capacity: 900 liters;
• Total height: 200 cm;
• Cylinder: inner diameter 102.5 cm and outer diameter 115 cm, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.

Insulated refrigerated fermenter 1150 liters 30°

• Capacity: 1150 liters;
• Total height: 210 cm;
• Inner cylinder: 115 cm diameter, 100 cm height, 2 mm thickness on the sides and 1.5 mm on the bottom;
• Outer cylinder: 127 cm diameter, 110 cm height, 1.2 mm thickness on the sides and 1.5 mm on the bottom;
• 30° conical bottom.
