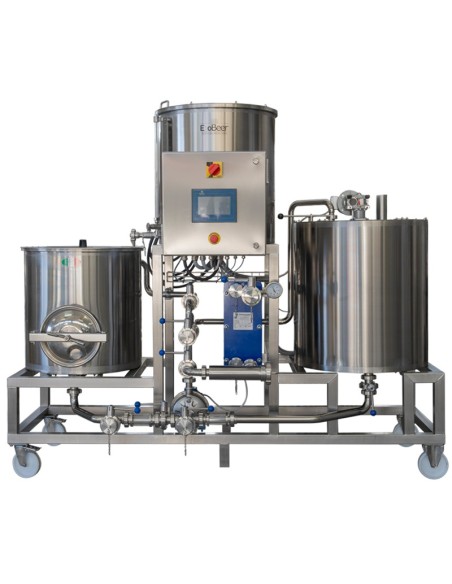

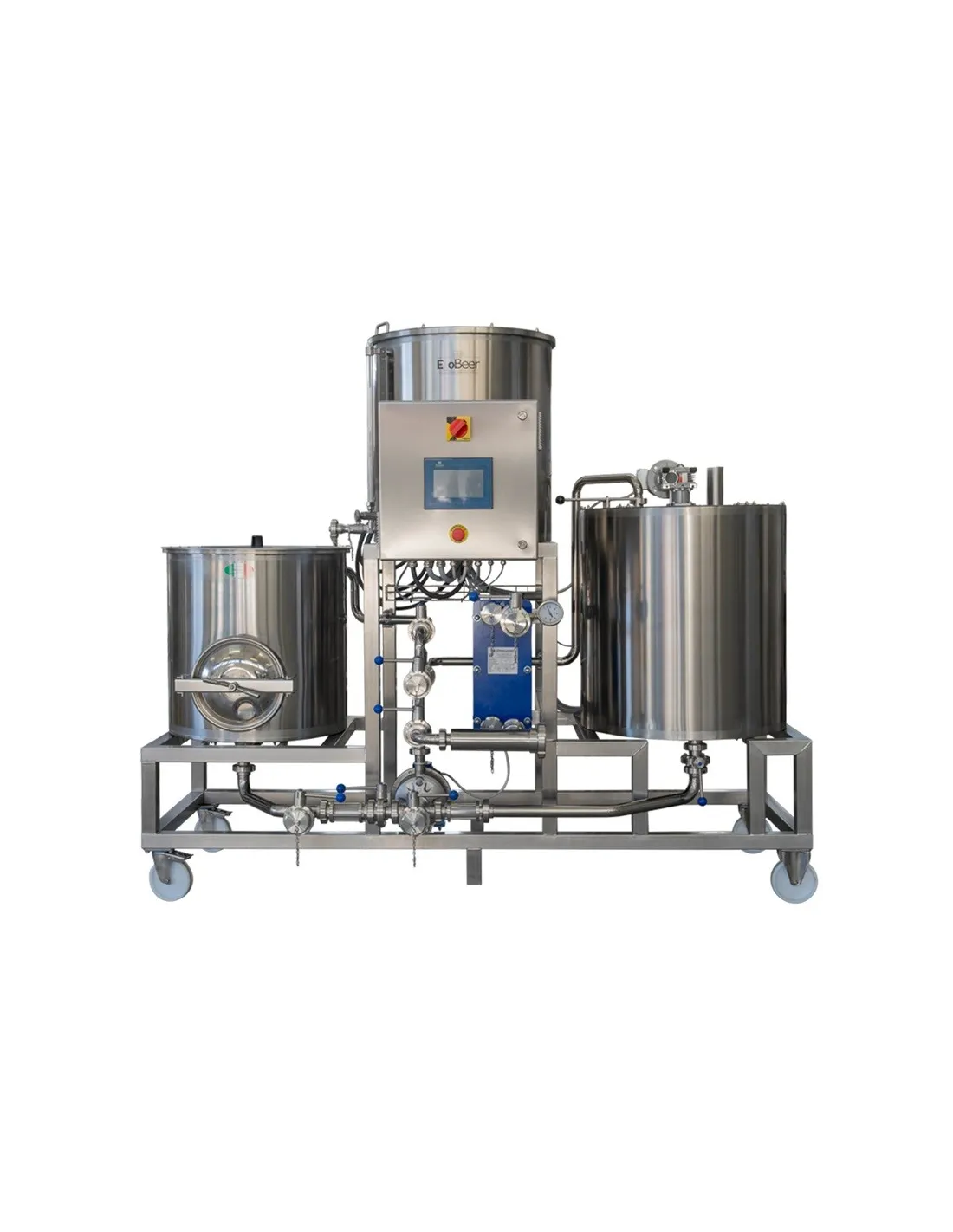

150 L 3-Vessel Brewhouse

The 150 L 3-vessel brewhouse is designed to provide professional-quality craft beer production in a compact brewing system. It is entirely designed and built in Italy by industry specialists and applies construction solutions derived from professional brewing equipment.

The brewing system is designed to provide precise temperature and process control. The heating system is positioned outside the vessels, with no immersion heaters, and is designed to simplify cleaning while allowing accurate temperature management.

Critical process valves are positioned centrally, while rigid welded piping and a fully welded frame provide a solid, integrated brewing setup.

The brewhouse includes a milled false bottom designed to support faster vorlauf and clearer filtration while reducing the risk of a stuck sparge. The inspection manway also facilitates access for cleaning.

Technical specifications

• 3 vessels for brewing, filtration/whirlpool and hot water/sparging;
• Production capacity: 150 litres;
• Power absorption: 2 kW;
• Power supply: 220 V / 400 V three-phase;
• Heating: natural gas/LPG, with optional electric version;
• Structure entirely built in AISI 304 stainless steel with adjustable support feet;
• Stainless-steel plate heat exchanger with EPDM gasket;
• 1 open-impeller stainless-steel centrifugal pump;
• 1 stainless-steel control panel for temperature, pump and stirrer control;
• Safety protection for mash tun opening;
• DIN 11851 stainless-steel piping;
• Width: 1100 mm;
• Length: 2150 mm;
• Height: 2000 mm.

Brewhouse components

Mashing and boiling vessel

• Total vessel volume: approx. 230 litres;
• Flat bottom;
• Top inspection manway;
• AISI 304 stainless-steel construction with Scotch-Brite external finish and BA mirror-polished internal finish;
• 16 kW natural gas/LPG burner;
• Stainless-steel thermowell with PT100 temperature probe;
• Condensate drain pipe;
• Washing pipe;
• 1 main drain DIN 50-32;
• Gearmotor for mixing during mashing.

Filtration and whirlpool vessel

• Total vessel volume: approx. 230 litres;
• Flat bottom;
• AISI 304 stainless-steel construction with Scotch-Brite external finish and BA mirror-polished internal finish;
• 1 transfer inlet;
• 1 total drain DIN 50-32;
• Removable stainless-steel filtration screen with 1 mm slots;
• AISI 304 stainless-steel support structure for the filtration screen;
• Tangential inlet for whirlpool effect;
• Internal ring for whirlpool containment;
• Top cover.

Hot water storage vessel

• Capacity: 230 litres;
• AISI 304 stainless-steel construction with satin external finish;
• Ground and satin-finished welds;
• Drain with 1" butterfly valve;
• Sparging pipe;
• 2 kW electric heating element with IP65 protection;
• Top cover with side opening;
• Stainless-steel thermowell with PT100 temperature probe.

Wort transfer pump

The system includes a non-self-priming stainless-steel centrifugal pump for wort transfer between the brewing and filtration vessels.

• Speed: 2900 rpm;
• Mechanical seal CER/GRAF/VITON;
• Open impeller in AISI 316L stainless steel;
• Suction DIN 32;
• Discharge DIN 32.

Wort cooling

The system includes a plate heat exchanger for wort cooling with EPDM seals and inspectable plates.

Base frame

The monolithic tubular base is built in AISI 304 stainless steel and supports the brewing vessels, electrical control panel, wort pump, plate heat exchanger, DIN piping connections and electrical connections.

Available options

• Electric heating version;
• 250 L production-capacity version, available with flame or electric heating.

NB: MID-approved flow meters are not included.
