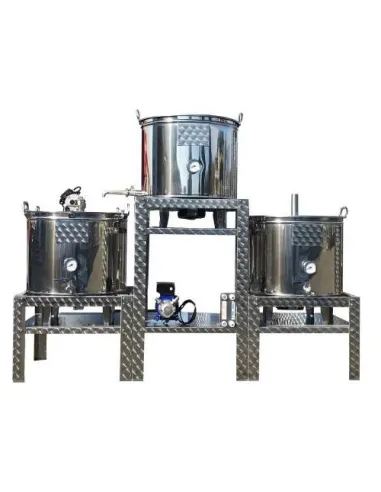

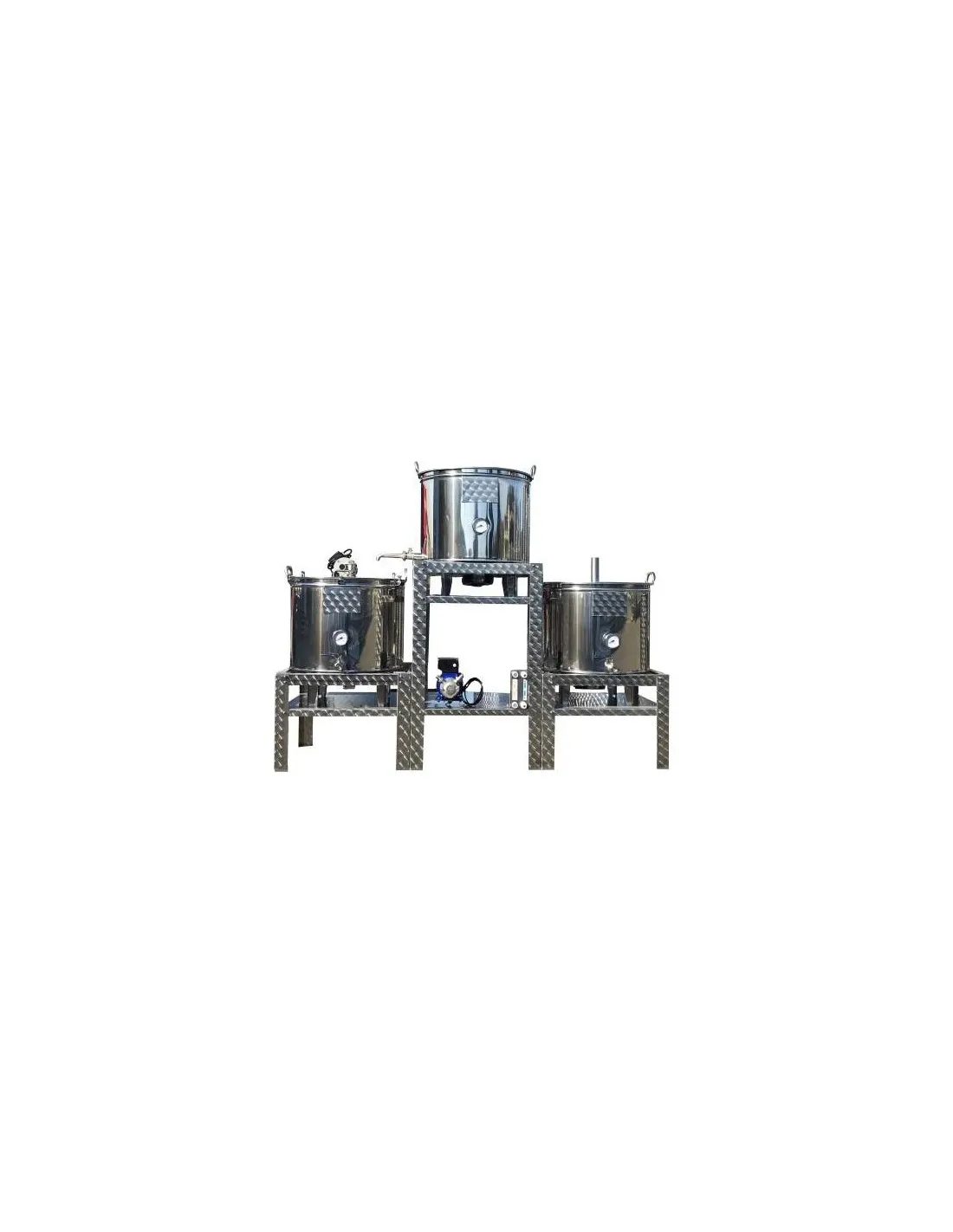

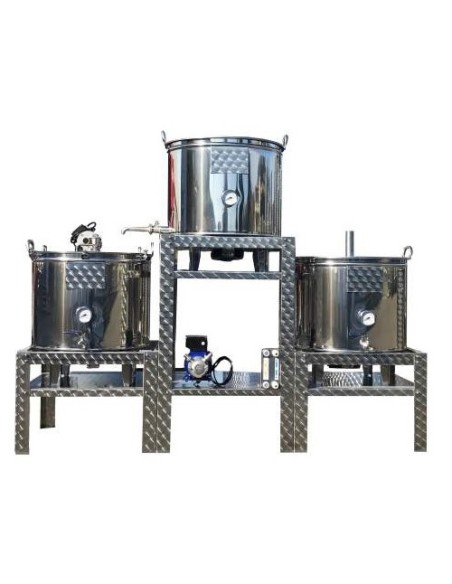

100L Beer Brewing System

This compact beer brewing system is the ideal solution for anyone who wants to get started with craft beer brewing without having a lot of space available for the process.

It is a microbrewery made entirely in Italy by Italian manufacturing, featuring high-quality materials and meticulous attention to detail to deliver a superior product for brewing your own craft beer with a compact-size brewing system.

This brewing system lets you set up a real microbrewery in your cellar to make your own home-brewed beer.

The 100-litre brewing system is a small brewhouse designed to provide the necessary equipment for both beginners and those with some experience, sitting halfway between hobby brewing and professional production. In fact, its construction applies the same principles and materials found in professional systems. If you run a restaurant, pub, bar, farm stay or any other food service business and want to brew beer to offer your customers, this is the ideal system in terms of compact footprint, capacity and value for money. Larger breweries also use this brewhouse as a pilot plant to test new recipes and variations on a smaller scale.

This system allows you to have a real microbrewery in your cellar for home brewing, with a maximum production capacity of 120 litres in a single batch.

This product features 3 vessels and can also be used for double-batch brewing. For correct operation it requires connection to the water supply, electrical power and a LPG cylinder.

Technical specifications:

• Production capacity: 100 litres
• LPG flame heating
• Single- and double-batch operation
• Fully built in AISI 304 stainless steel
• No. 1 stainless steel mash/lauter tun
• No. 1 stainless steel sparge vessel
• No. 1 stainless steel boil kettle
• System voltage: 220 V, single-phase
• Power consumption: 0.5 kW
• 40-plate brazed plate heat exchanger complete with fittings
• No. 1 motorised stainless steel agitator for the mash tun
• Self-priming centrifugal pump with EPDM mechanical seal, flow rate 1680 L/h
• No. 2 Klenet 19 hoses, 1250 mm length, with fittings for wort transfer
• No. 1 stainless steel anti-foam transfer tube
• AISI 304 stainless steel graduated litre gauge rod for the mash tun
• AISI 304 stainless steel graduated litre gauge rod for the boil kettle
• Overall dimensions: 200 mm x 80 mm x H 190 cm
• Weight: approx. 150 kg

Vessel specifications

Mash & lauter tun

• AISI 304 stainless steel with mirror-polished finish, TIG welds pickled and brushed
• Capacity: 100 litres
• Diameter: 510 mm
• Height: 500 mm
• Reinforced flat bottom and stainless steel handles
• Top hinged lid for easy inspection and cleaning
• LPG flame heating with 8 kW stainless steel burner
• Single-phase mechanical agitator with built-in on/off switch, 18 rpm, complete with AISI 304 stainless steel shaft and paddle
• Removable AISI 304 stainless steel filter screen, 15/10 thickness, 1.5 mm perforation
• Full drain with AISI 304 stainless steel Ø 3/4" valve
• AISI 304 stainless steel analogue thermometer, -0°C to +120°C scale, complete with protective thermowell

Sparge & hot liquor vessel

• AISI 304 stainless steel with mirror-polished finish, TIG welds pickled and brushed
• Capacity: 100 litres
• Diameter: 510 mm
• Height: 500 mm
• Reinforced flat bottom and stainless steel handles
• Stainless steel top lid with handle knob
• LPG flame heating with 8 kW stainless steel burner
• Full drain with AISI 304 stainless steel Ø 3/4" valve
• AISI 304 stainless steel analogue thermometer, -0°C to +120°C scale, complete with protective thermowell

Boil kettle

• AISI 304 stainless steel with mirror-polished finish, TIG welds pickled and brushed
• Capacity: 150 litres
• Diameter: 420 mm
• Height: 500 mm
• Reinforced flat bottom and stainless steel handles
• Stainless steel top lid with steam exhaust pipe
• LPG flame heating with 8 kW stainless steel burner
• Full drain with AISI 304 stainless steel Ø 3/4" valve
• AISI 304 stainless steel analogue thermometer, -0°C to +120°C scale, complete with protective thermowell
