Eco 250L Beer Brewing System

This craft beer brewhouse has been designed to deliver professional-grade quality at an accessible price. It is fully engineered and built in Italy by industry specialists.

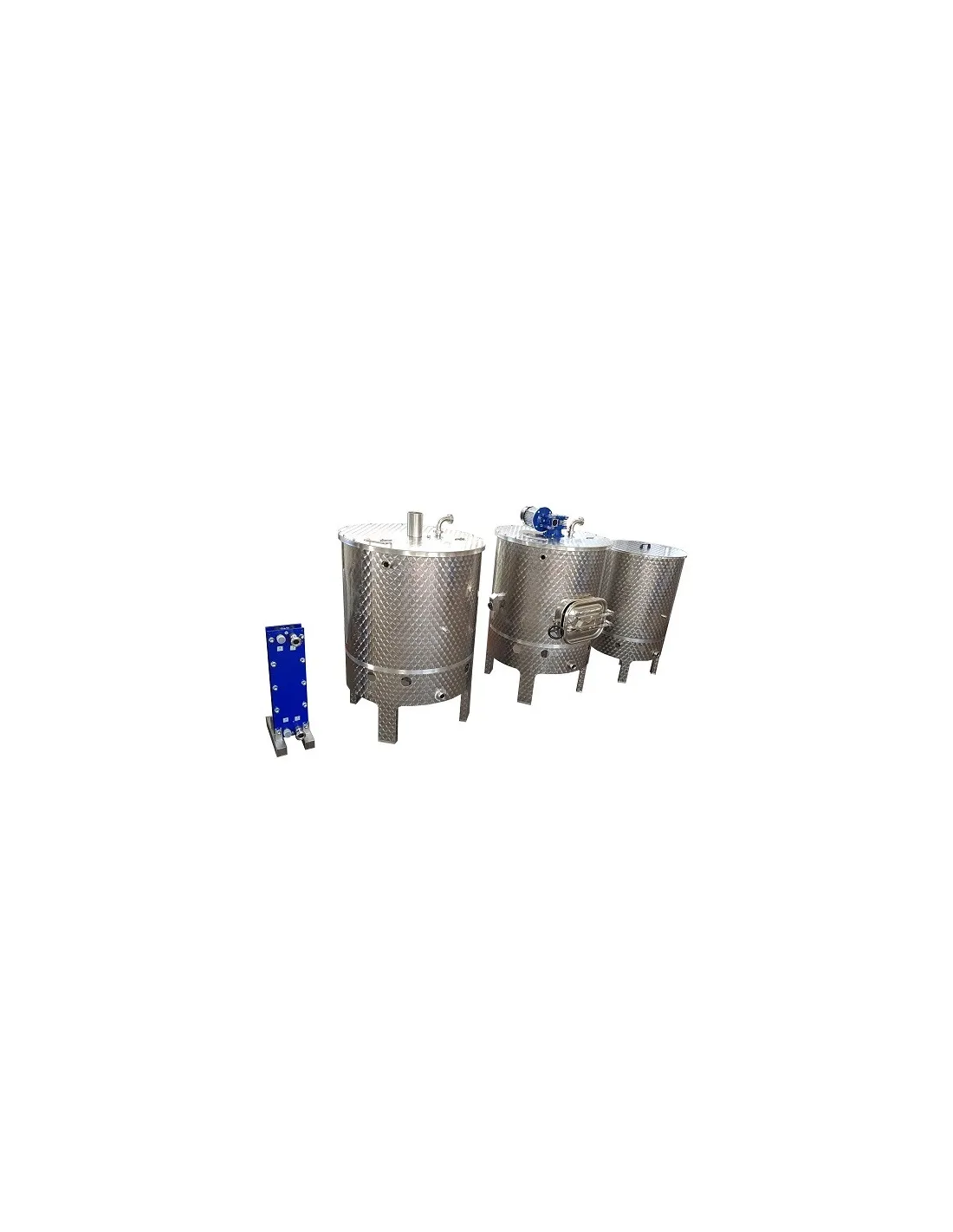

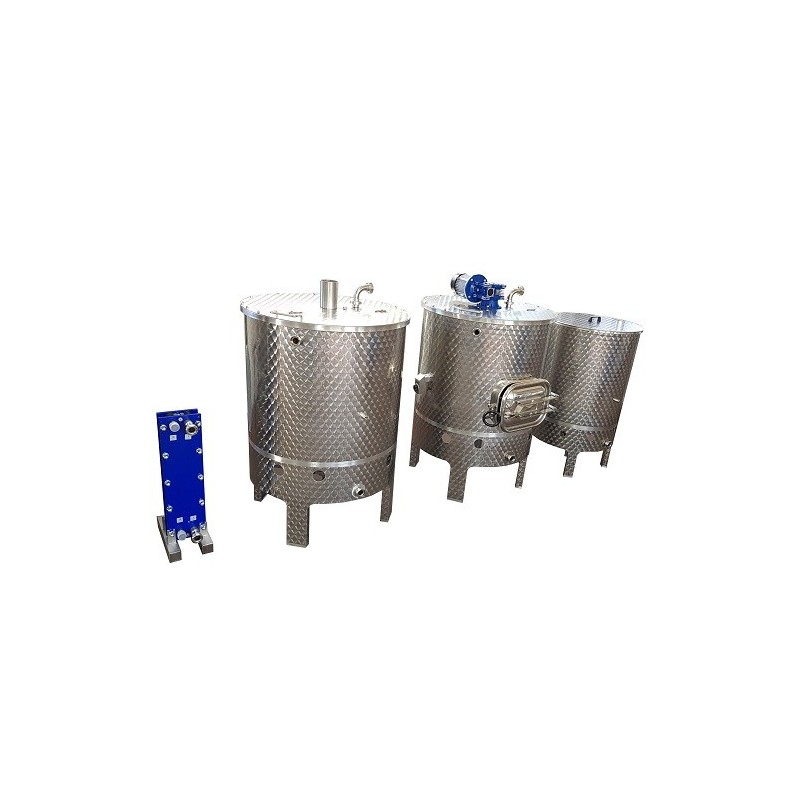

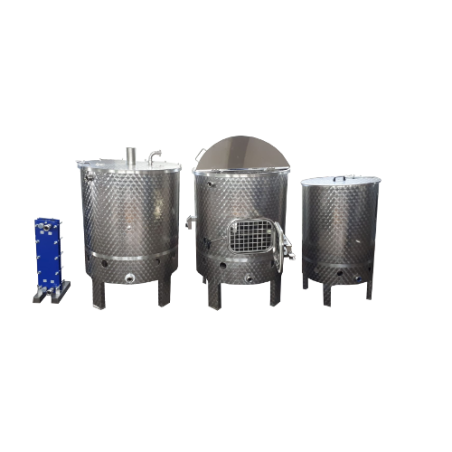

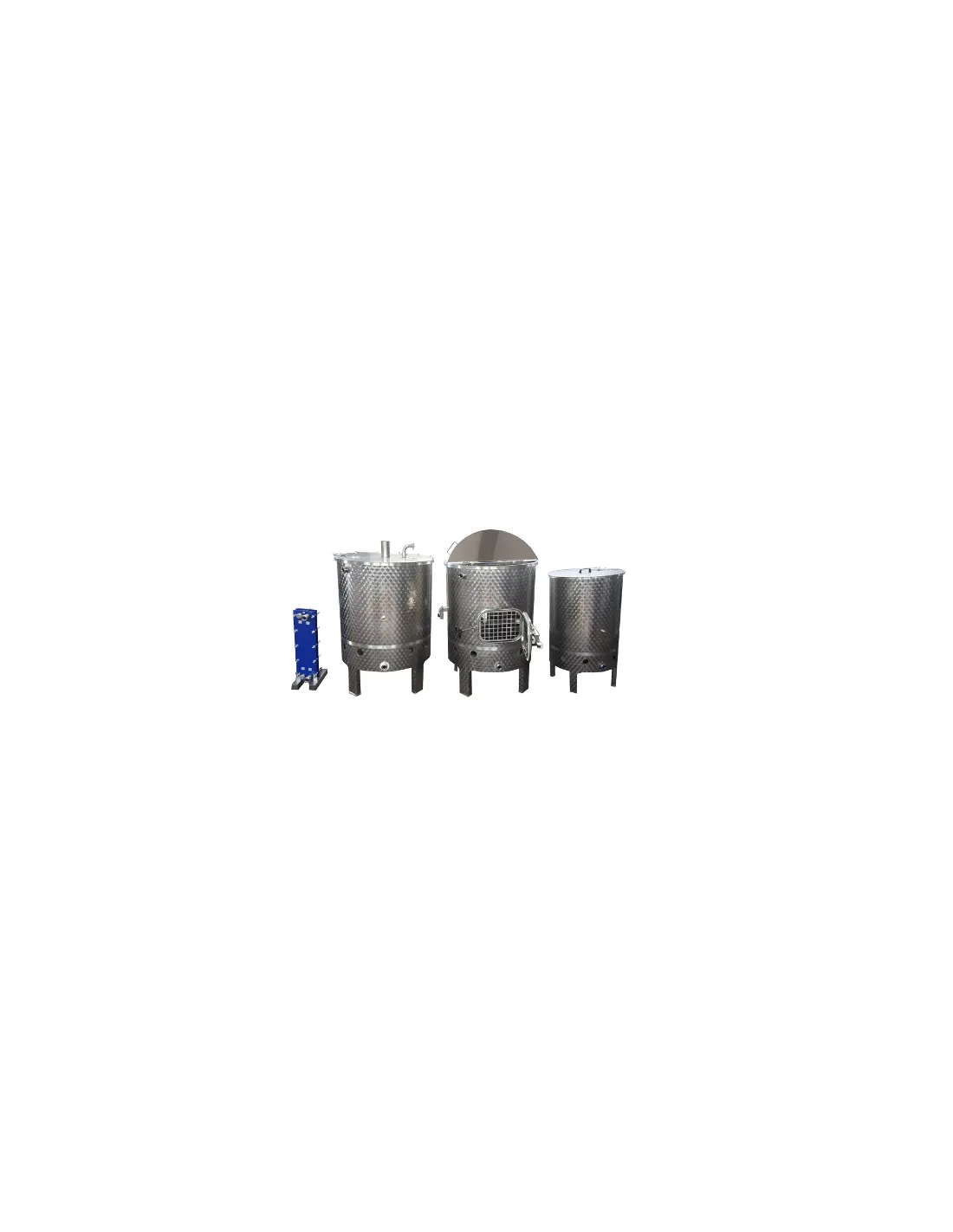

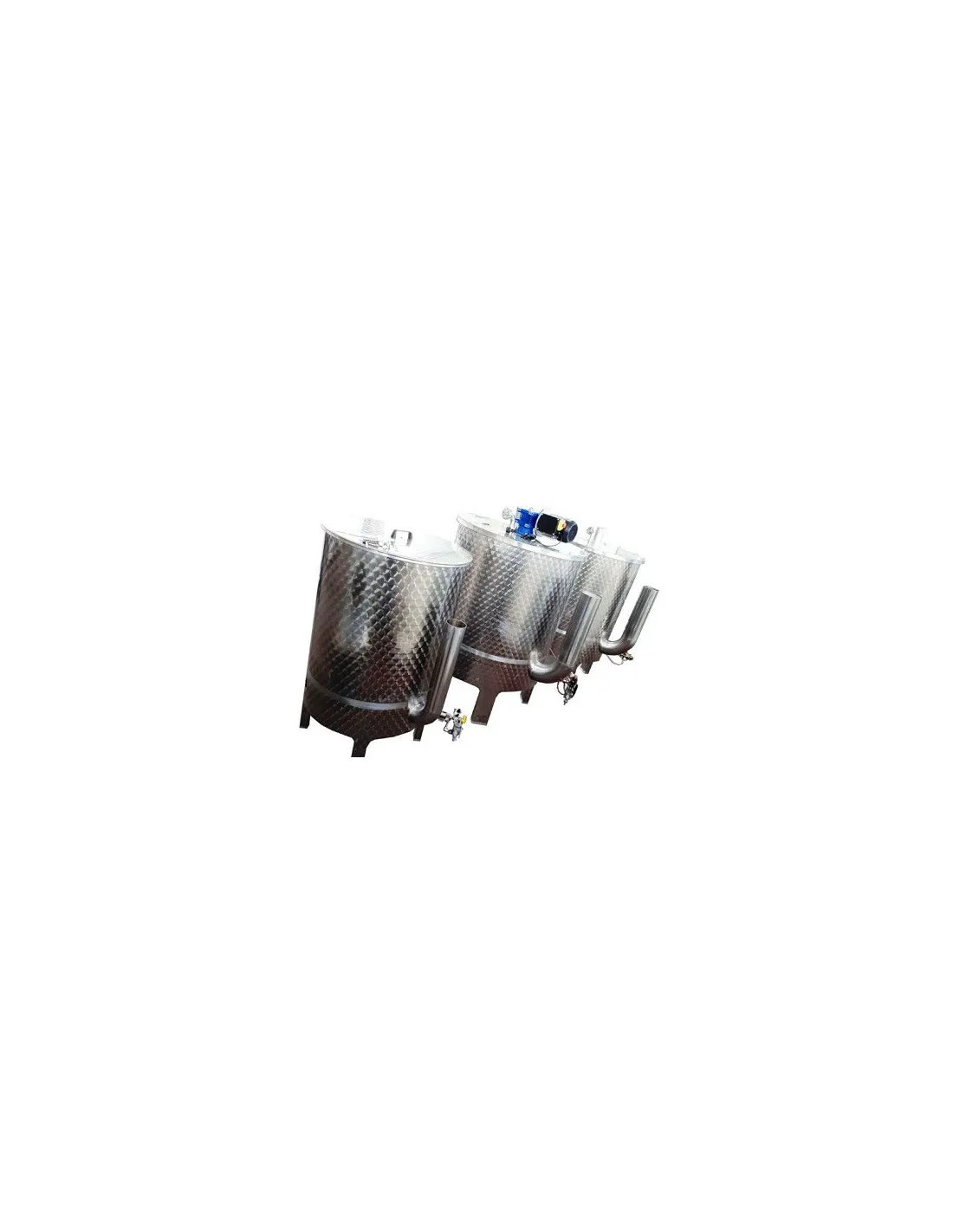

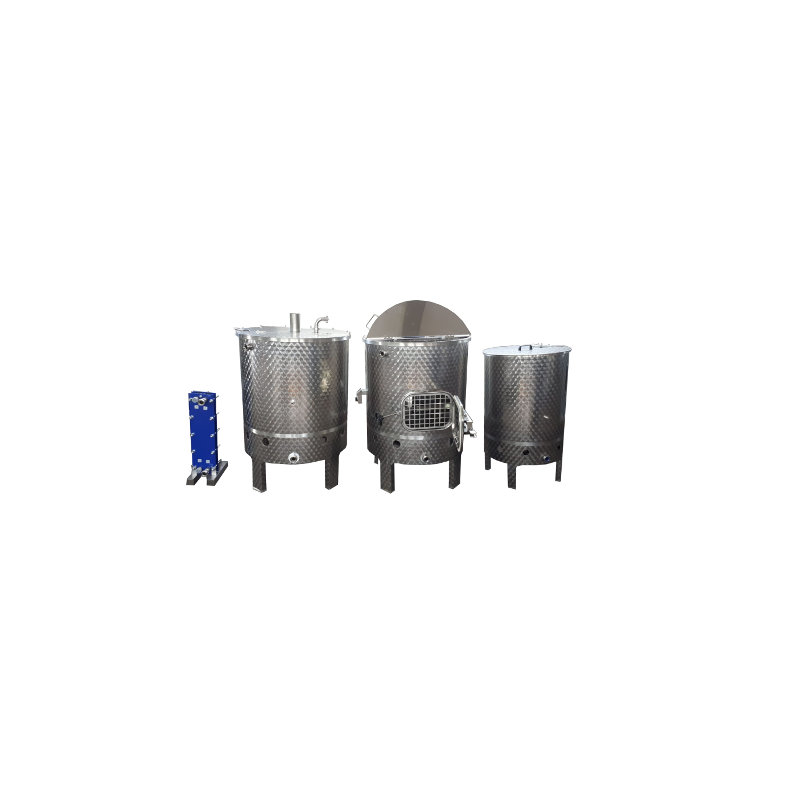

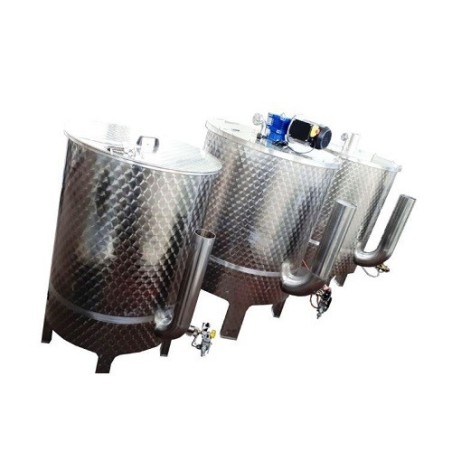

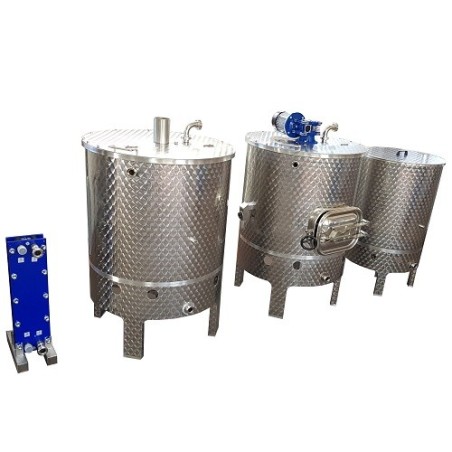

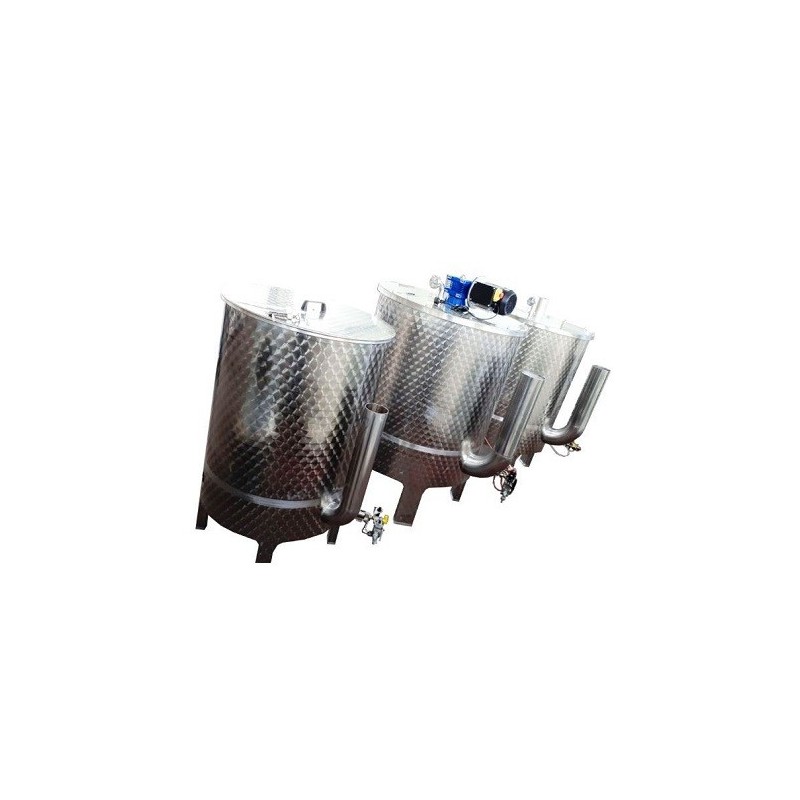

The brewing system is made entirely of stainless steel and includes 3 freestanding vessels, a wort transfer pump, a water transfer pump, and a heat exchanger. Other accessories supplied include 2 level rods, 3 flexible hoses L=2000 (plus one L=4000), a sight glass for checking wort clarity, and a DIN key for connecting and disconnecting the flexible hoses.

The brewing system uses an adjustable flame-heating setup powered by 3 stainless steel burners (two 35 kW burners and one 26 kW burner), one dedicated to each vessel. It offers a production capacity of 250 litres in a single batch and 500 litres in a double batch.

What makes this brewing system stand out?

What sets this product apart from most solutions on the market is, first of all, its build quality—both in terms of materials and workmanship. In addition, each vessel is fitted with an internal burner (therefore not visible) with adjustable flame, the option to run the system on natural gas or LPG, and the presence of extraction flues. This feature allows the disposal of about 80% of combustion fumes. Thanks to heat extraction flues, the system improves air quality in the brewhouse—both in terms of breathability and room heating.

Other strengths include a reinforced laser-cut filter screen that helps improve malt efficiency and reduces the risk of damage, as well as oversized gear motors and thicker stainless steel.

Specifications:

• No. 3 freestanding vessels (mash & lauter, boil & whirlpool, hot water & sparging);
• Production capacity: 250 litres (500 litres in double batch);
• No. 1 internal stainless steel burner 35 kW with temperature management via mechanical thermometer;
• No. 1 internal stainless steel burner 35 kW;
• No. 1 internal stainless steel burner 26 kW;
• Power absorption: 2 kW;
• Power supply: 220 V;
• Heating: natural gas/LPG;
• Vessels fitted with heat extraction flues;

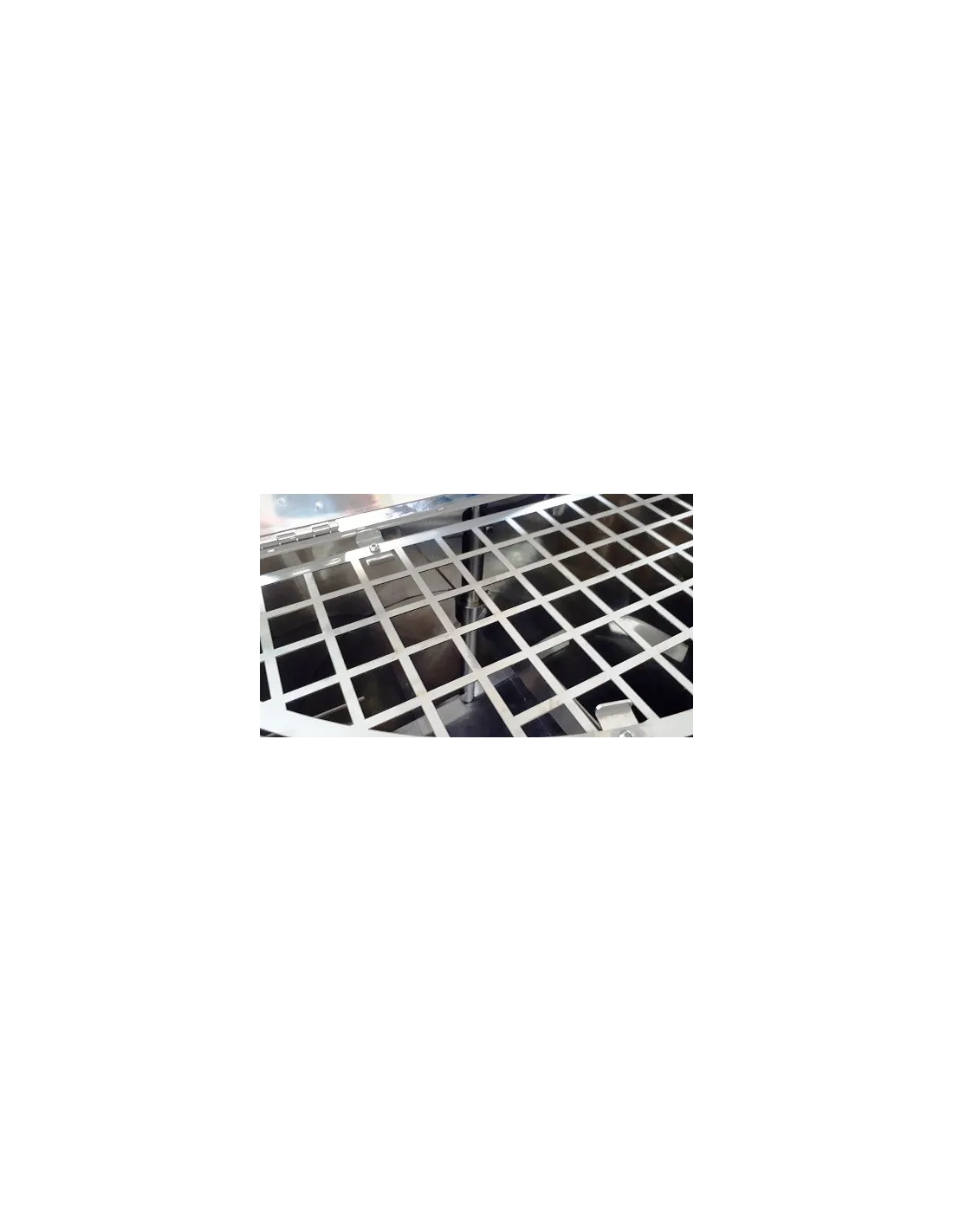

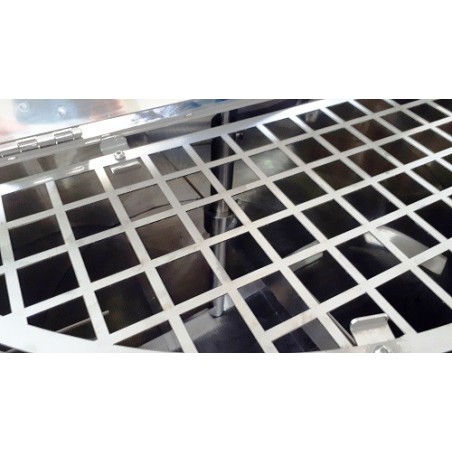

• Reinforced laser-cut filter screen;
• Wort transfer pump with rubber impeller;
• Dedicated centrifugal pump for transferring water from the hot liquor tank;
• Stainless steel plate heat exchanger with EPDM seals;
• No. 1 level rod for mash and boil vessels;
• No. 1 level rod for hot water vessel;
• No. 3 flexible hoses L=2000 for wort and water transfer/circulation;
• No. 1 flexible hose L=3000 for wort and water transfer/circulation;
• Sight glass for wort clarity check DIN 32 11851 DN 30;
• DIN key for connecting/disconnecting flexible hoses.

Below are the detailed specifications of each component:

Mash & lauter vessel

• Nominal capacity: 325 litres;
• Outer diameter: 750 mm;
• Total height: 1500 mm;
• Vessel built in AISI 304 stainless steel, mirror-polished internal finish, dimpled external finish, TIG welds pickled and brushed;
• Reinforced flat bottom with full drain;
• Rectangular 420 x 320 door for spent grain discharge, positioned flush with the filter screen, complete with safety guard;
• Flame heating (natural gas/LPG) with 26 kW burner - Ø 450 mm in AISI 304 stainless steel;
• Fuel on/off solenoid valve for the burner (natural gas/LPG) with thermopile;
• Mechanical thermostat for temperature control, mounted beside the vessel, complete with probe pocket. Manual start and automatic temperature holding;

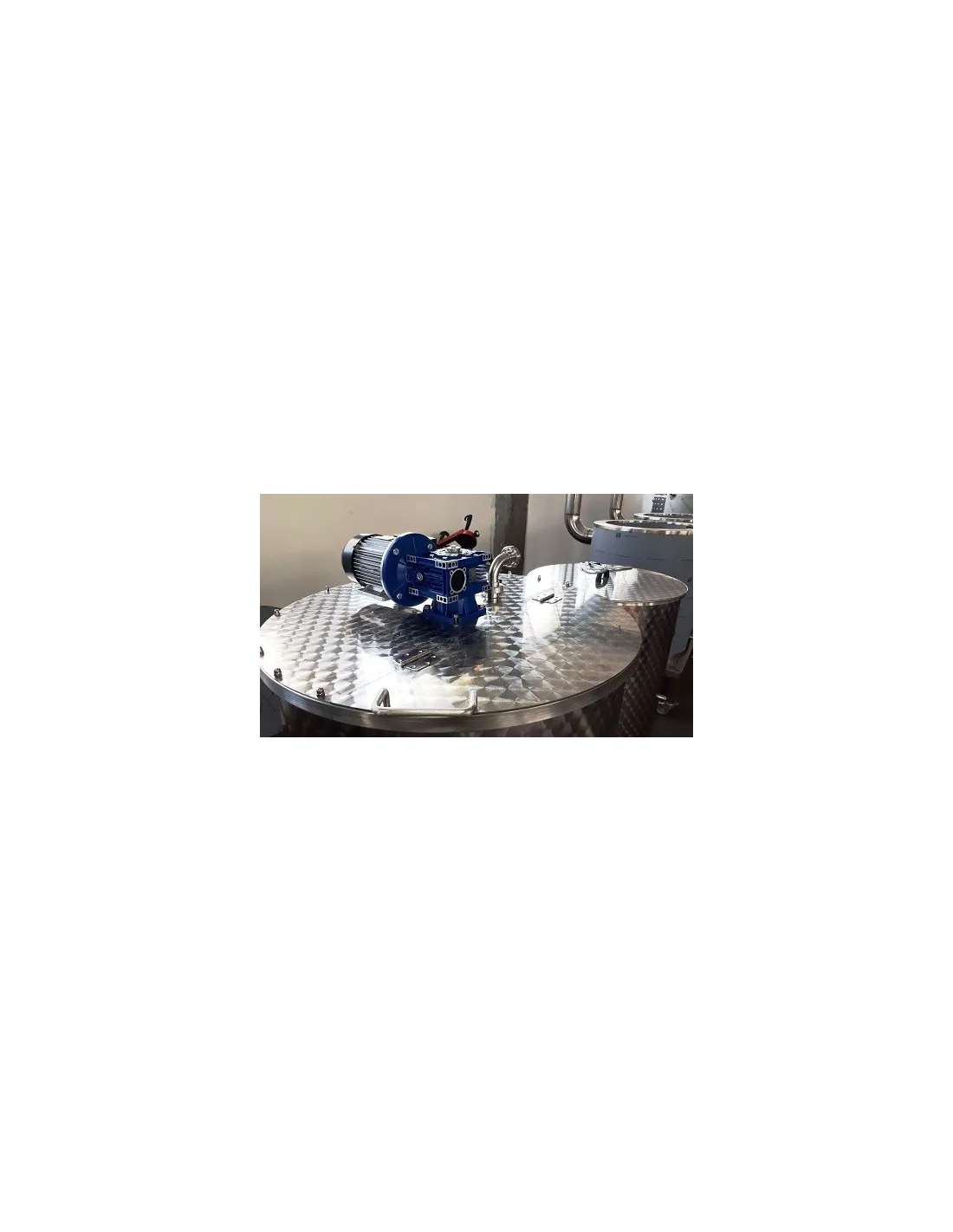

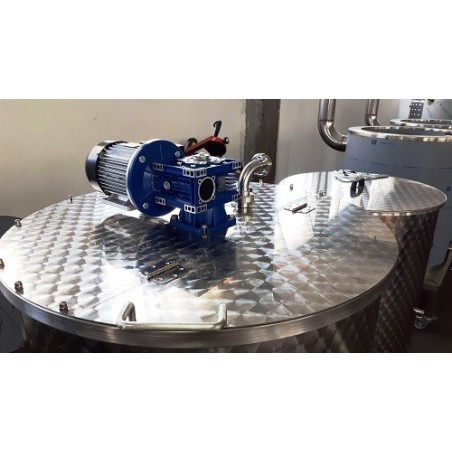

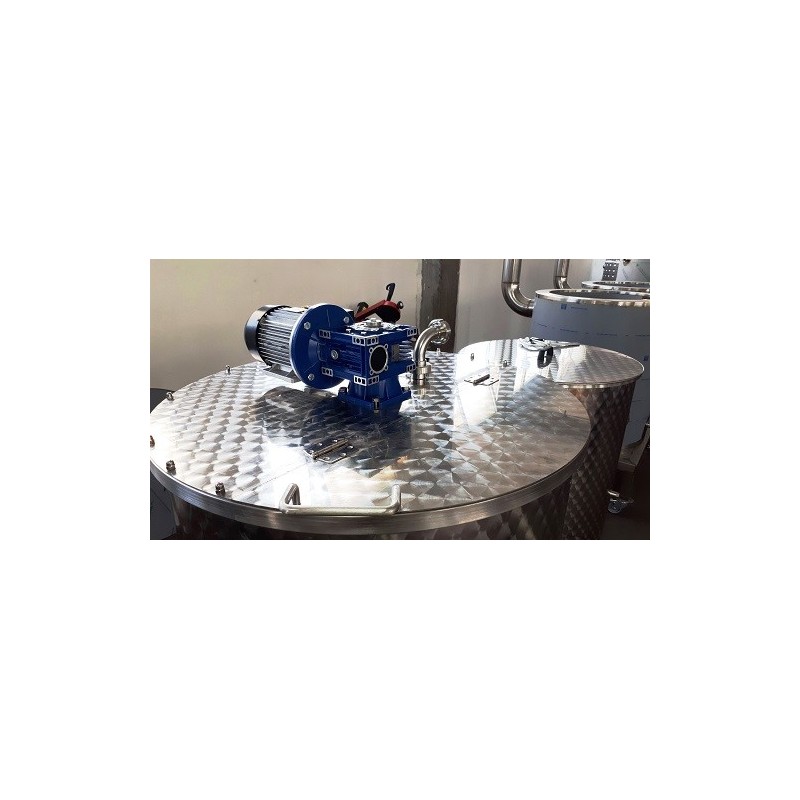

• Mechanical agitator complete with AISI 304 stainless steel shaft and paddle, fully removable and extractable;
• Top paddle adjustable in height;

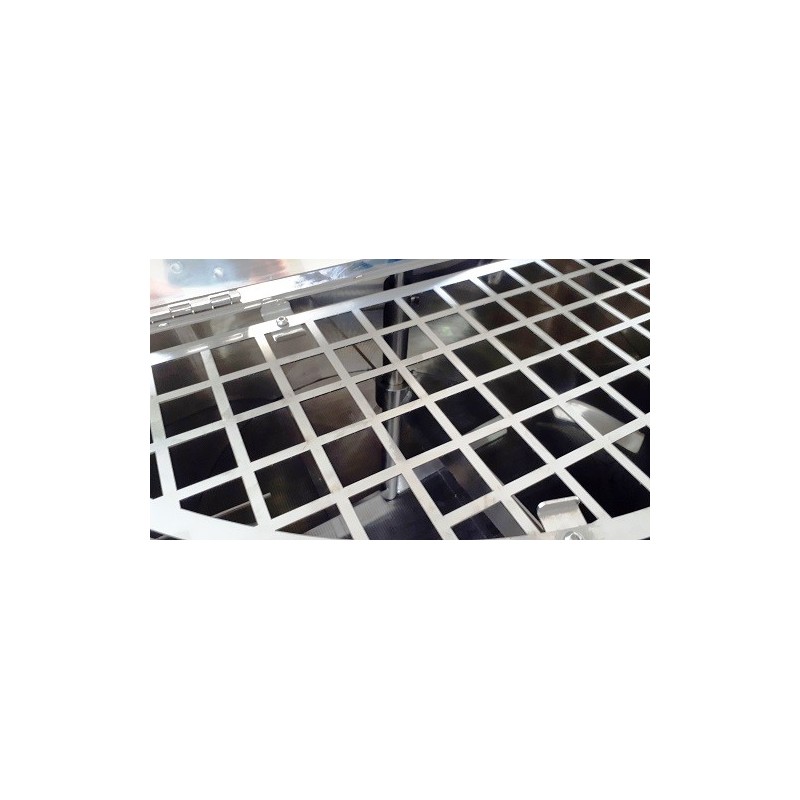

• Removable and extractable AISI 304 stainless steel filter screen;
• Grain rinsing (sparging) system with perforated ball in AISI 316 stainless steel;
• Vessel fill inlet with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• Full drain with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• Lower combustion chamber complete with heat and combustion fume flue stack, diameter 102 mm, in AISI 304 stainless steel;

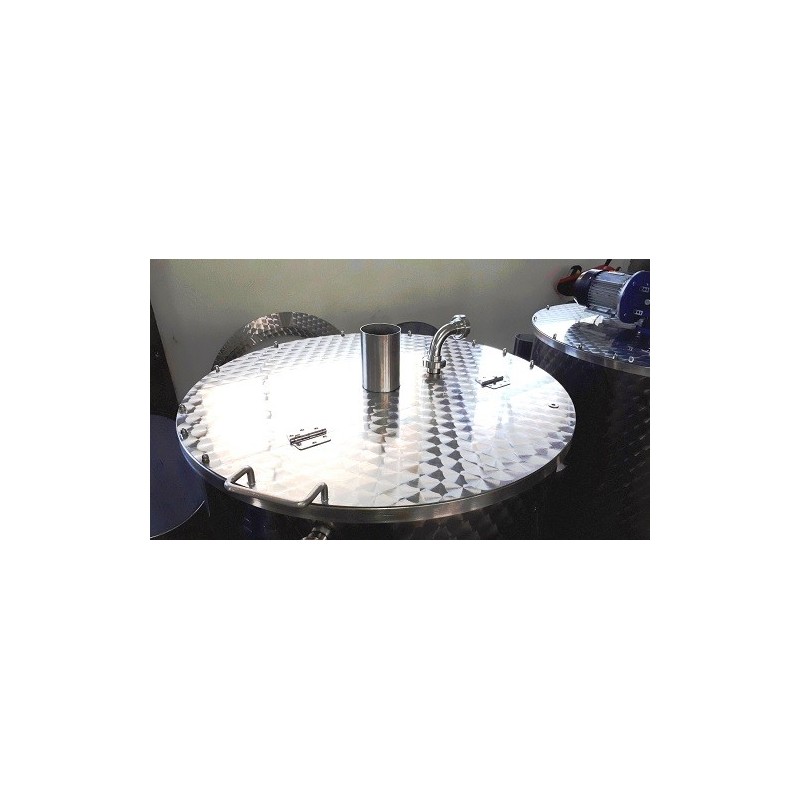

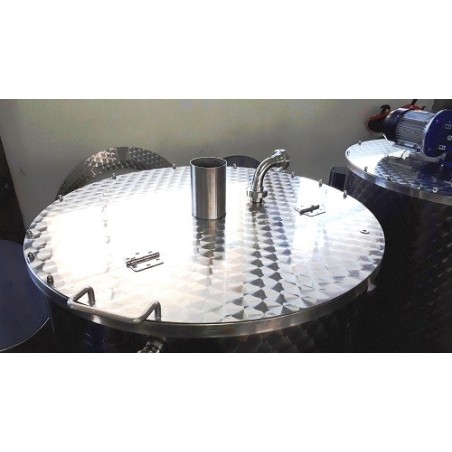

• Top hinged lid for easy inspection and cleaning, with safety guard.

Boil & whirlpool vessel

• Nominal capacity: 325 litres;
• Outer diameter: 750 mm;
• Total height: 1500 mm;
• Vessel built in AISI 304 stainless steel, mirror-polished internal finish, dimpled external finish, TIG welds pickled and brushed;
• Reinforced flat bottom with full drain;
• Flame heating (natural gas/LPG) with 26 kW burner - Ø 450 mm in AISI 304 stainless steel;
• Whirlpool inlet with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• Vessel wash system with perforated ball in AISI 316 stainless steel;
• Vessel fill inlet with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• Full drain with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• PT100 probe port;
• Analogue thermometer;
• Condensate drain stack;
• Whirlpool retention ring;
• Lower combustion chamber complete with heat and combustion fume flue stack, diameter 102 mm, in AISI 304 stainless steel;
• Top hinged lid for easy inspection and cleaning.

Sparge water heating vessel

• Total volume: 325 litres;
• Outer diameter: 750 mm;
• Total height: 1300 mm;
• Vessel built in AISI 304 stainless steel, mirror-polished internal finish, dimpled external finish, TIG welds pickled and brushed;
• Flame heating (natural gas/LPG) with 26 kW burner - Ø 450 mm in AISI 304 stainless steel;
• PT100 probe port;
• Analogue thermometer;
• Full drain with butterfly valve DN 30 DIN 32 MG / 32 DIN FEMALE in AISI 304 stainless steel;
• Lower combustion chamber complete with heat and combustion fume flue stack, diameter 102 mm, in AISI 304 stainless steel;

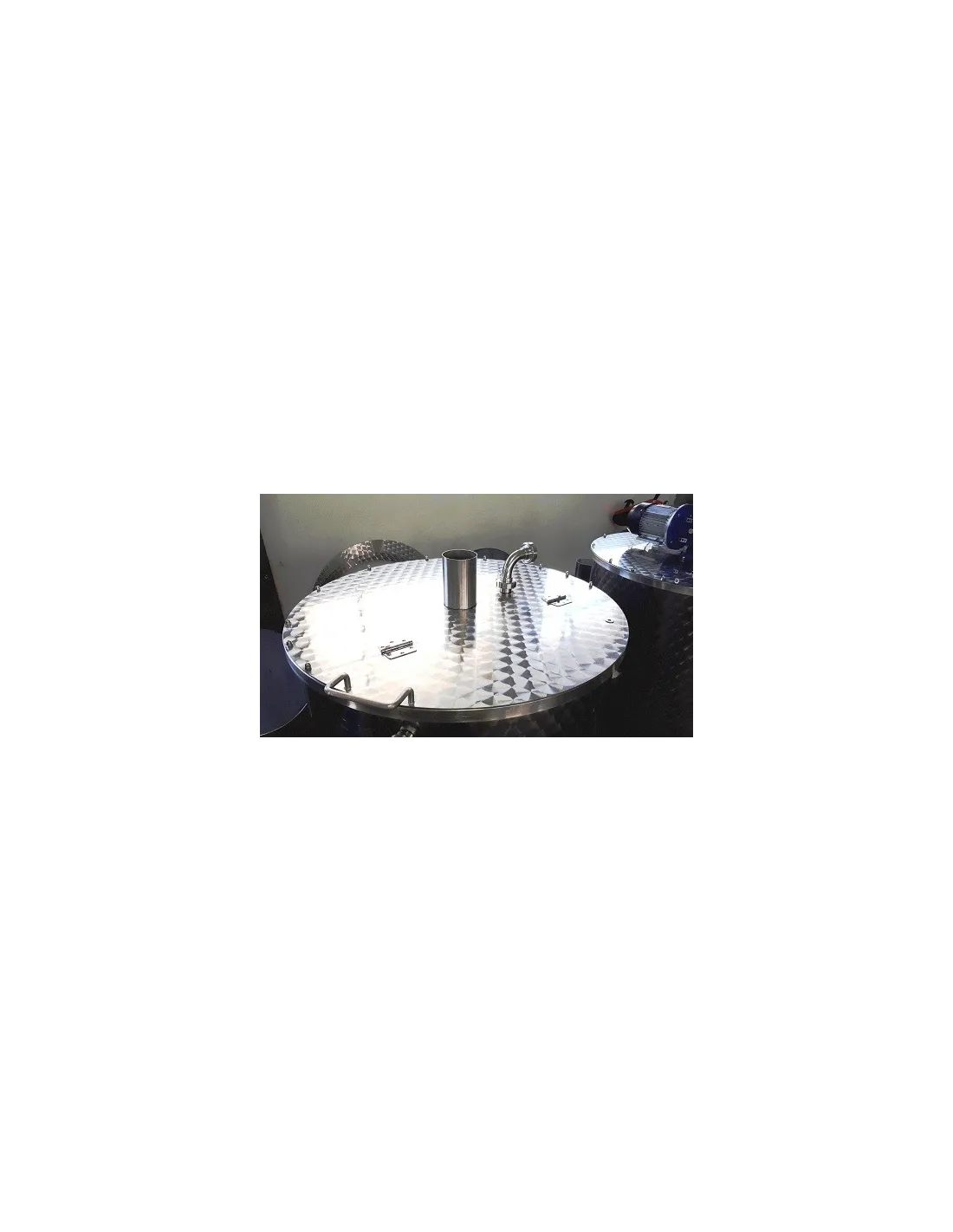

• Top dust-cover lid.

Wort transfer pump

Wort transfer pump with food-grade rubber impeller, built in AISI 304 stainless steel, single-phase motor, mechanical seal, shaft and pump body in AISI 304 stainless steel, EPDM-type impeller, flow control via electronic inverter.

Water transfer pump: centrifugal water transfer pump in AISI 304 stainless steel with single-phase motor, mechanical seal, shaft, impeller and pump body in AISI 304 stainless steel.

Plate wort chiller heat exchanger with EPDM gaskets and tie rods in AISI 304 stainless steel.

Other accessories supplied

• Immersion level rod for vessels 1 and 2;
• Immersion level rod for vessel 3;
• No. 3 flexible hoses L=2000 for wort and/or water transfer/circulation;
• No. 1 flexible hose L=4000 for wort and/or water transfer/circulation;
• Sight glass for wort clarity check DIN 32 11851 DN 30;
• DIN key for connecting/disconnecting flexible hoses.

Optionally, you can select the 500-litre version, capable of producing 450 litres in a single batch and 900 litres in a double batch.

NB. Each vessel is shipped in a wooden crate to ensure optimal protection during transport. The vessels are connected using flexible hoses. MID-approved flow meter not included.
