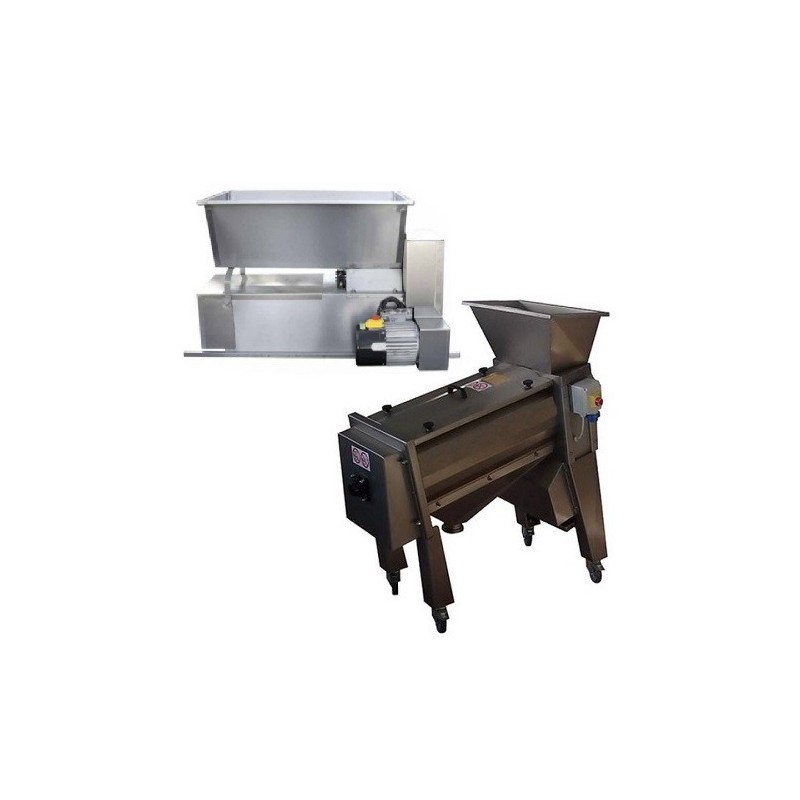

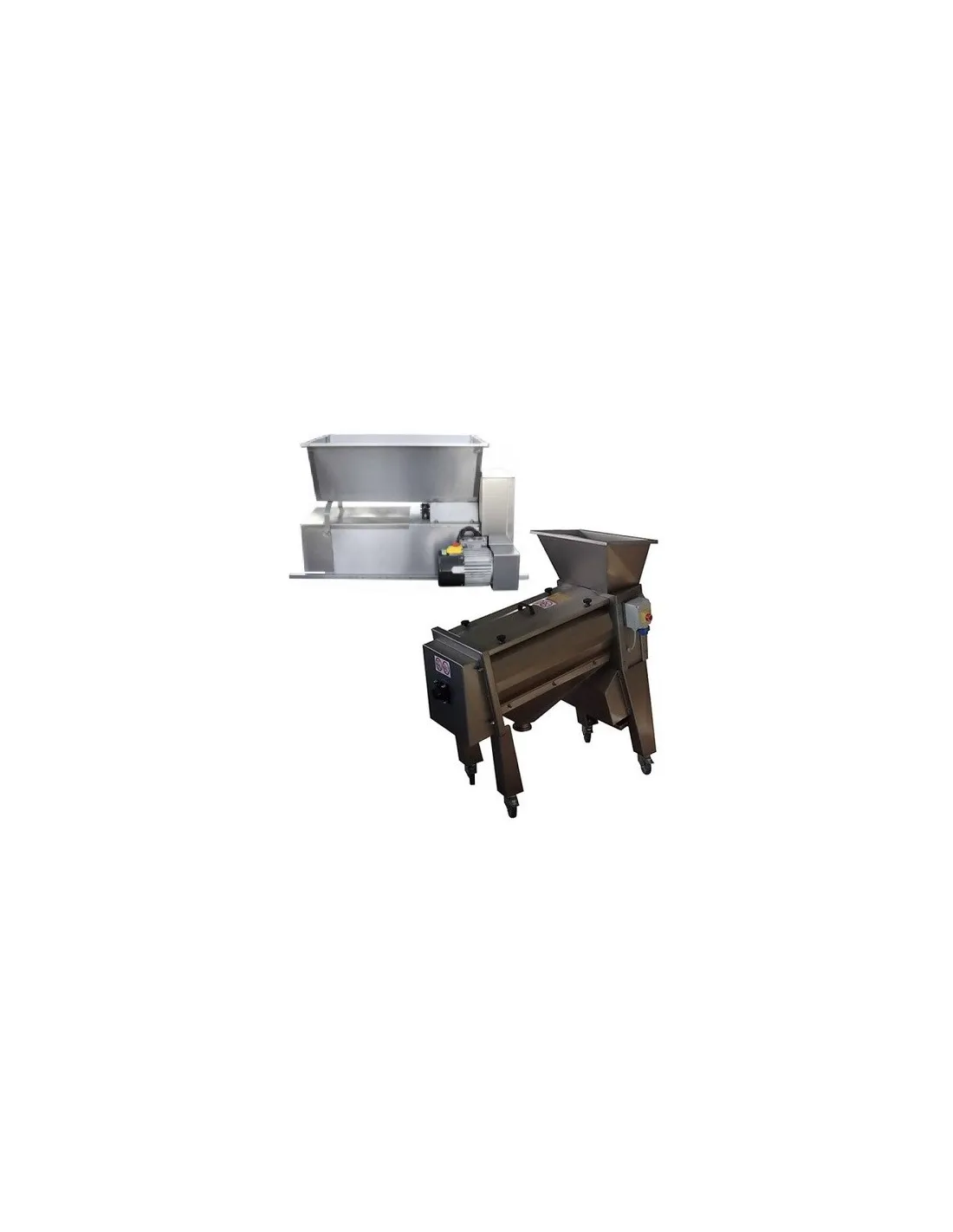

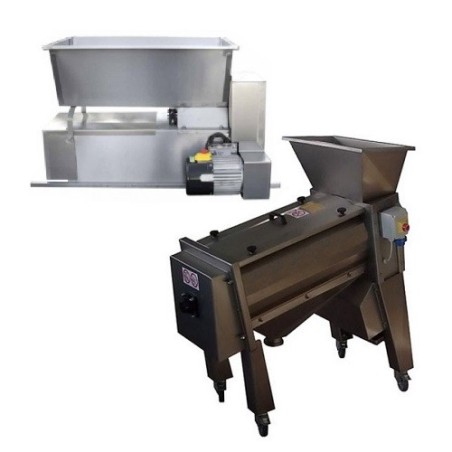

Pomegranate processing line 1000 kg/h

The pomegranate processing line 1000 kg/h is designed for farms, small food-processing workshops and producers who need to process pomegranates and prickly pears into juice, pulp or semi-finished products.

The basic configuration includes a stainless-steel pomegranate deseeder and a pulper/finisher. The system separates the usable product from peels, seeds and other solid residues, preparing it for subsequent processing stages.

During processing, the deseeder breaks the pomegranates and separates the arils. These can be collected in a container or transferred to the pulper/finisher, which processes them to obtain juice or pulp for subsequent filtration, pasteurisation or packaging.

The line can be configured with additional equipment, including a stainless-steel stand with a discharge chute, a motorised collection tank with level sensors and product-transfer systems. The configuration can be selected according to the quantity of fruit to be processed and the required level of automation.

Pulper/finisher technical specifications

• Construction: frame and components in AISI 304 stainless steel;
• Loading hopper: with internal feed auger;
• Shaft: stainless steel with adjustable rubber-coated paddles;
• Electric motor: 1.5 HP (1.1 kW);
• Power supply: three-phase;
• Power transmission: mechanical reducer;
• Electrical system: CE-compliant, with emergency stop;
• Included screen: 1 stainless-steel screen;
• Wheels: 2 fixed wheels;
• Seed discharge height: 400 mm;
• Pulp discharge height: 300 mm;
• Loading height from floor: 1,300 mm;
• Throughput: 1,000 kg/h;
• Dimensions: 110 × 65 × 130 cm;
• Weight: 80 kg.

The pulper/finisher is supplied with a user manual, CE Machinery Directive conformity certification and food-use compliance.

Available pomegranate deseeders

Two deseeder configurations are available. Select the required model from the product options.

1,200 kg/h deseeder

This model is suitable for smaller, non-continuous processing operations. A stainless-steel stand and a collection tank with level sensors are recommended for automating the transfer of arils to the pulper/finisher.

• Maximum processing capacity: 1,200 kg/h;
• Dimensions: 121 × 60 × 63 cm;
• Weight: 54 kg.

3,000 kg/h deseeder with electric pump

This version is designed for longer, more continuous processing operations. It is supplied with a trolley-mounted pump for transferring the arils to the pulper/finisher.

• Maximum processing capacity: 3,000 kg/h;
• Dimensions: 118 × 68 × 90 cm;
• Weight: 112 kg.

Optional accessories

• Stainless-steel stand with discharge chute: available for the deseeder;
• Motorised collection tank: complete with pump and level sensors. To be used together with the stainless-steel stand for the deseeder.
