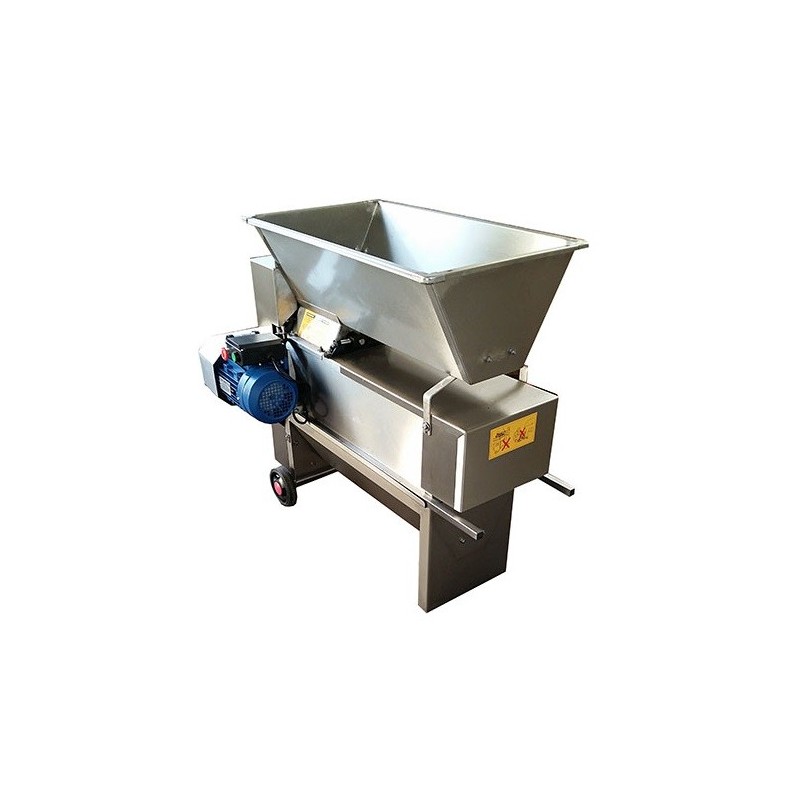

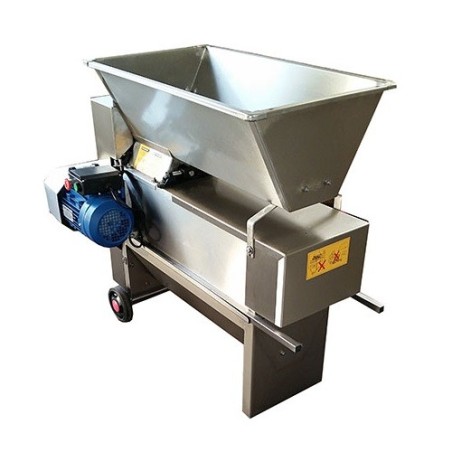

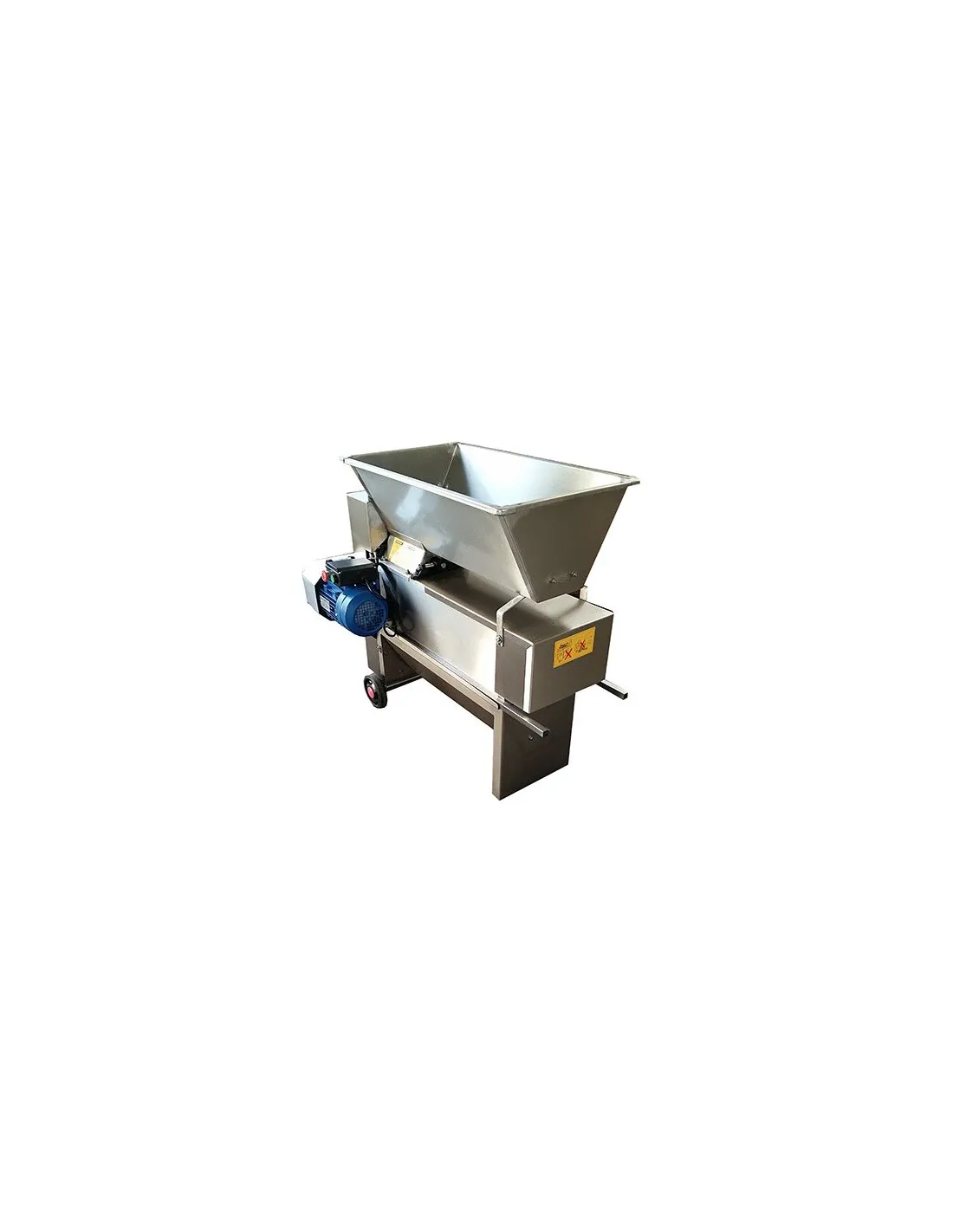

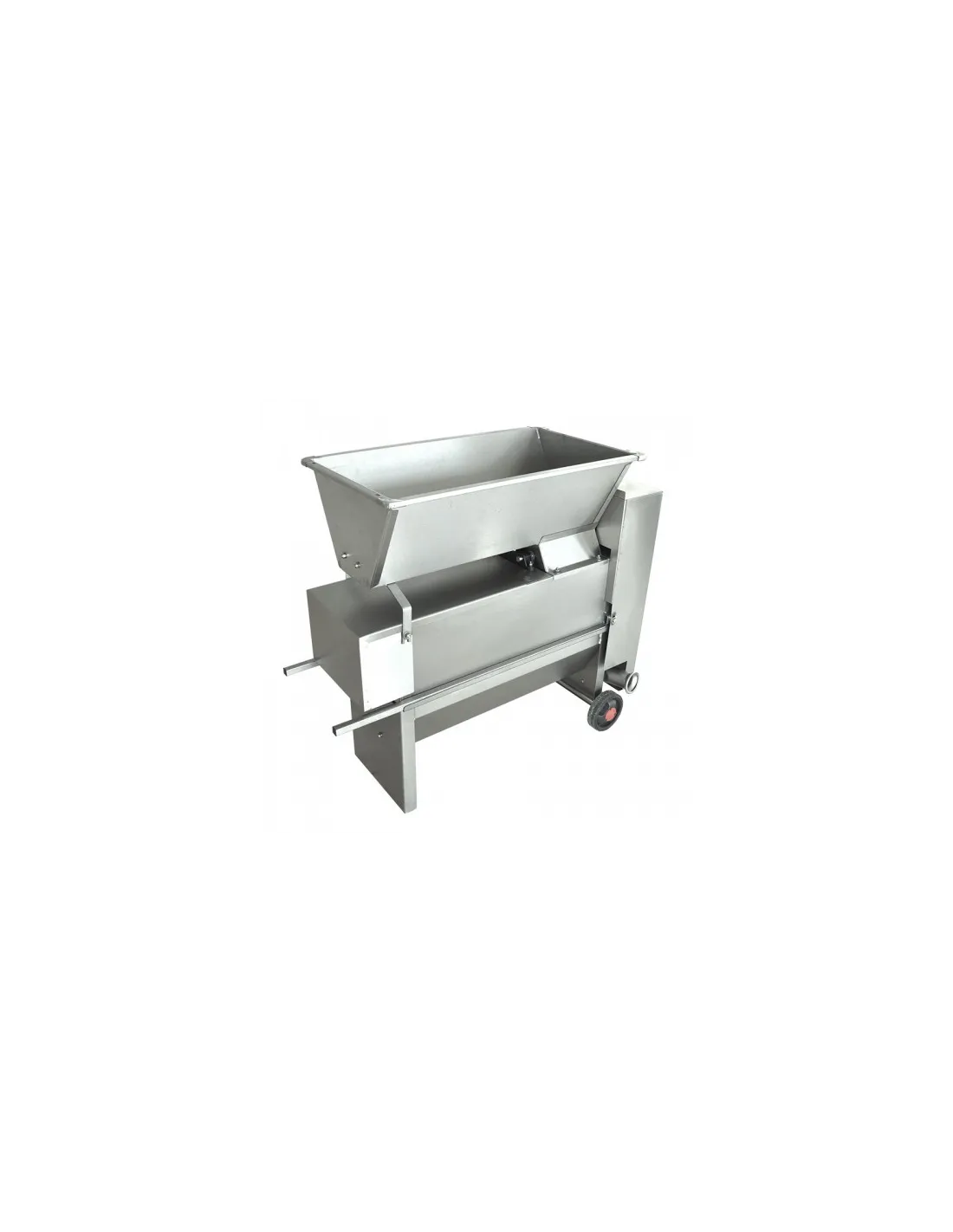

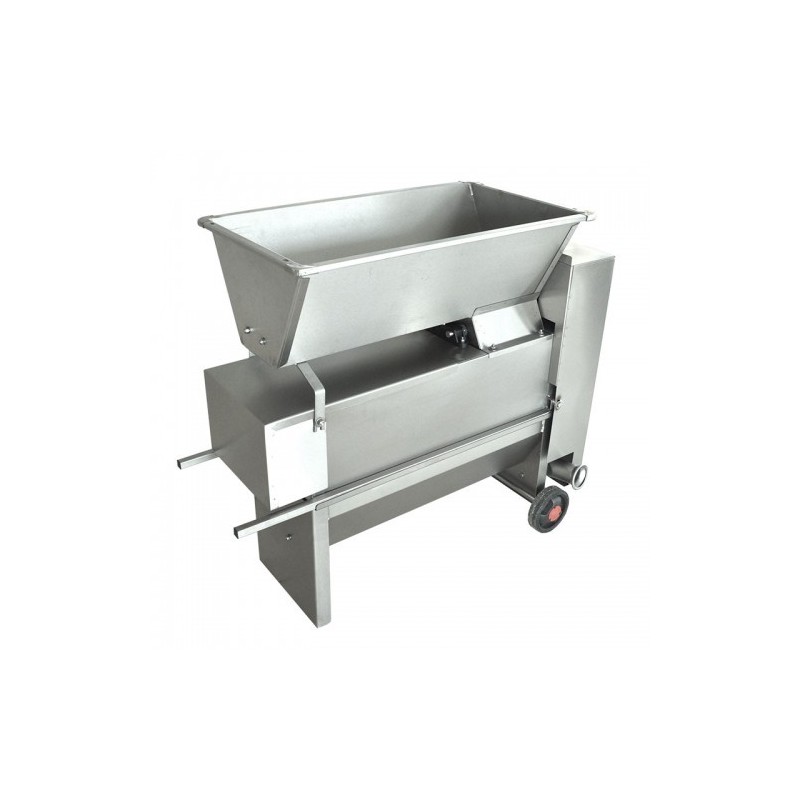

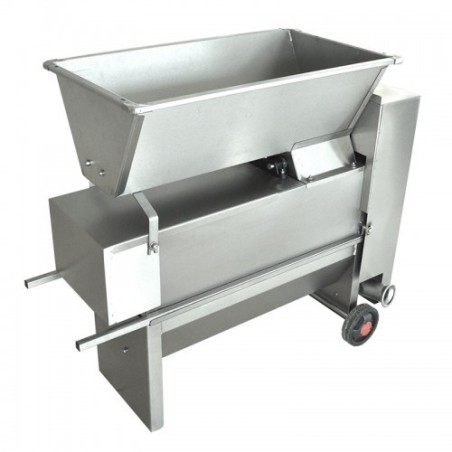

Stainless Steel Grape Crusher-Destemmer with Pump - 1,500–1,800 kg/h

The stainless steel grape crusher-destemmer with pump is an electric machine designed for the first stage of grape processing in small and medium wine production, combining grape crushing, destemming and transfer of the processed product towards vats or fermentation tanks.

Compared with the enamelled version with pump, this model is made entirely of AISI 304 stainless steel, a material suitable for food use and easier to clean after processing.

During operation, the screw conveyor feeds the grapes towards the self-adjusting aluminium rollers, which crush the berries. The destemming shaft then separates the berries from the stems through the stainless steel destemming screen.

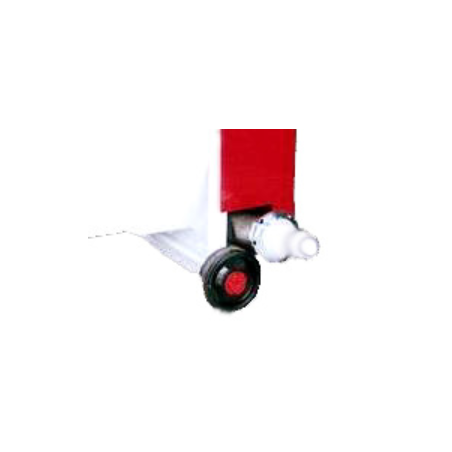

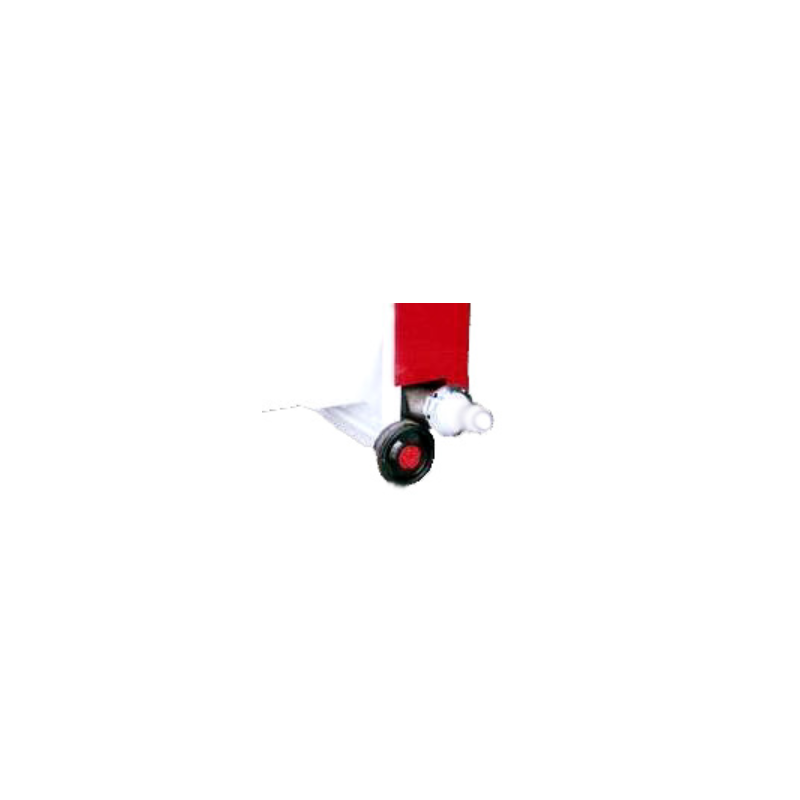

The stainless steel centrifugal pump transfers the processed product towards the fermentation vessel, avoiding the need to collect it only by gravity or through a chute.

Indicative hourly output is approximately 1,500–1,800 kg/h (18 quintals/h), depending on the type of grapes, ripeness and continuity of feeding.

The pump has a Ø60 outlet and an indicative delivery of 15 m horizontally and 5 m vertically. These values help assess the correct positioning of the machine in relation to collection or fermentation vessels.

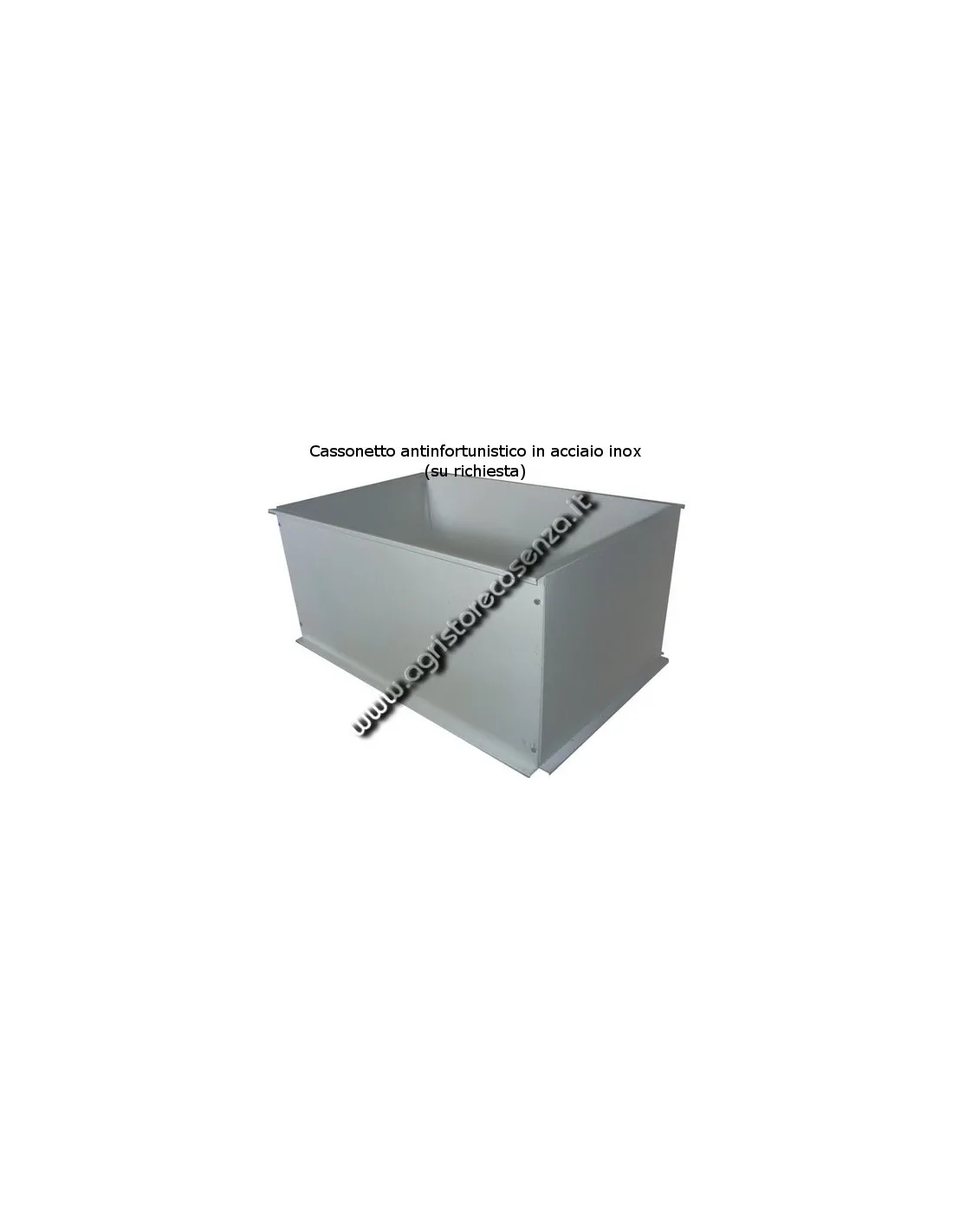

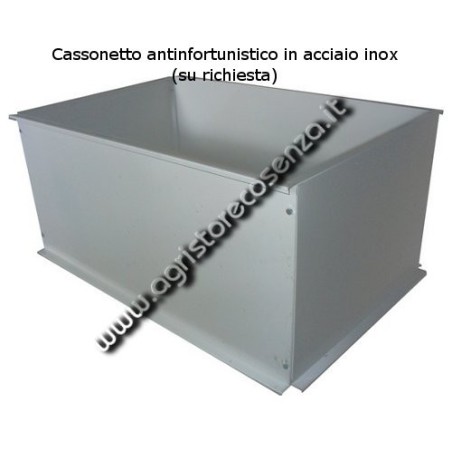

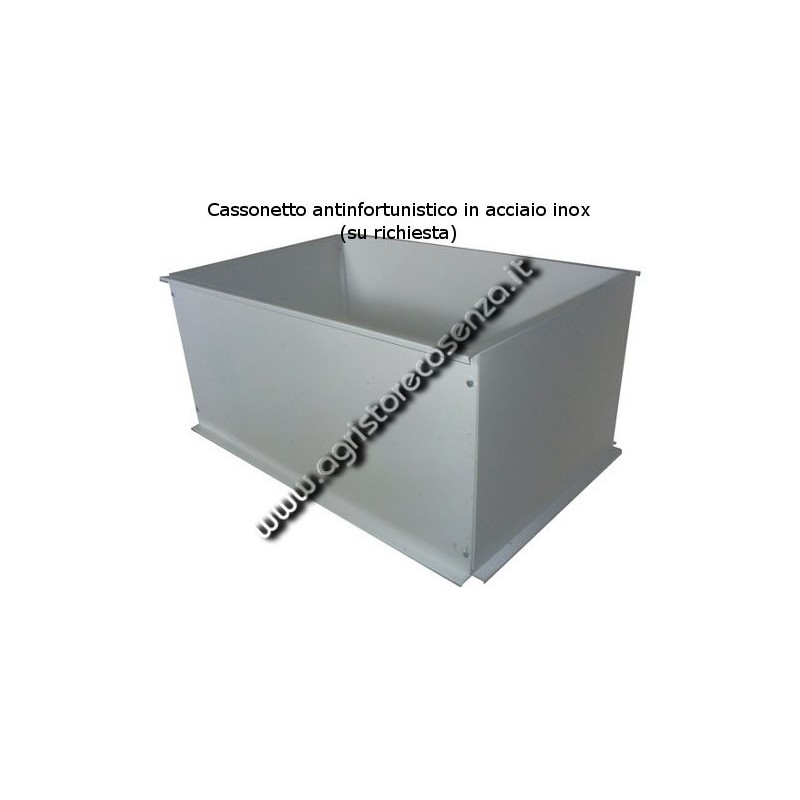

The crusher-destemmer is supplied with aluminium rollers. Food-grade rubber rollers and a safety protection with internal pyramidal grid are available as optional equipment.

Technical features

• Construction: AISI 304 stainless steel;
• Motor: 2 HP (1.5 kW) with starting capacitor and CE emergency stop button;
• Beater shaft speed: approx. 500 RPM;
• Pump and impeller: stainless steel;
• Pump delivery: approx. 15 m horizontally and 5 m vertically;
• Pump outlet: Ø60;
• Destemming screen: stainless steel;
• Rollers: self-adjusting aluminium rollers, 22 cm long;
• Guards: stainless steel;
• Hourly output: approx. 1,500–1,800 kg/h (18 quintals/h);
• Dimensions: 112 × 60 × 96 cm;
• Weight: approx. 70 kg.
