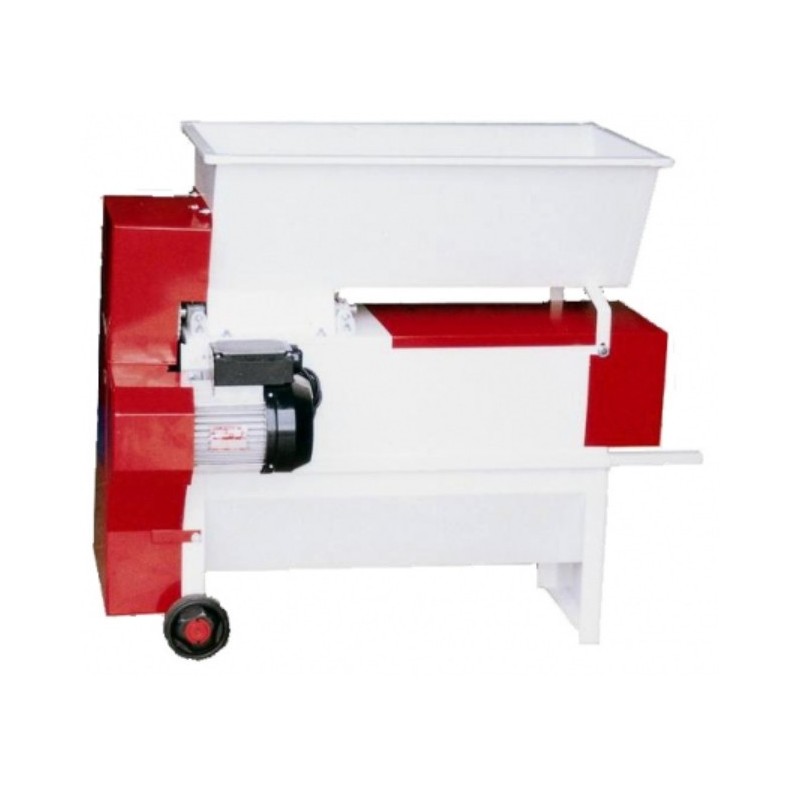

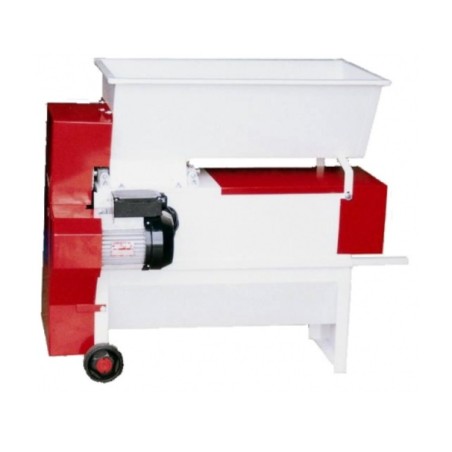

Grape Crusher-Destemmer with Pump - 1,500–1,800 kg/h

The grape crusher-destemmer with pump is an electric machine designed for the first stage of grape processing in small and medium wine production, combining grape crushing, destemming and transfer of the processed product.

Compared with models without a pump, this version is equipped with a stainless steel centrifugal pump that transfers the processed product after crushing and destemming. This makes it suitable when the must needs to be moved towards vats or tanks instead of being collected only by gravity or through a chute.

During operation, the screw conveyor feeds the grapes towards the self-adjusting aluminium rollers, which perform the crushing. The destemming shaft then separates the berries from the stems through the stainless steel destemming screen.

Indicative hourly output is approximately 1,500–1,800 kg/h (18 quintals/h), depending on the type of grapes, ripeness and continuity of feeding.

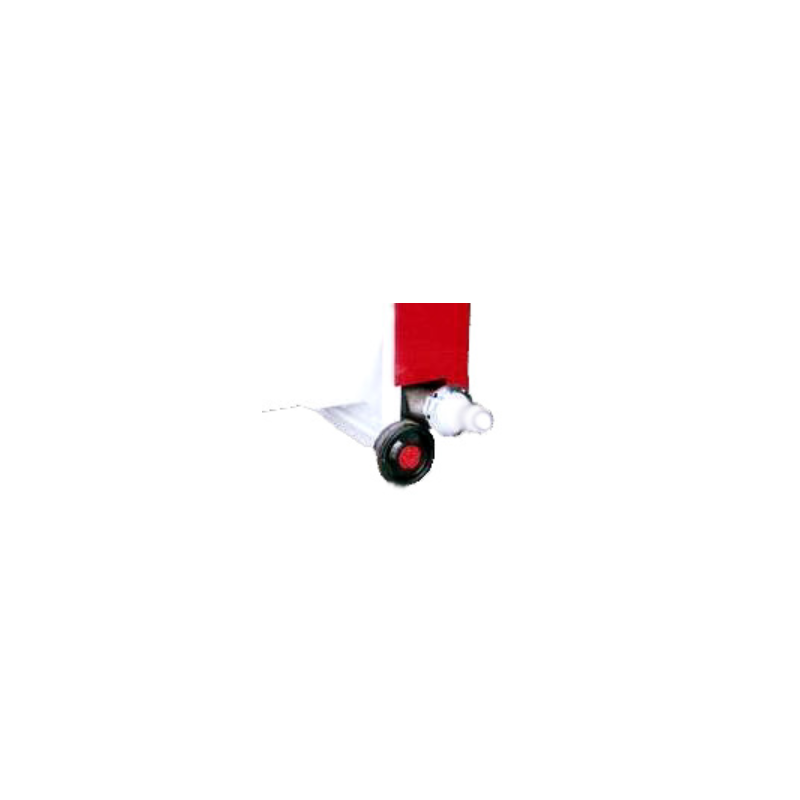

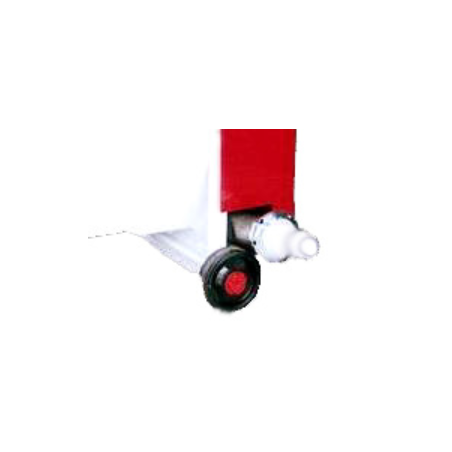

The pump has a Ø60 outlet and an indicative delivery of 15 m horizontally and 5 m vertically. These values help assess the correct positioning of the machine in relation to collection or fermentation vessels.

The machine is supplied with aluminium rollers. Food-grade rubber rollers are available as an optional alternative.

Technical features

• Motor: 2 HP (1.5 kW) with starting capacitor and CE emergency stop button;
• Beater shaft speed: approx. 500 RPM;
• Pump and impeller: stainless steel;
• Pump delivery: approx. 15 m horizontally and 5 m vertically;
• Pump outlet: Ø60;
• Destemming screen: stainless steel;
• Rollers: self-adjusting aluminium rollers, 22 cm long;
• Guards: enamelled sheet metal;
• Hourly output: approx. 1,500–1,800 kg/h (18 quintals/h);
• Dimensions: 112 × 60 × 96 cm;
• Weight: approx. 70 kg.

Available options

• Food-grade rubber rollers;

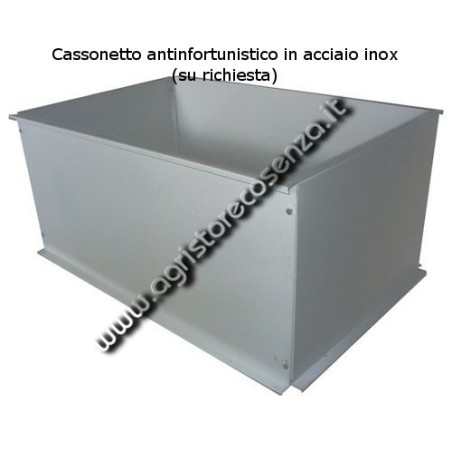

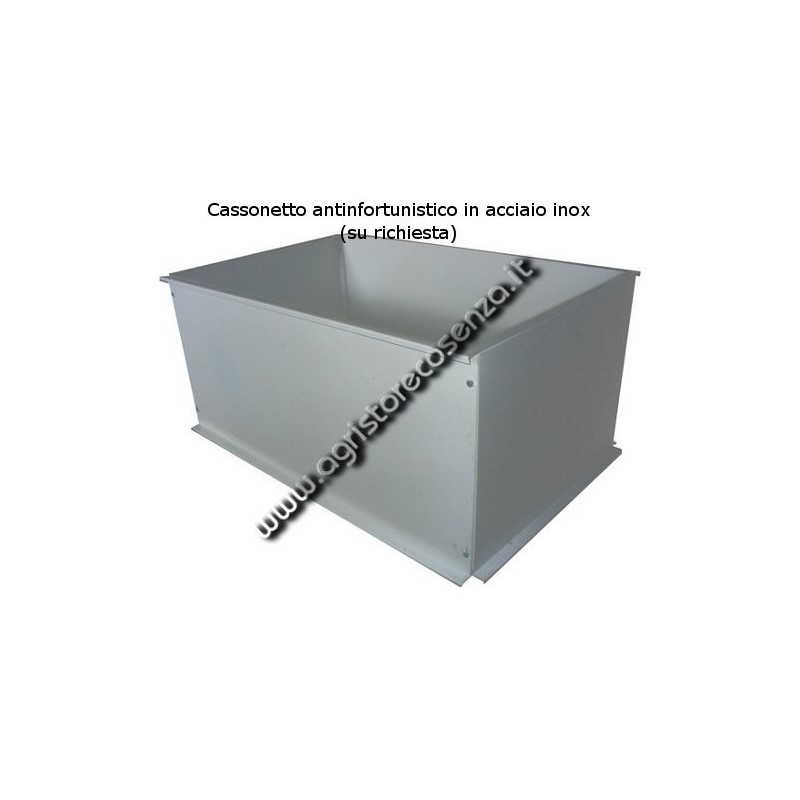

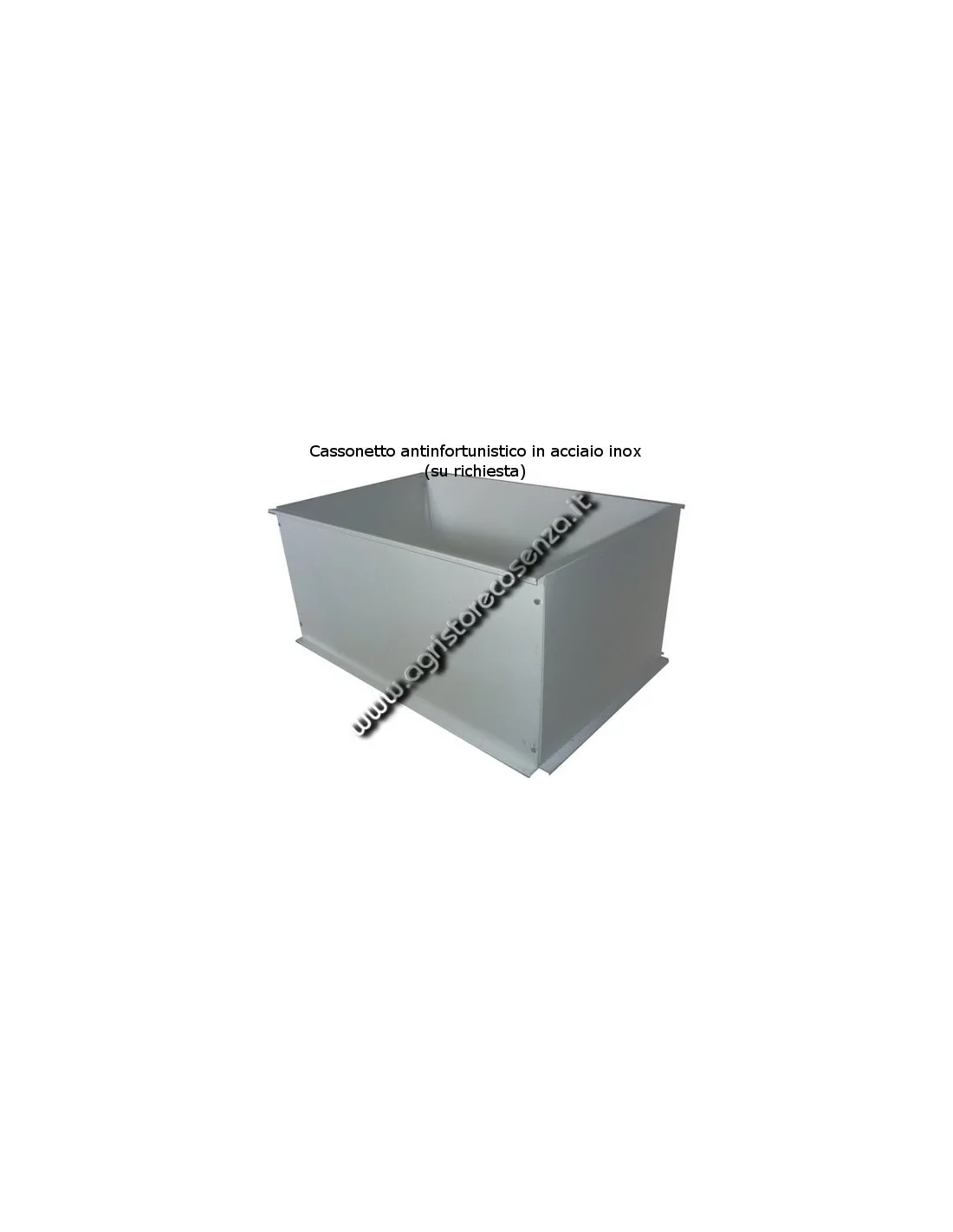

• Safety protection with internal pyramidal grid, required for issuing the EC declaration of conformity.
