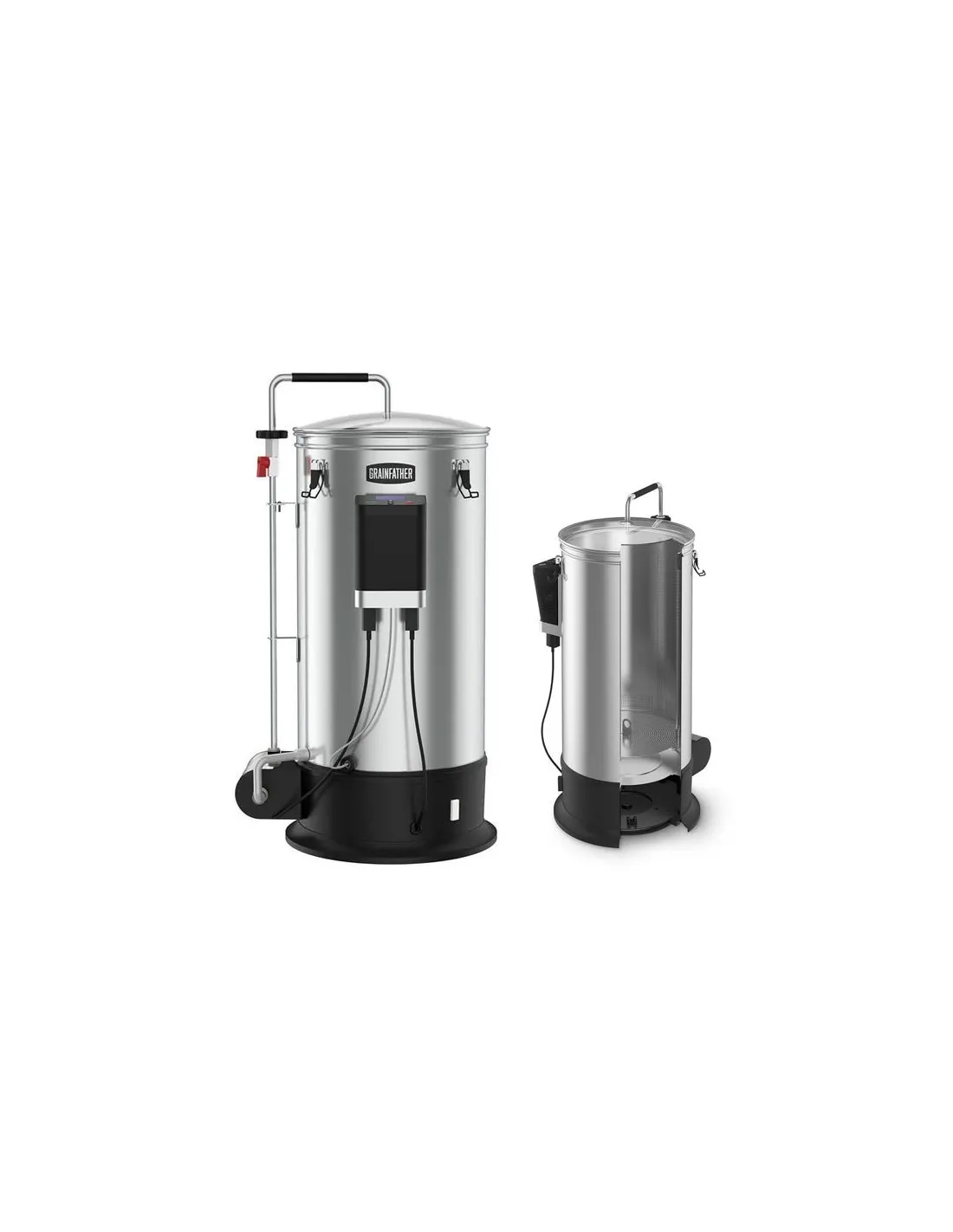

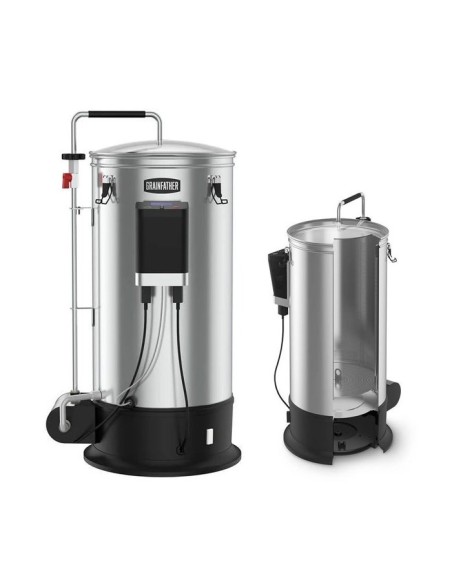

Grainfather 30L All-in-One All-Grain Brewing System

Grainfather 30 L is an all-in-one all-grain brewing system designed to handle the complete brewing process in a single unit: mashing, recirculation, boiling and chilling.

With a total boiler capacity of 30 litres, the system is designed for homebrewing and can produce batches of up to 25 litres, with approximately 23 litres of beer indicated as a typical batch size.

The system features a Bluetooth controller with Grainfather App support, allowing temperatures and brewing stages to be monitored and managed. It also includes a counterflow wort chiller to speed up wort cooling.

Included accessories

• Counterflow connector hose barb;
• Grain Stopper;
• Hose with ball valve;
• Pump fittings;
• Recirculation pipe.

Key features

• AISI 304 stainless steel boiler;
• Tempered glass lid;
• Magnetic drive pump: 6 W, 1800 rpm;
• Pump filter;
• Removable control unit for temperature and pump management;
• Perforated grain basket, eliminating the need for a top plate and additional pipework;
• No micropipe required for small batches;
• Counterflow chiller with copper inner tube;
• Digital thermostat for setting individual mash and boil steps.

Technical specifications

• Total boiler capacity: 30 litres (8 US gal);
• Maximum pre-boil volume: 30 litres;
• Batch volume: max. 25 litres / min. 10 litres;
• Grain bill: max. 8 kg / min. 1.5 kg;
• Heating element: 2000 W;
• Power: 2000 W;
• Weight: 14.6 kg;
• Dimensions: 685 x 386 mm.

Optional accessory

An optional copper dome with condenser can be purchased for use with the unit as a distiller.
