Fruit Crusher for Apples and Other Fruit

The fruit crusher for apples and other fruit is available in four configurations, with manual or motor-driven operation and an enamelled or stainless steel hopper, depending on the model. The term apple scratter is also used for fruit crushers in apple-processing equipment. These versions have self-adjusting rollers. The available versions have an hourly output of 300–500 kg or 500–700 kg.

Available fruit crusher versions

Choose the configuration according to the required hourly output, hopper material and type of drive. The 300–500 kg/h model has 15 cm rollers and an enamelled hopper with manual operation. The three 500–700 kg/h models have 22 cm rollers and are available with the configurations detailed below.

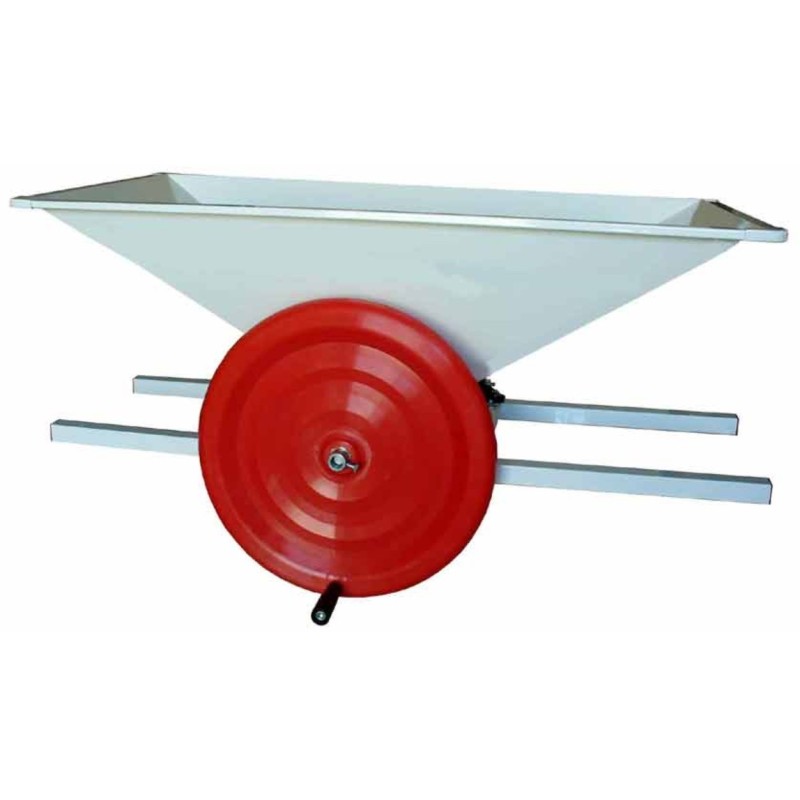

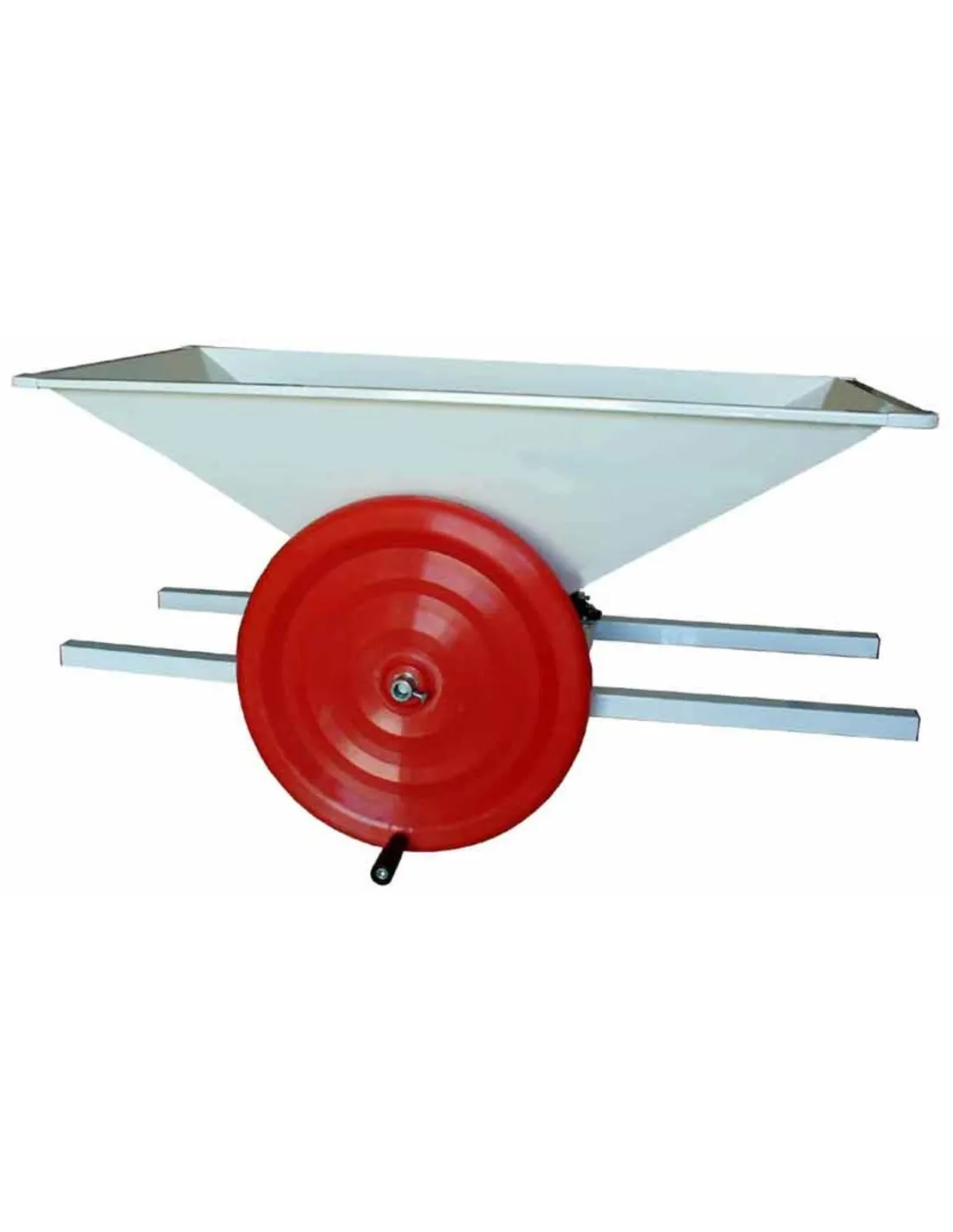

Manual fruit crusher – 300–500 kg/h, enamelled hopper

• Drive: manual.
• Self-adjusting roller length: 15 cm.
• Hopper: enamelled.
• Hopper dimensions: 55.5 x 45.5 cm.
• Hourly output: 300–500 kg.
• Overall dimensions with flywheel: 86 x 36.5 x 47 cm.
• Weight with flywheel: 14 kg.

Manual fruit crusher – 500–700 kg/h, enamelled hopper

• Drive: manual.
• Self-adjusting roller length: 22 cm.
• Hopper: enamelled.
• Hopper dimensions: 65 x 47 cm.
• Hourly output: 500–700 kg.
• Overall dimensions with flywheel: 100 x 39 x 49 cm.
• Weight with flywheel: 18 kg.

Manual fruit crusher – 500–700 kg/h, stainless steel hopper

• Drive: manual.
• Self-adjusting roller length: 22 cm.
• Hopper: stainless steel.
• Hopper dimensions: 65 x 47 cm.
• Hourly output: 500–700 kg.
• Overall dimensions with flywheel: 100 x 39 x 49 cm.
• Weight with flywheel: 18 kg.

Motor-driven fruit crusher – 500–700 kg/h, stainless steel hopper

• Drive: 1 HP (0.75 kW) electric motor.
• Self-adjusting roller length: 22 cm.
• Hopper: stainless steel.
• Hopper dimensions: 85 x 56 cm.
• Safety casing: specified for this model.
• Hourly output: 500–700 kg.
• Overall dimensions with flywheel: 121 x 50 x 57 cm.
• Weight with flywheel: 33 kg.
