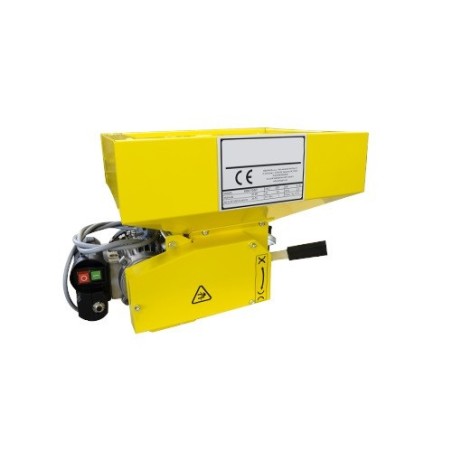

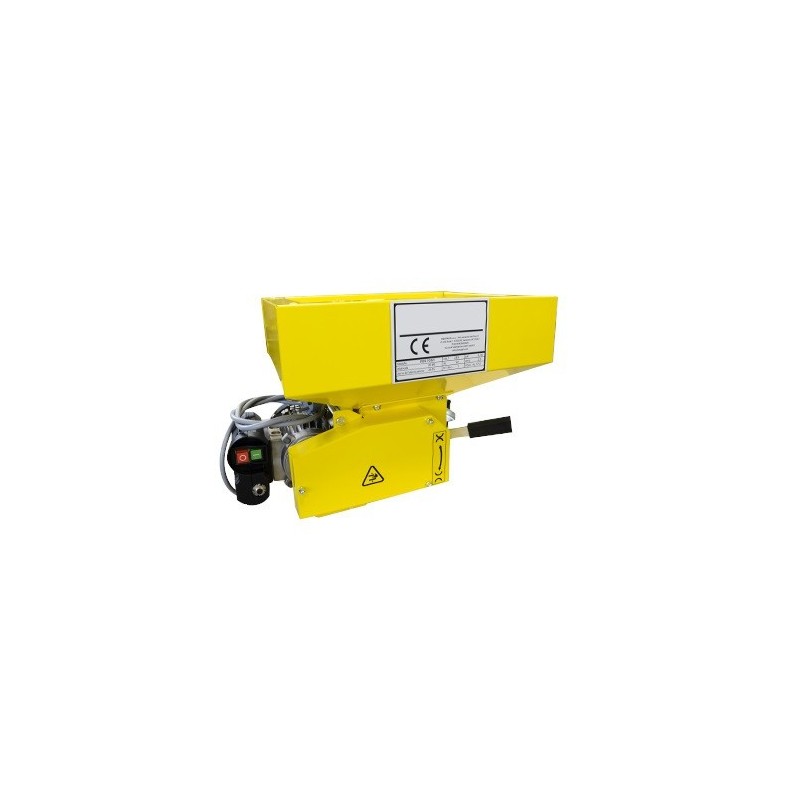

Electric Malt Mill for Beer Brewing

The electric malt mill for beer brewing is the ideal tool for microbreweries with a production capacity of up to 250 litres per batch. Using it during the milling stage saves time and effort while delivering better results. The goal of this step is to obtain grain fragments with a maximum size of around 2 mm.

This mill crushes the kernel until it cracks without pulverising it, achieving the ideal grist size. Milling too coarse can lead to poor sugar extraction; milling too fine can prevent proper beer clarification and may clog the filter bed formed by the spent grains.

The malt mill stands out for its robustness and ease of use and maintenance, requiring no special procedures.

It is the result of a careful design process using 3D CAD and a manufacturing phase based on CNC machinery (laser cutting, lathes, etc.), with each unit assembled and tested individually rather than on an assembly line.

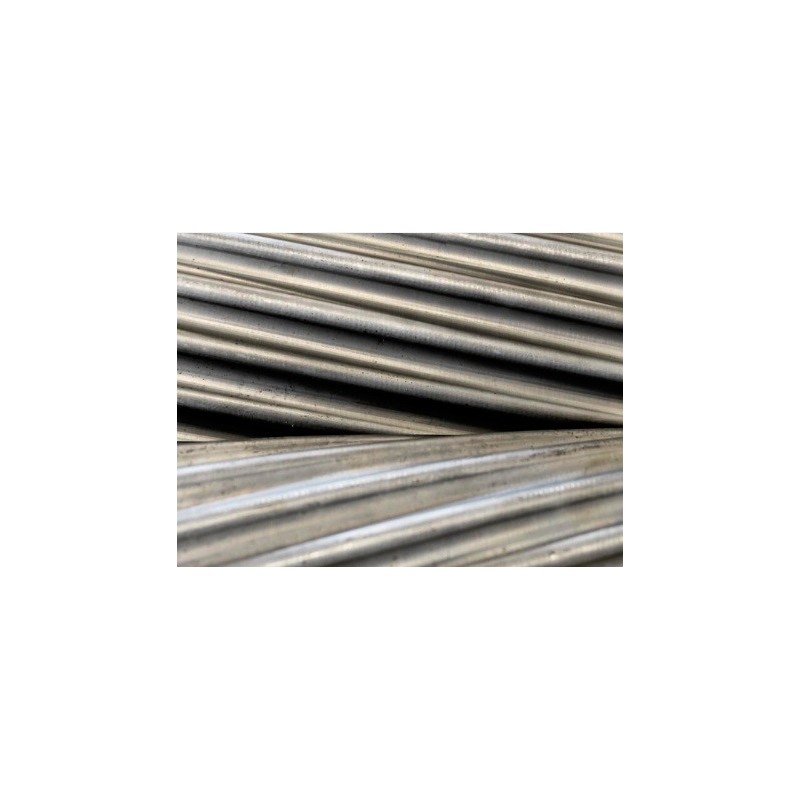

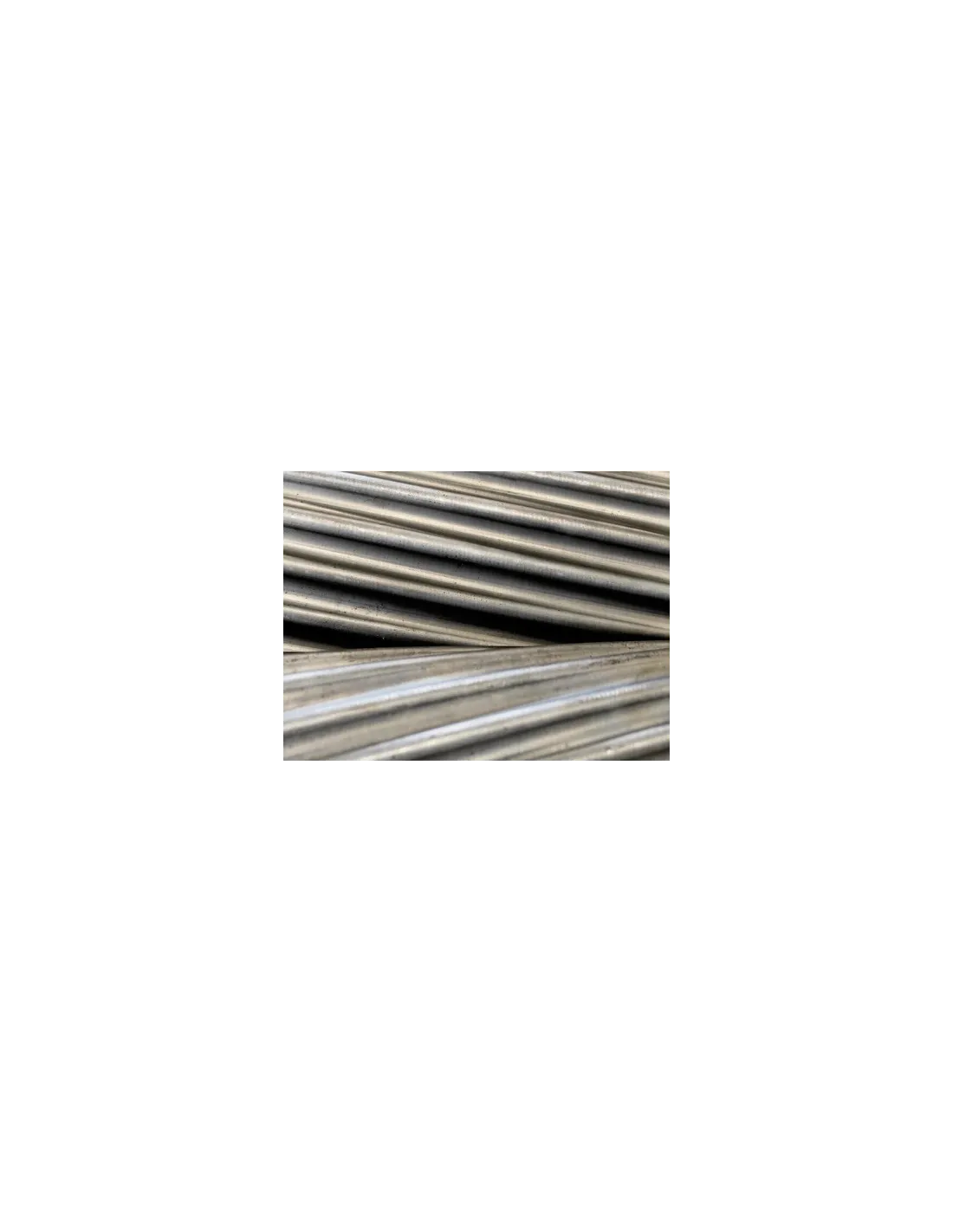

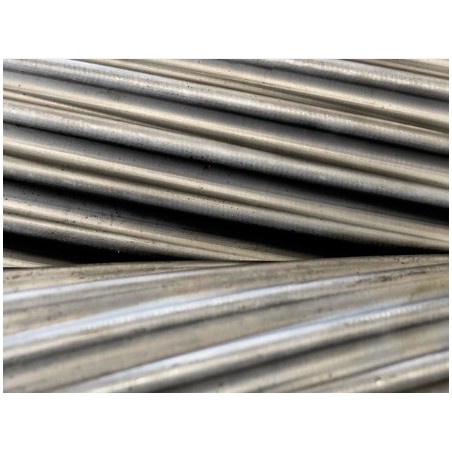

Among the features that make this machine unique and highly efficient is the special wave-shaped, helical roller profile. This design captures a larger amount of grain, even mixed cereals, with ease and keeps output consistent over time. In addition, the rollers have a smooth surface protected by a special treatment, helping the machine resist excessive wear over time while reducing dust and noise.

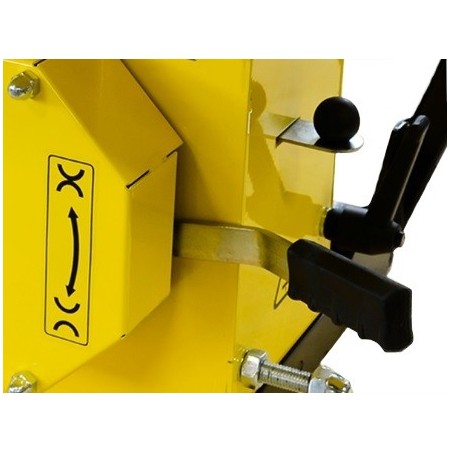

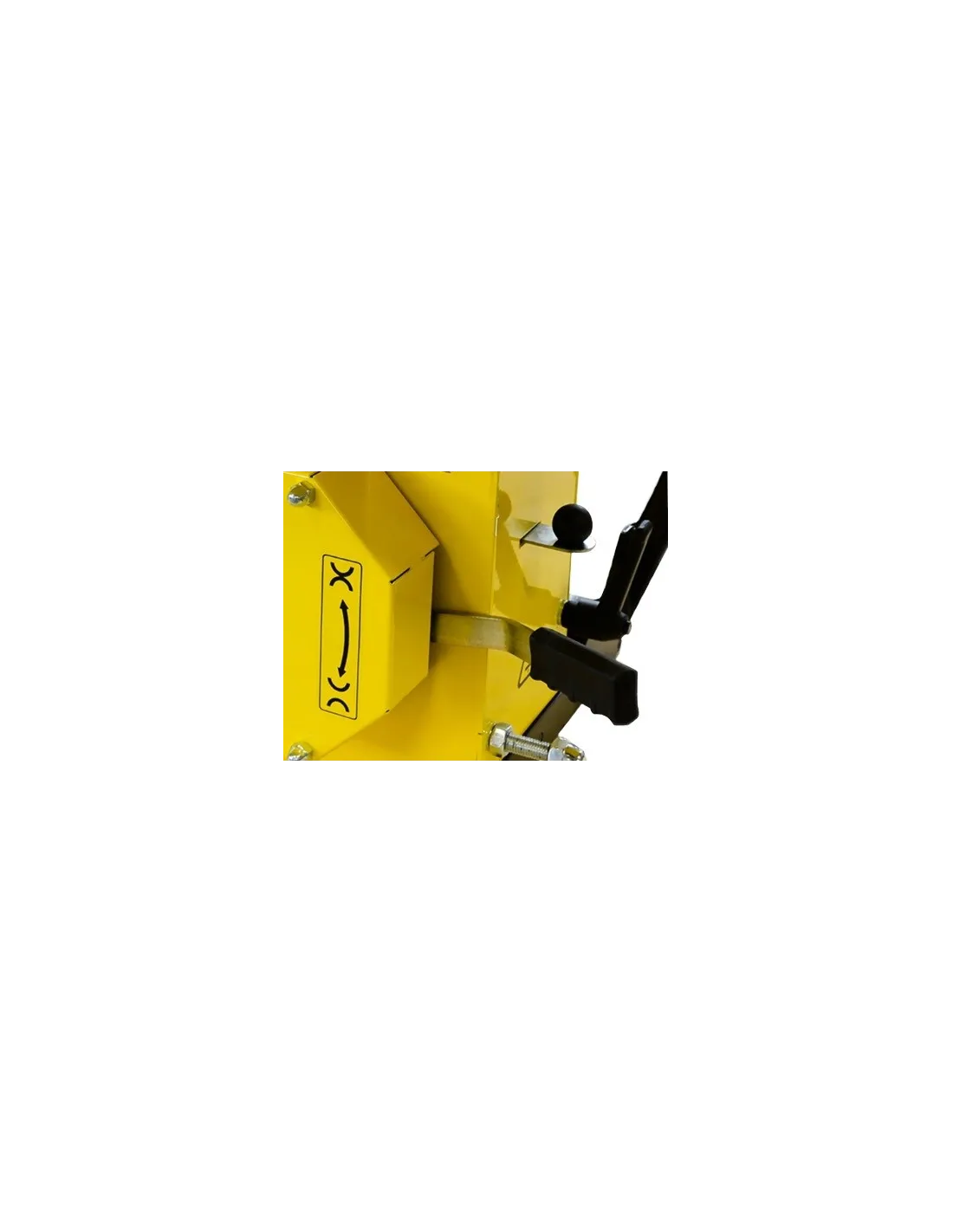

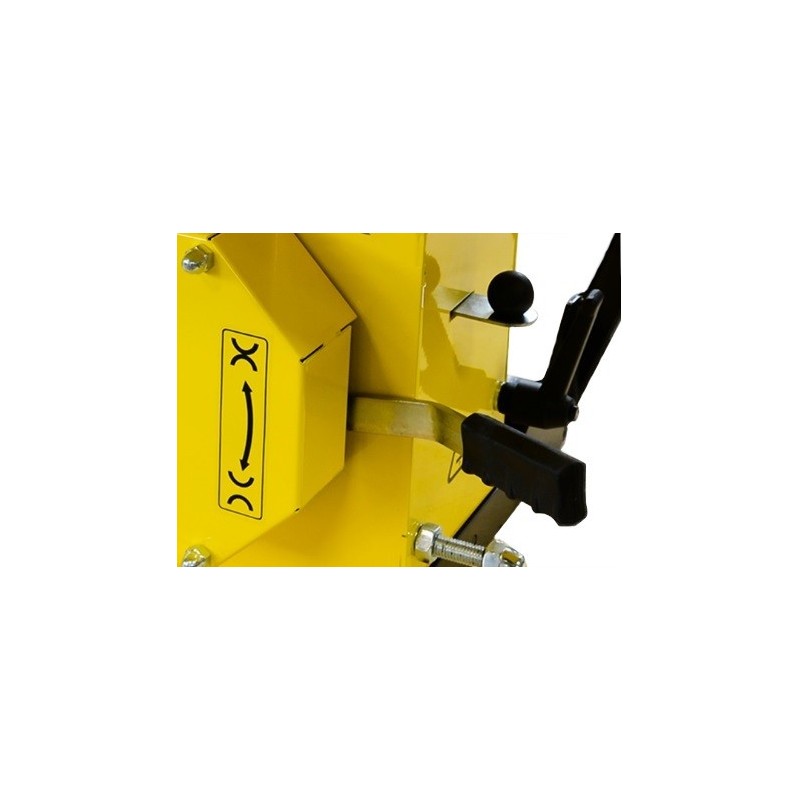

Another key advantage of this beer malt mill is the wide adjustment range and the ease of setting it: no spanners are required and there’s no need to remove guards. By operating the lever, you can move the rollers closer together or further apart to obtain a more or less crushed product, up to “cold rolling” (without cooking and drying, avoiding the loss of valuable nutrients), ensuring you moisten the grain first.

Malt mill specifications:

• Output: 30 kg/h (may increase or decrease depending on the crush setting)
• Material: painted steel
• Power supply: single-phase 230 V with 0.18 kW motor (0.25 hp)

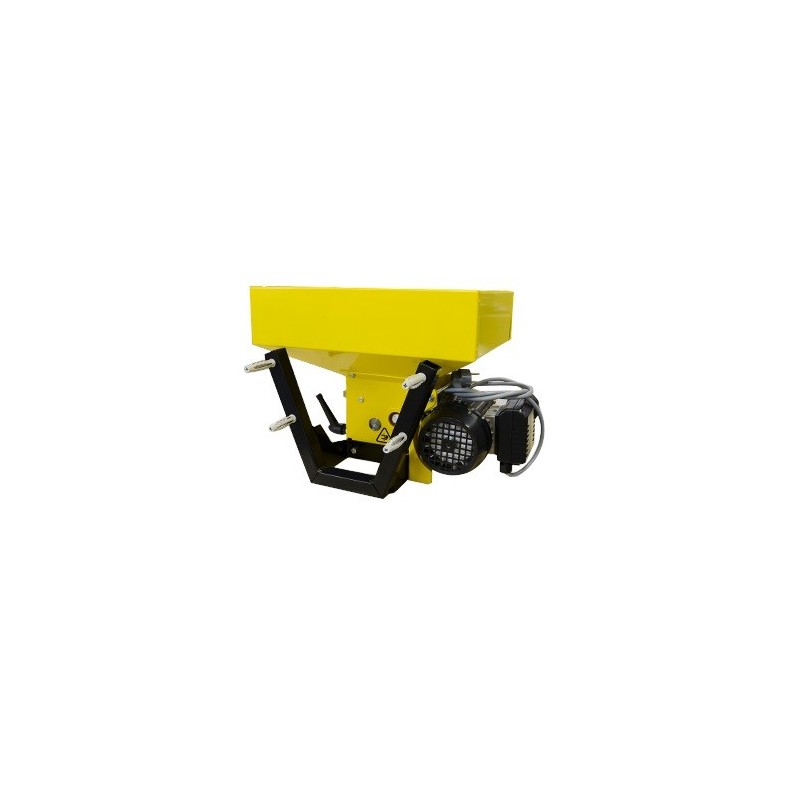

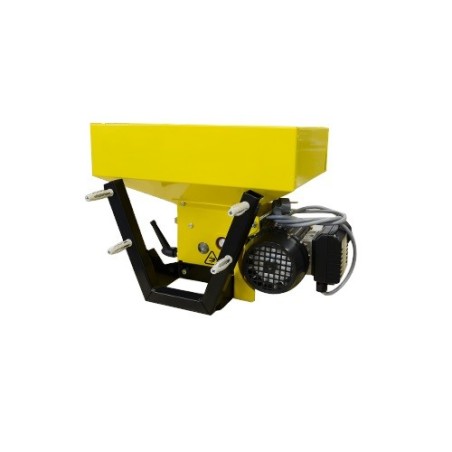

• Supplied with wall mounting bracket (optional floor stand, h. 91 cm)
• Low energy consumption
• For crushing maize, barley, triticale, faba beans, wheat, soy, oilseeds, sorghum, etc. (not larger than maize kernels)
• Also crushes mixed cereals
• Adjustable rollers
• Dimensions: 48 x 35 x H 33 cm
• Weight: 15.50 kg
