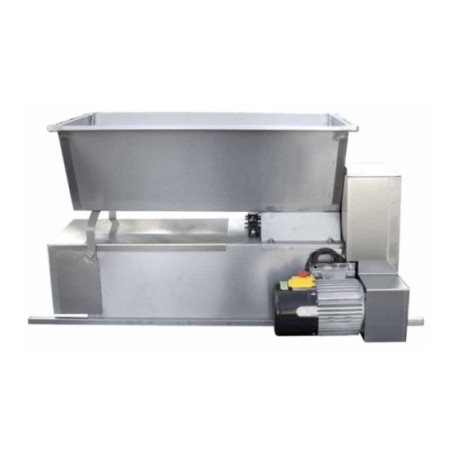

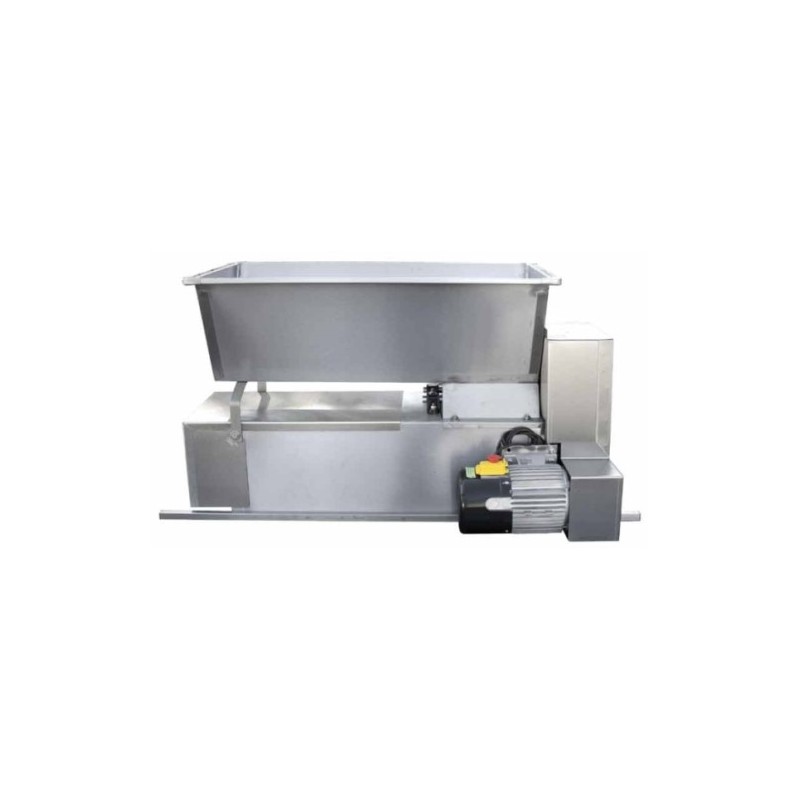

The electric stainless steel grape crusher-destemmer is designed for small and medium wine production. Made entirely of AISI 304 stainless steel, it combines grape crushing and destemming in a single machine.
The machine is powered by a single-phase 1 HP motor (0.75 kW), which drives the rollers, screw conveyor and destemming shaft. Its operation is designed to be simple and practical, even for less experienced operators.
The self-adjusting aluminium rollers are 22 cm long and are mounted with a system designed to reduce the risk of damage to the rollers and gears if solid parts pass through during processing. The machine is also equipped with a stainless steel screen and an emergency stop button.
Hourly output is approximately 1,600–1,800 kg/h (16–18 quintals/h), making this model suitable for small and medium-scale grape processing.
Technical features
- Construction: entirely made of AISI 304 stainless steel;
- Screen: stainless steel;
- Rollers: self-adjusting aluminium rollers, 22 cm long;
- Motor: single-phase 1 HP (0.75 kW) with emergency stop button;
- Hourly output: 1,600–1,800 kg/h (16–18 quintals/h);
- Overall dimensions: approx. 121 × 60 × 63 cm;
- Beater shaft speed: approx. 500 RPM;
- Weight: approx. 54 kg.
Accessories available on request
- Stand with stainless steel chute;
- Stainless steel safety housing, required for issuing the EC declaration of conformity;
- Rubber rollers.
Spare parts and specialised assistance are available.
- Processing capacity
- 1100–2000 kg/h
- Material
- Stainless steel
- Destemming screen
- Stainless steel
- Motor
- 1 HP (kW 0.75)
- Overall dimensions
- 1210 × 600 × 630 mm
- Weight
- 54 kg
- Shaft speed
- 500 RPM
- Hopper dimensions
- 850 × 480 mm
- Crushing rollers
- Aluminium (rubber optional)
- Power source
- Single-phase
- Pump
- Nothing
- Pump head
- N.D.
- Product type
- Grape crusher-destemmer
03070001
