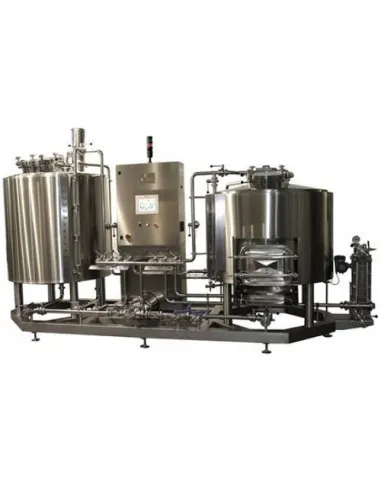

300L Electric Beer Brewing System

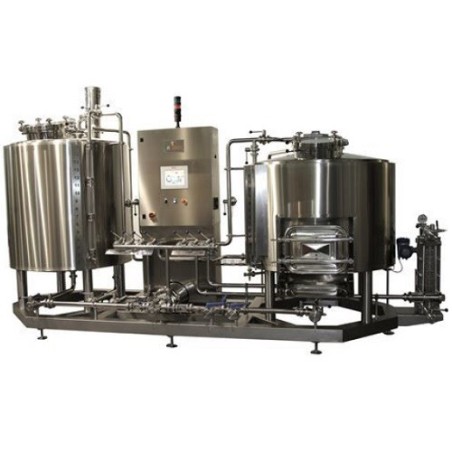

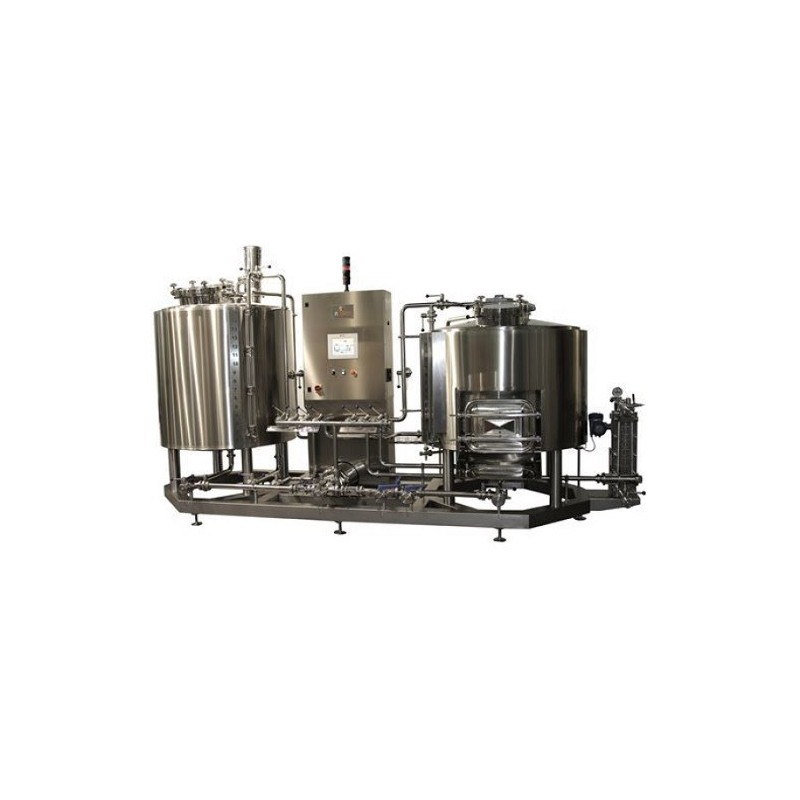

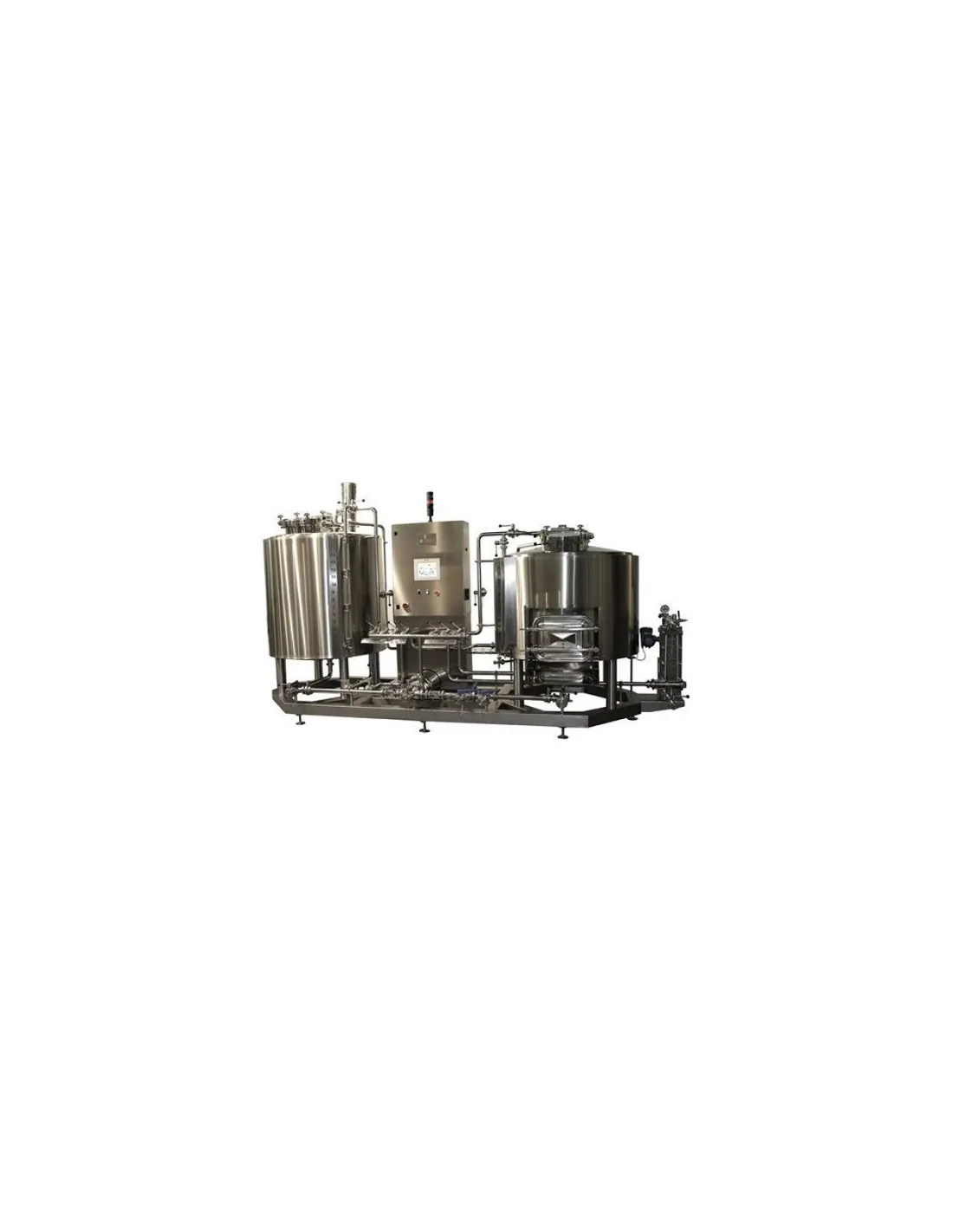

The 300-litre-per-batch microbrewery system is the ideal solution for producing craft beer, recommended for anyone looking to open a microbrewery or upgrade an existing one. This brewhouse is an innovative, high-quality yet cost-effective solution compared to typical market standards. The system features a two-vessel brewhouse plus a hot water buffer tank and is designed primarily for single-batch operation with semi-automatic control of mash steps via a touchscreen control panel with Siemens components (it can also be used for double-batch operation, with slightly longer production times than systems specifically designed for that workflow). The electric brewhouse is supplied as a pre-assembled monobloc, ready to run: it only requires connection to the electrical and water supply lines. This is a preferred solution for entrepreneurs who want to power their microbrewery using photovoltaic systems.

The brewhouse includes a touchscreen command panel installed on a platform (both made of stainless steel) housing all controls. From the panel you can manage the pump (including speed adjustment via inverter), the geared motor for the mash tun, view mash and boil temperatures, view safety and emergency statuses, and monitor the safety devices installed on the mash tun lid.

Technical specifications of the microbrewery system

• System type: electric monobloc;
• Material: AISI 304 stainless steel;
• Mash/boil vessel volume: 400 litres;
• Lauter/whirlpool vessel volume: 450 litres;
• Hot water buffer tank volume: 300 litres;
• Number of vessels: 2 + hot water buffer tank;
• No. 1 wort/boil & whirlpool pump CSF 1.5 kW;
• Inspectable plate heat exchanger;
• No. 1 stainless steel control panel with PLC touchscreen for system control;
• In-line filter;

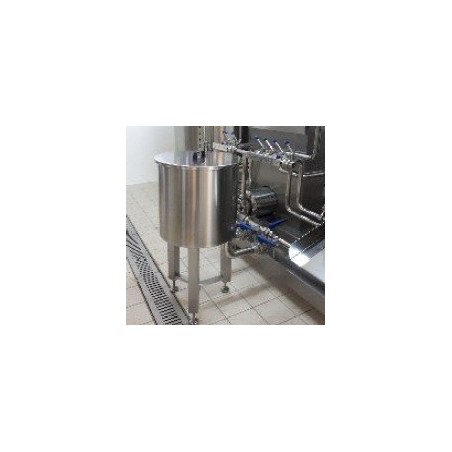

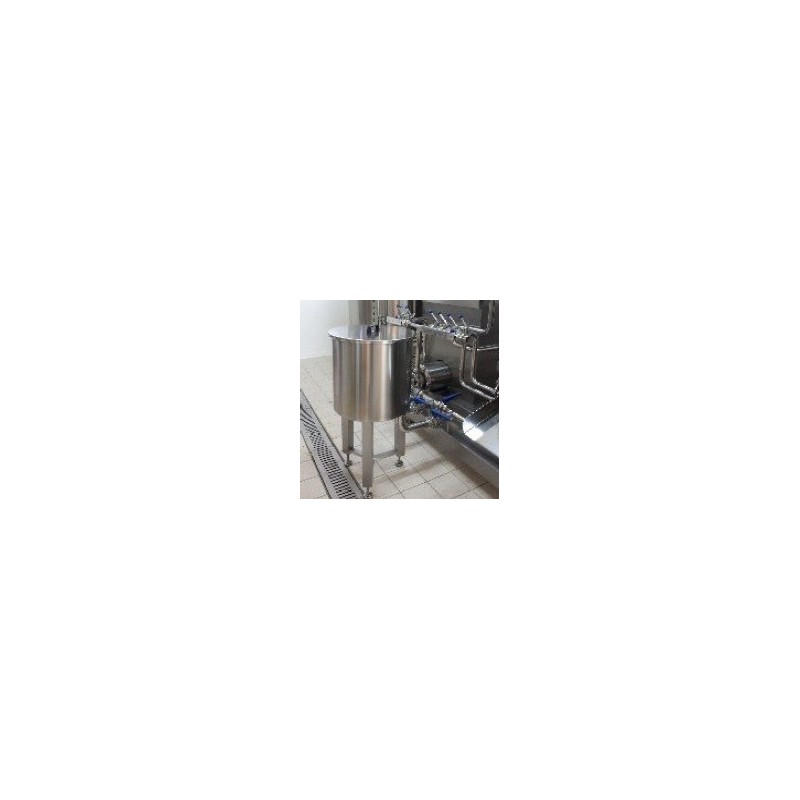

• No. 1 50-litre tank for gravity filtration;
• Total power absorption: 16 kW;
• Electrical supply: 380W;
• Overall dimensions: width 1400 mm - length 3650 mm - height 1750 mm.

Below are the brewhouse specifications in detail, component by component.

Mash & boil vessel

• Volume: 400 litres;
• Internal diameter 800 mm - external diameter 930 mm - cylinder height 800 mm;
• Built in AISI 304 stainless steel with Scotch-Brite external finish and BA mirror-polished internal finish;
• Conical bottom;
• Inspection manway with top closure;
• Side insulation with high-density rock wool;
• Electric heating with no. 4 elements on the conical bottom, 3.75 kW each;
• Stainless steel thermowell complete with PT100 temperature probe;
• Condensate drain piping;
• Cleaning line with no. 1 spray ball;
• Geared motor for mixing during mashing;
• Level gauge with glass sight windows, Clamp 1" connections;
• Safety sensor on the manway;
• External level marking laser-cut on stainless steel profile;
• Temperature sensors for thermal band exchange monitoring;
• No. 1 main drain DIN 32.

Lauter tun & whirlpool vessel

• Volume: 450 litres;
• Internal diameter 930 mm - external diameter 1025 mm - cylinder height 625 mm;
• Vessel built in AISI 304 stainless steel with Scotch-Brite external finish and BA mirror-polished internal finish;
• Conical bottom;
• Side insulation with high-density rock wool;
• Rectangular hermetic discharge door 420 x 320 mm;
• No. 1 inlet for transfer and sparging;
• No. 1 total drain DIN 32;
• Stainless steel filter screen with 1 mm slots, easy to remove;
• Full AISI 304 stainless steel support structure for the filter screen;
• Easy-to-remove stainless steel chute;
• Tangential inlet for whirlpool effect;
• Inner ring to enhance whirlpool effect;
• Top lid.

Hot water buffer tank

• Volume: 300 litres;
• Built in AISI 304 stainless steel with satin external finish. TIG welds pickled, ground and satin-finished;
• Insulation;
• Recirculation with pump to ensure uniform temperature;
• Top lid;
• Stainless steel thermowell complete with PT100 temperature probe;
• Recirculation line with no. 1 stainless steel centrifugal pump, speed controlled via inverter;
• No. 1 Burkert flow meter with AISI 304 stainless steel body;
• Water heating via 3 kW electric element with IP65 protection.

Wort/boil & whirlpool pump

The system includes a CSF 1.5 kW pump for hot and cold wort, fully built in polished AISI 316 stainless steel, with no dead zones. This sanitary pump is fitted with internal mechanical seals with circulation, making it suitable for liquids and solids at temperatures close to boiling.

Fittings and pipework

All connections in the 300-litre electric brewhouse use sanitary mandrel fittings. Great attention during assembly ensures ease of use, faster and simpler sanitising and reduced production losses. The single supply manifold is connected to the boiler line to speed up pipe cleaning and includes a drain.

The system pipework uses:

• Sanitary tubing, polished inside and out;
• DIN 11851 mandrel fittings;
• Suction DIN 40;
• Delivery DIN 32;
• Butterfly valves with high-temperature gaskets;
• AISI 304 stainless steel;
• TIG welds with internal inert gas (argon) shielding, performed by highly qualified personnel.

Heat exchanger

The system is equipped with an inspectable plate heat exchanger. It consists of a retaining frame that holds the assembled plate pack with dedicated tie rods. The herringbone pattern stamped into each plate creates two perfectly sealed channels once assembled—one for hot, one for cold—where the two fluids are evenly distributed and flow in opposite directions.
The corrugated surface generates high turbulence, improving heat transfer. Rubber gaskets ensure perfect hydraulic sealing even under high pressure.
Using a plate heat exchanger in a 300-litre brewing system ensures high thermal efficiency, no fluid mixing and excellent flexibility, as the exchanger can be adapted to new operating conditions by increasing the number of plates. It also provides long service life thanks to the possibility of regenerating the plate pack and/or replacing components.

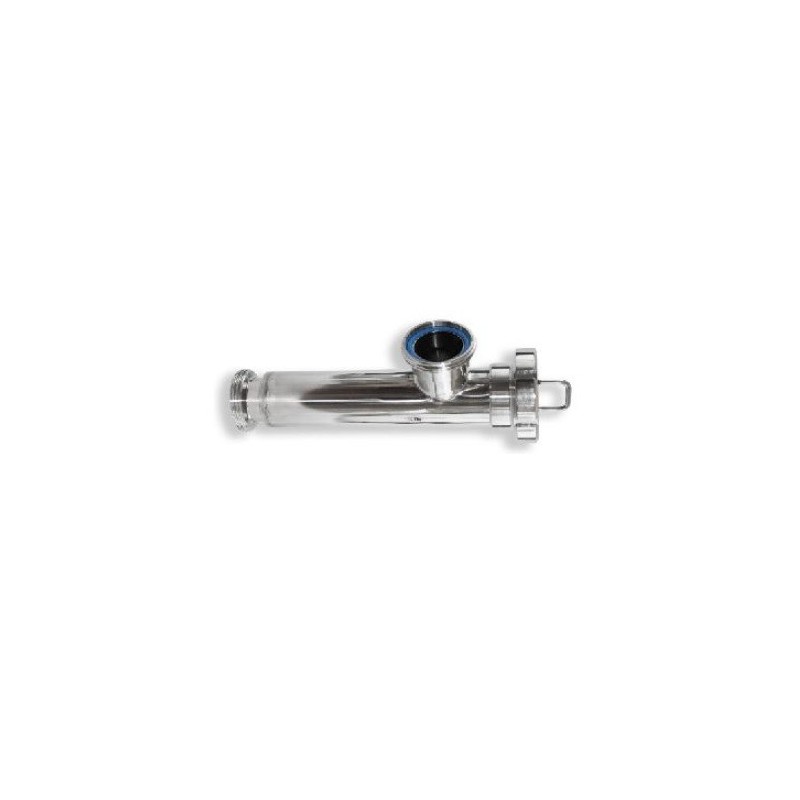

In-line filter

The in-line filter purifies the food-grade fluid from impurities and/or sediments during operation, retaining unwanted particles before the fluid enters the heat exchanger.
Filters are defined by the internal filter cartridge, which determines the quantity and minimum particle size that can be retained.
Cleaning and maintenance are simplified thanks to a quick cartridge extraction system.
The filter is made from AISI 304L stainless steel and features DIN connections sized to our specifications to ensure excellent filtration in a very short time.

The filter is suitable for liquids in Group 2 according to the classification set out in Article 9 of Directive 97/23/EC - PED and is suitable for the food industry. Standard models operate within a temperature range of -10° to 100°C. The standard finish is externally polished and internally satin, with internal roughness below 1.6 microns.

Control panel

The main electrical panel is built in AISI 304 stainless steel with Siemens components and a touchscreen monitor. It is installed on a stainless steel platform with satin finish and includes a front door and main earthing. It contains all controls and protections for the electrical components, pumps, transformers, etc.
The touchscreen control allows you to view vessel status and use all controls and semi-automatic functions with a simple tap on the screen.

The PLC integrated in the panel automatically controls the mash and boil cycle (time and temperature). The same panel also includes all temperature controls for the mash/boil/whirlpool vessel.

The integrated software allows full automation of the entire mash-boil and whirlpool cycle, ensuring consistency and high quality. This also provides highly precise temperature control, zero inertia and modular temperature regulation.

From the panel you can manage:

• No. 2 brewhouse pumps via start/stop control and speed regulation via inverter;
• No. 1 brewhouse geared motor via start/stop control and speed regulation via inverter;
• Display of mash and boil vessel temperature;
• Display of safety systems and emergencies;
• Recipe input for the mash phase, with automatic temperature step control, automatic management of the CSF brewhouse pump, automatic management of the mash tun geared motor, alarms (hop addition) and the option to move to the next phase automatically or manually;
• Safety devices on the mash tun manway and on the rectangular door of the lauter vessel;
• Display of hot water buffer tank temperature;
• Control of the hot water tank pump and the related Burkert flow meter;
• Siren with audible and visual alarm;
• Tank priority option;
• Temporary heating lock option;
• The software allows extensive flexibility and customisation.

Optional

• Wort oxygenator with DIN 11851 DN40 connections, complete with glass sight window and sintered stainless steel diffuser;
• In-line filter;

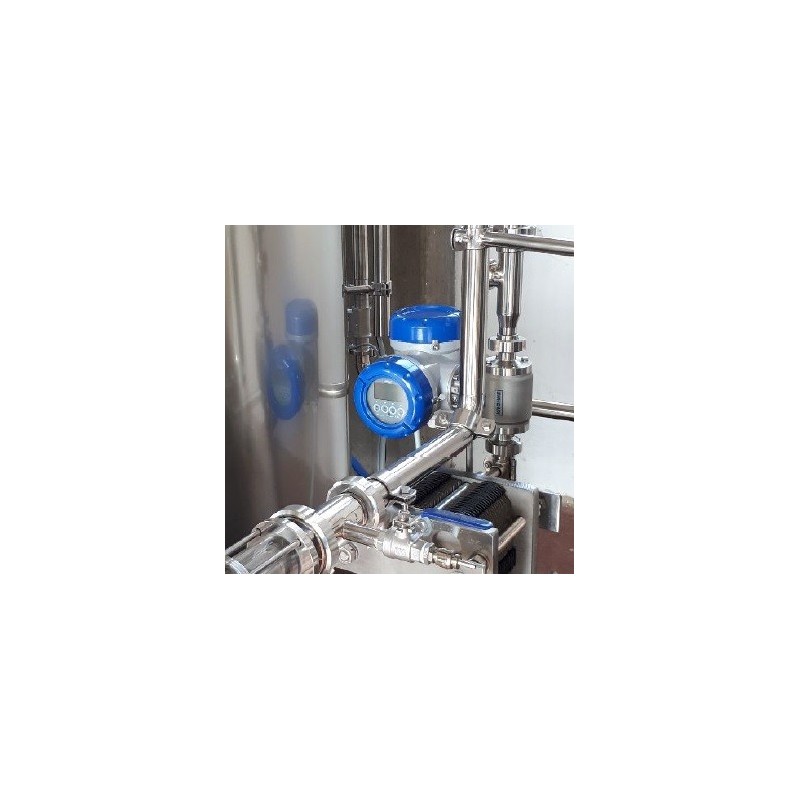

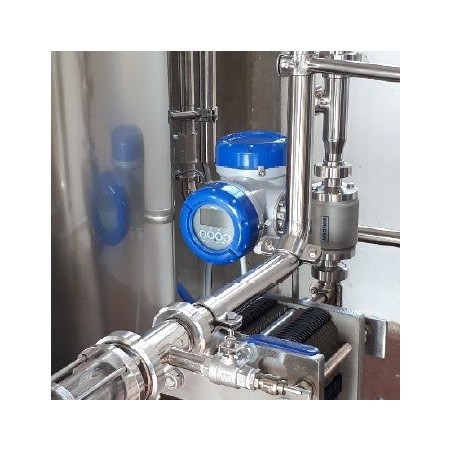

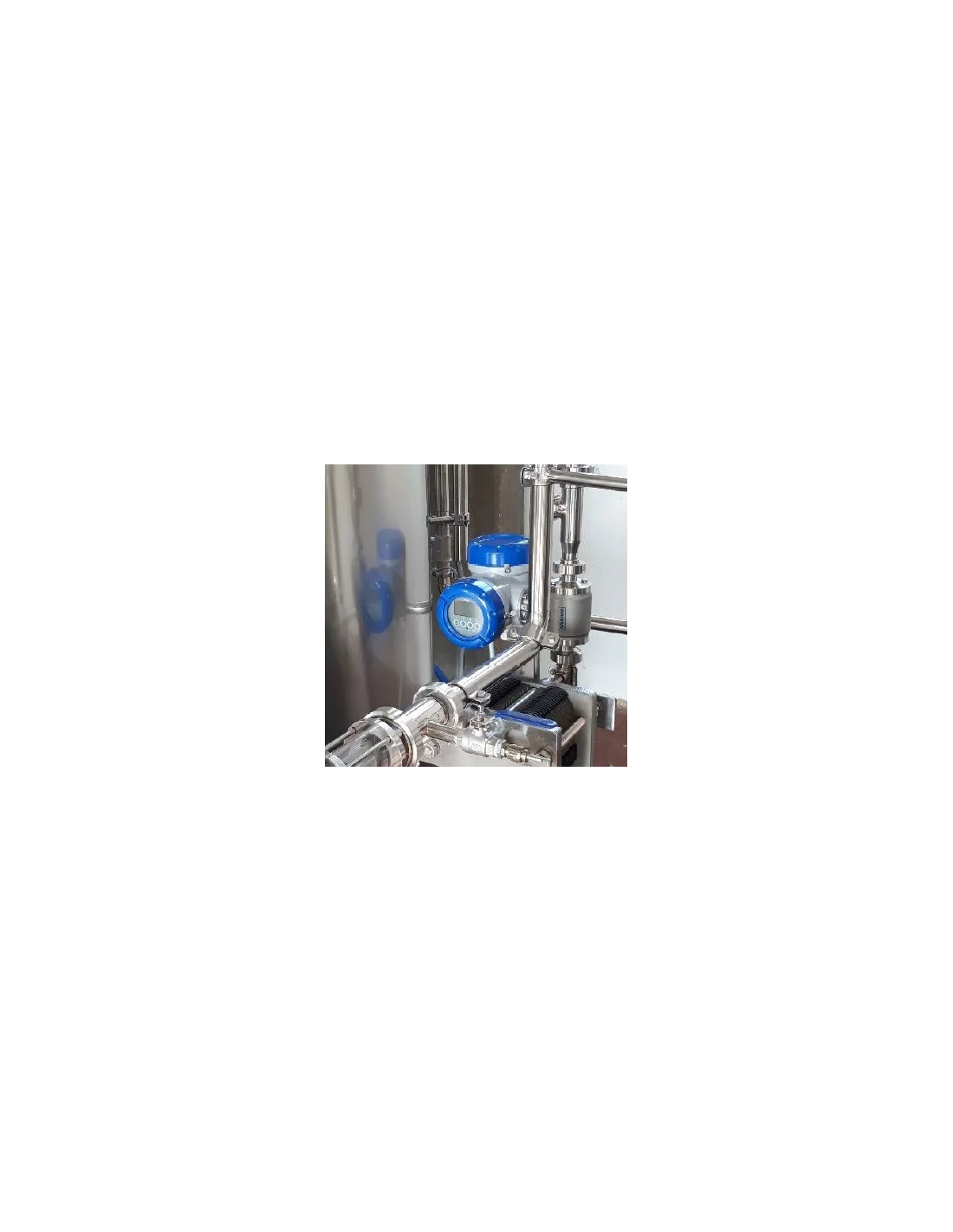

• OPTIFLUX 6300 C meter. Krohne IFC 300 C flow converter;

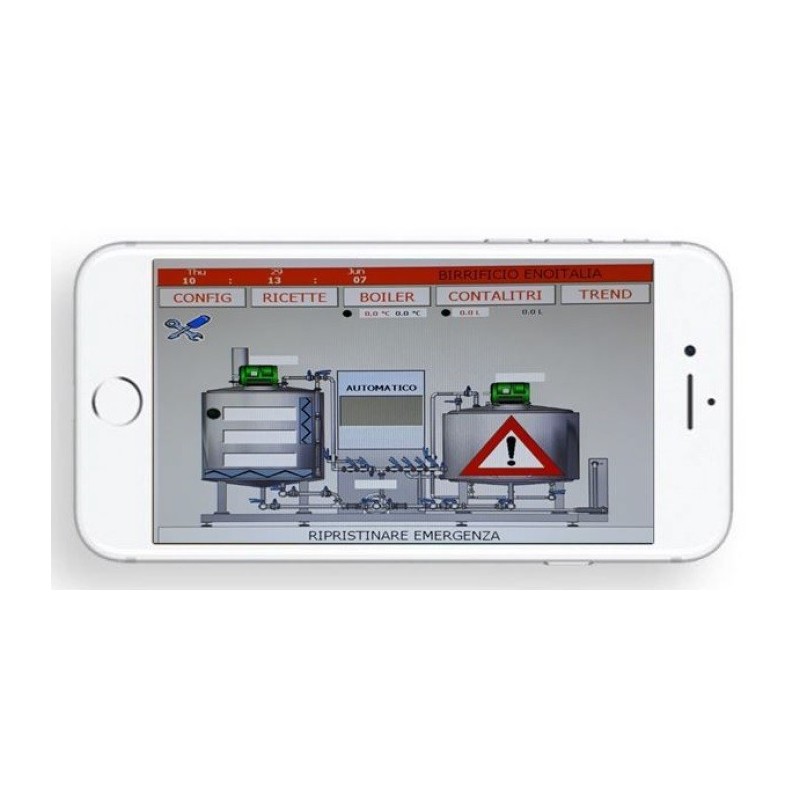

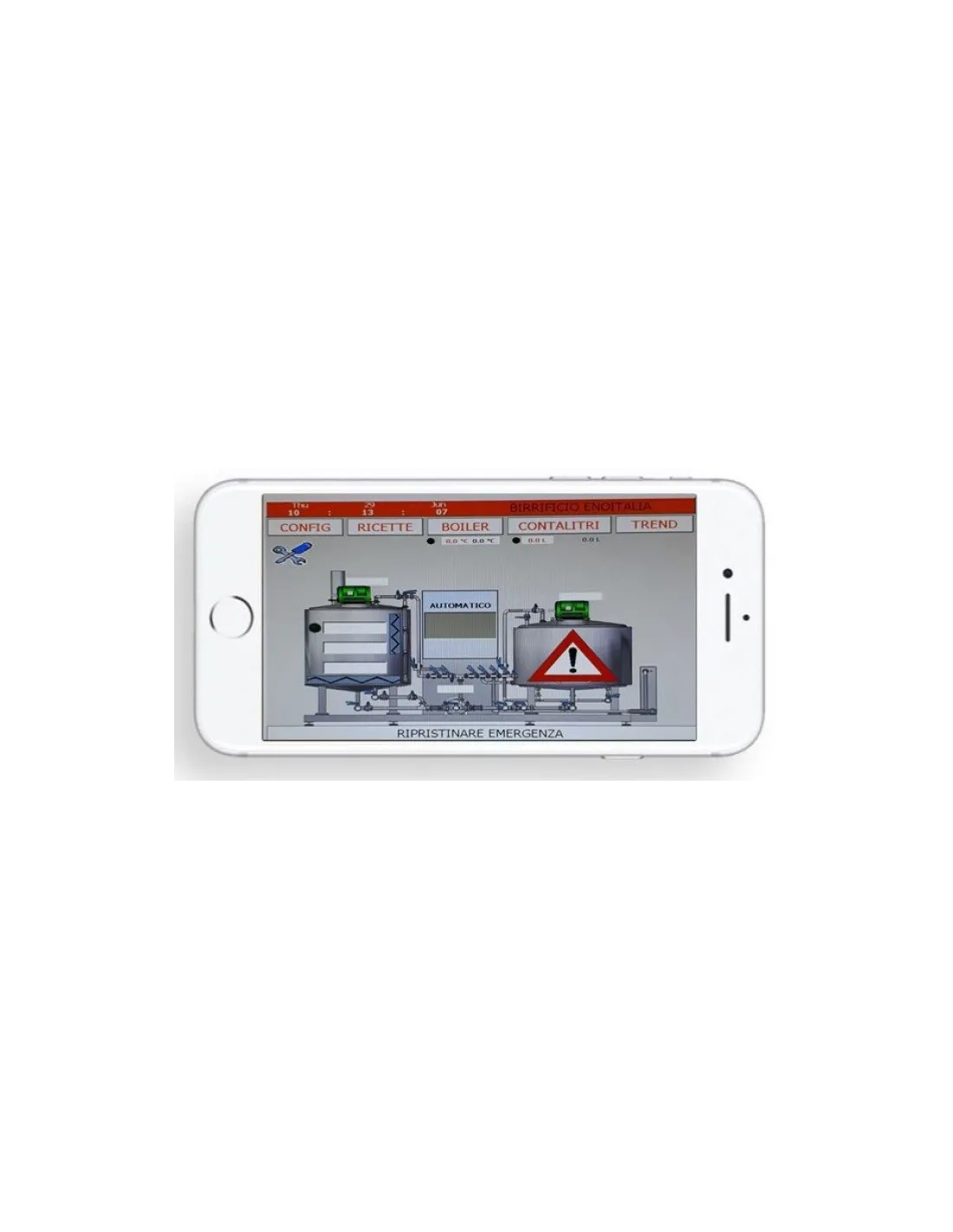

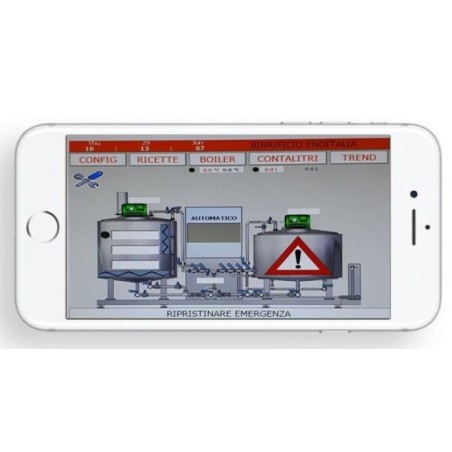

• Remote monitoring with tele-assistance for diagnostics and maintenance, including remote diagnostics and remote support in electrical panels via internet connection. This system makes it possible to solve common faults at any time, reducing machine downtime. With this option, you can control and interact with the operator panel and manage software functions more efficiently from a mobile phone or computer, allowing remote monitoring of the brewing system.

NB: Shipping costs will be calculated based on the delivery location. Contact us for a quote!

NB2: The system is supplied ready to comply with incentives provided by the Italian National Industry 4.0 Plan.

If you need larger systems or different specifications, contact us. We can offer solutions up to production capacities of 25 hL.
