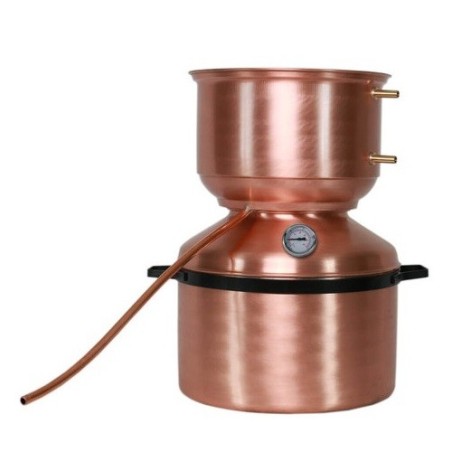

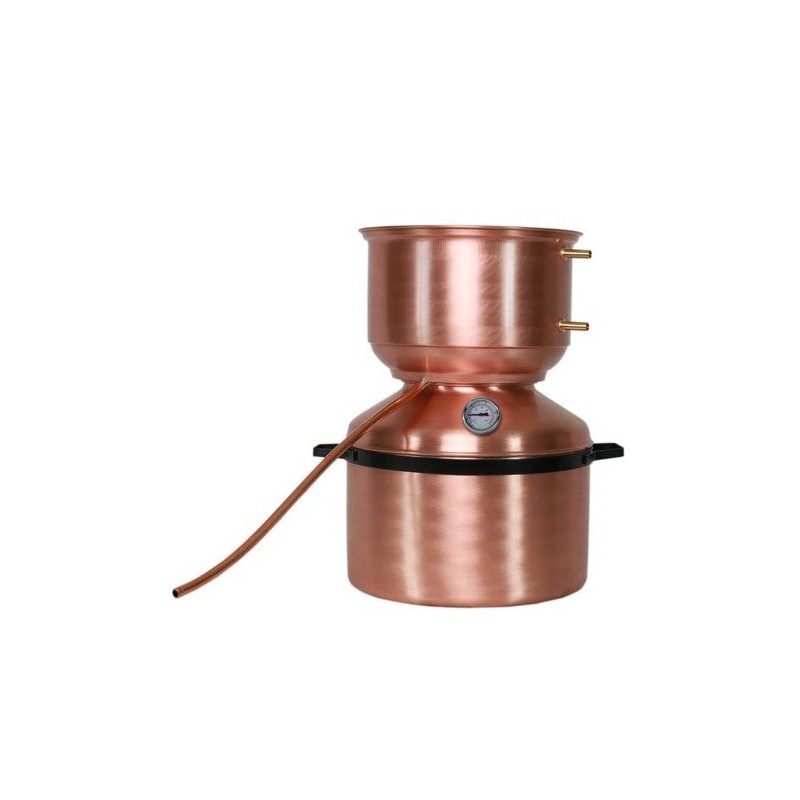

23-liter Copper Still - Mushroom Condenser (Alembic)

The 23-liter copper pot still with mushroom condenser is a handcrafted Italian alembic featuring a direct-cooling system. Made entirely of copper with a thickness of 1 mm, it includes an analog thermometer for monitoring the boiler's internal temperature and guiding the separation of heads, hearts and tails during distillation.

Handcrafted in Italy by master artisans specialising in copperworking, the still has a boiler bottom diameter of 32 cm.

This copper alembic still is suitable for producing spirits such as grappa, brandy, whisky and fruit distillates, as well as high-proof alcohol such as vodka. It can also be used to produce essential oils for perfumes, liqueurs and remedies.

The still can be customised through the options menu by adding a copper mesh or pulp filter to prevent pomace from coming into direct contact with the boiler bottom, or a filter column required for steam distillation. All accessories are made of copper.

Technical Features

• Material: copper;
• Boiler capacity: 23 liters;
• Cooling system: direct cooling with mushroom condenser;
• Thermometer: analog, included;
• Boiler dimensions: diameter 34 cm, height 32 cm;
• Boiler bottom diameter: 32 cm;
• Head dimensions: diameter 31 cm, height 21 cm;
• Water inlet/outlet fitting diameters: 12 and 16 mm;
• Copper thickness: 1 mm;
• Weight: 4 kg;
• Origin: Made in Italy.

Available Options

• Pulp filter: useful when distilling solid materials, such as pomace and fruit pieces, to prevent direct contact with the boiler bottom.
• Filter column: typically used for essential oil extraction through steam distillation, keeping herbs out of the water. It can also be used for fruit spirits, where it improves dephlegmation.

Intended Use and Regulations

This equipment is marketed for purposes other than the production of ethyl alcohol, such as the permitted uses described in the product description. It is sold in compliance with the requirements established by current legislation governing distillation equipment. Its use for the production of ethyl alcohol is subject to specific tax and administrative obligations.

NB: This still is sold for ornamental purposes only. For production use, please contact us to evaluate the costs of the required formalities with the customs agency.
