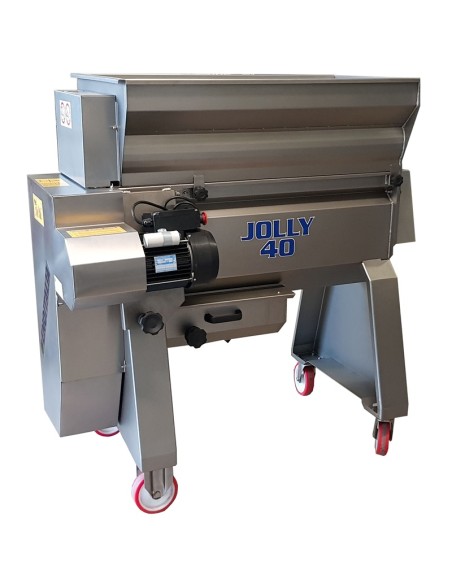

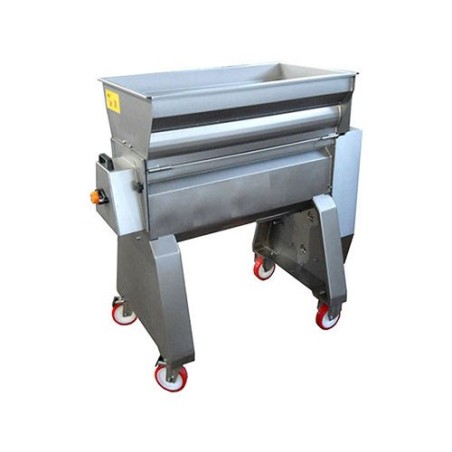

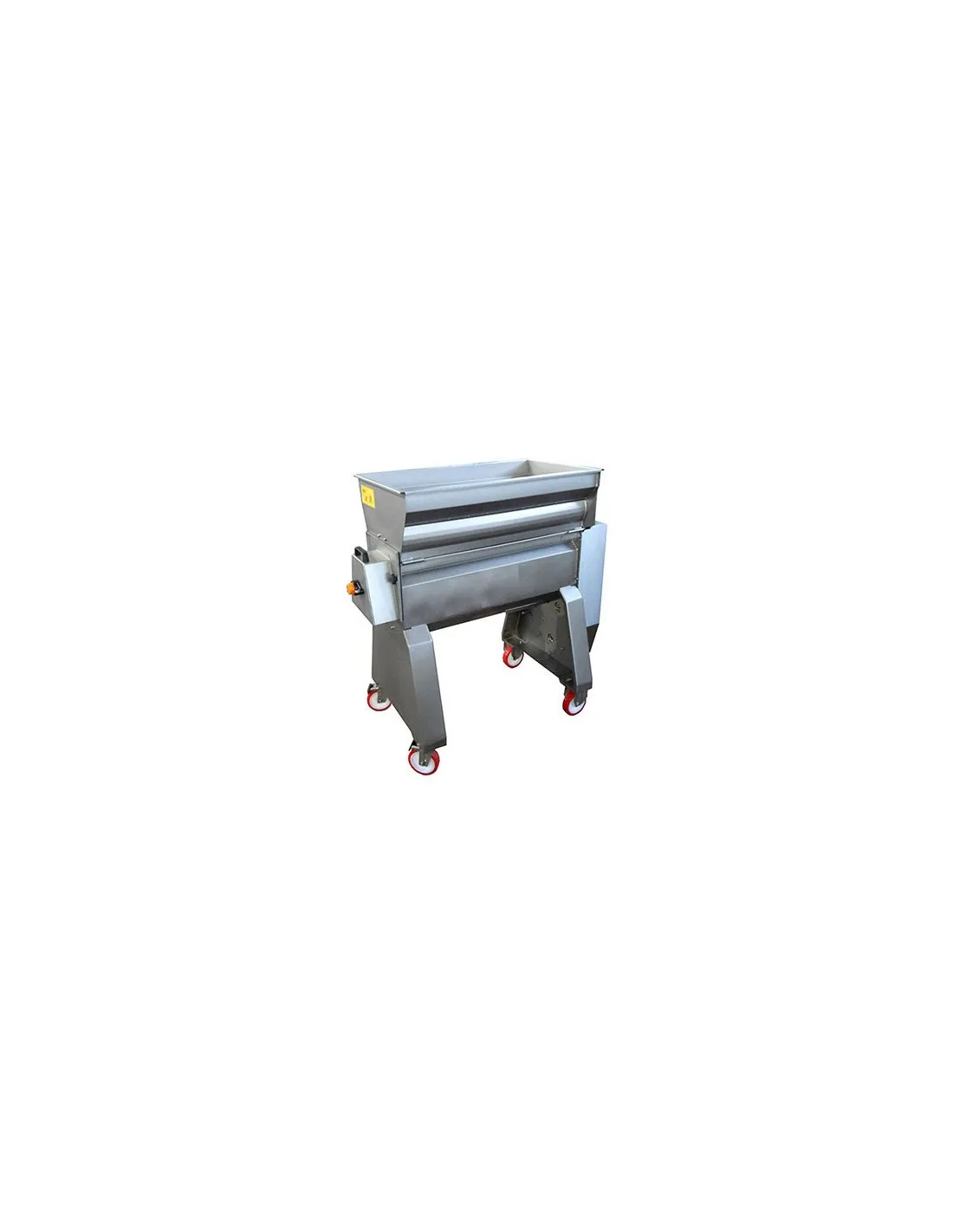

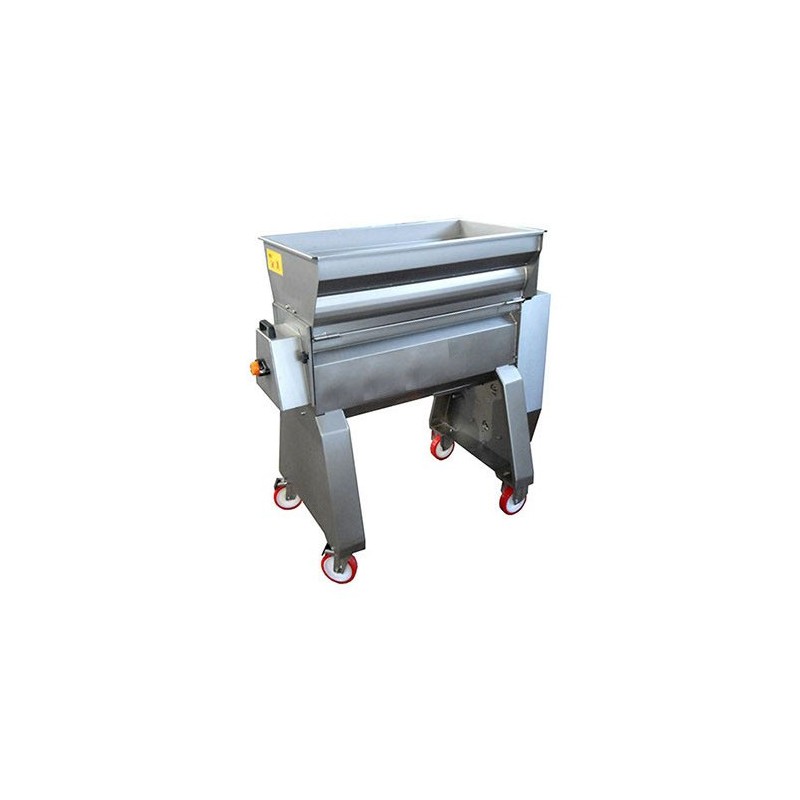

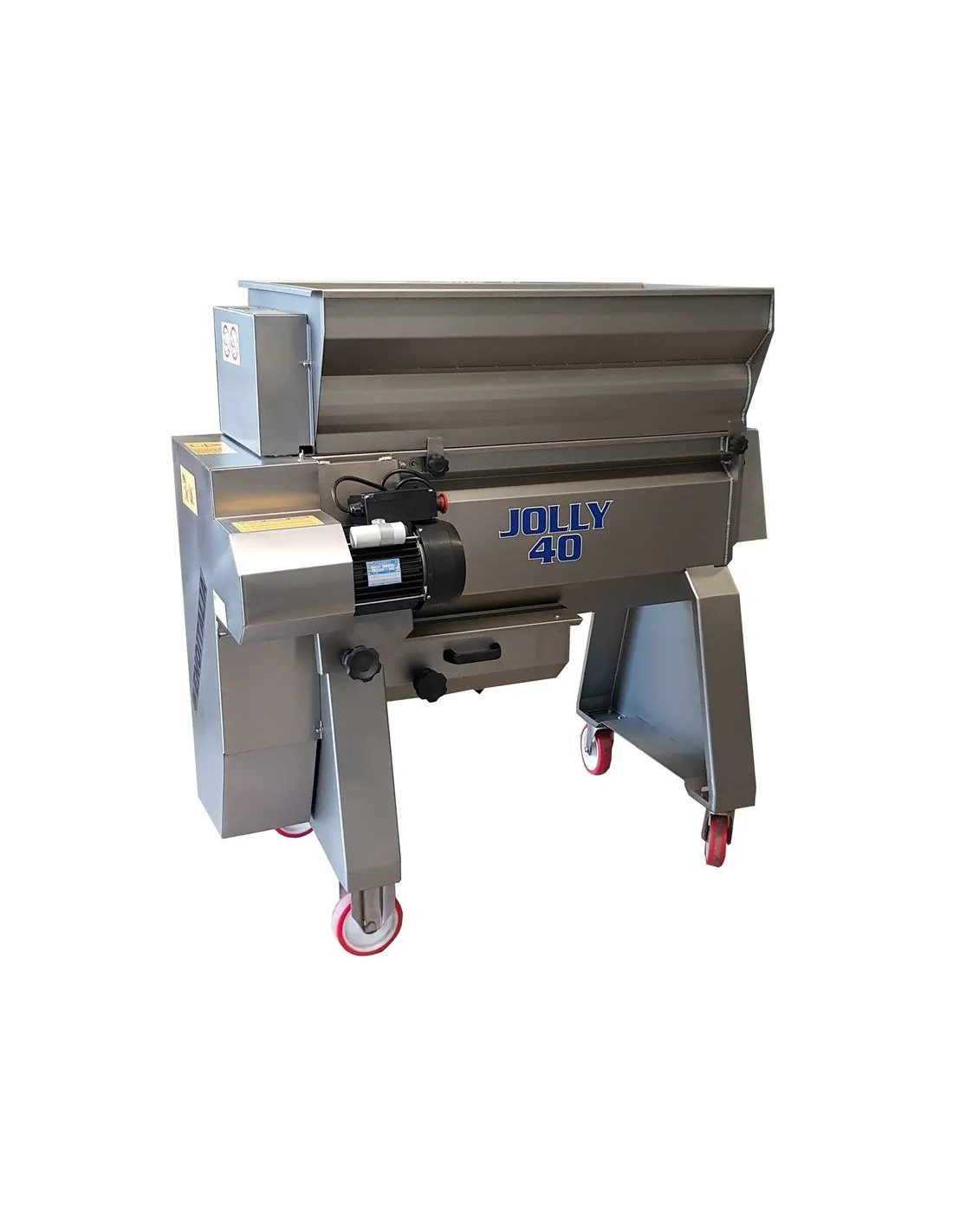

Semi-Centrifugal Grape Crusher-Destemmer - Stainless Steel - 40 q.li/h
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information
This semi-centrifugal grape crusher-destemmer is made entirely of stainless steel and is not equipped with a transfer pump. It features a professional destemming screen with deep-drawn, flared round holes, a must collection tank, and a mixing and feed screw for connection to an external pump.
The destemming shaft is fitted with rubber-coated paddles, while crushing is performed by a pair of adjustable rubber rollers capable of gentle pressing.
Technical features of the semi-centrifugal stainless steel grape crusher-destemmer without pump:
- 2,5 HP motor (1,8 Kw)
- Destemming shaft with rubber paddles;
- Shaft speed 400–600 RPM;
- Deep-drawn screen;
- Must collection tank;
- Adjustable rubber rollers;
- Safety housing;
- Pump outlet 60;
- Output 3000–4000 kg/h
- Dimensions: 130 x 70 x 115 cm
- Weight 120 kg
Optional:
- Pulley speed variator;
- Electronic speed variator;
- Loading hopper screw in food-grade rubber.
- Working capacity
- 2000 - 4000 Kg/h
- Material
- Stainless steel
- Net
- Stainless steel
- Engine
- 2,5 HP (Kw 1,8)
- Size
- 1390 x 800 x 1320/1370 mm
- Weight
- 160 Kg
- Tree turns
- 400-600 RPM
- Rollers
- Adjustable rubber rollers
- Power supply
- Single-phase / Three-phase
- Pump
- Nothing
- Pump delivery
- N.D.
- Typology
- Semi-centrifugal destemmer
