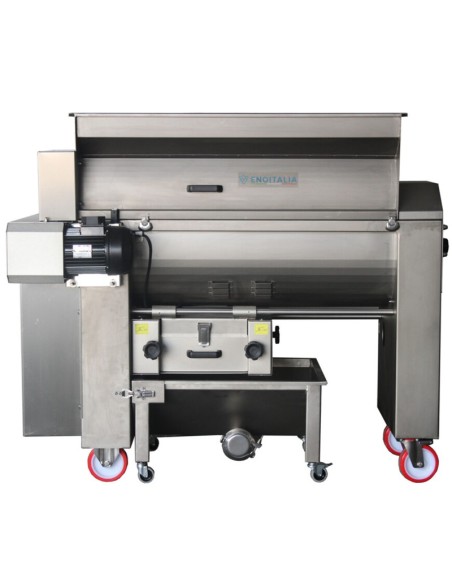

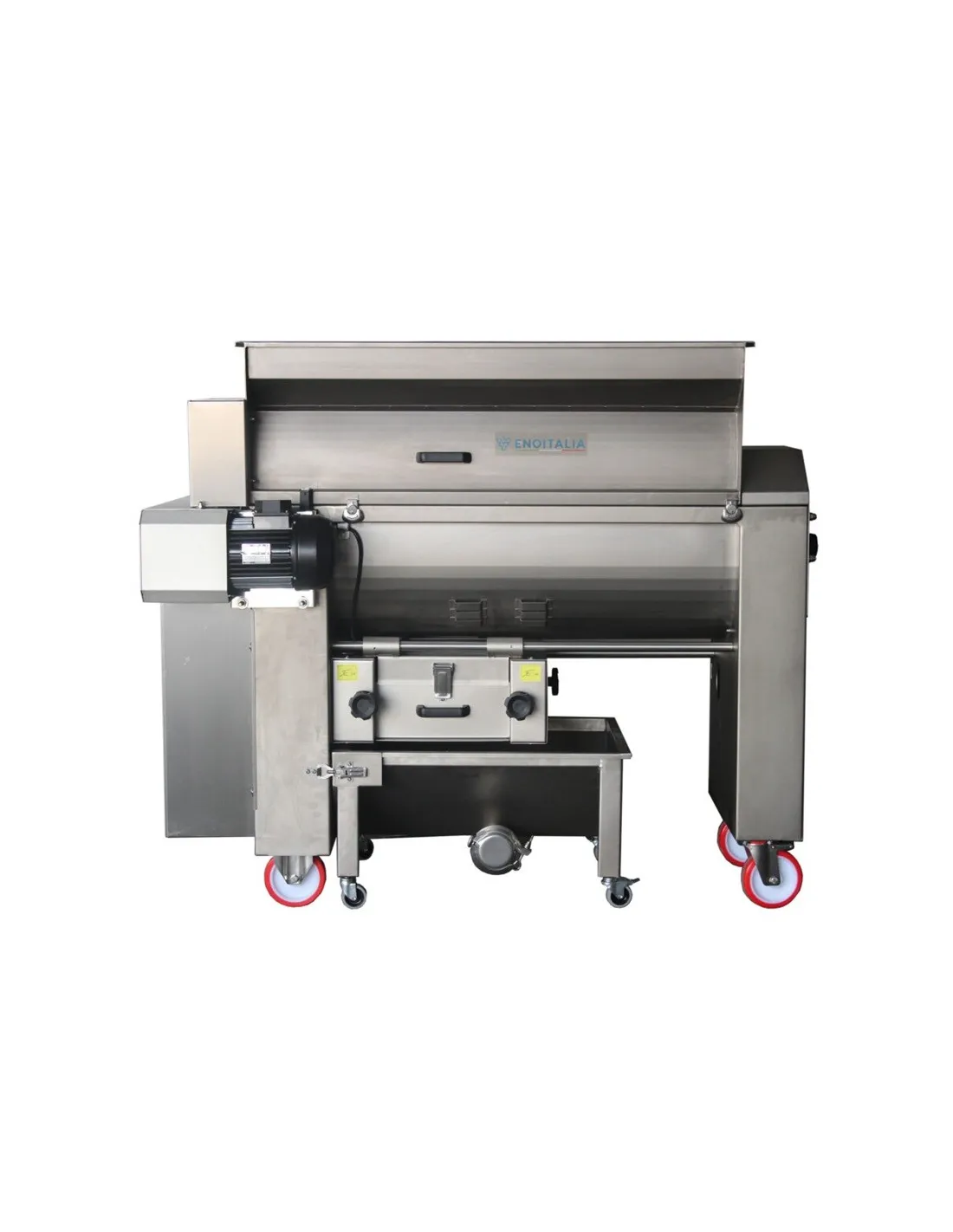

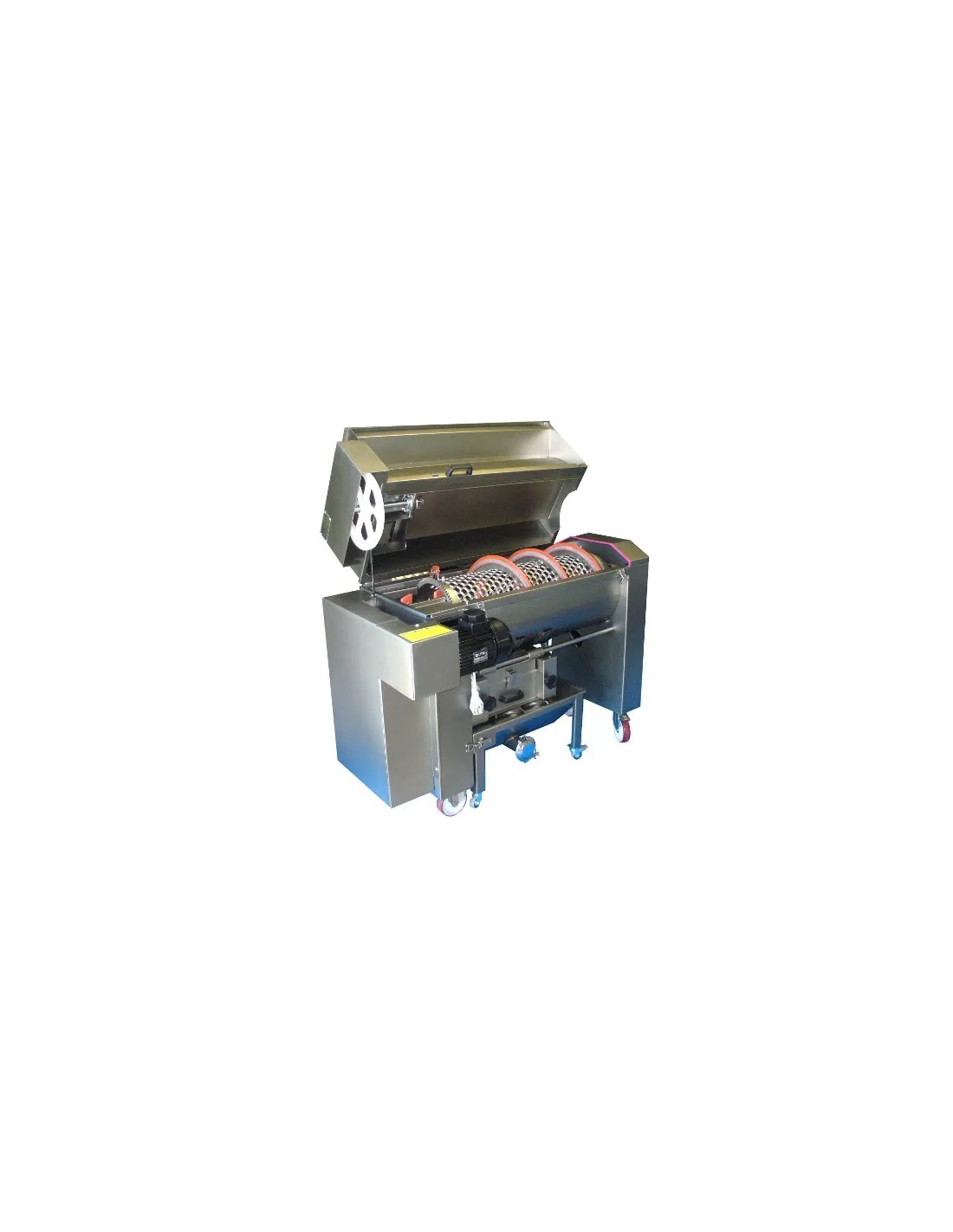

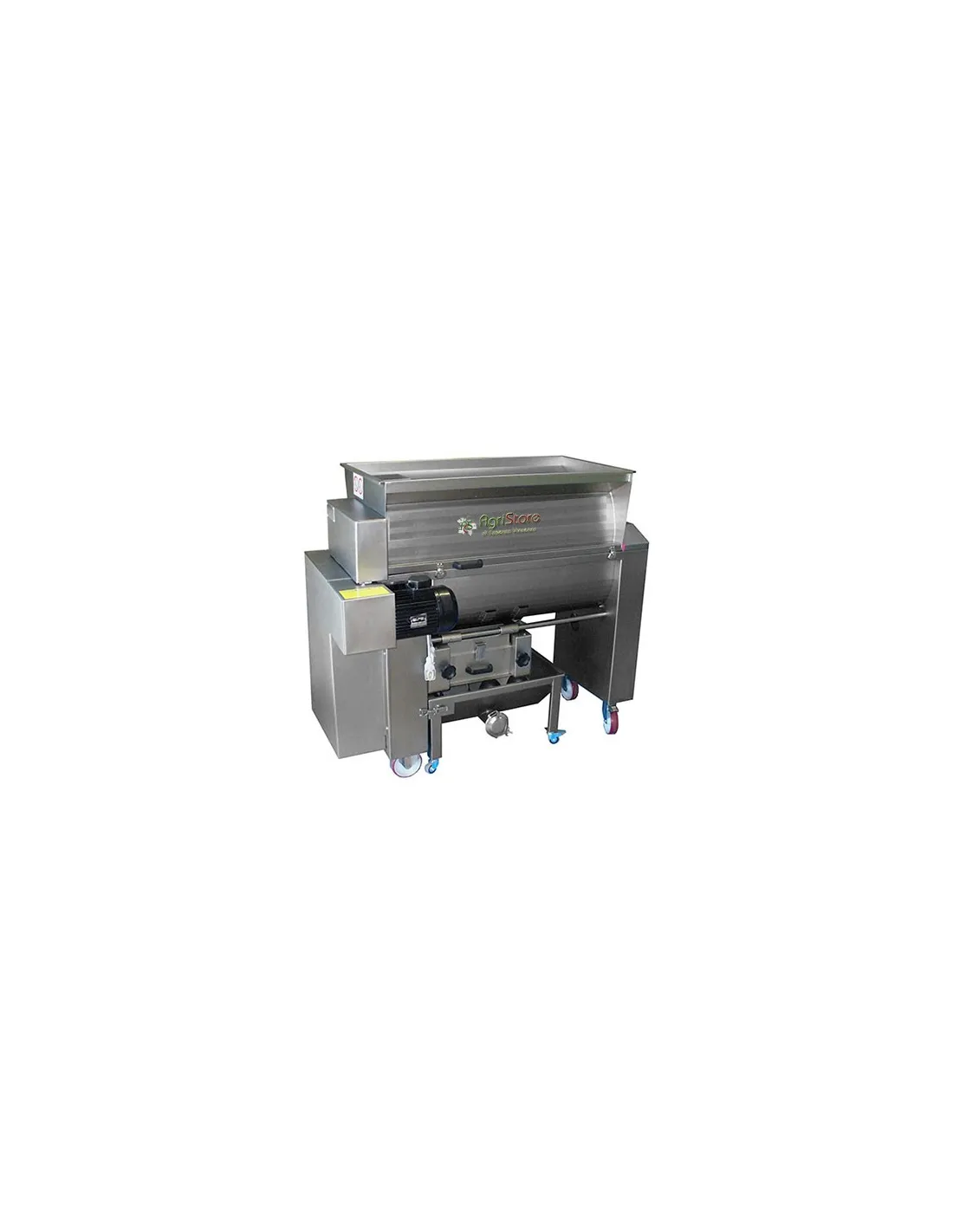

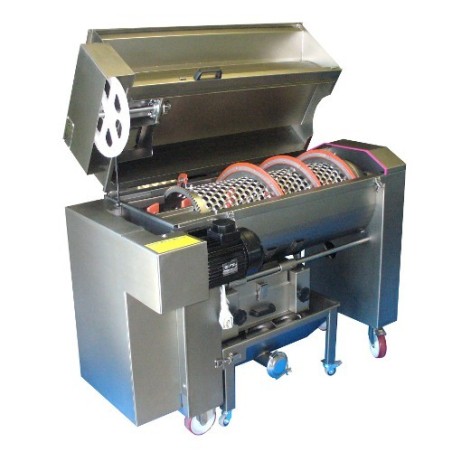

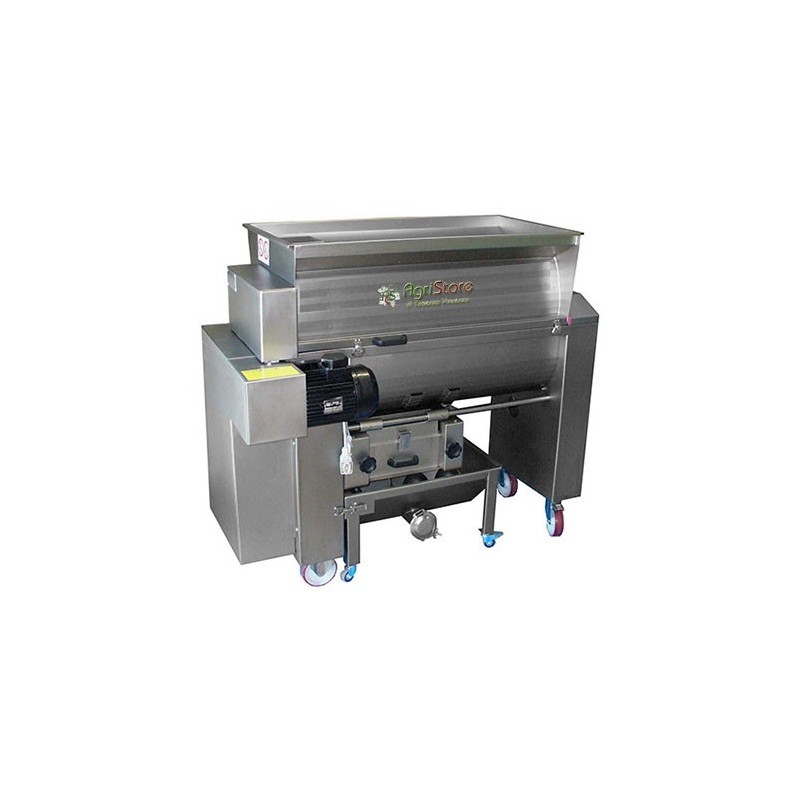

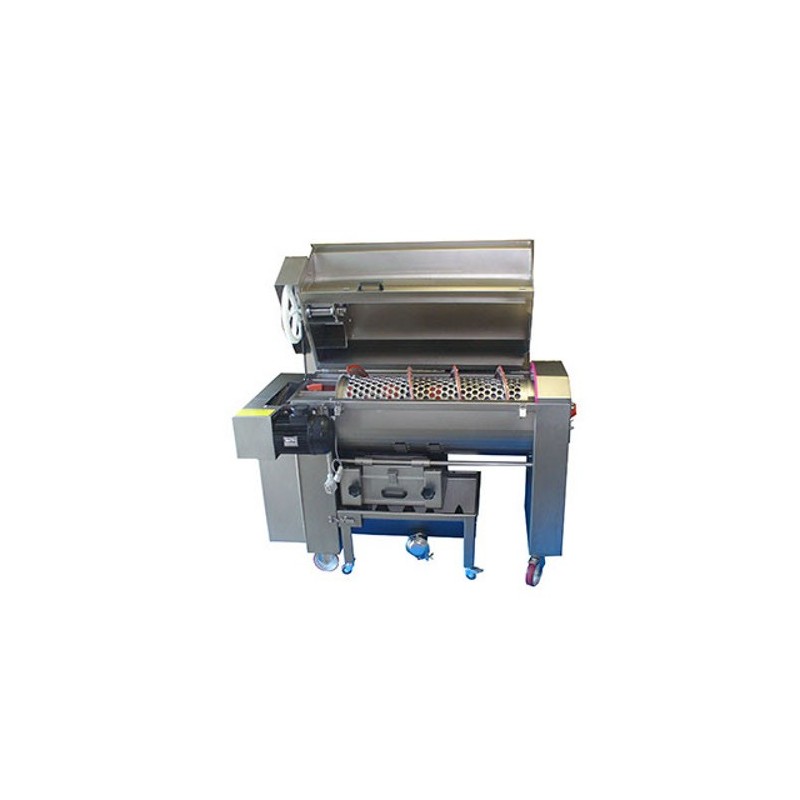

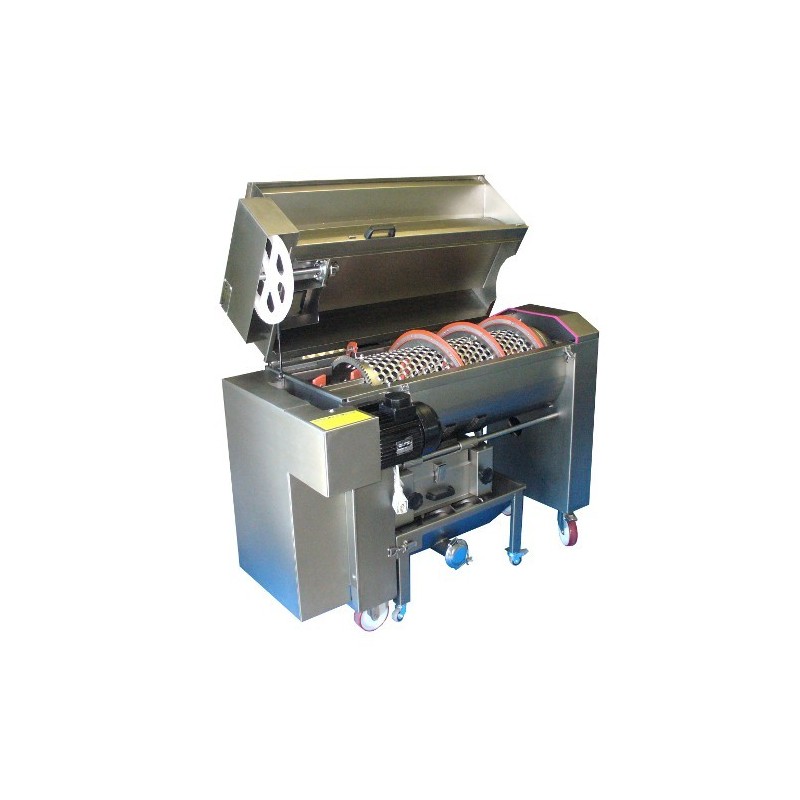

Centrifugal Grape Crusher-Destemmer - Stainless Steel - 60 q.li/h

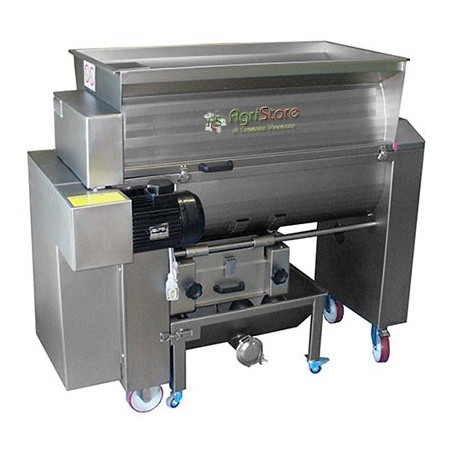

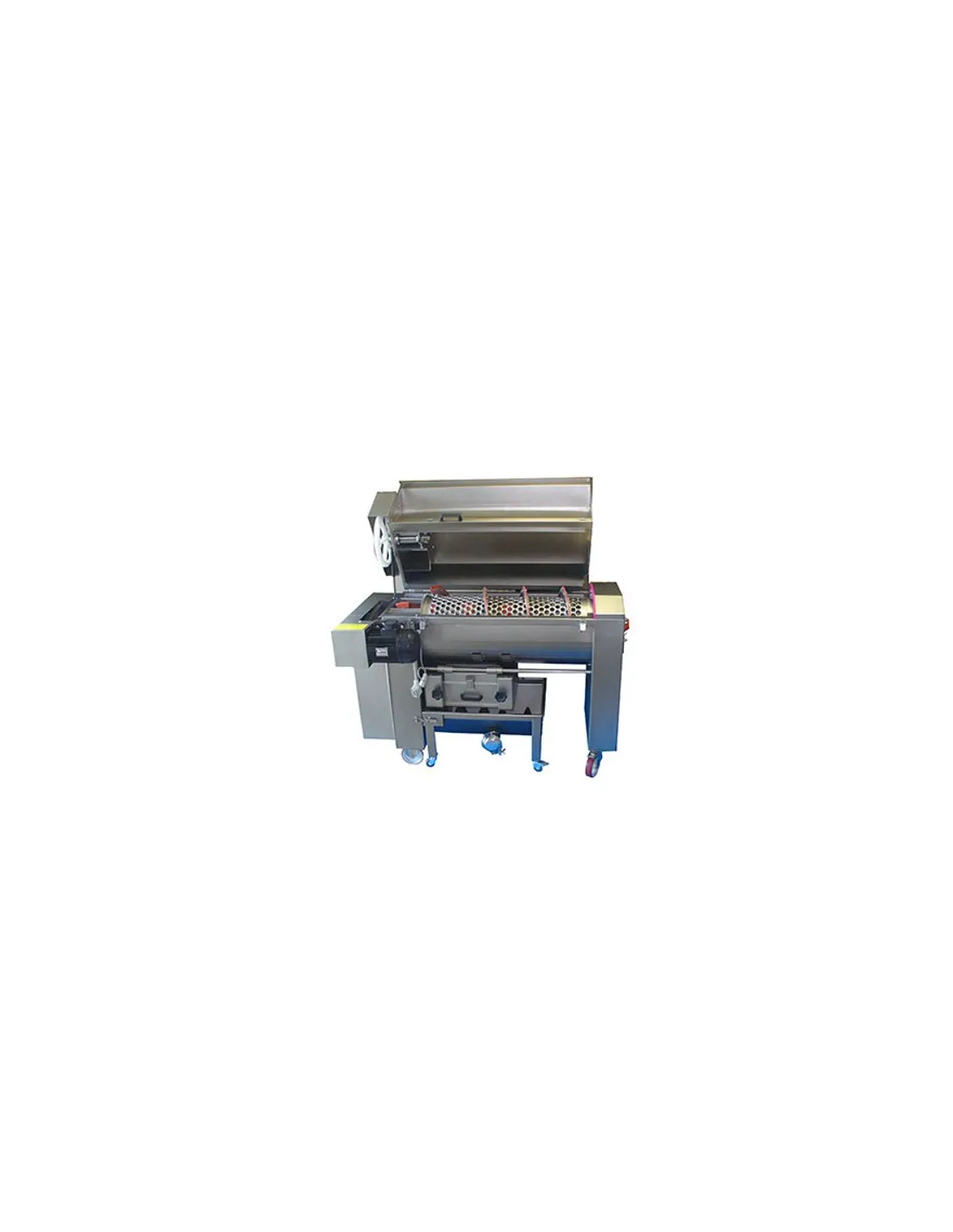

This is a centrifugal grape crusher-destemmer made entirely of stainless steel and manufactured 100% in Italy. This machine is particularly suitable for medium and large wineries, featuring among its characteristics an anti-tear destemming basket with a diameter of 30 cm with rubber drive system, a destemming shaft with rubber-coated paddles, as well as a pair of adjustable, disengageable rubber rollers that allow gentle crushing.
The centrifugal crusher-destemmer without pump 60 q.li/h is equipped with a 2.2 kW electronic speed variator, while at the bottom there is a stainless steel collection tank with mixing screw and fitting for a transfer pump.
Technical features of the centrifugal crusher-destemmer without pump:
- 3 HP motor (2,2 Kw)
- Destemming shaft with rubber paddles;
- Shaft speed 400–600 RPM;

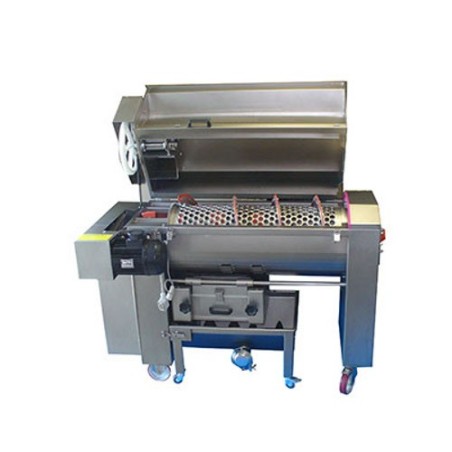

- Anti-tear stainless steel centrifugal basket with deep-drawn screen;
- Stainless steel must collection tank with mixing screw and fitting for transfer pump;
- Adjustable and disengageable rubber rollers;
- Safety housing;
- Pump outlet 60–80;
- Output 4000–6000 kg/h
- Dimensions: 160 x 84 x 130 cm
- Weight 180 kg
Available options:
- Collection tray with central screw conveyor, cardan transmission;
- Destemming shaft with adjustable cylindrical paddles;
- Enlarged hopper for macrobin loading;
- Stainless steel screw with food-grade rubber coating;
- Additional screen with special perforation.
- Material
- Stainless steel
- Tree turns
- 400-600 RPM
- Rollers
- Adjustable and excludable rubber rollers
- Power supply
- Three-phase
- Pump
- Nothing
- Pump delivery
- N.D.
- Typology
- Centrifugal destemmer and crusher
