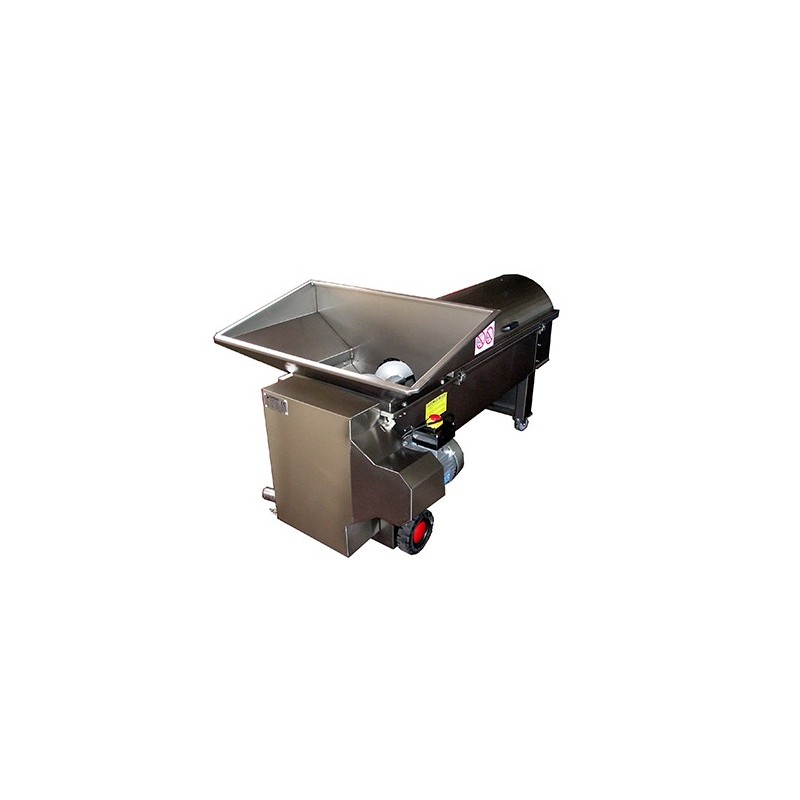

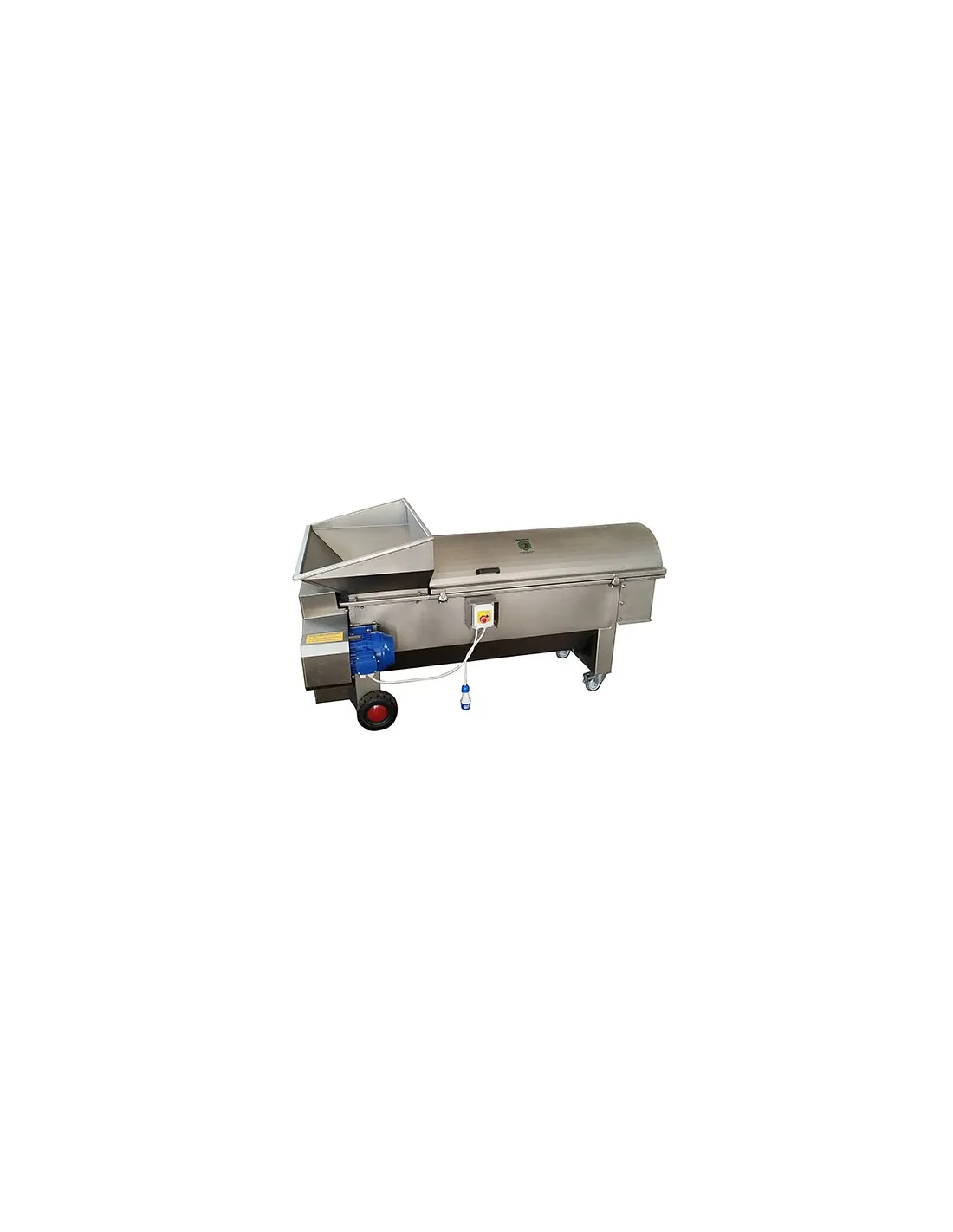

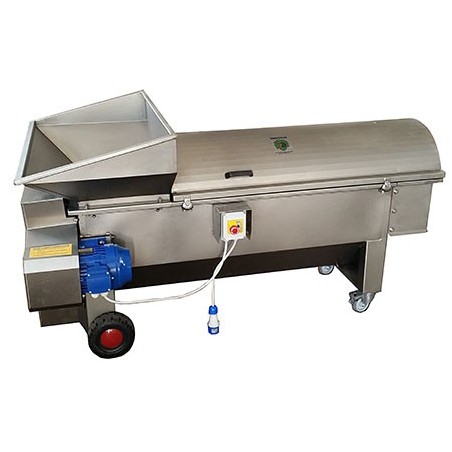

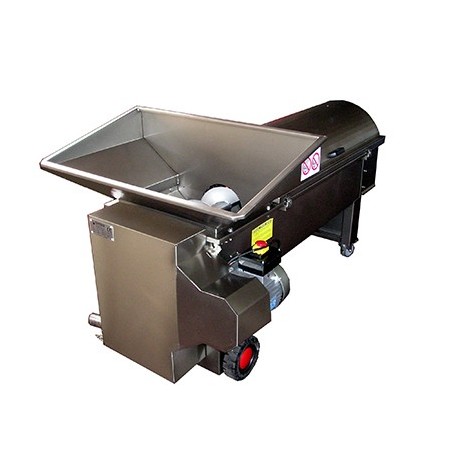

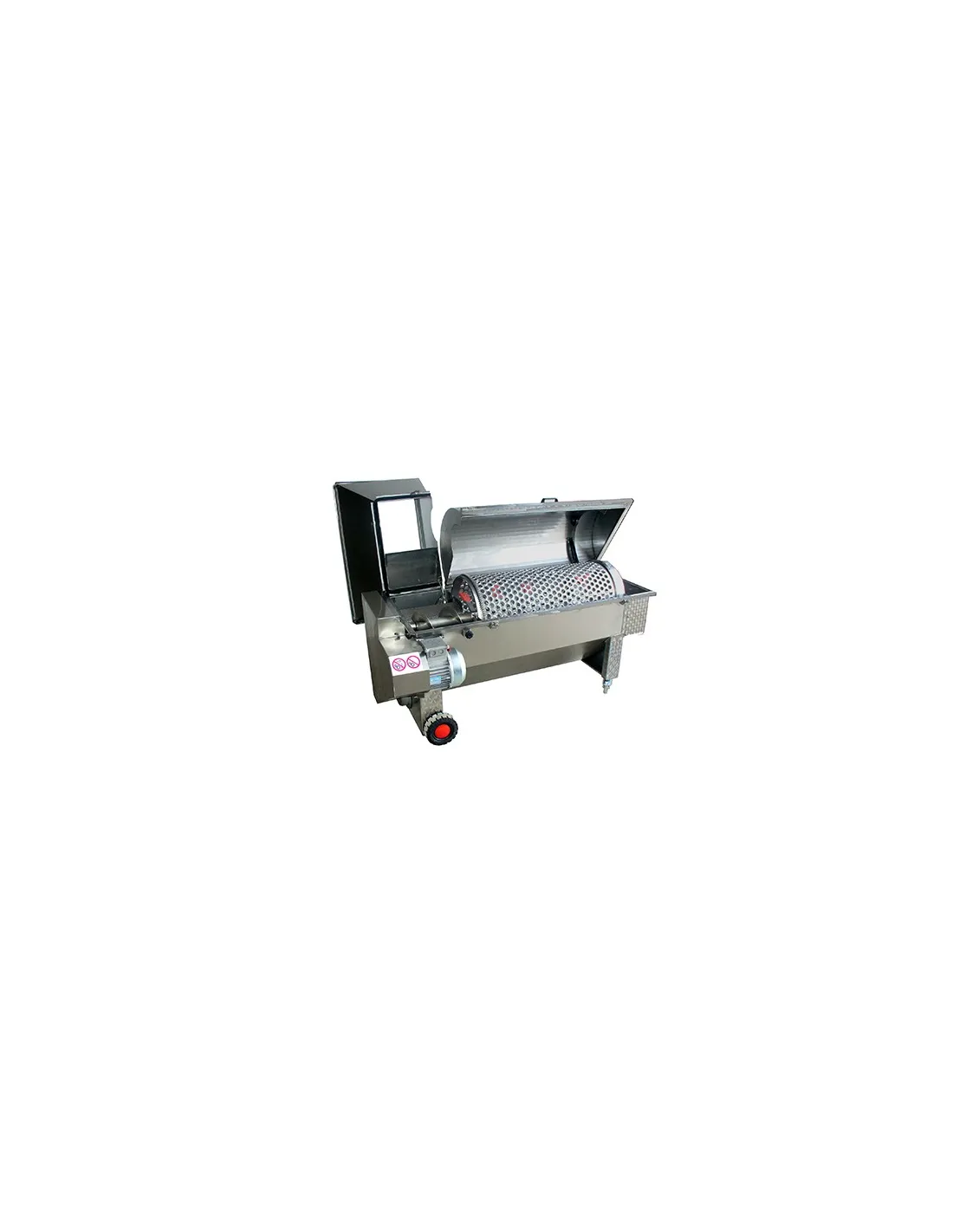

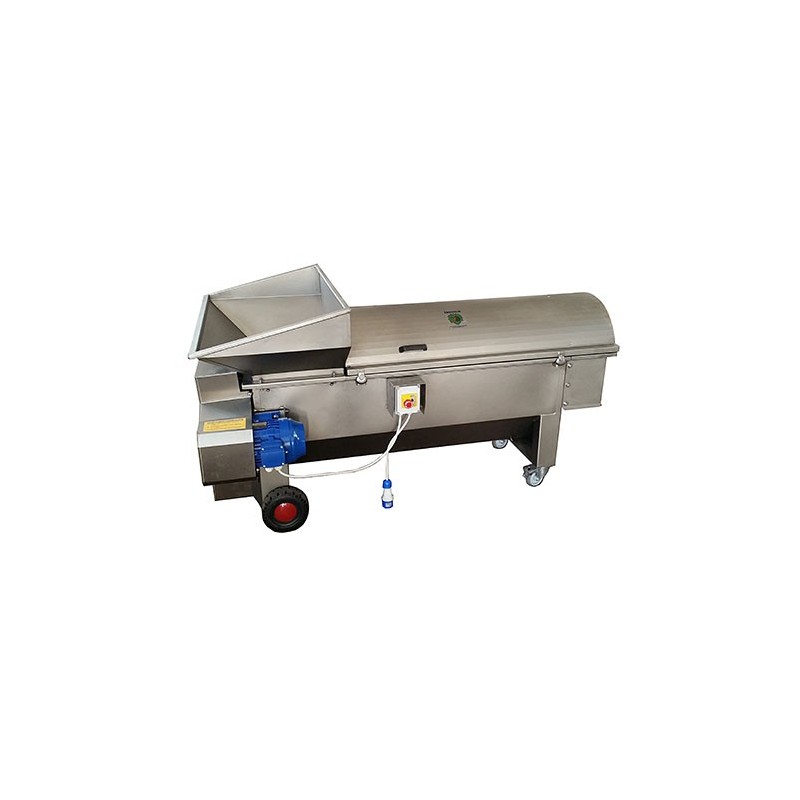

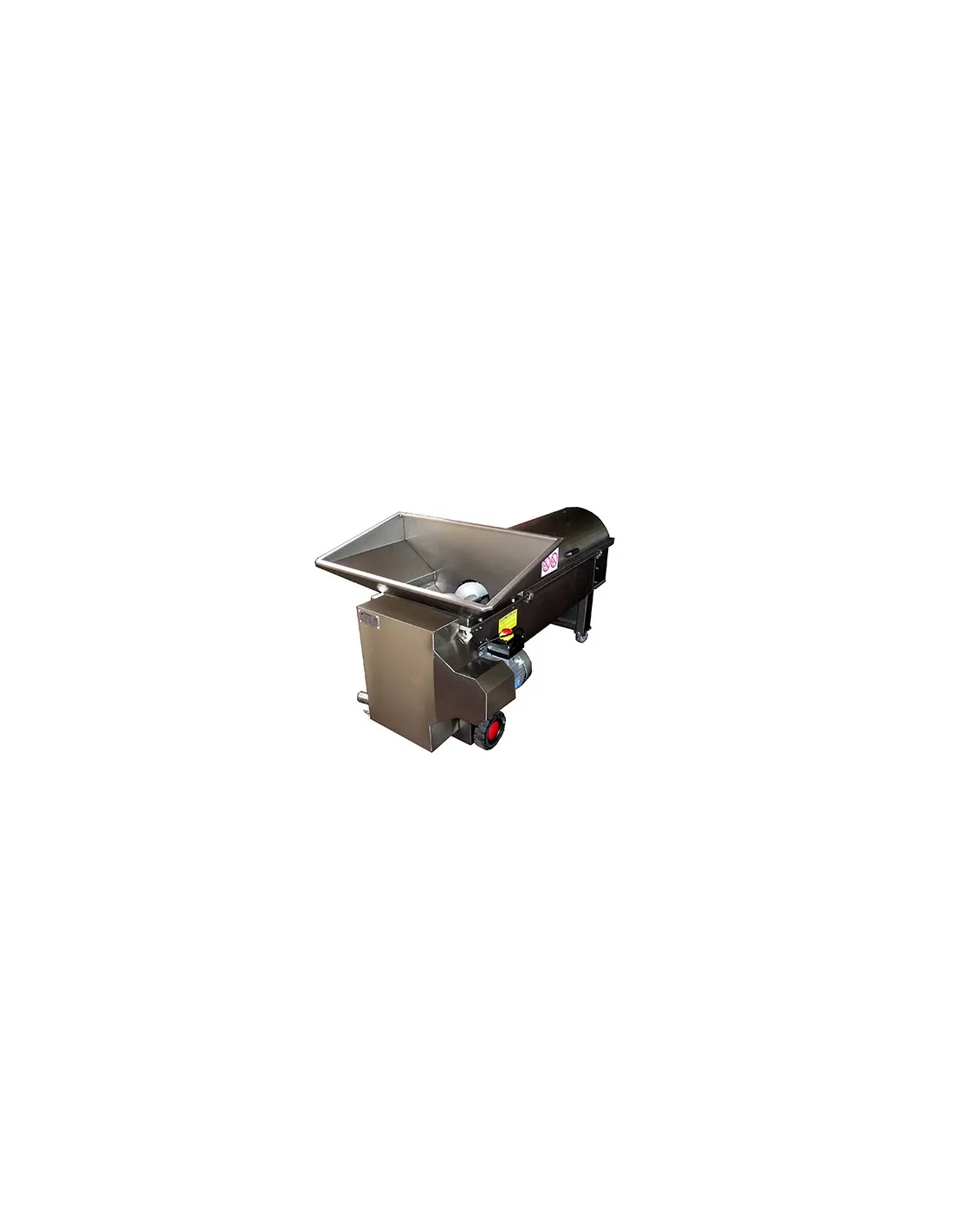

Horizontal Centrifugal Grape Destemmer with Pump - Stainless Steel - 60-120 q.li/h

The horizontal stainless steel centrifugal destemmer with pump has been designed to support large wine producers thanks to its high performance. It is manufactured in Italy and made entirely of AISI 304 stainless steel. It is equipped with a centrifugal basket that rotates in the same direction as the destemming shaft to prevent the stems from tearing. The loading hopper features a filter for liquid extraction, while the body is designed to ensure that no liquid stagnates inside.

This model of horizontal centrifugal destemmer is supplied with a 3, 4 or 5.5 HP motor, depending on the version chosen. The paddles on the destemming shaft are rubber-coated, and both the basket and the pump are made of stainless steel.

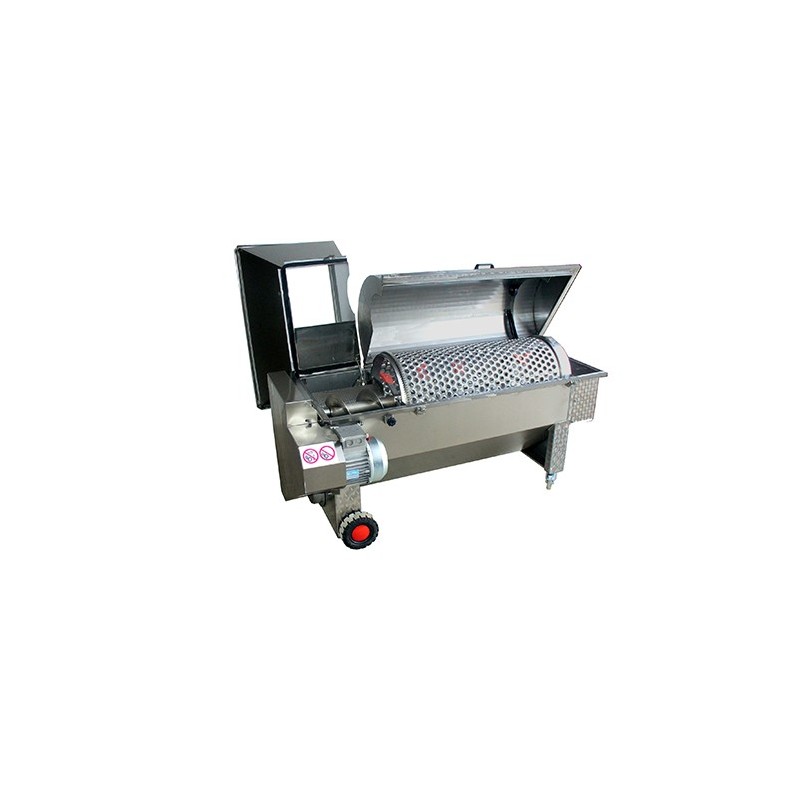

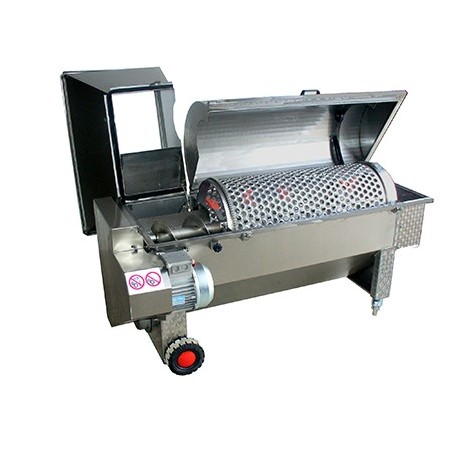

It can be fully opened and inspected, allowing easy maintenance and fast cleaning.

How does the horizontal centrifugal destemmer work?

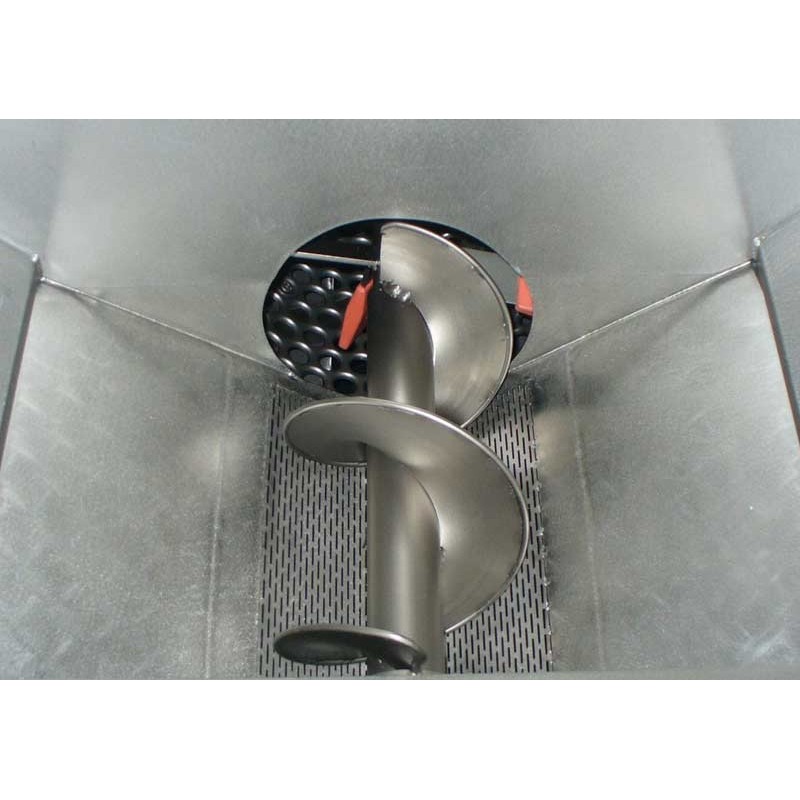

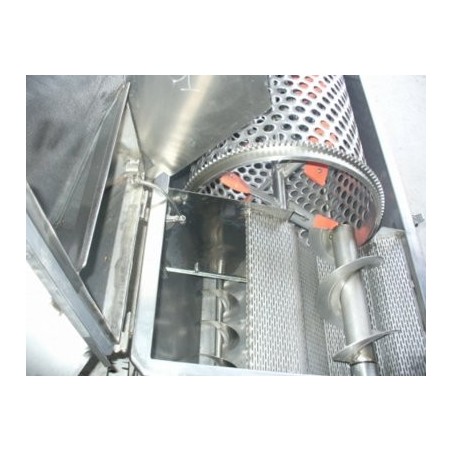

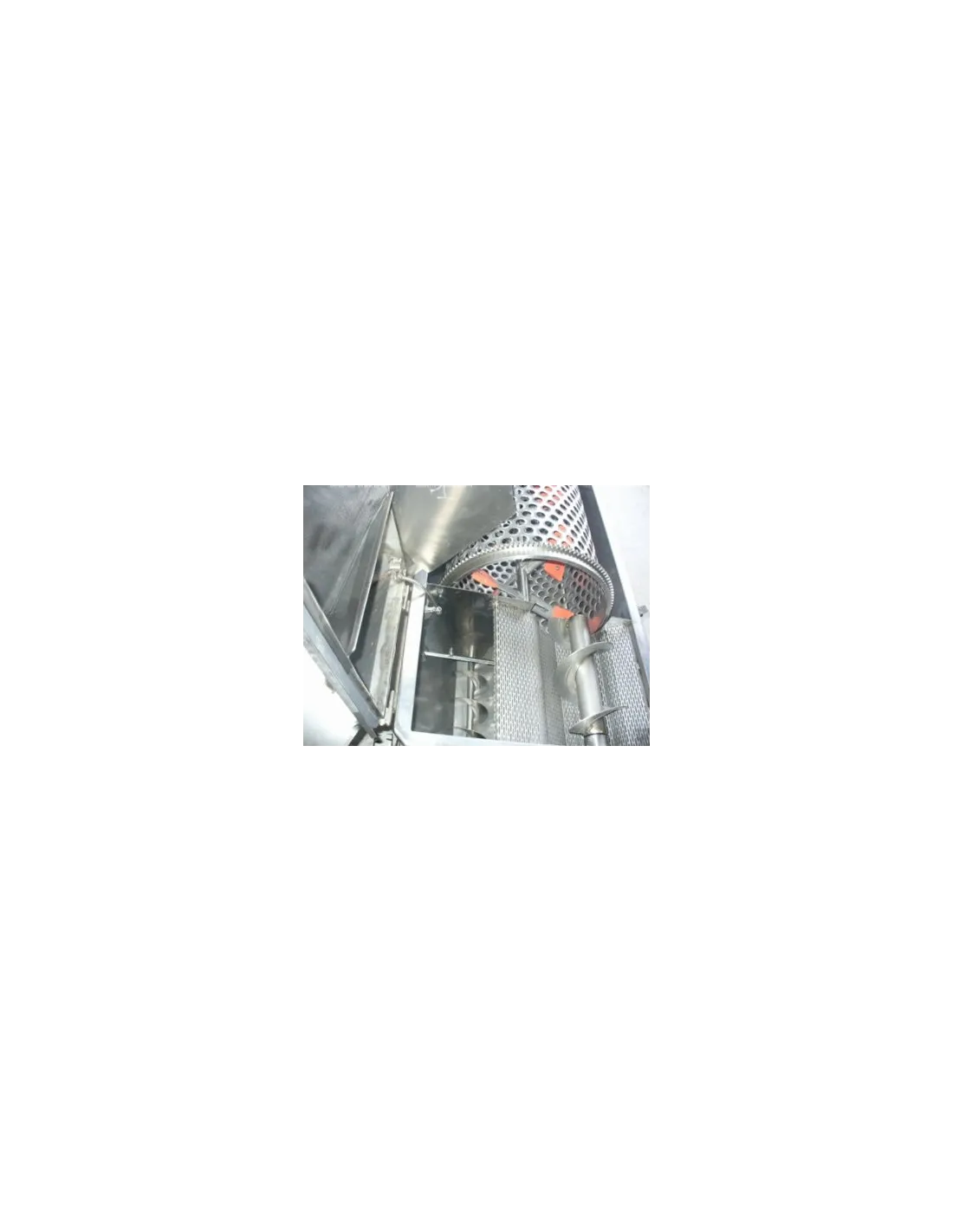

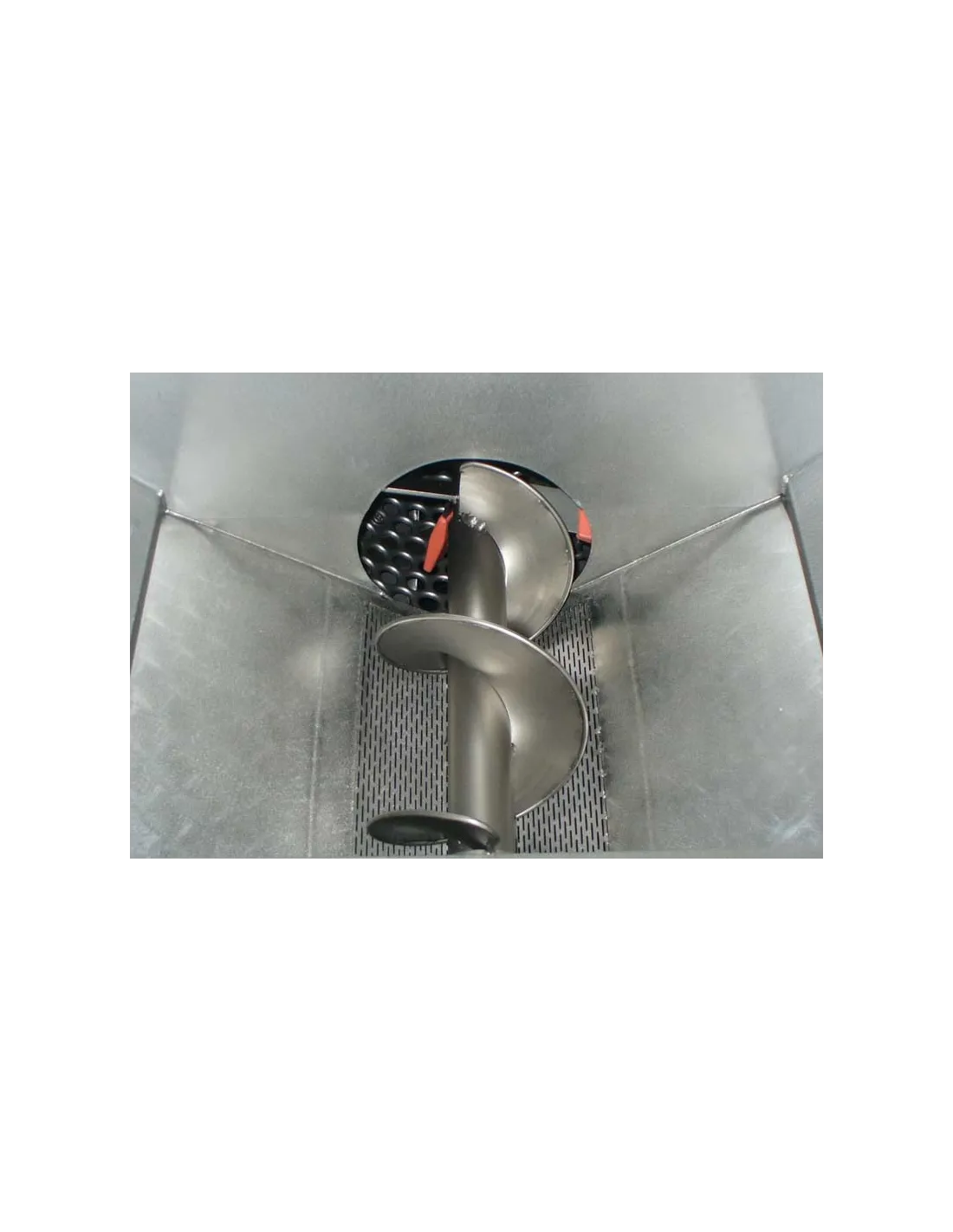

The operation of the centrifugal destemmer involves feeding the grapes into the loading hopper, where there is a screw conveyor that, by rotating, carries the bunches into the centrifugal basket. The rotation produces both the crushing and the separation of the stems, which are expelled from the basket outlet. The must produced is discharged by the centrifugal pump, which can transfer it to the fermentation tanks up to 18 metres horizontally and 5 metres vertically for the smallest version, and 20 metres horizontally and 6 metres vertically for the 60 and 120 quintals per hour versions.

Available versions:

• 60 quintals per hour;
• 90 quintals per hour;
• 120 quintals per hour.

Technical features common to all versions:

• Destemmer made entirely of AISI 304 stainless steel;
• Destemming shaft with rubber paddles;
• Beater shaft speed approx. 500 RPM;
• Stainless steel screen;
• Pump outlet 60;

Below are the individual features of the various versions.

Horizontal centrifugal destemmer with pump 60 quintals per hour:

• 3 HP motor (Kw 2,2) with CE emergency stop button;
• Basket diameter 30 cm;
• Stainless steel centrifugal pump and impeller with 18-metre horizontal and 5-metre vertical delivery;
• Hourly output 50–60 quintals;
• Dimensions approx. 165 x 105 x 110 cm;
• Weight 160 kg.

Horizontal centrifugal destemmer with pump 90 quintals per hour:

• 4 HP motor (Kw 3) with CE emergency stop button;
• Basket diameter 40 cm;
• Safety housing;
• Stainless steel centrifugal pump and impeller with 20-metre horizontal and 6-metre vertical delivery;
• Hourly output 80–100 quintals;
• Dimensions approx. 195 x 110 x 110 cm;
• Weight 200 kg.

Horizontal centrifugal destemmer with pump 120 quintals per hour:

• 5,5 HP motor (Kw 4) with CE emergency stop button;
• Basket diameter 50 cm;
• Safety housing;
• Product loading height: 1080 mm;
• Stainless steel centrifugal pump and impeller with 20-metre horizontal and 6-metre vertical delivery;
• Hourly output 100–120 quintals;
• Dimensions approx. 200 x 110 x 118 cm;
• Weight 230 kg.
