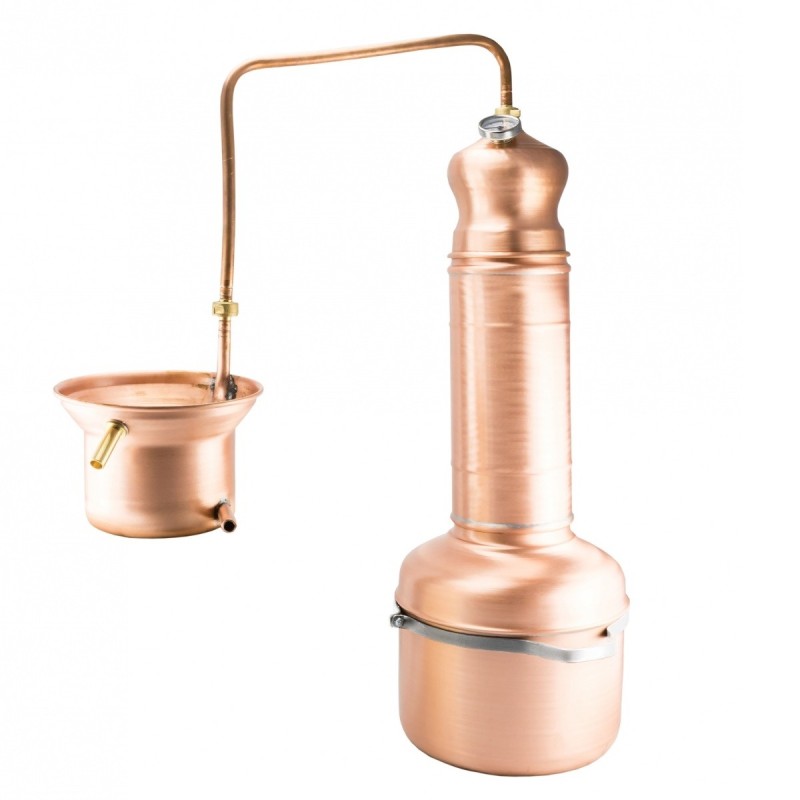

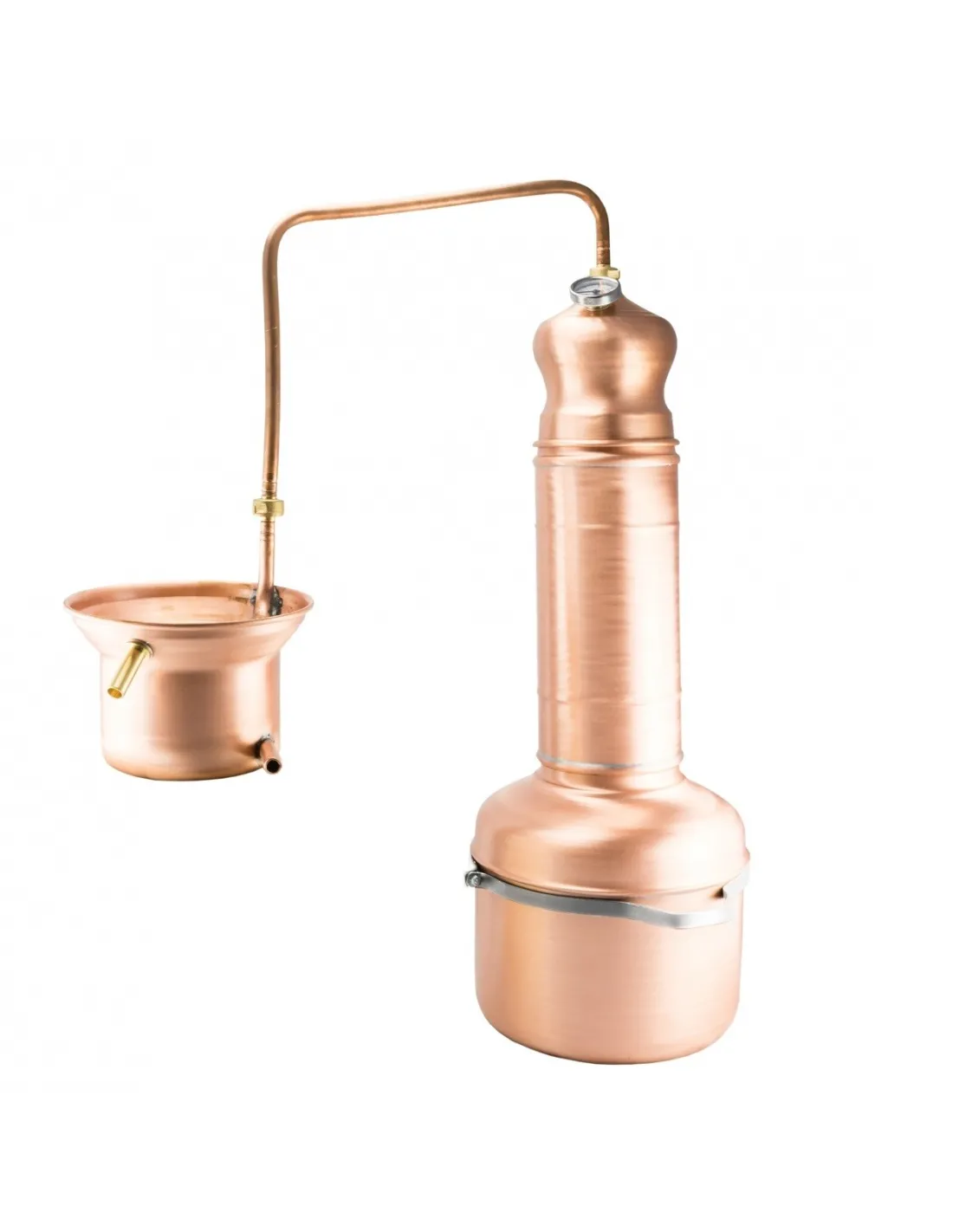

5-Liter Copper Essential Oil Distiller – Coil Condenser

The 5-liter copper essential oil distiller with coil condenser is designed for the steam distillation (hydrodistillation) of botanicals to obtain essential oils and aromatic water (hydrosol). It uses a coil-cooling system and a filter column positioned between the boiler and the pre-chamber to improve reflux and filtration.

Made entirely of copper with a thickness of 1 mm, the still includes an analog thermometer for monitoring the boiler's internal temperature and guiding the separation of heads, hearts and tails during distillation. It is handcrafted in Italy by master artisans.

It is suitable for the production of essential oils for perfumes, liqueurs and remedies, as well as for spirits such as grappa, brandy, whisky and fruit distillates. It can also be used for high-proof alcohol such as vodka, where legally permitted.

We recommend pairing the distiller with a separating funnel to simplify the separation of essential oils from the aromatic water.

Technical Features

• Material: copper;
• Boiler capacity: 5 L;
• Thermometer: analog;
• Cooling system: coil condenser;
• Steam distillation column: volume 2.5 L;
• Water inlet/outlet fitting diameters: 12 and 16 mm;
• Total height: 67 cm;

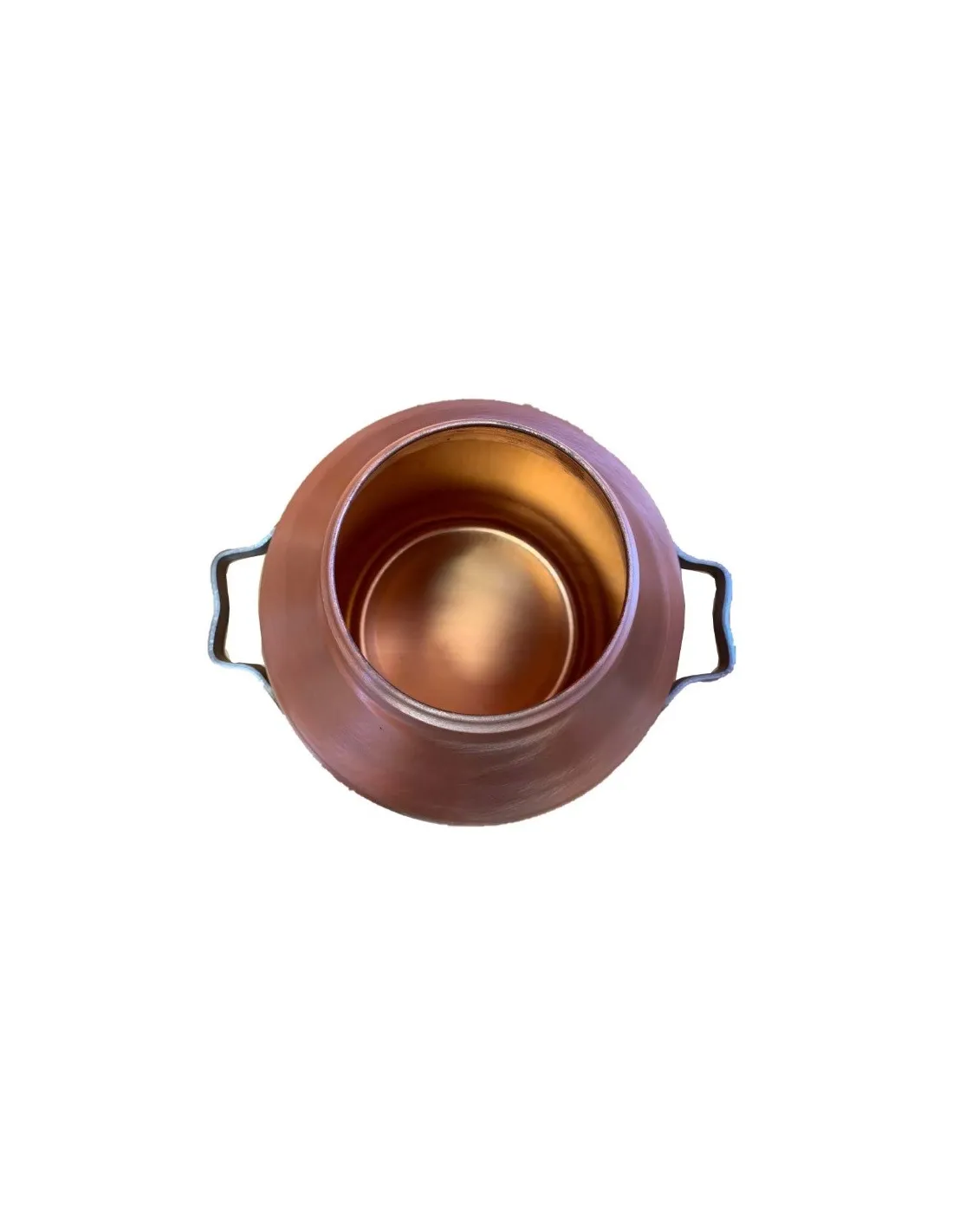

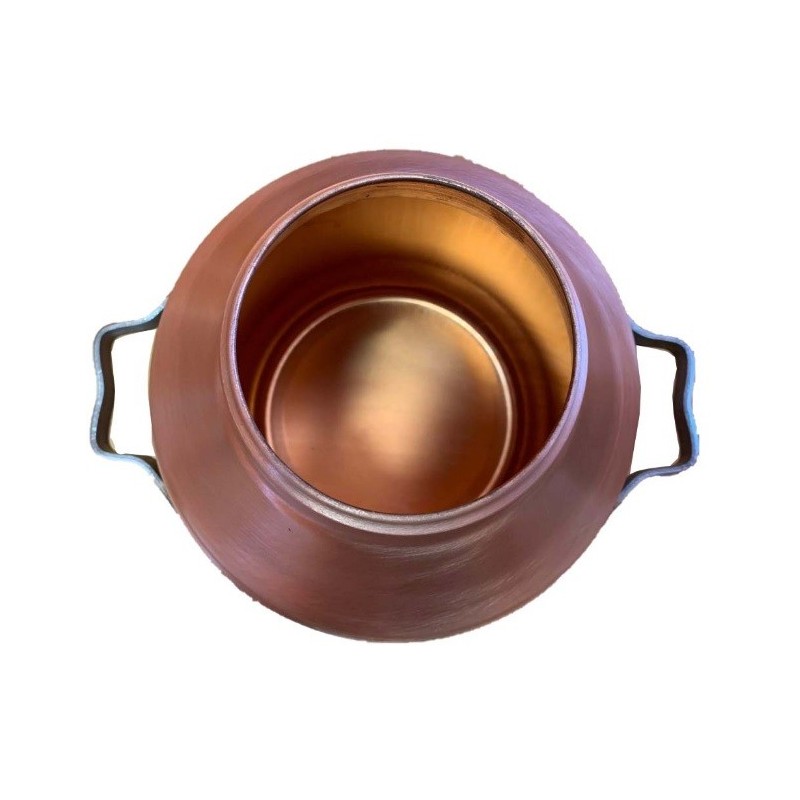

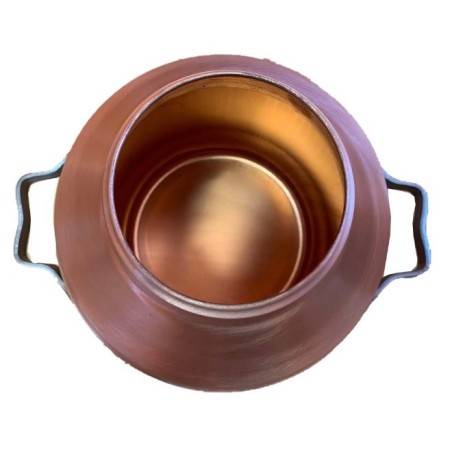

• Boiler dimensions: diameter 21.5 cm, height 23 cm;
• Head dimensions: diameter 10.5 cm, height 14 cm;

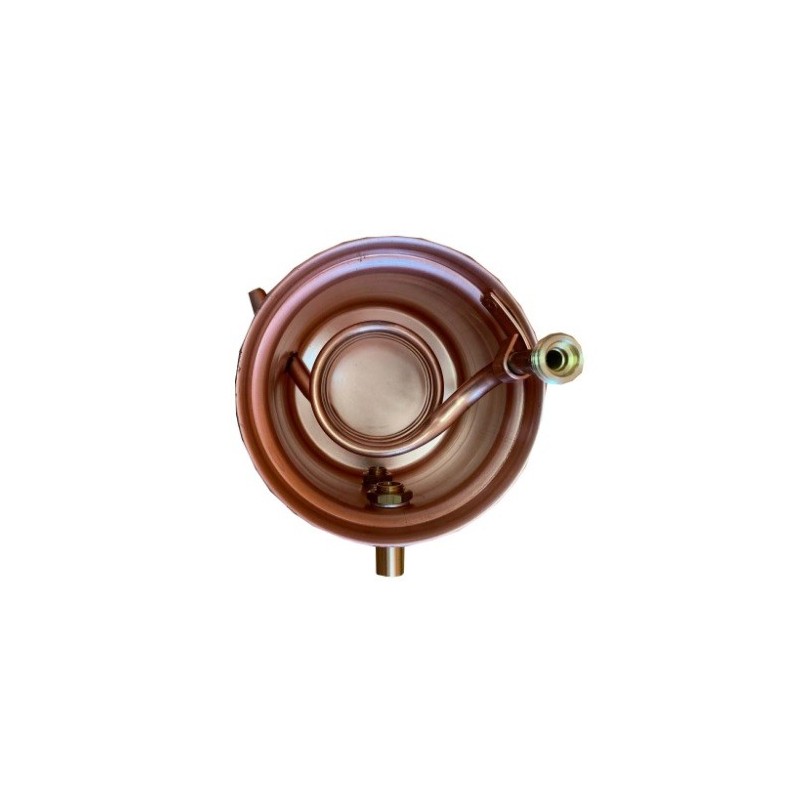

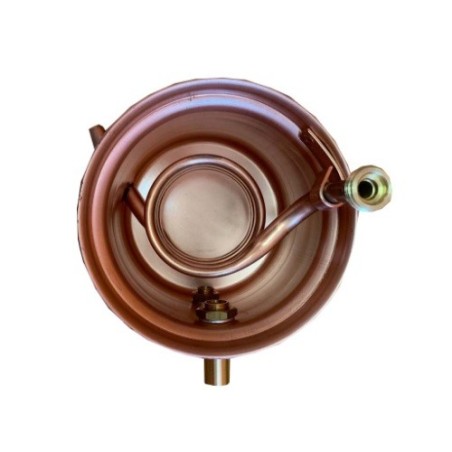

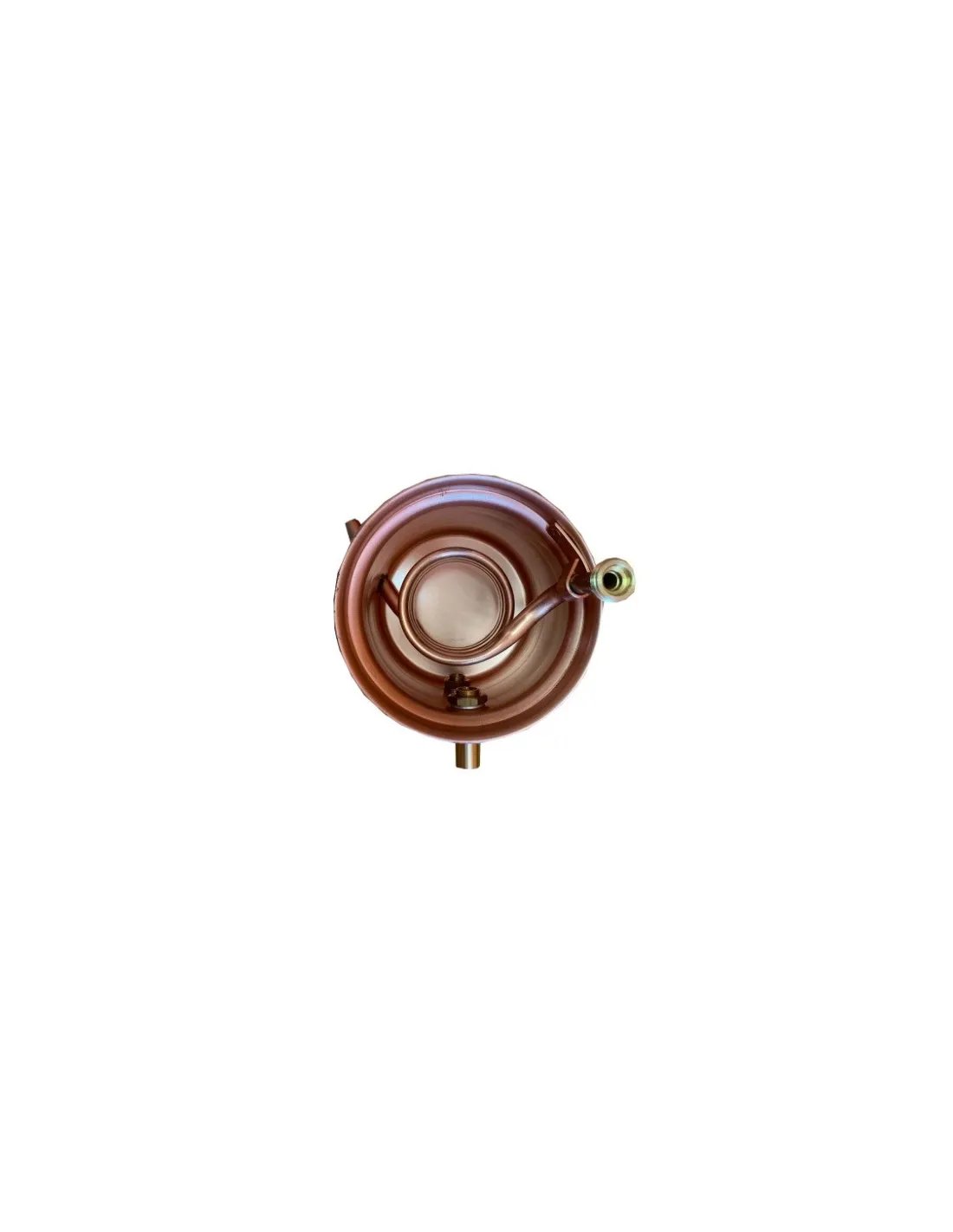

• Condenser dimensions: diameter 17 cm, height 15 cm;

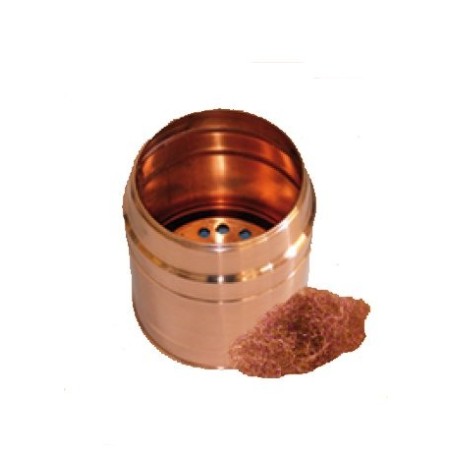

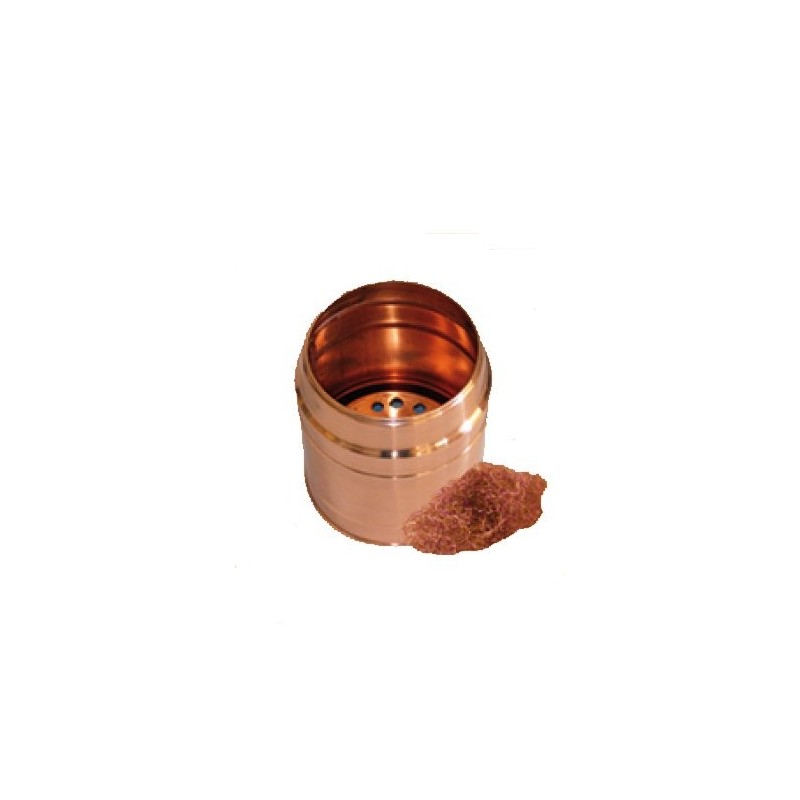

• Filter column dimensions: diameter 12 cm, height 28 cm;
• Copper thickness: 1 mm;
• Weight: 3.5 kg;
• Origin: Made in Italy.

Intended Use and Regulations

This equipment is marketed for purposes other than the production of ethyl alcohol, such as the permitted uses described in the product description. It is sold in compliance with the requirements established by current legislation governing distillation equipment. Its use for the production of ethyl alcohol is subject to specific tax and administrative obligations.

NB: Still sold for ornamental purposes only. For production use, please contact us to evaluate the costs for the required formalities with the customs agency.
