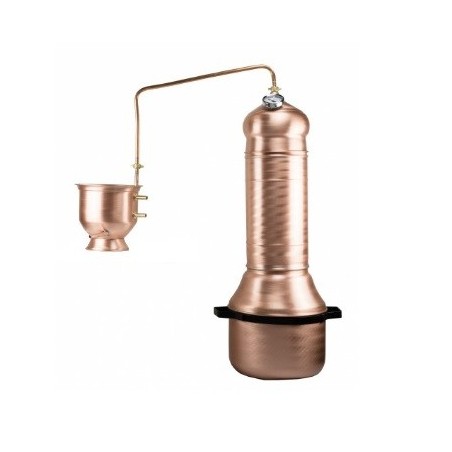

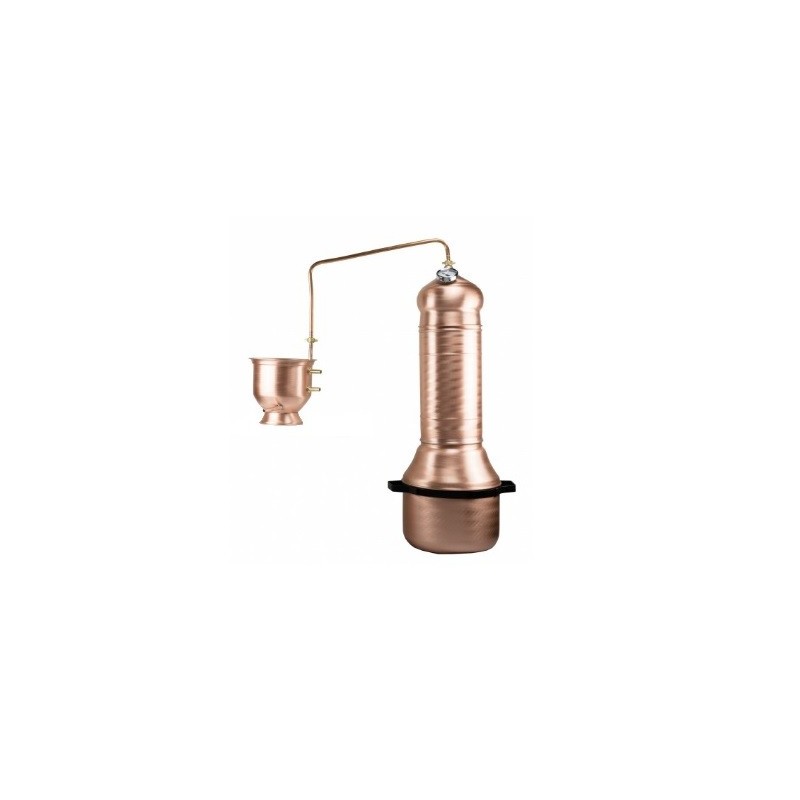

10-Liter Copper Essential Oil Distiller – Coil Condenser

The 10-liter copper essential oil distiller with coil condenser uses a coil-cooling system and a filter column positioned between the boiler and the pre-chamber to improve reflux and filtration. Designed for steam distillation (hydrodistillation) of botanicals, it can be used to obtain essential oils and aromatic water (hydrosol).

Made entirely of copper with a thickness of 1 mm, the still includes an analog thermometer for monitoring the boiler's internal temperature and guiding the separation of heads, hearts and tails during distillation. It is handcrafted in Italy by master artisans.

It is suitable for the production of essential oils for perfumes, liqueurs and remedies, as well as for spirits such as grappa, brandy, whisky and fruit distillates. It can also be used for high-proof alcohol such as vodka, where legally permitted.

We recommend pairing the distiller with a separating funnel to simplify the separation of essential oils from the aromatic water.

Technical Features

• Material: copper;
• Boiler capacity: 10 L;
• Thermometer: analog;
• Cooling system: coil condenser;
• Filter column: for steam distillation (hydrodistillation);
• Boiler dimensions: diameter 23 cm, height 27.5 cm;
• Head dimensions: diameter 19 cm, height 16 cm;
• Condenser diameter: 18.5 cm;
• Filter column dimensions: height 39 cm, width 17 cm, volume 11 L;
• Water inlet/outlet fitting diameters: 12 and 16 mm;
• Copper thickness: 1 mm;
• Weight: 3.5 kg;
• Origin: Made in Italy.

Intended Use and Regulations

This equipment is marketed for purposes other than the production of ethyl alcohol, such as the permitted uses described in the product description. It is sold in compliance with the requirements established by current legislation governing distillation equipment. Its use for the production of ethyl alcohol is subject to specific tax and administrative obligations.

NB: Still sold for ornamental purposes only. For production use, please contact us to evaluate the costs for the required formalities with the customs agency.
