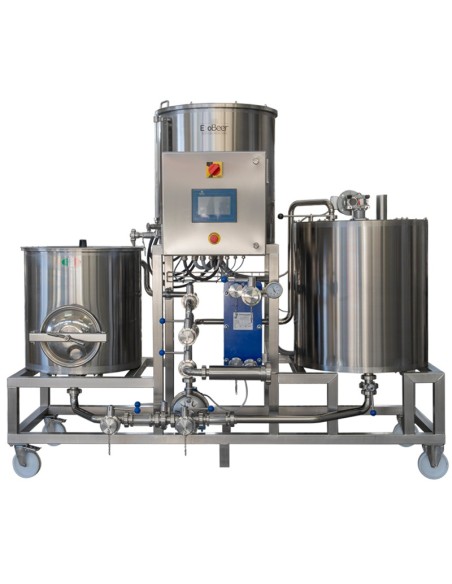

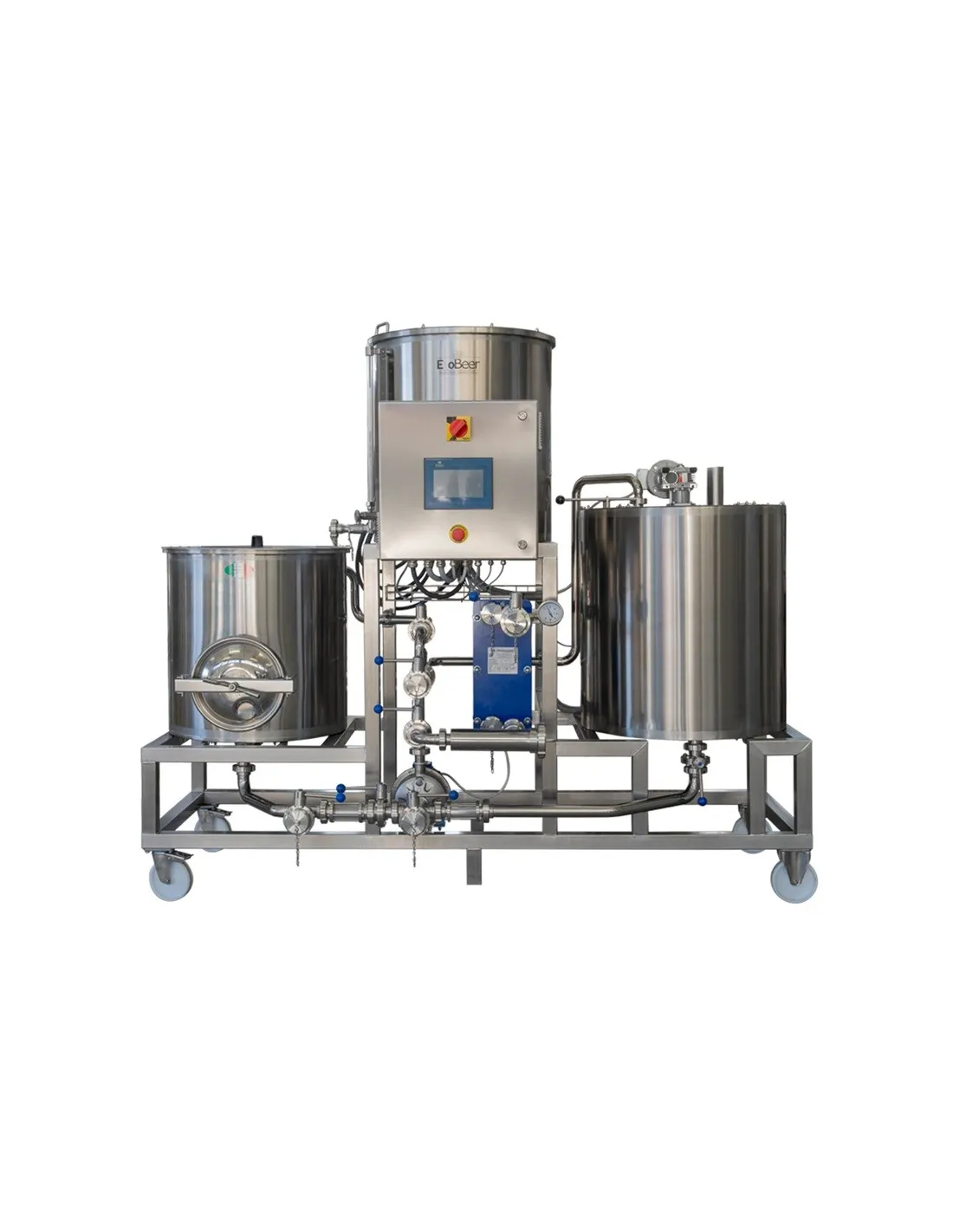

150L Beer Brewing System

This craft beer brewing system is designed to provide a professional-quality product at affordable prices. It is entirely designed and built in Italy by industry experts. It is the scaled-down reproduction of a highly professional brewery.

The heat sources and electrical structure of the 1.5 bbl brewery allow the brewer precise control over every temperature and process. At the heart of this goal are independent heating elements for each vessel, allowing the user to choose the perfect mashing temperatures and maintain optimal temperature in the HLT (Hot Liquor Tank). Our heating system regulates perfect boiling through proportional heat control in the kettle.

The heating system is positioned outside the tank (there are no immersion heaters). This solution has been developed on professional models and allows the production of high-quality wort, ease of cleaning, and perfect temperature control.

Placing all critical process valves in a single central position makes the beer preparation day intuitive and enjoyable. The control panel is a scaled-down version of larger professional breweries. The entire brewery is built on a network of welded and fully rigid TC connections. Integral rigid pipes matched with a fully welded frame provide an unprecedented fit and finish.

This professional Brewhouse includes a milled false bottom. The high-precision milled false bottom allows for faster vorlauf, clearer filtration, and mitigates the risk of a stuck sparge, while the manway allows for easy and quick cleaning. You no longer have to worry about collecting grain from the top of a mash tun.

Specifications:

• No. 3 vessels (mashing and filtration, boiling and whirlpool, water and sparging);
• Production capacity 150 liters;
• Power absorption: 2 kw;
• Power supply: 220V-400V three-phase;
• Heating: methane/GPL (optionally electric);
• Plant structure built entirely in AISI 304 Stainless Steel with adjustable support feet;
• Plate heat exchanger in Stainless Steel with EPDM gasket;
• No. 1 open impeller centrifugal pump in Stainless Steel;
• No. 1 control panel in Stainless Steel for temperature control, pump, stirrer;
• Safety protection for mash tun opening;
• Stainless steel pipes of the DIN 11851 type;
• Width 1100 mm
• Length 2150 mm
• Height 2000 mm

Below are the detailed characteristics of each component:

Mashing and boiling vessel

• Total tank volume LT 230 approximately
• Flat bottom
• Inspection manhole with upper closure
• Construction in AISI 304 stainless steel, Scotch Brite external finish, mirror-like BA internal finish
• No.1 BURNER WITH GPL-METHANE SUPPLY OF 16 KW
• Stainless steel manway complete with PT 100 temperature probe
• Condensate discharge pipe
• Washing pipe with no.1 divosfera
• No.1 General discharge 50-32 DIN
• Motor reducer for mixing phases during mashing
• Internal level for fruit chopping

Filtration and whirlpool vessel

• Total tank volume LT 230 approximately
• Flat bottom
• Construction entirely in AISI 304 stainless steel, Scotch Brite external finish, mirror-like BA internal finish
• No.1 inlet for transfer
• No.1 Total discharge DIN 50-32
• Stainless steel filtration grid with 1mm slots, easily removable.
• Structure entirely in AISI 304 stainless steel, for supporting the filtration grid
• Tangential inlet for Whirlpool effect
• Internal ring for Whirlpool effect containment
• Upper cover

Hot water storage vessel

• Capacity 230 lt
• Made of AISI 304 stainless steel, satin external finish
• Decapitated, ground and satinized welds
• Discharge with 1" butterfly valve
• Sparging pipe
• No.1 2 kw electric resistors each IP 65 protection
• Upper cover with lateral opening
• Stainless steel manway complete with PT 100 temperature probe

Wort movement pump

Pump for transfer between the respective mashing/boiling/whirlpool tanks and the filtration tank:

Characteristics:

• Non-self-priming stainless steel centrifugal pump, 2900RPM with special mechanical seal CER/GRAF/VITON
• Open impeller in AISI 316L stainless steel
• DIN 32 suction
• DIN 32 discharge

Plate heat exchanger for wort cooling with EPDM seals and inspectable brazed plates.

Base

Base with monolithic tubular structure in AISI 304 stainless steel, where:

• Mashing-boiling tank
• Filtration-Whirlpool tank
• Electrical panel with control panel
• Wort pump
• Plate heat exchanger
• DIN pipe connections
• Electrical connections

Optionally it is possible to select the version with electric heating and one with a production capacity of 250 liters (also available with flame or electric heating).

NB. MID-approved flow meters not included.
