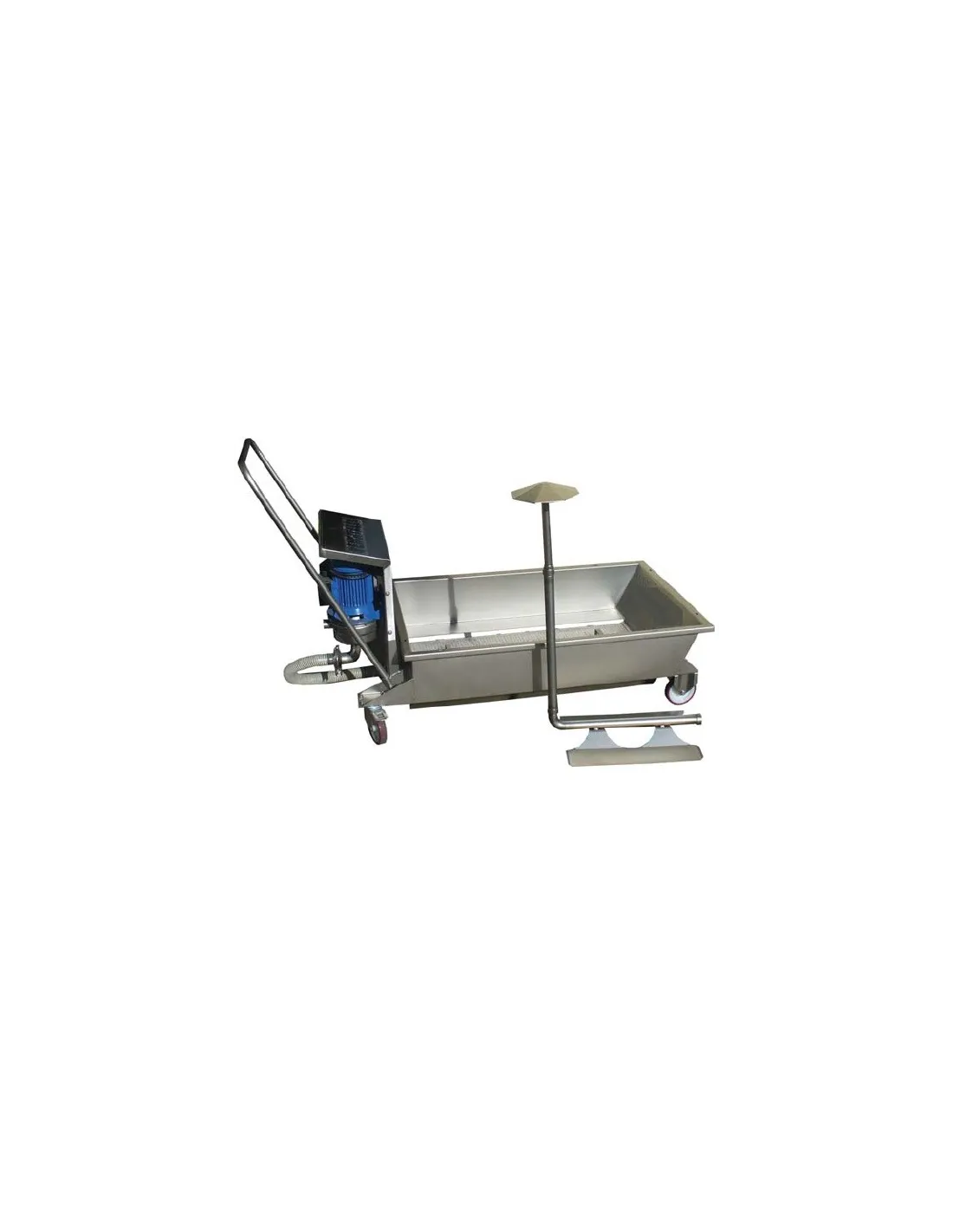

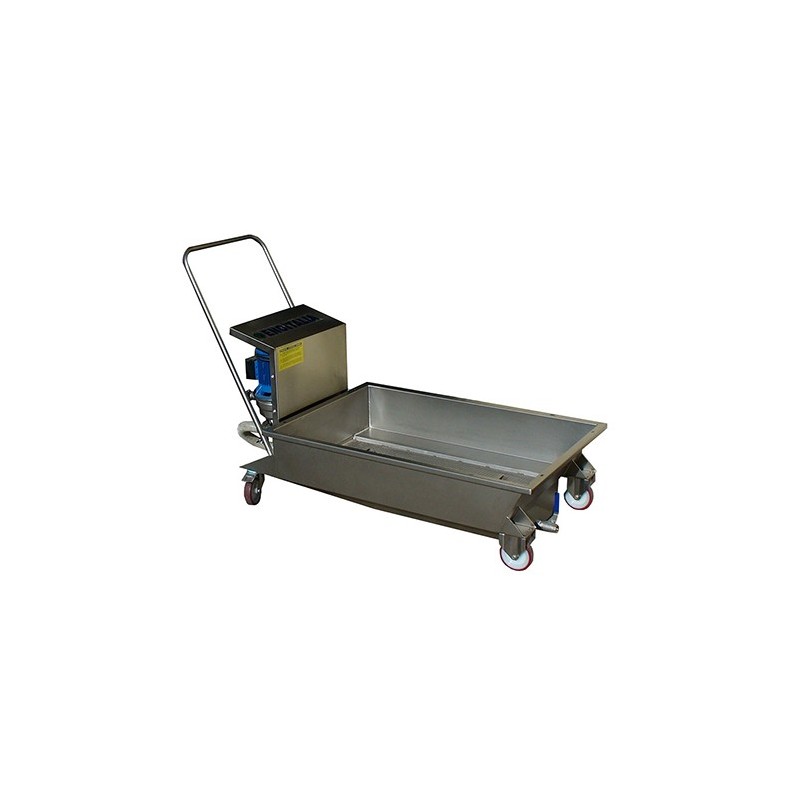

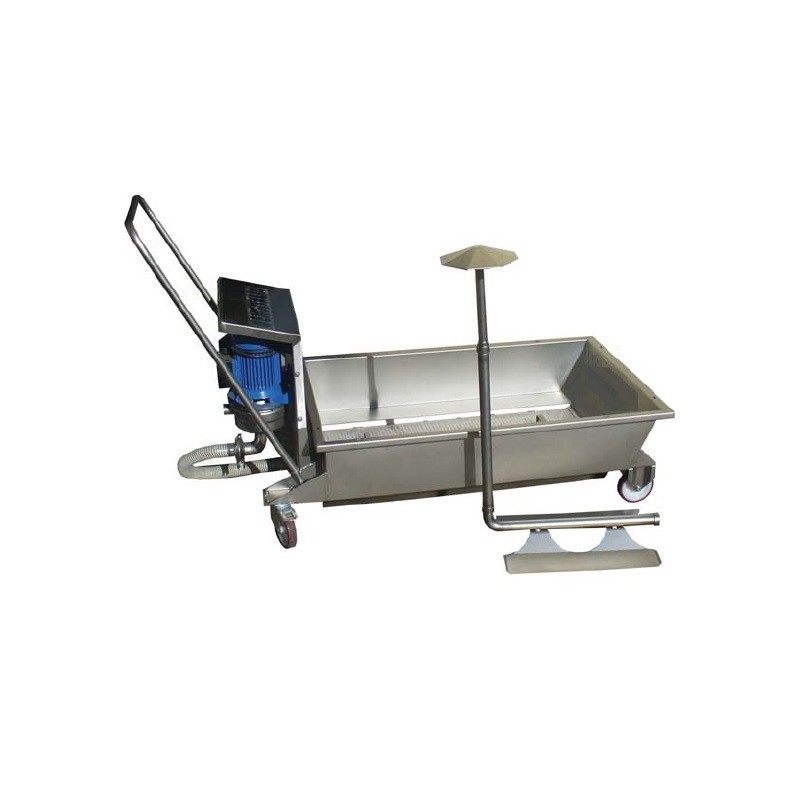

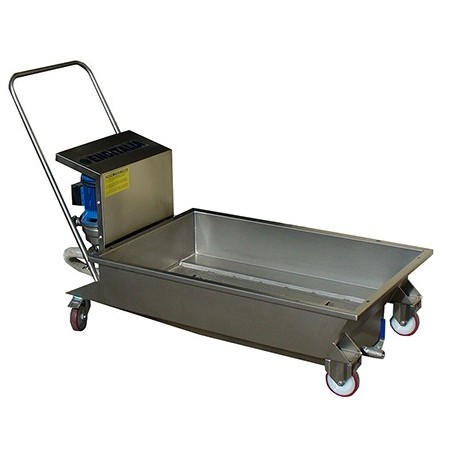

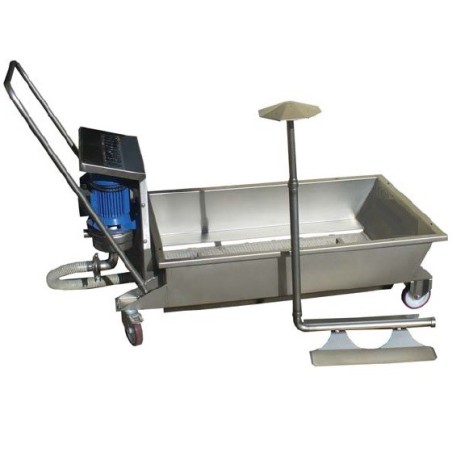

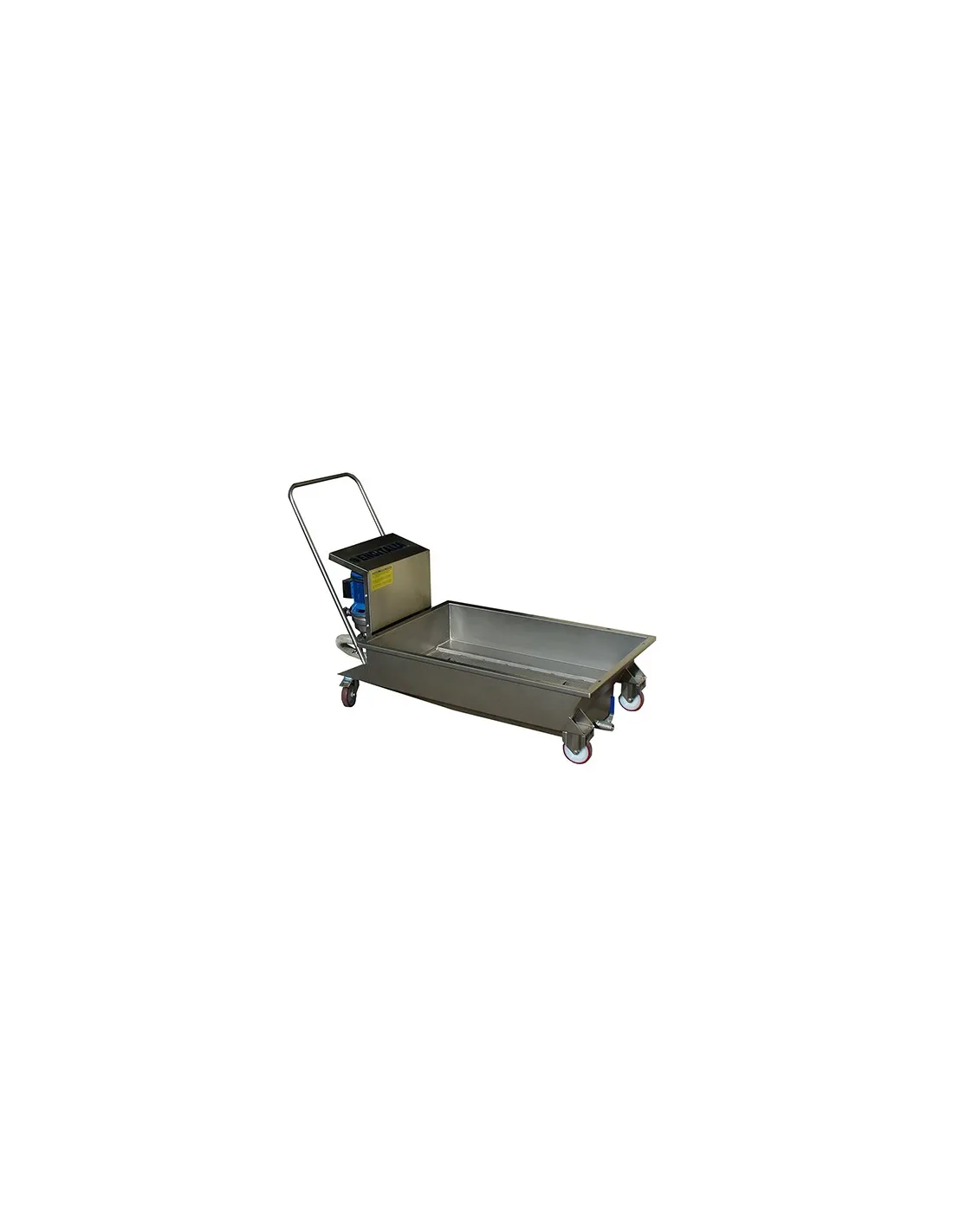

Tank Washing Basin for Winery Tanks

Keeping the winery perfectly clean is essential to obtain good wine. Among the hardest pieces of equipment to wash are the tanks, which often build up fermentation and storage residues on the inside that are very stubborn and difficult to remove.

With this in mind, the tank washing basin was designed and built specifically for cleaning tanks. Its full AISI 304 stainless-steel construction makes it a highly reliable tool that is easy to wash, with long service life and full suitability for food use.

The tank washing basin is equipped with a removable slotted filter, four stainless-steel wheels with 150 mm diameter (two with brakes to lock the unit in place), and a drain outlet for total emptying or pump connection with Garolla 40 fitting.

Further key features of this tank washing basin include the 1¼" connection for the centrifugal pump, the 2 HP motor and a total capacity of 220 liters.

The hopper measures 110 cm in length, 76 cm in width and 37 cm in height from the ground. This makes it suitable for washing tanks with a maximum cylinder height of 3 meters. As an option, it is available with a 4 HP motor for washing tanks with a maximum cylinder height of 6 meters.

Features of the tank washing basin for winery tanks:

• AISI 304 stainless-steel frame;
• Capacity: 220 liters;
• 2 HP (1.5 kW) motor;
• Single-phase power supply;
• Garolla 40 fittings;
• Stainless-steel centrifugal pump;
• Removable cleaning filter;
• Stainless-steel valve for complete drain;
• Stainless-steel washing head with slide (optional);
• Suitable for washing tanks with a maximum cylinder height of 3 meters;
• 4 wheels, 2 of which with parking brakes;
• CE-compliant electrical system with emergency stop;
• Hopper dimensions: length 110 cm, width 76 cm, height from ground 37 cm.

As an option, the tank washing basin for winery tanks can be supplied with a 4 HP (3 kW) three-phase motor, allowing washing of tanks with a maximum cylinder height of 6 meters.
