Stainless Steel Semi-Centrifugal Grape Destemmer with Pump – 20–38 q/h
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information

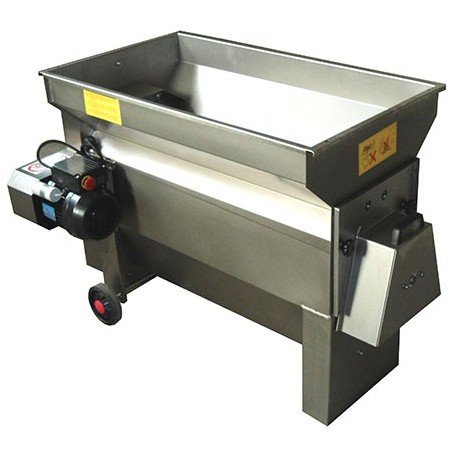

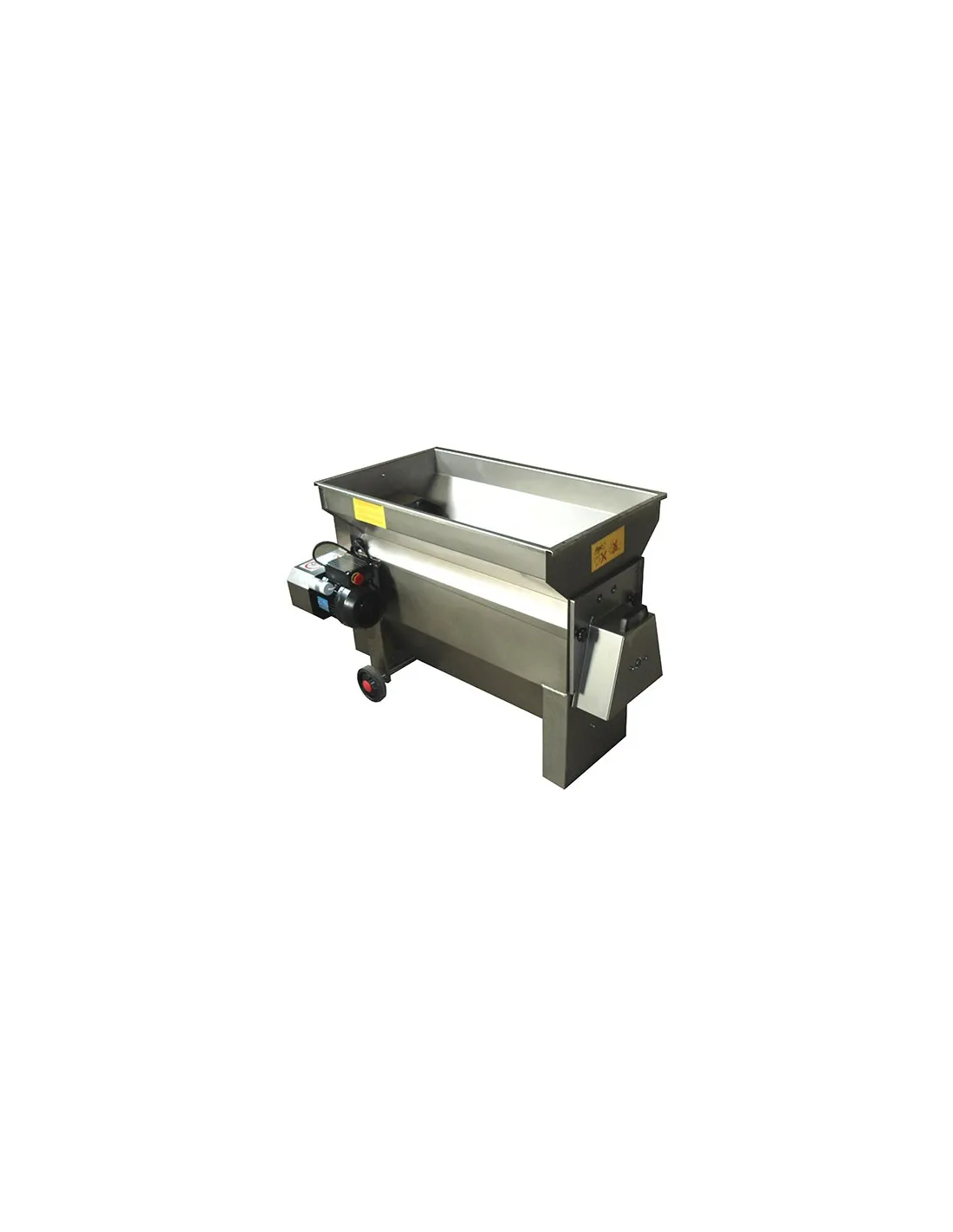

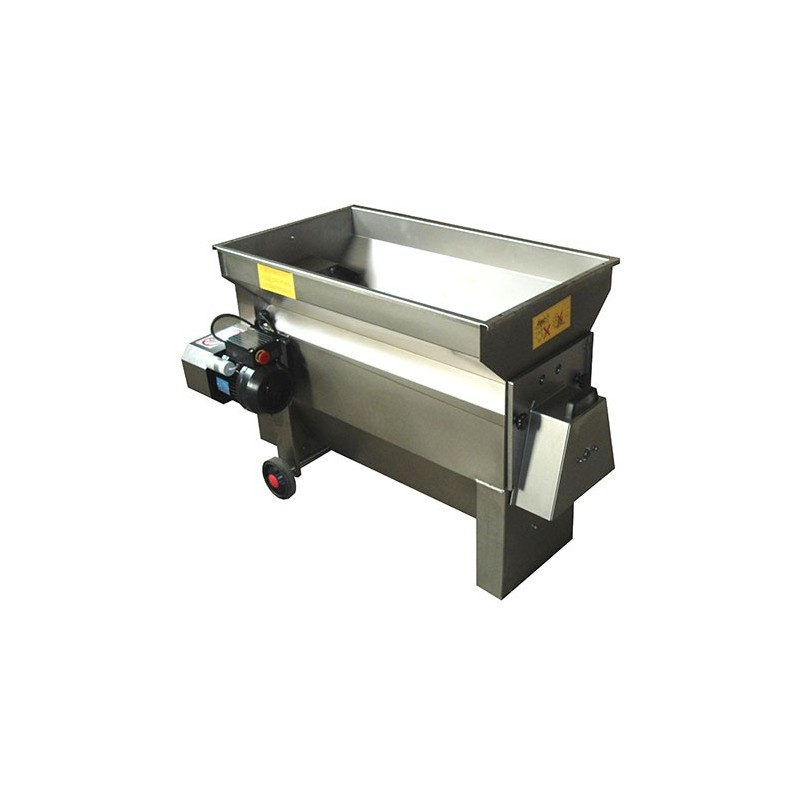

The stainless steel semi-centrifugal grape destemmer with pump is designed and manufactured in Italy for destemming and crushing operations. The machine is made entirely from AISI 304 stainless steel.
Grapes are loaded into the hopper, where a screw conveyor carries the bunches towards the destemming chamber. Here, the stems are separated from the berries and the berries are crushed.
The machine is equipped with a stainless steel centrifugal pump for transferring the must to the fermentation tanks, with delivery of up to 15 metres horizontally and 5 metres vertically.
The frame is designed to facilitate cleaning and maintenance. The machine can be opened laterally by removing the stainless steel destemming screen and centrally by tilting the loading hopper.
Available semi-centrifugal grape destemmer versions
- 20 quintals per hour;
- 30 quintals per hour;
- 38 quintals per hour.
Technical features common to all versions
- Construction: entirely AISI 304 stainless steel;
- Destemming shaft speed: approx. 500 RPM;
- Stainless steel centrifugal pump;
- Pump delivery: up to 15 metres horizontally and 5 metres vertically;
- Stainless steel destemming screen.
20 q/h stainless steel semi-centrifugal grape destemmer with pump
- Motor: 2 HP (1.5 kW) with starting capacitor;
- Pump outlet: 60/50;
- Hourly output: 20 quintals;
- Dimensions: 113 x 68 x 90 cm;
- Weight: 78 kg.
30 q/h stainless steel semi-centrifugal grape destemmer with pump
- Motor: 2 HP (1.5 kW) with starting capacitor;
- Pump outlet: 60;
- Hourly output: 30 quintals;
- Dimensions: 123 x 68 x 90 cm;
- Weight: 94 kg.
38 q/h stainless steel semi-centrifugal grape destemmer with pump
- Motor: 2.5 HP (1.8 kW) with starting capacitor;
- Pump outlet: 60;
- Hourly output: 38 quintals;
- Dimensions: 133 x 68 x 90 cm;
- Weight: 110 kg.

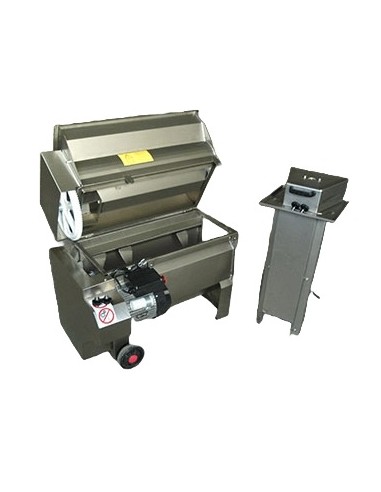

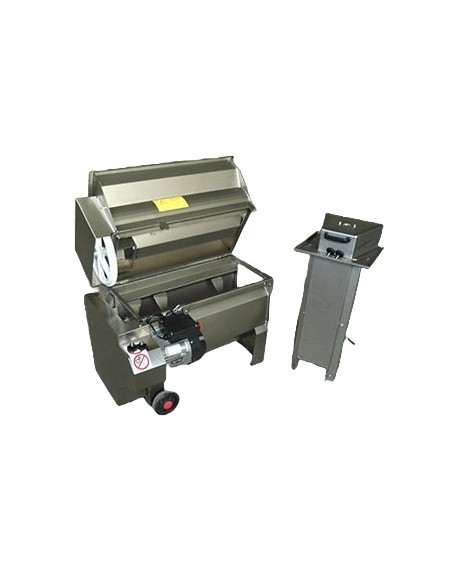

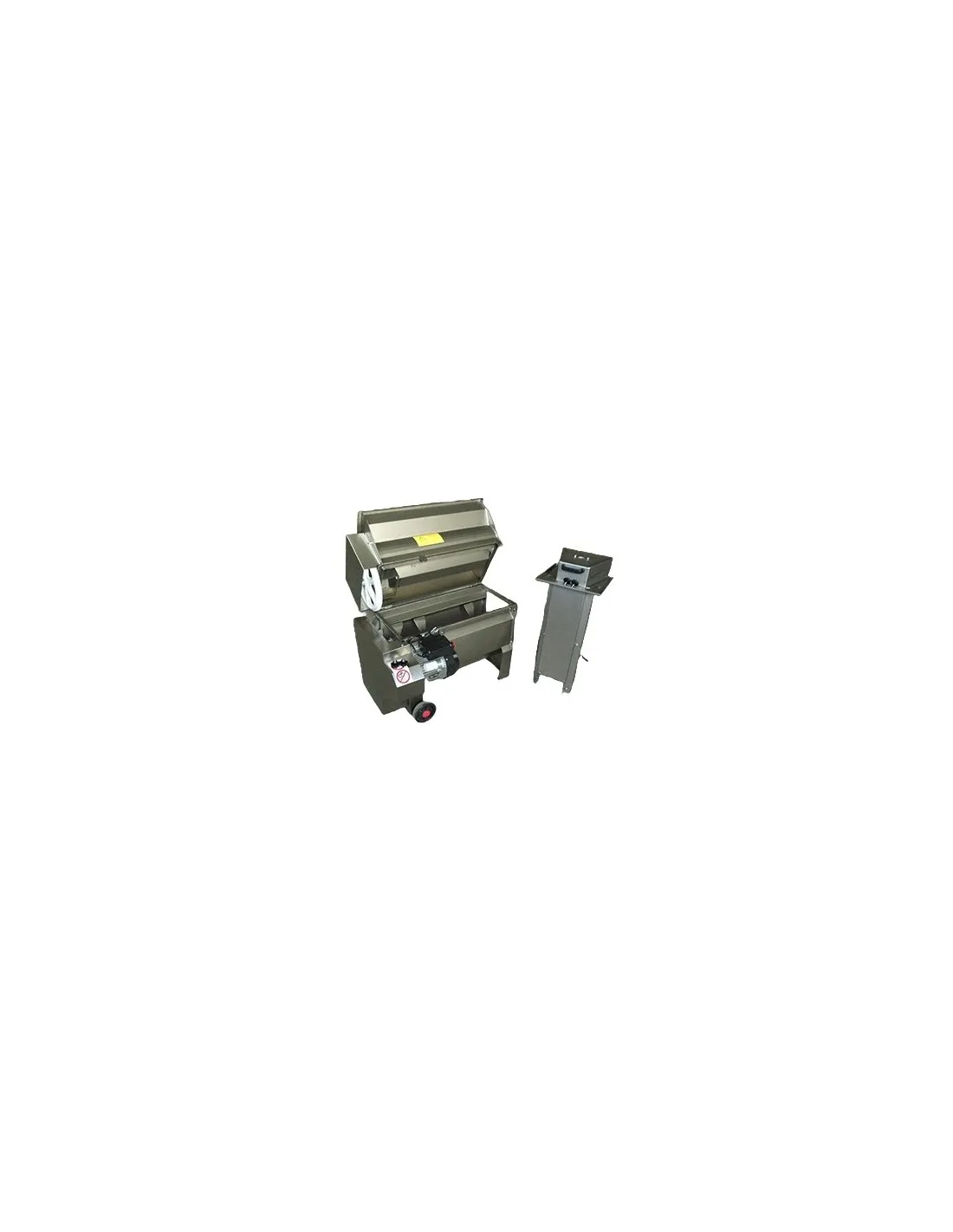

Note: the destemmer is supplied in smooth stainless steel. The image showing the machine open with the hopper tilted is for illustrative purposes only.
- Processing capacity
- 2000 / 3000 / 3800 kg/h
- Material
- Stainless steel
- Destemming screen
- Stainless steel
- Motor
- 2 HP (kW 1.5) / 2.5 HP (kW 1.8)
- Overall dimensions
- 1130 × 680 × 900 mm / 1230 × 680 × 900 mm / 1330 × 680 × 900 mm
- Weight
- 78 kg / 94 kg / 110 kg
- Shaft speed
- 500 RPM
- Crushing rollers
- Nothing
- Power source
- Single-phase / Three-phase
- Pump
- Ø 60/50
- Pump head
- 15 m horizontal - 5 m vertical
- Product type
- Semi-centrifugal grape destemmer
