Semi-Centrifugal Grape Destemmer with Pump - 20-38 q.li/h

The semi-centrifugal destemmer is made of enamelled sheet metal with non-toxic coating, making it fully suitable for food use. The machine is designed and manufactured in Italy to optimise destemming and crushing operations. It is equipped with a loading hopper with a screw conveyor whose task is to carry the bunches towards the destemming chamber, where the separation of stems from berries and the crushing of the latter take place thanks to the combined action of the destemming shaft and the centrifugal pump. The semi-centrifugal destemmer is fitted with a stainless steel centrifugal pump for transferring the must up to a maximum of 15 metres horizontally and 5 metres vertically.

The frame has been designed to make cleaning and maintenance operations even easier, as it can be fully opened both laterally, using the system that allows the stainless steel destemming screen to be removed, and centrally by tilting the loading hopper.

This model can meet a wide range of needs but is particularly suitable for small and medium-scale production.

Available versions:

• 20 quintals per hour;
• 30 quintals per hour;
• 38 quintals per hour.

Technical features common to all versions:

• Destemmer in enamelled sheet metal with non-toxic paints;
• Destemming shaft with approx. 500 RPM;
• Stainless steel centrifugal pump with 15-metre horizontal and 5-metre vertical delivery;
• Stainless steel destemming screen;

Below are the individual technical features of the available versions

Semi-centrifugal destemmer with pump 20 q.li/h:

• 2 HP motor (Kw 1,5) with starting capacitor;
• Pump outlet 60/50;
• Hourly output 20 quintals;
• Dimensions: 113 x 68 x 90 cm;
• Weight 78 kg;

Semi-centrifugal destemmer with pump 30 q.li/h:

• 2 HP motor (Kw 1,5) with starting capacitor;
• Pump outlet 60;
• Hourly output 30 quintals;
• Dimensions: 123 x 68 x 90 cm;
• Weight 94 kg;

Semi-centrifugal destemmer with pump 38 q.li/h:

• 2,5 HP motor (Kw 1,8) with starting capacitor;
• Pump outlet 60;
• Hourly output 38 quintals;
• Dimensions: 133 x 68 x 90 cm;
• Weight 110 kg;

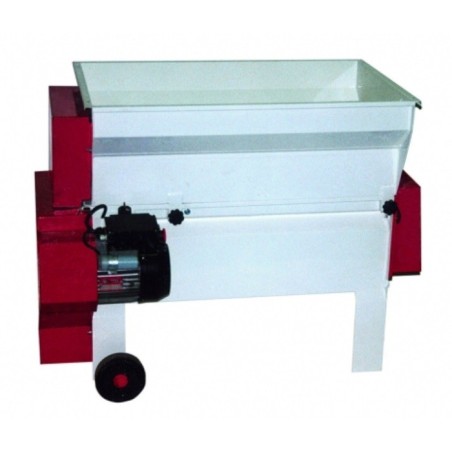

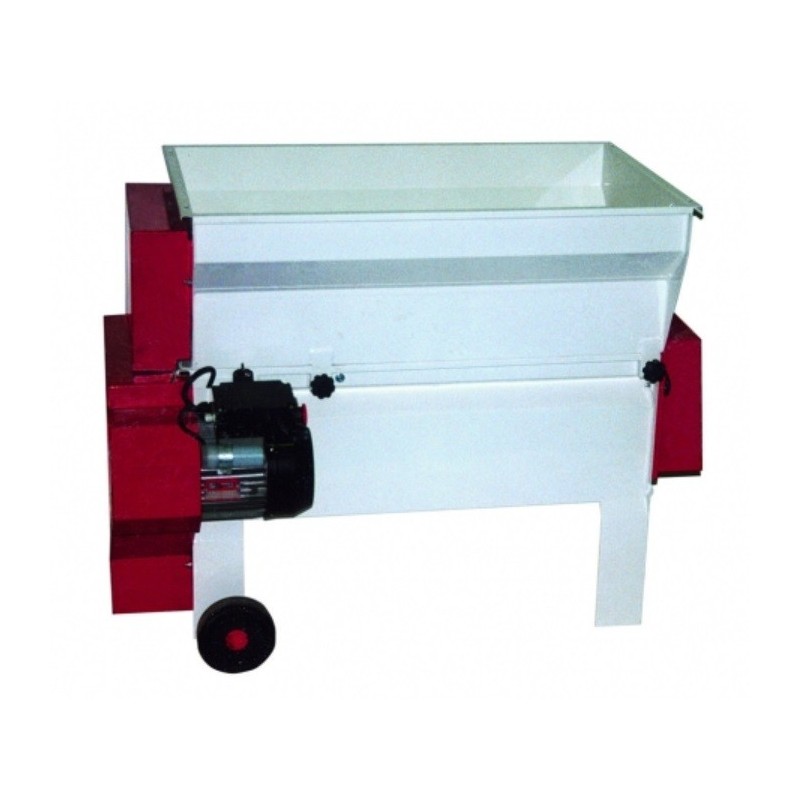

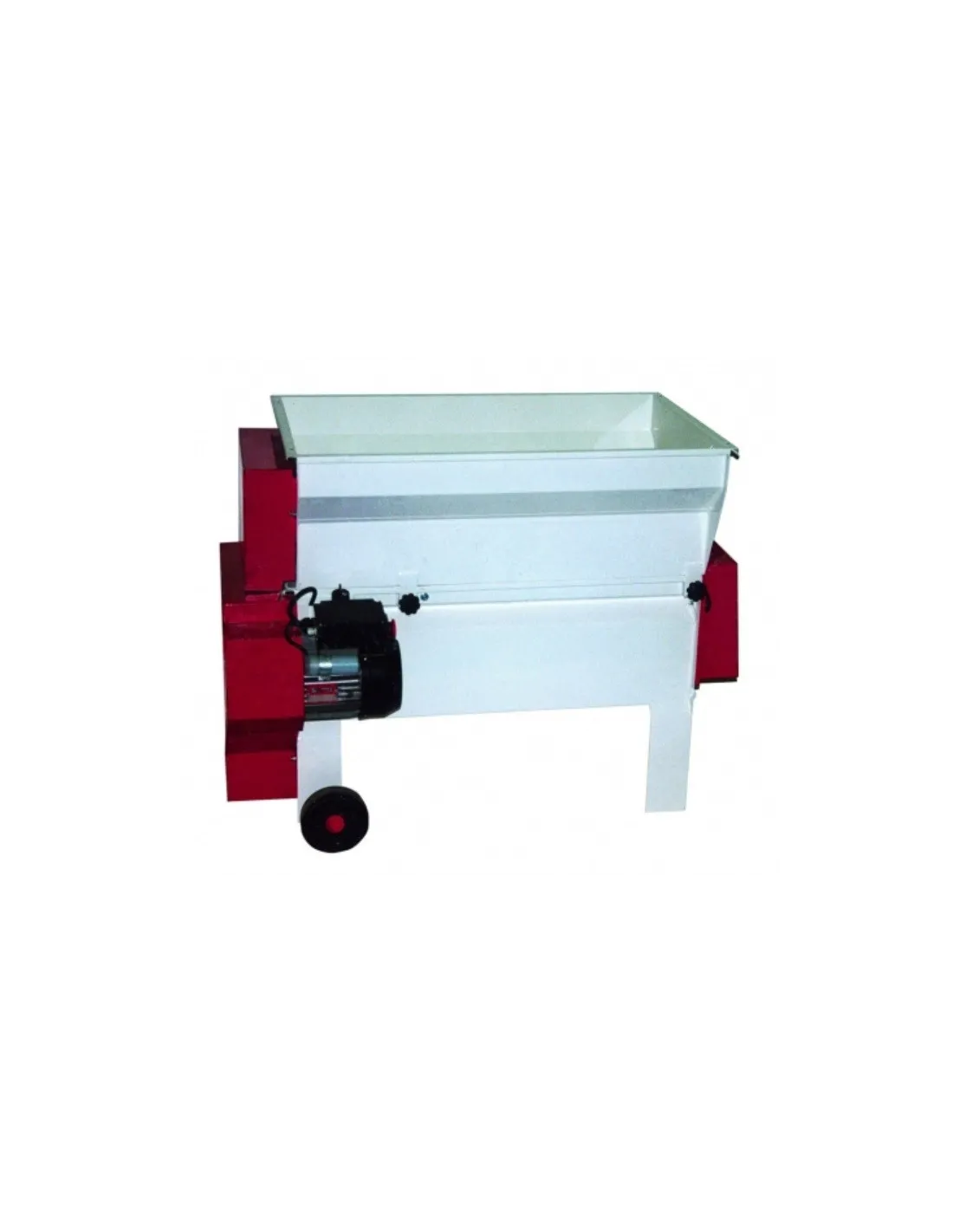

NB. The destemmer is supplied as shown in the main photo, i.e. in enamelled sheet metal. The image showing the destemmer open with the tilted hopper is for illustrative purposes only, to show how the machine can be opened.
