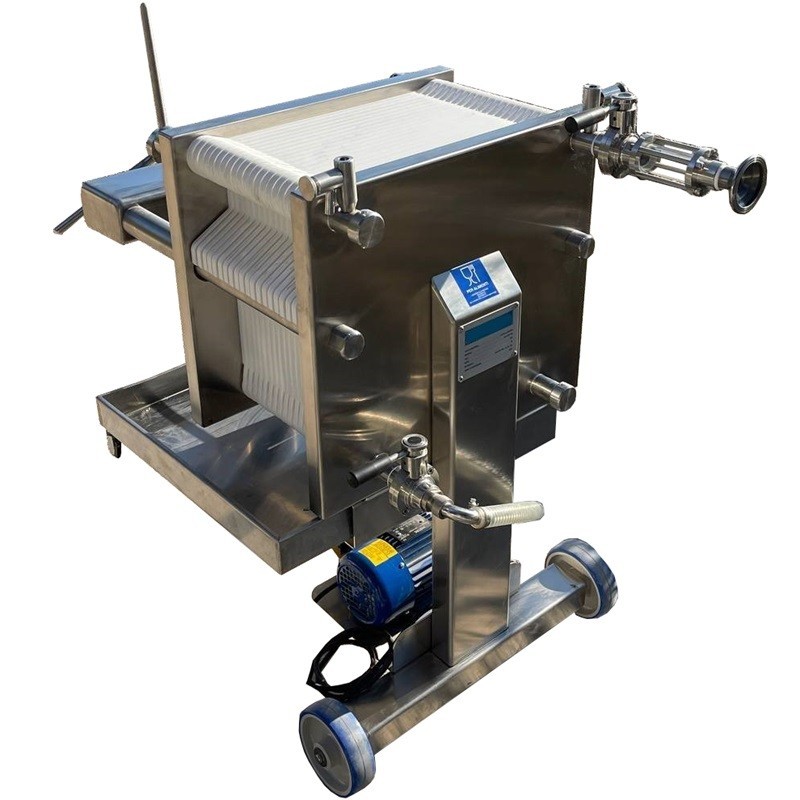

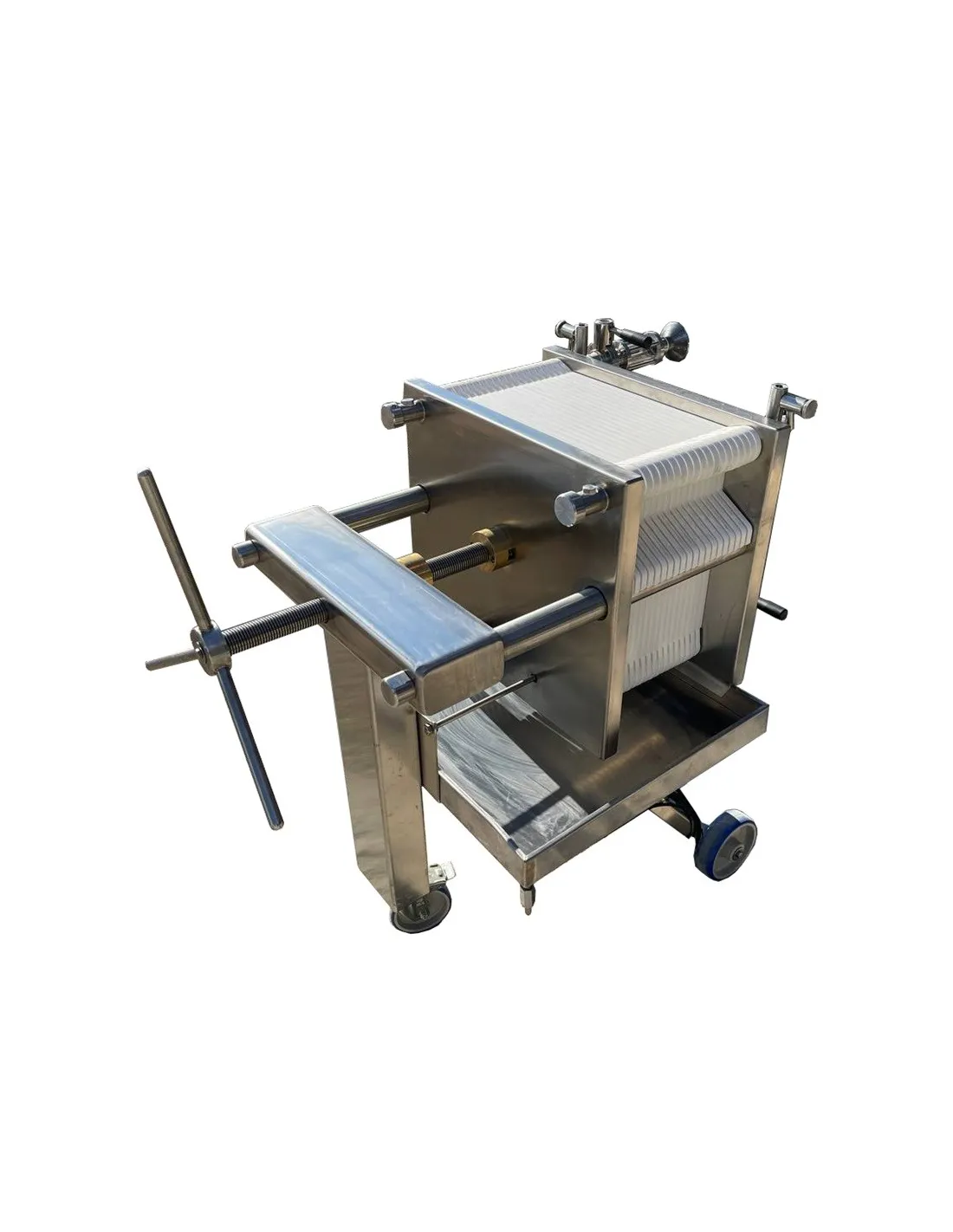

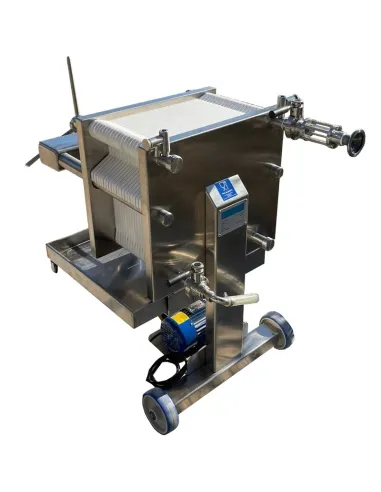

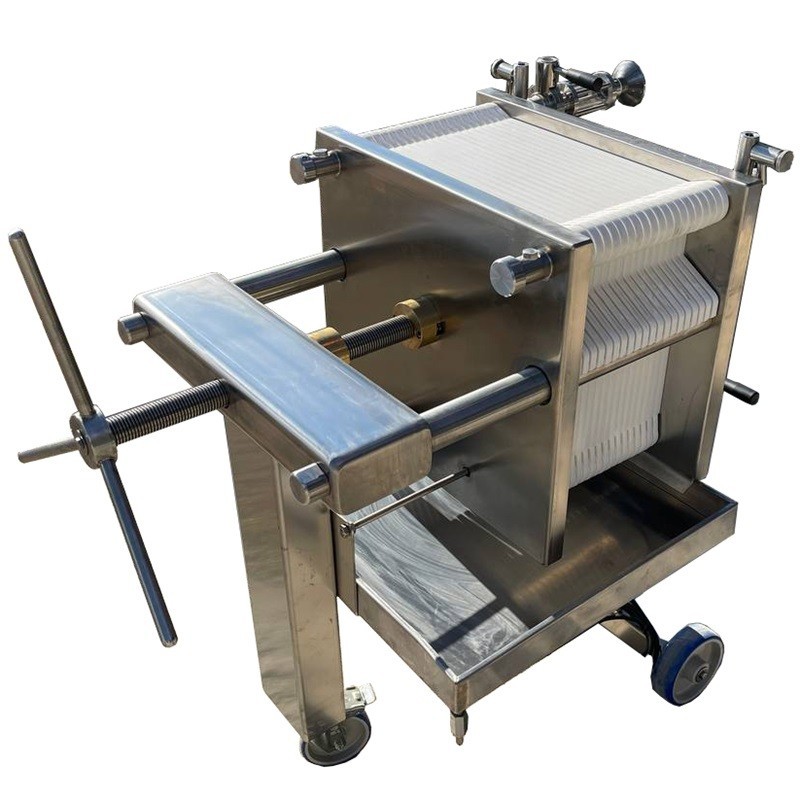

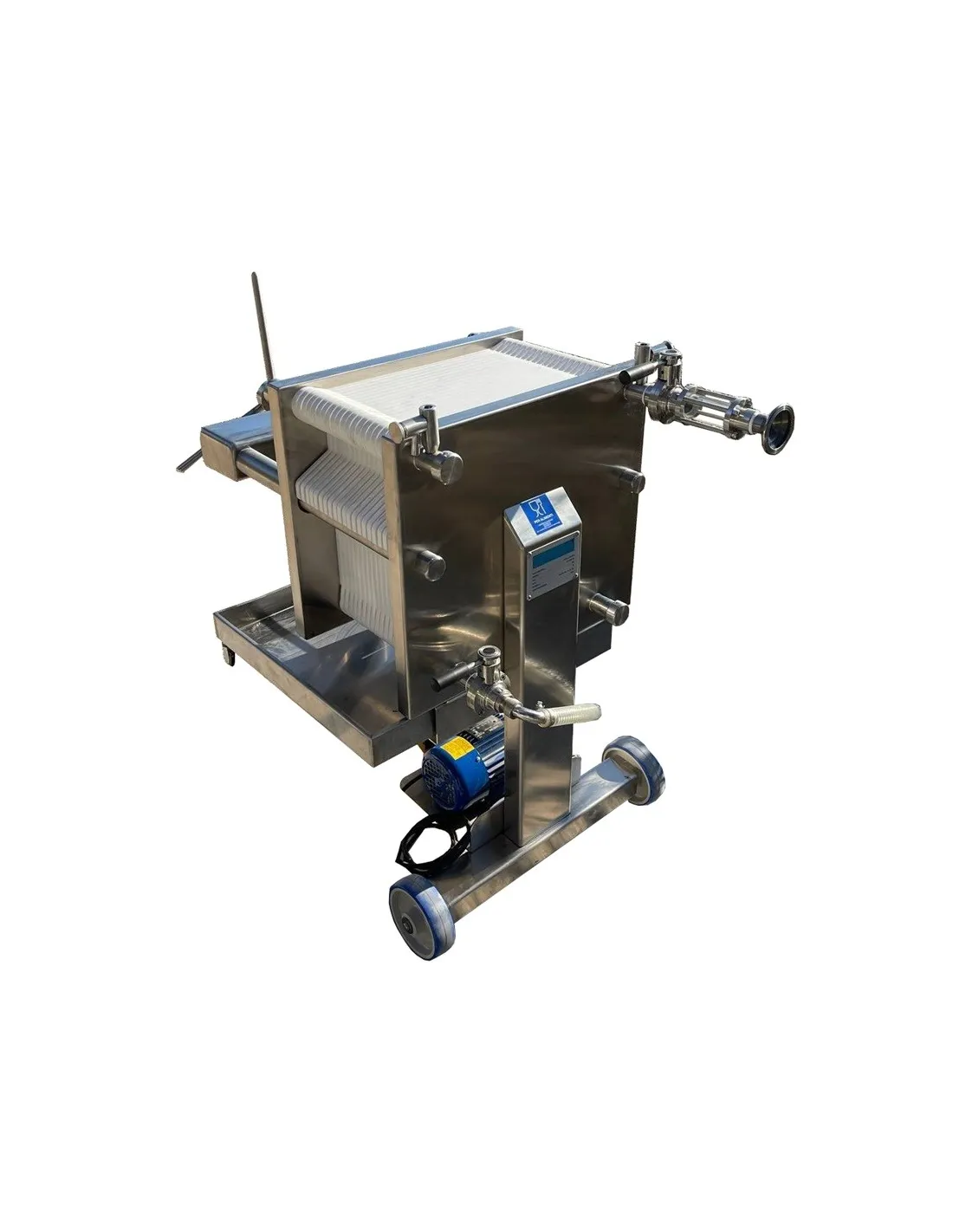

Professional 40x40 Plate Filter with Pump & Mobile Cart

The professional 40 × 40 cm plate filter with pump and mobile cart is designed for the filtration of wine, craft beer, olive oil and other compatible food-grade liquids.

The machine uses plates designed for 40 × 40 cm filter sheets and is available in four versions, with 20, 30, 40 or 50 plates. The filtering surface and hourly output vary according to the selected version and the product being processed.

Its stainless steel construction and wheeled trolley make it suitable for wineries, craft breweries and food processing facilities.

Main Features

• Stainless steel structure: robust construction designed for use in food processing environments.
• Filter sheet size: plates designed for 40 × 40 cm filter sheets.
• Mobile trolley: wheeled structure for moving the machine within the production facility.
• Bypass system: the pump is equipped with a bypass system to help protect the filter against excessive pressure and overload.

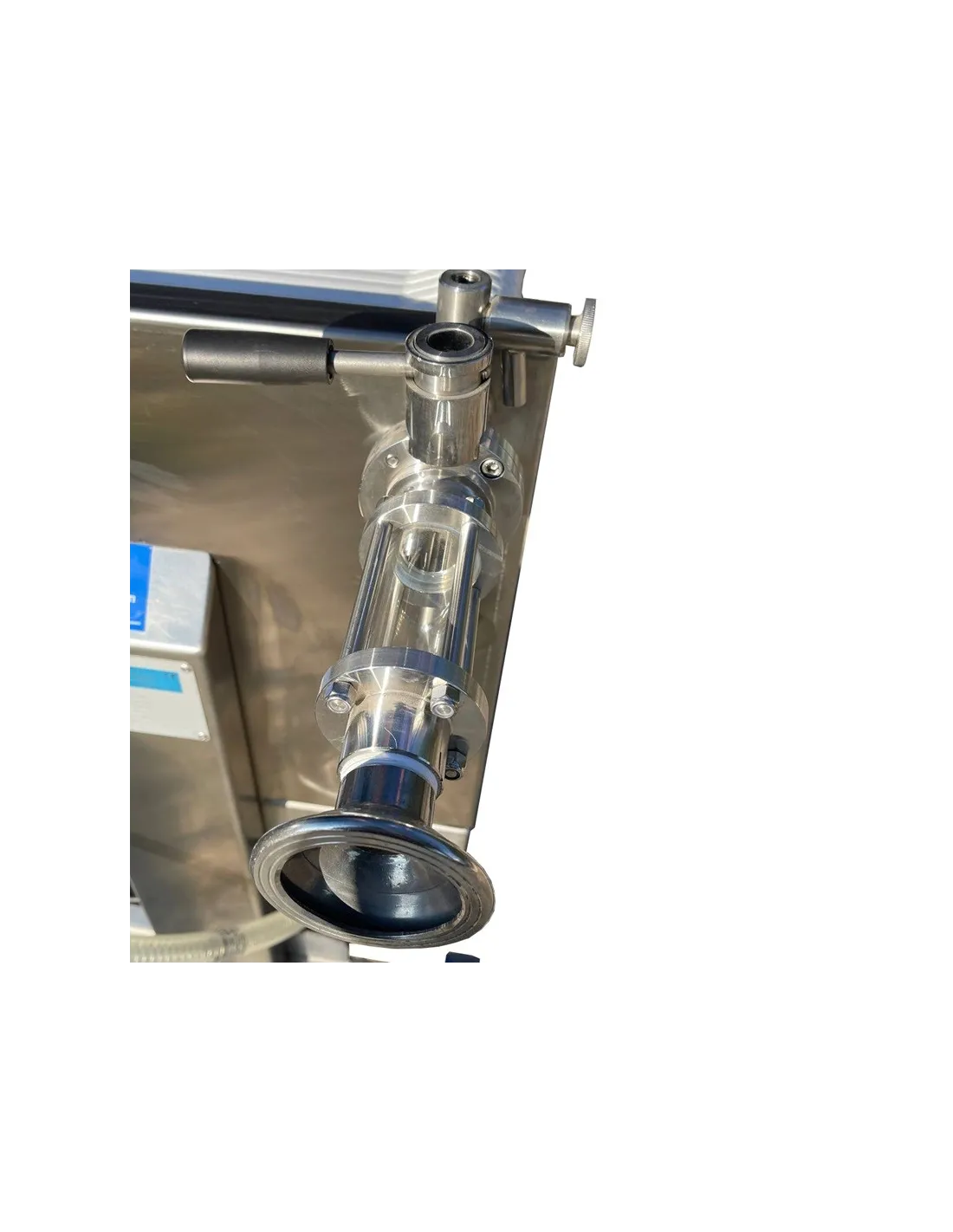

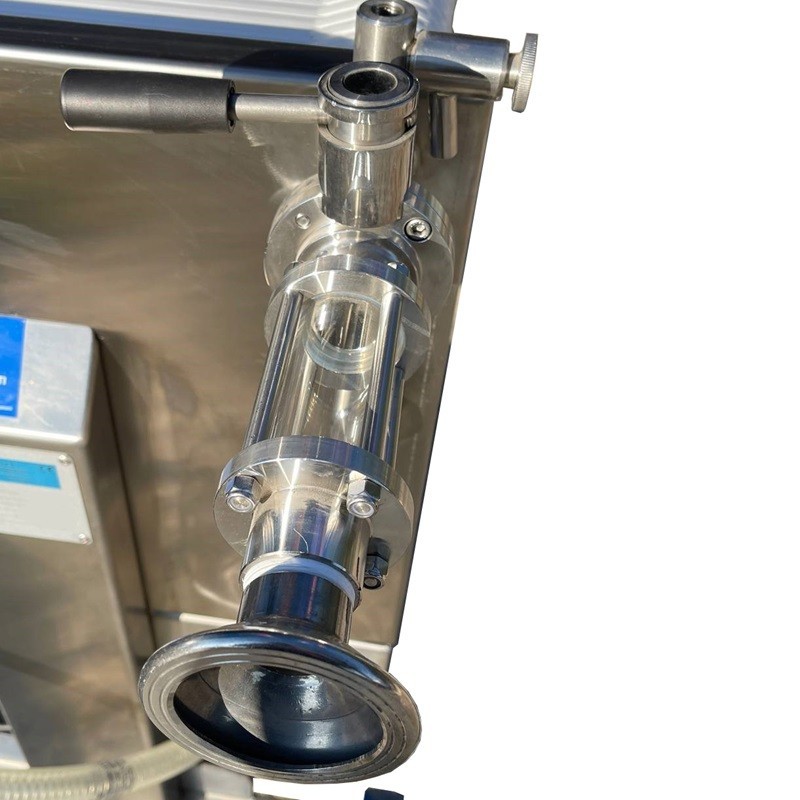

• Visual inspection chamber: allows the operator to monitor the clarity of the filtered product.
• Sampling tap: enables samples of the filtered product to be taken during filtration.
• Pressure monitoring: two pressure gauges are included.

Standard Equipment

• Stainless steel trolley with wheels;
• 1.5 HP rubber impeller pump with bypass;
• Visual inspection chamber;
• Sampling tap;
• Bypass circuit;
• Two pressure gauges.

Technical Specifications

• Construction material: stainless steel;
• Filter plate size: 40 × 40 cm;
• Available versions: 20, 30, 40 and 50 plates;
• Flow rate: varies according to the number of plates and the product being filtered;
• Power supply: 220 V;
• Standard pump: 1.5 HP rubber impeller pump with bypass.

Available Versions

The filter is available in four configurations, with different filtering surfaces, hourly outputs and overall dimensions.

20-Plate Version

• Filtering surface: 3.2 m²;
• Hourly wine output: 2,000 L/h;
• Hourly olive oil output: 600 L/h;
• Dimensions: 1200 × 590 × 950 mm.

30-Plate Version

• Filtering surface: 4.8 m²;
• Hourly wine output: 3,000 L/h;
• Hourly olive oil output: 700 L/h;
• Dimensions: 1200 × 590 × 950 mm.

40-Plate Version

• Filtering surface: 6.4 m²;
• Hourly wine output: 4,000 L/h;
• Hourly olive oil output: 800 L/h;
• Dimensions: 1500 × 590 × 950 mm.

50-Plate Version

• Filtering surface: 8.0 m²;
• Hourly wine output: 5,000 L/h;
• Hourly olive oil output: 900 L/h;
• Dimensions: 1700 × 590 × 950 mm.

Available Options

• Version without pump: alternative configuration available without the standard pump.
• Oil filtration kit: required when using the machine to filter olive oil.
• Reversal plate: available as an optional accessory.

Important: The oil filtration kit is mandatory for olive oil filtration. Select the required configuration and accessories before ordering.
