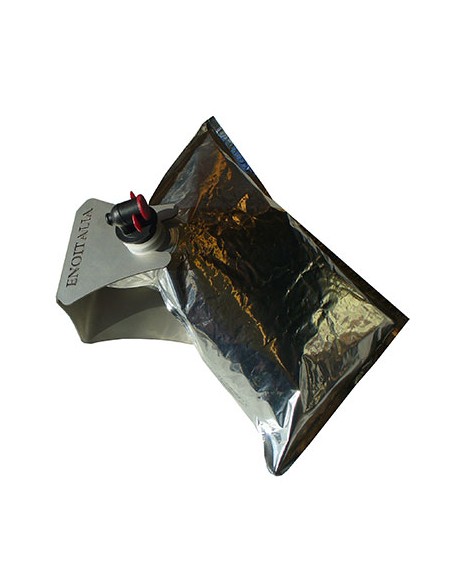

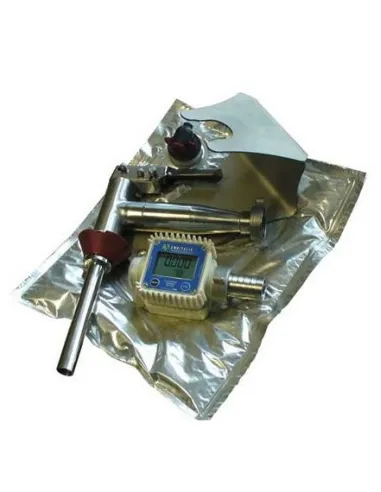

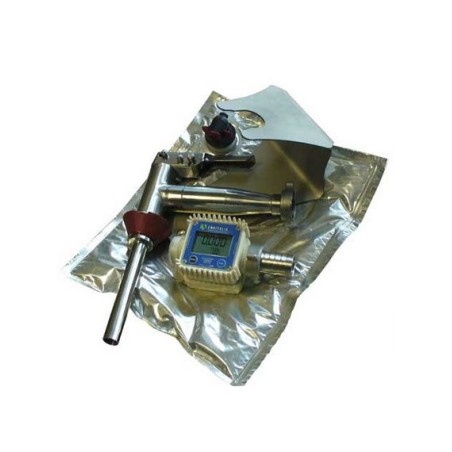

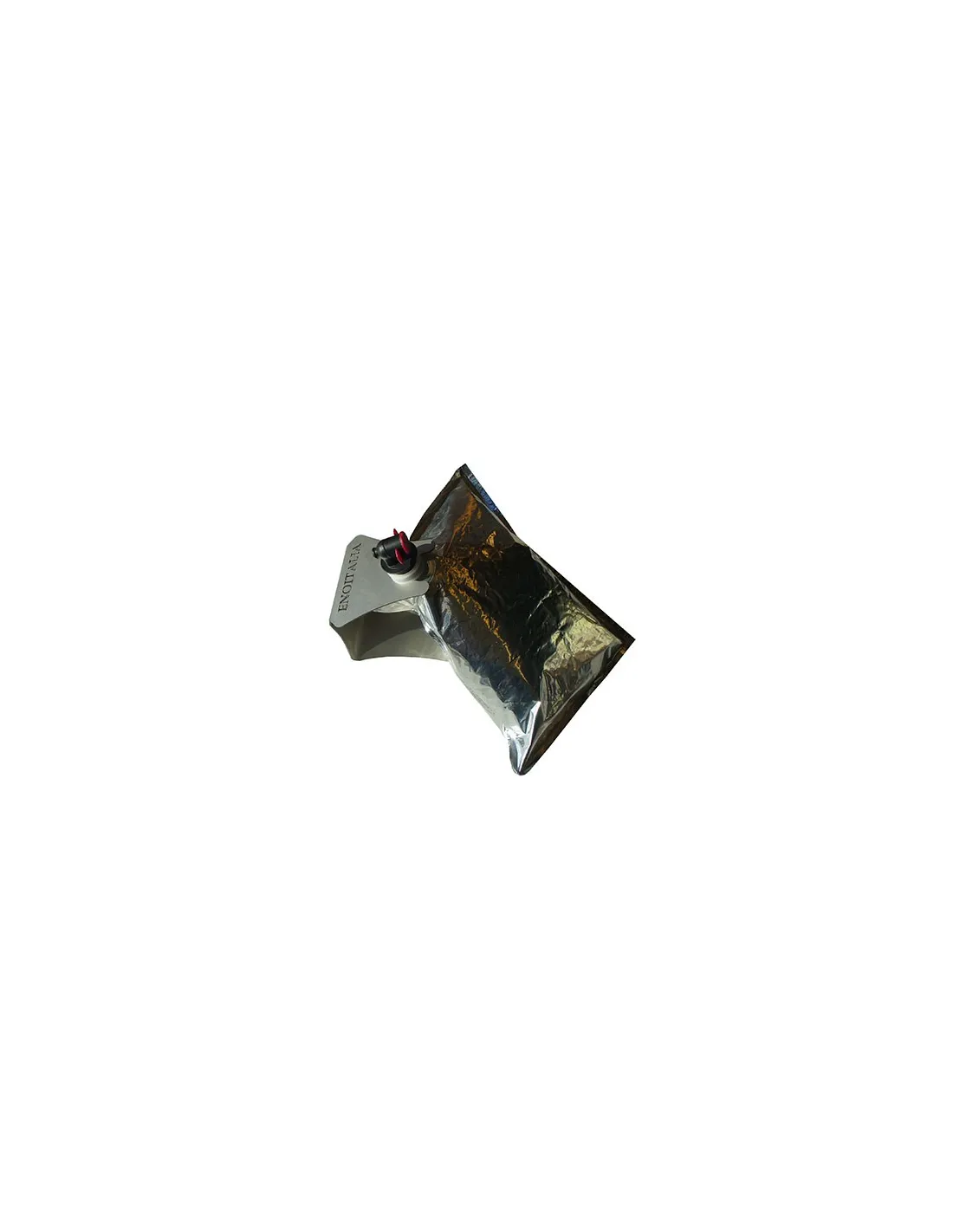

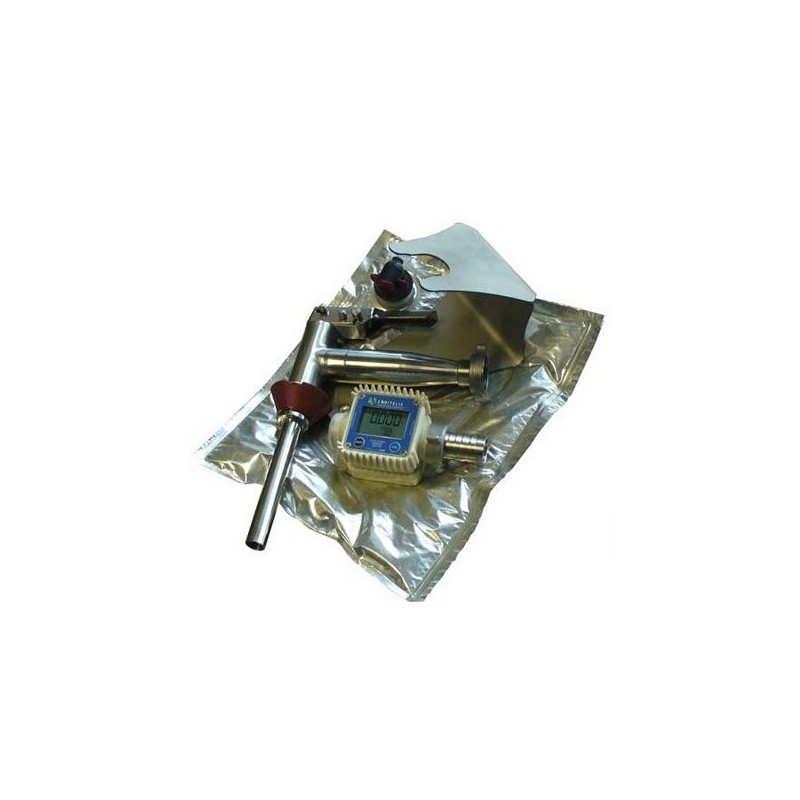

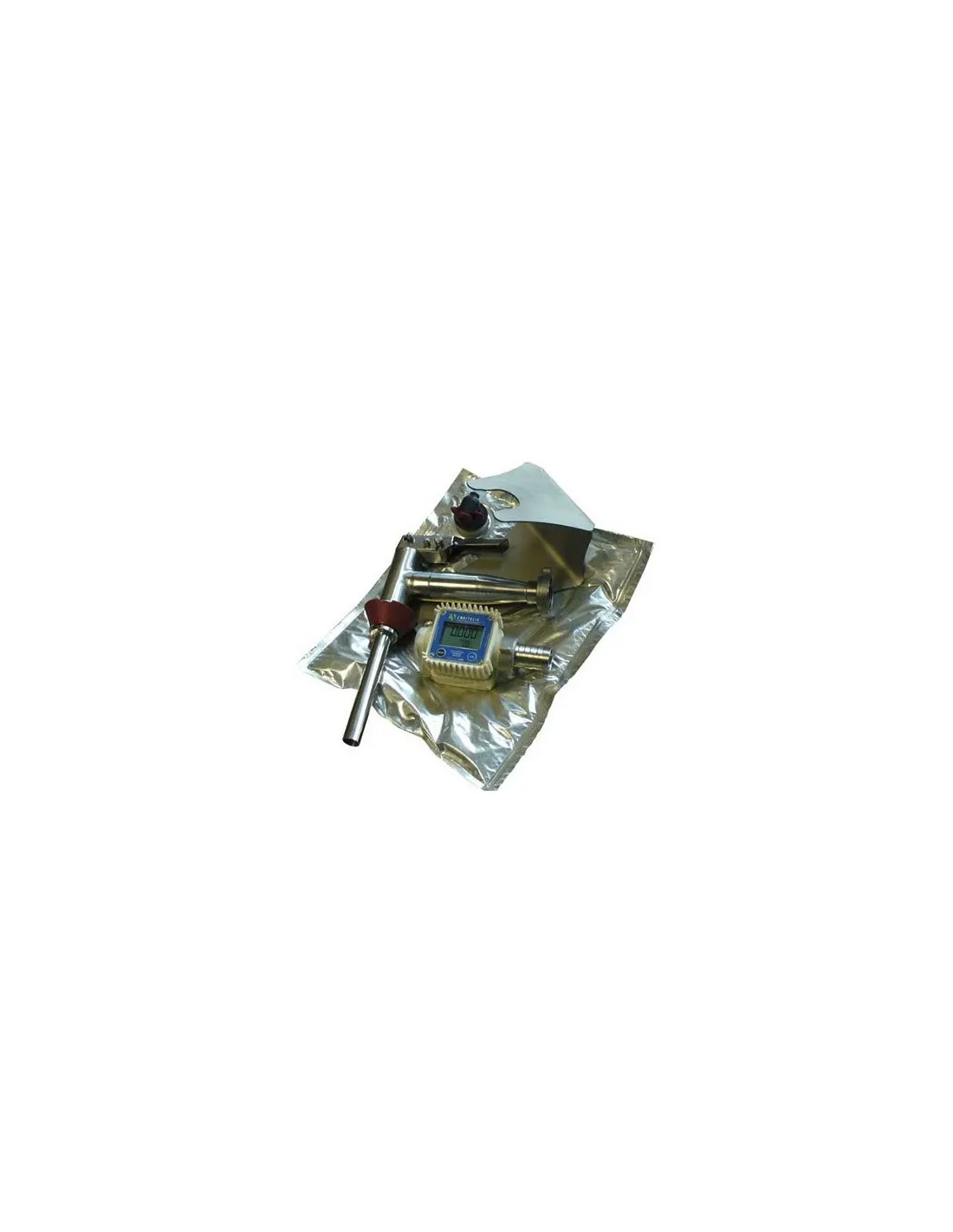

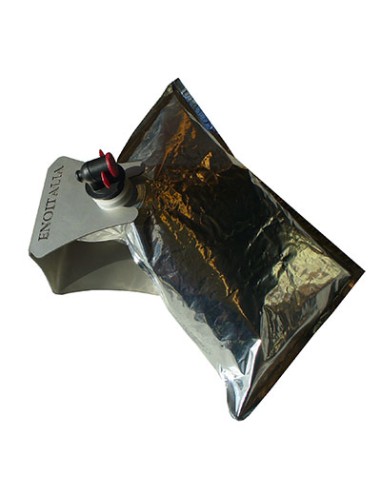

The manual Bag-in-Box filler with support plate is a compact solution for the manual filling of Bag-in-Box pouches. The kit includes a stainless steel filling gun, stainless steel support plate and a digital flow meter with a maximum flow rate of 7000 L/h.
Filling takes place by gravity. Alternatively, the system can be connected to a pump equipped with a pressure switch. The flow meter is mounted directly on the filling gun and can be rotated through the fixing fitting to make it easier to read during operation.

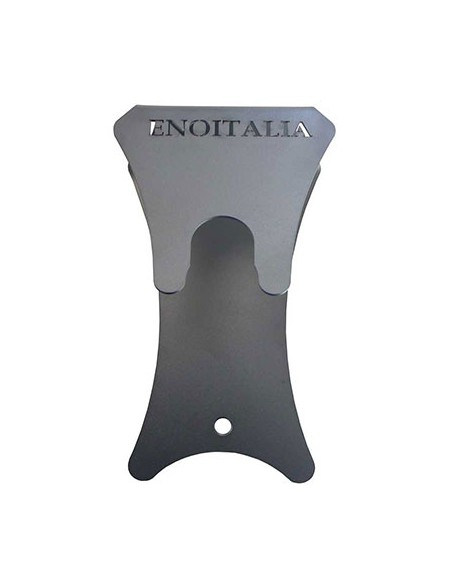

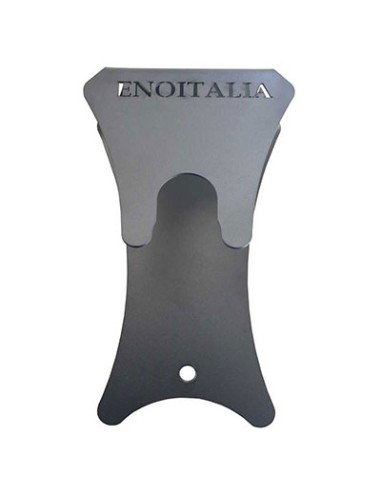

The manual Bag-in-Box filling system is designed for filling wine or liquids with similar viscosity. The plate has an AISI 304 stainless steel support with an anti-tear sandblasted surface finish and a central hole for fixing it to a support surface.
If you prefer a complete workstation with stainless steel bench, adjustable clamp and cap closing lever, you can consider the manual Bag-in-Box filler with stand.
Technical features
- Filling gun: stainless steel
- Support plate: stainless steel
- Digital flow meter: max 7000 L/h
- Dimensions: 30 x 15 x 20 cm
- Connections: diameter 20
- Weight: 5 kg
Hourly output
- 3 L Bag-in-Box: approx. 80 pcs/hour
- 5 L Bag-in-Box: approx. 70 pcs/hour
- 10 L Bag-in-Box: approx. 50 pcs/hour
- 20 L Bag-in-Box: approx. 20 pcs/hour
- Applications
- Wine
- Typology
- Bag-in-box filling machines
- Container type
- Bag-in-box bags
