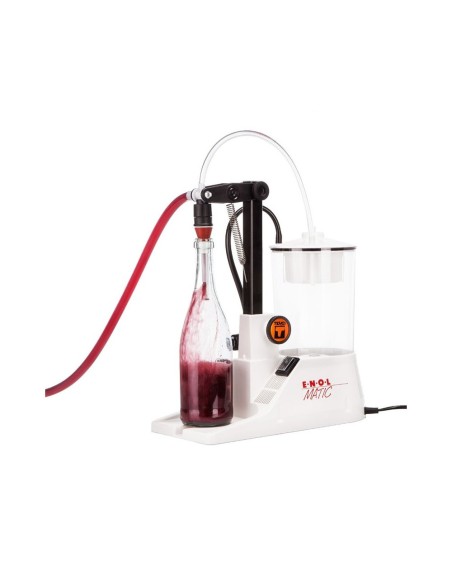

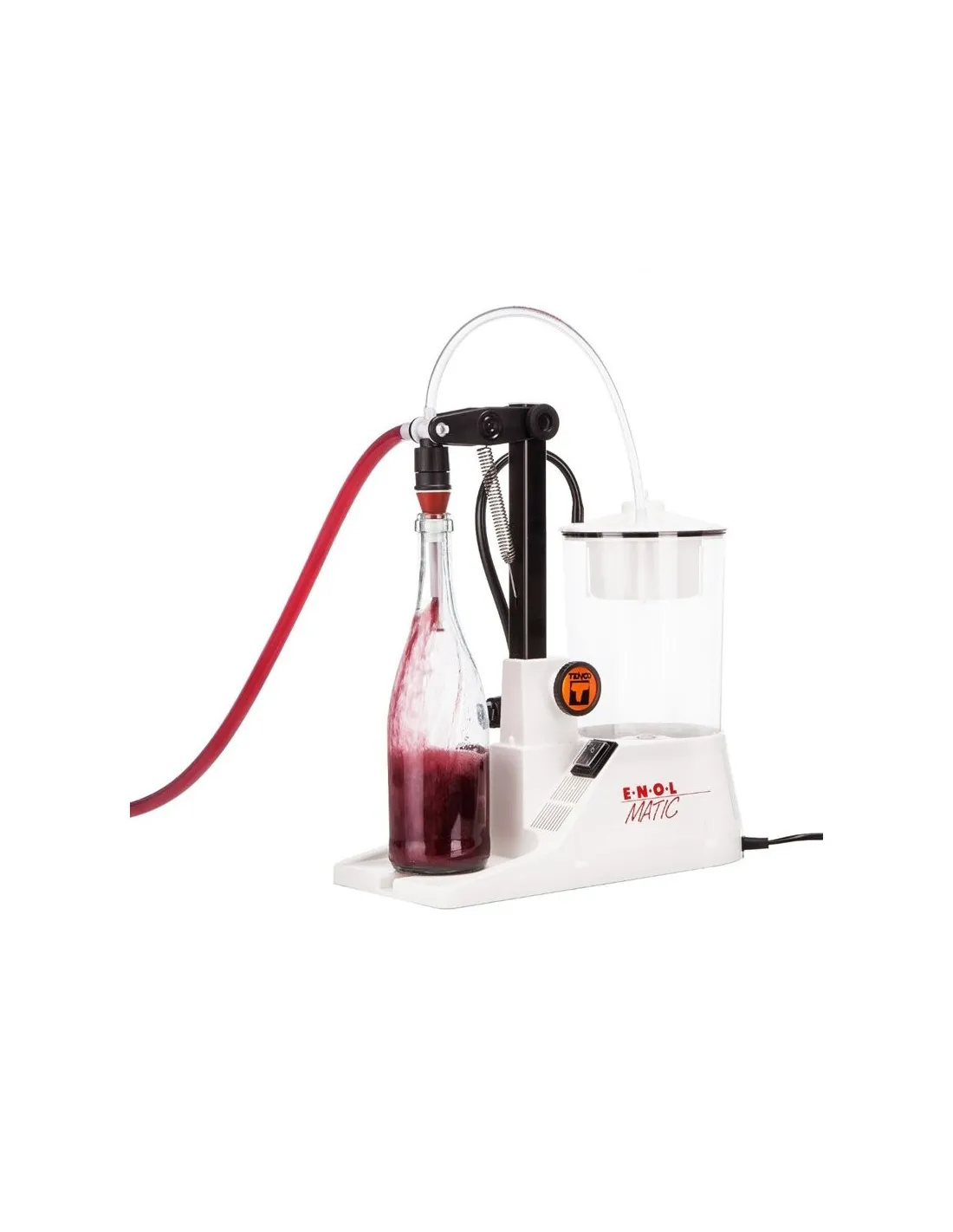

Electric Bottle Filler - Complete Wine Kit

The electric bottle filler is ideal for filling your bottles quickly and easily. It’s a home-friendly product that delivers professional performance.

This filler is made in Italy, born from decades of experience by specialists in wine and oil bottling, and built to the most rigorous quality standards.

It’s extremely reliable, manufactured with premium materials to ensure full suitability for food-contact use.

Fills wine, oil, milk, fruit juice and sauce—like a professional machine

This filler was designed to be versatile and adapt to many uses. By pairing it with the dedicated kit, you can fill wine (wine kit included as standard), oil, milk, fruit juices, as well as tomato sauce and purées. By purchasing multiple kits, you can use the same machine for different products simply by swapping the parts that come into contact with the liquid.

All this with outstanding performance: it has been tested for continuous, non-stop operation. Based on testing, nominal output is about 250 bottles/hour for wine, 150 for oil and around 200 for spirits.

Practical and easy to use

The electric filler is very simple to operate: once you set the desired fill level, it runs automatically and you can adjust the bottling speed.

Another key advantage is the ability to place the source container up to 4 meters below the machine.

You can fine-tune the target level while diverting any foam to the recovery container.

Filler specifications:

• Power supply: 220 V – 50/60 Hz;
• Wine kit included as standard;
• Bottle height range: 250 to 330 mm;
• Bottle neck inner diameter: 16 to 28 mm;
• With the appropriate kits it can also fill oil, milk, fruit juice, sauce and tomato purée;
• Hourly output: approx. 250 bottles (wine), 150 (oil), ~200 (spirits);
• Dimensions: 20 × 40 × 40 cm;
• Weight: 4 kg;
• Made in Italy;
• Food-grade construction.

Available versions:

• For wine;

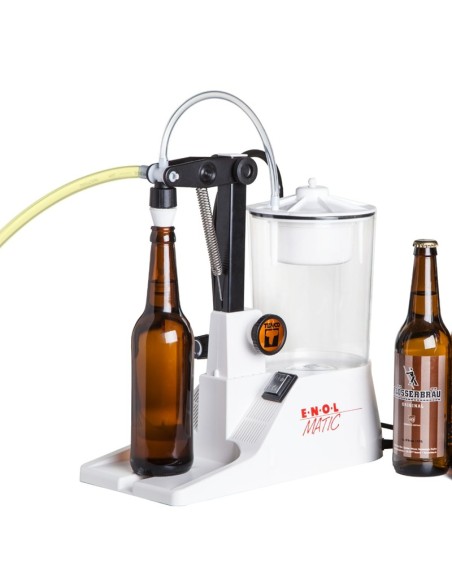

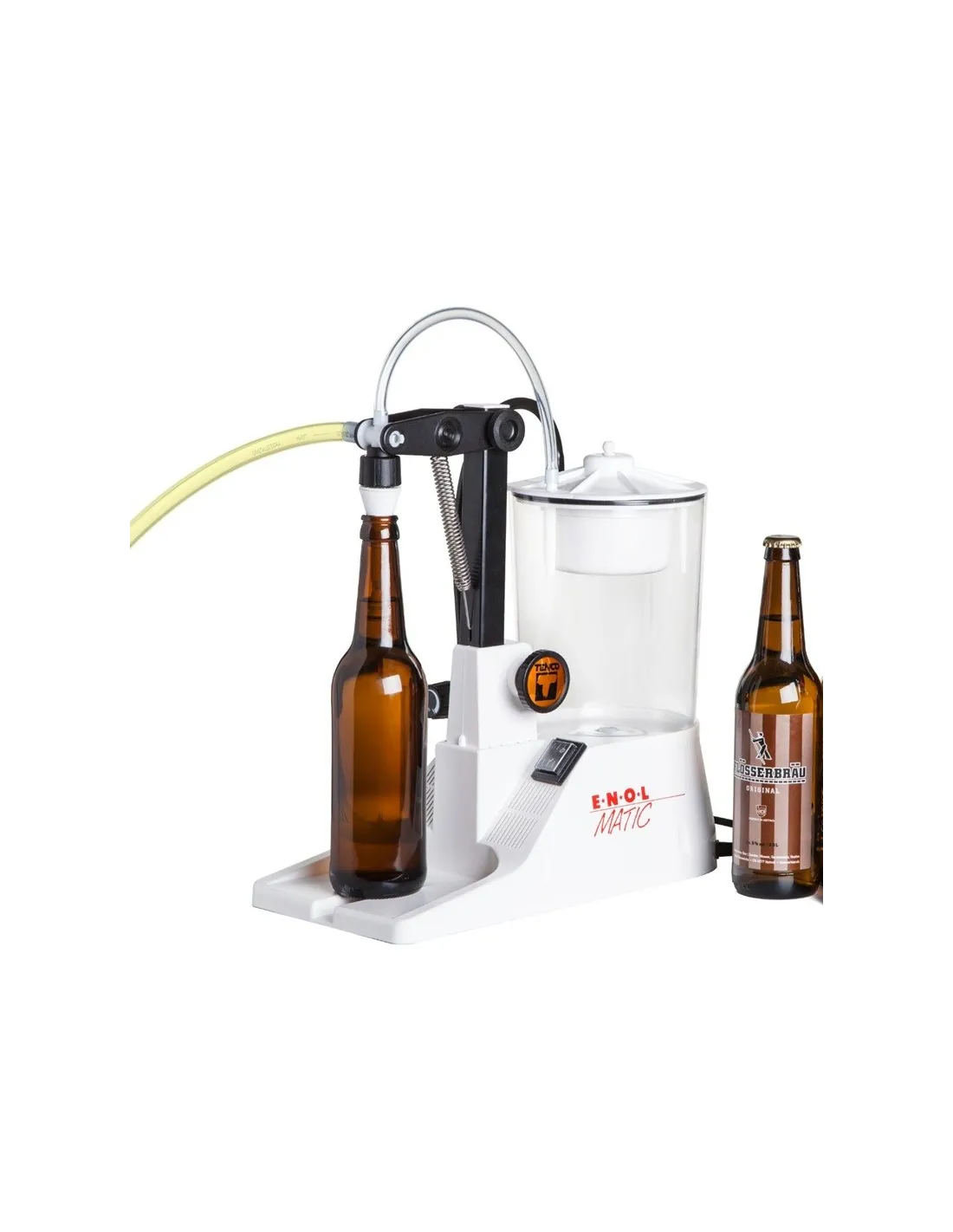

• For beer;
• For oil.

Optional kits (see photos):

• Mini-bottle kit for neck inner Ø 7.5 mm and outer Ø up to 26 mm;
• Kit for sauce and tomato purée;
• Demijohn kit for filling 34 to 54 L demijohns;
• Kit for long, narrow necks: inner Ø ≥ 12 mm, outer Ø ≤ 48 mm;

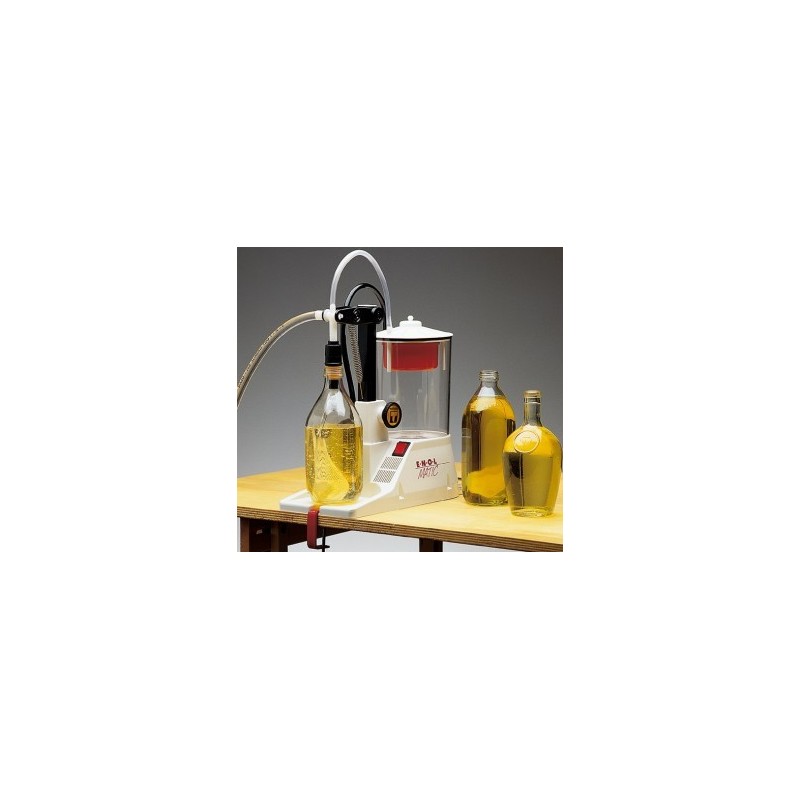

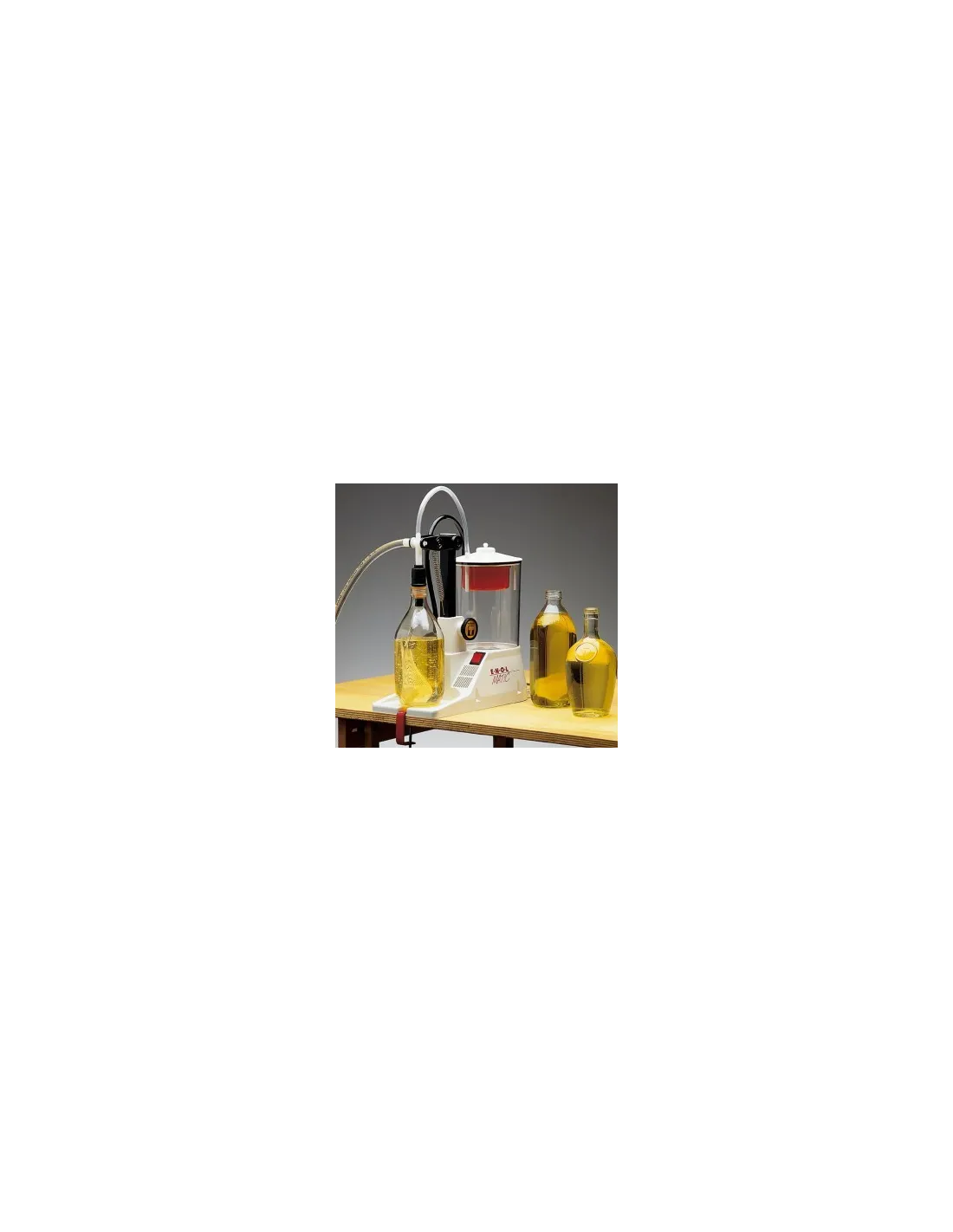

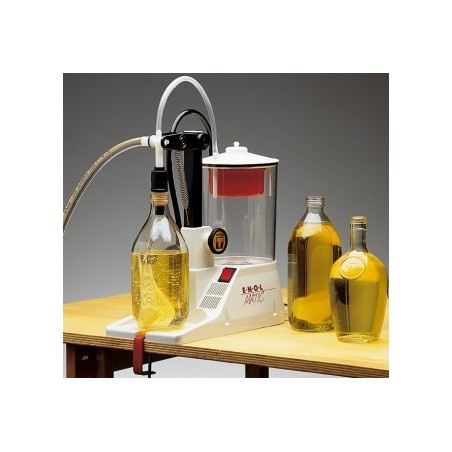

• Oil filling kit (also suitable for other viscous liquids such as liqueurs and fruit juices);
• Milk filling kit for wide-mouth containers with neck outer Ø 45–65 mm and inner Ø 28–65 mm.
