Grape Destemmer with Pump - Enamelled - 20-38 q.li/h

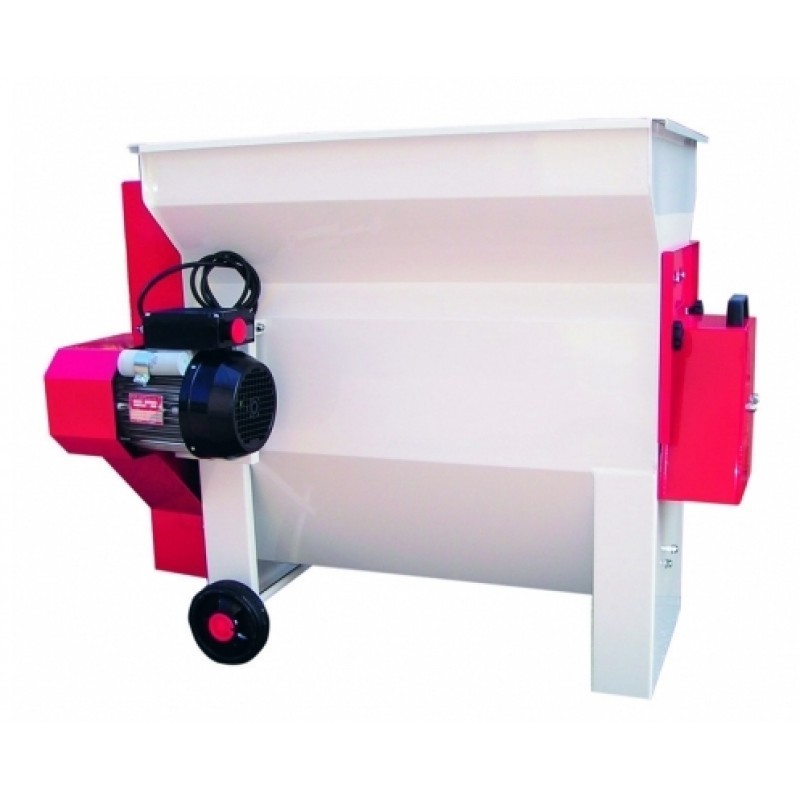

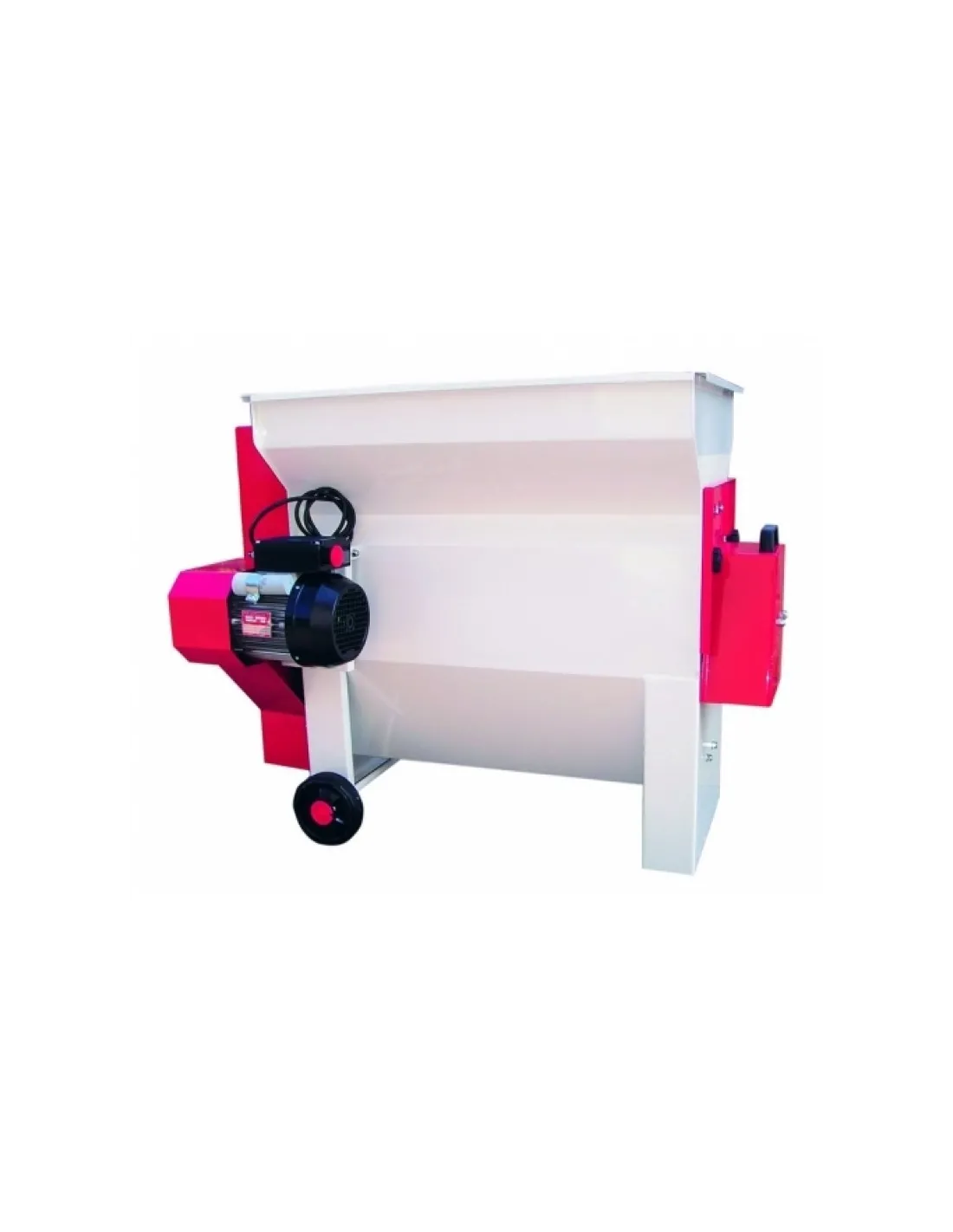

This model of grape destemmer with pump is made of sheet metal that is specially enamelled with non-toxic paints to make it suitable for food use. It is an electric destemmer equipped with a 2 HP motor needed to drive the screw conveyor located in the loading hopper, the destemming screen and the pump.
This model is particularly recommended for small and medium wine producers thanks to its compact size and ease of use.

How does the destemmer with pump work?

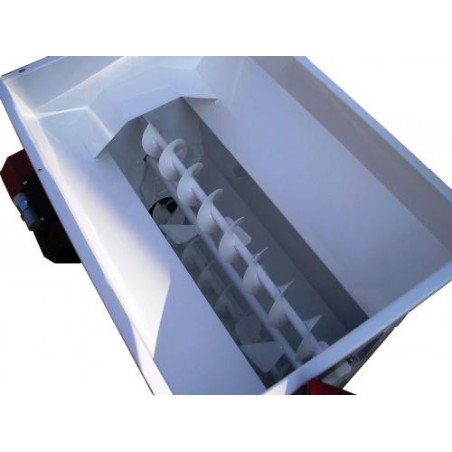

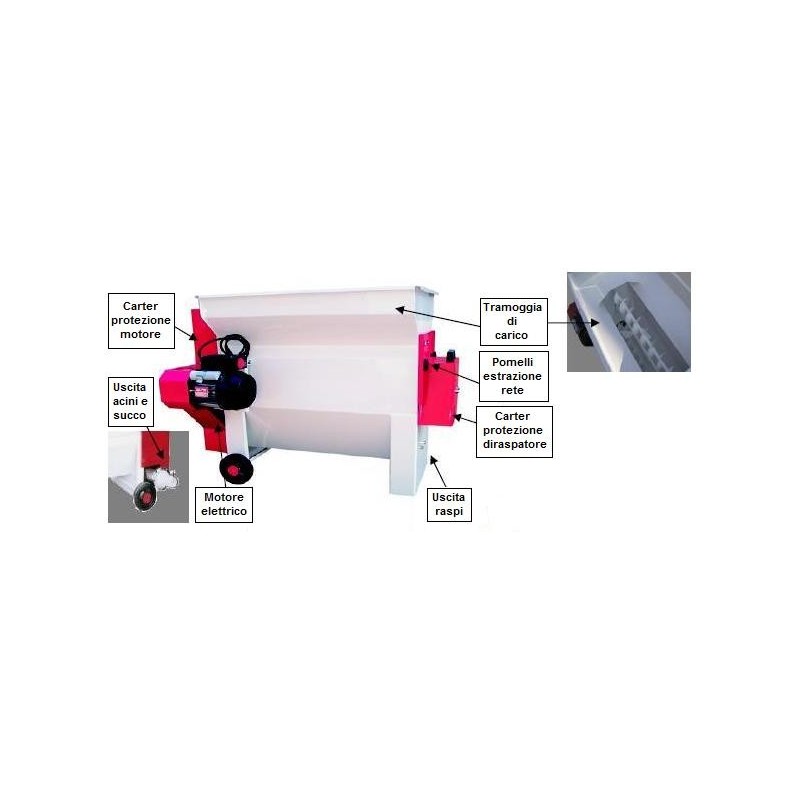

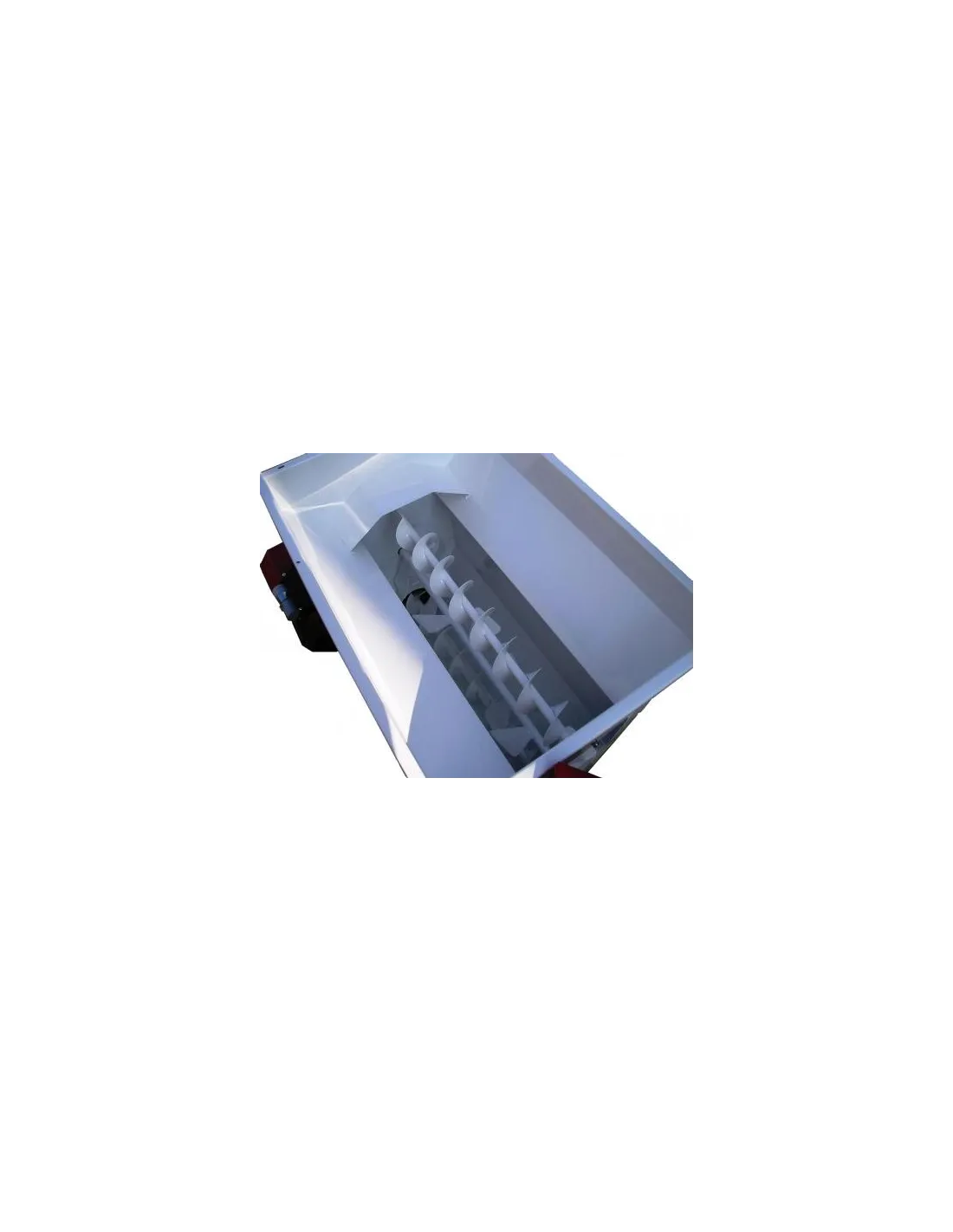

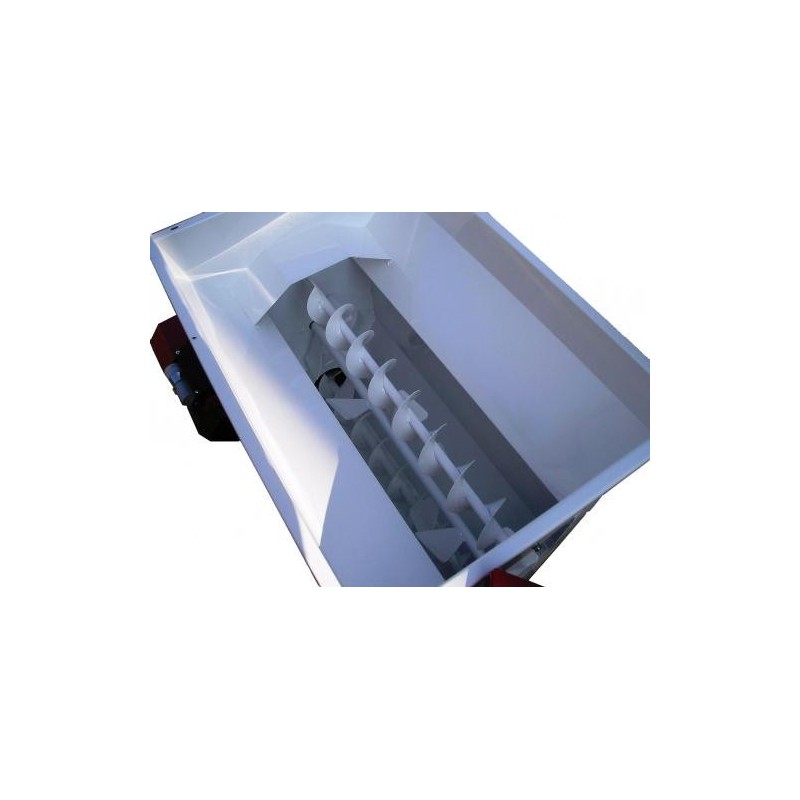

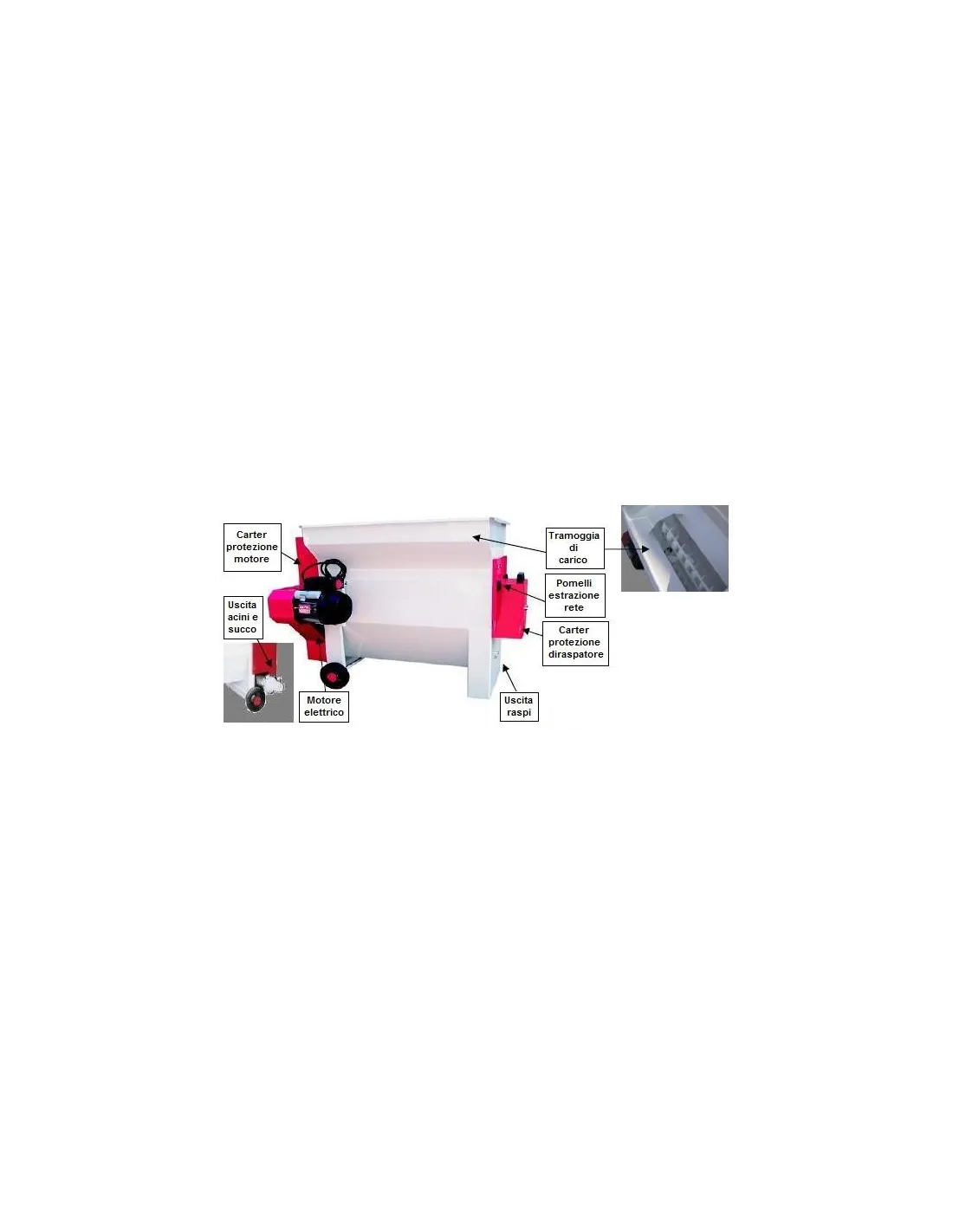

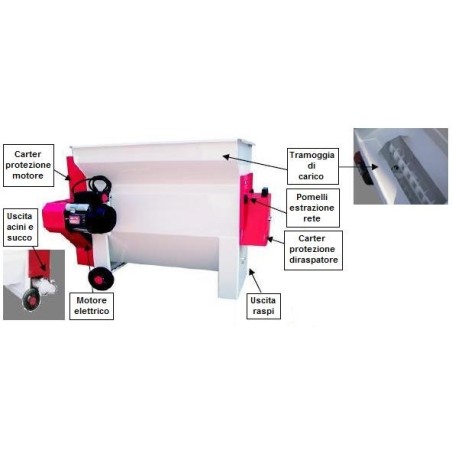

Its operation involves feeding the grapes into the loading hopper, from where they are carried by the screw conveyor into the chamber where crushing and destemming take place, thanks to the semi-centrifugal action of the destemming shaft and the pump. The pump is centrifugal, made of stainless steel and capable of delivering a maximum flow of 15 metres horizontally and 5 metres vertically to transfer the must to the fermentation tanks.
Maintenance and cleaning operations can be carried out easily thanks to a system that allows the destemming screen to be completely removed.

Available versions:

• 20 quintals per hour;
• 30 quintals per hour;
• 38 quintals per hour.

Technical features common to all versions:

• Destemmer in enamelled sheet metal with non-toxic paints;
• Destemming shaft with approx. 500 RPM;
• Stainless steel pump with 15-metre horizontal and 5-metre vertical delivery;
• Stainless steel destemming screen;
• Enamelled sheet metal guards;

Below are the individual technical features of the available versions

Destemmer with pump 20 quintals per hour:

• Electric motor HP 2 (Kw 1,5) with starting capacitor and CE emergency stop button;
• Pump outlet 60/50;
• Hourly output 20 quintals;
• Dimensions L 110 x W 70 x H 90 cm;
• Weight approx. 78 kg.

Destemmer with pump 30 quintals per hour:

• Electric motor HP 2 (Kw 1,5) with starting capacitor and CE emergency stop button;
• Pump outlet 60;
• Hourly output 30 quintals;
• Dimensions L 120 x W 70 x H 90 cm;
• Weight approx. 86 kg.

Destemmer with pump 38 quintals per hour:

• Electric motor HP 2,5 (Kw 1,8) with starting capacitor and CE emergency stop button;
• Pump outlet 60;
• Hourly output 38 quintals;
• Dimensions L 130 x W 70 x H 90 cm;
• Weight approx. 100 kg.
