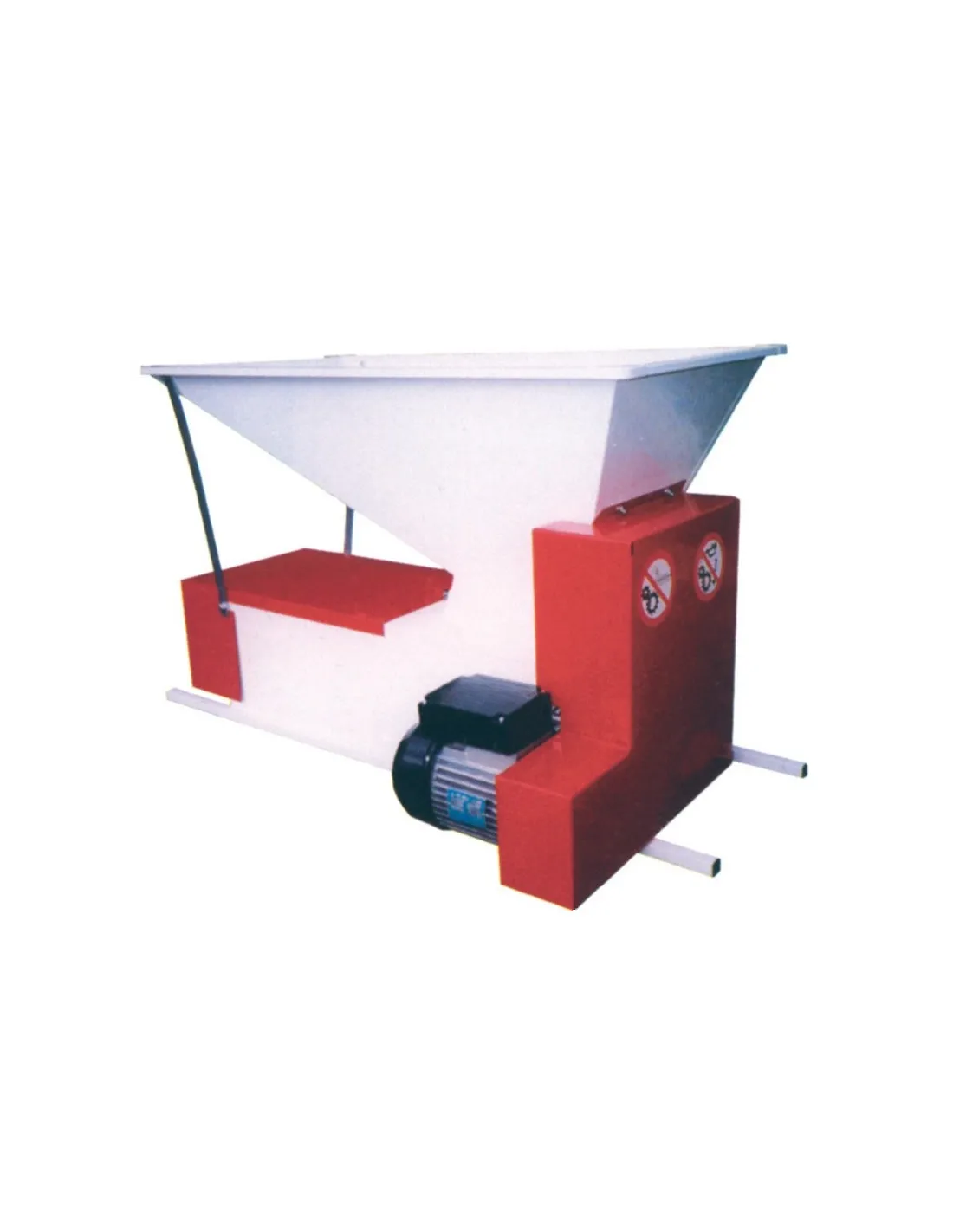

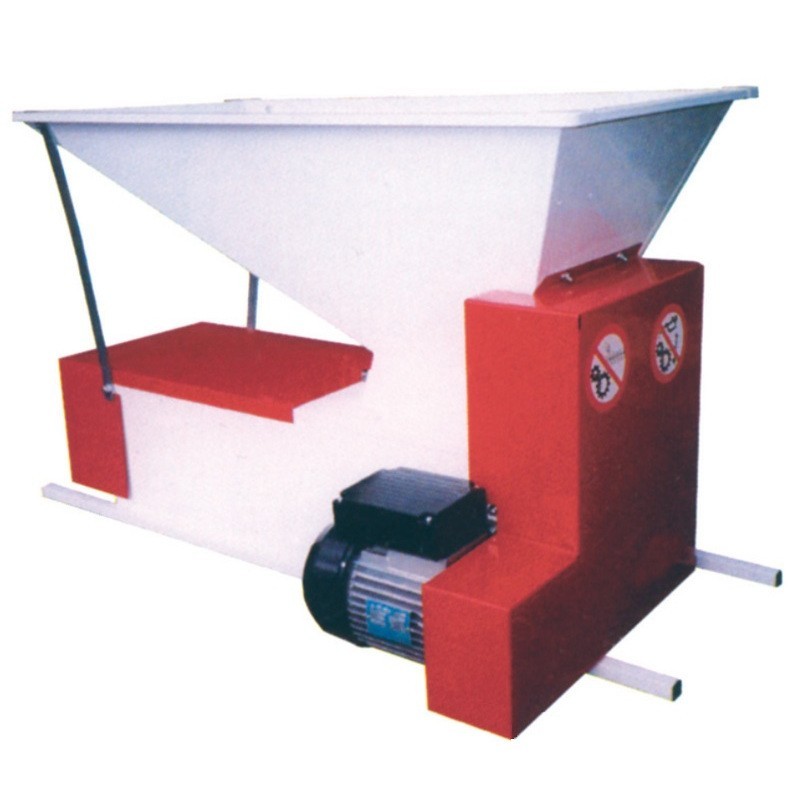

Electric Grape Crusher-Destemmer with Inclined Hopper - 1,200 kg/h

The electric grape crusher-destemmer with inclined hopper is designed for the first stage of grape processing in small and medium wine production, where the grapes need to be crushed and the stems separated before fermentation.

Compared with the manual version, the electric motor reduces the operator’s effort and allows faster, more continuous processing. It is suitable for users who need to process larger quantities of grapes but do not require a crusher-destemmer with a pump.

The inclined hopper helps the grapes slide towards the self-adjusting aluminium rollers, which crush the berries. The processed grapes then pass to the destemming shaft, where the berries are separated from the stems through the stainless steel destemming screen.

Indicative hourly output is approximately 1,200 kg/h (12 quintals/h), depending on the type of grapes, ripeness and continuity of feeding.

This version is an electric crusher-destemmer without a pump. The processed product must therefore be collected using a chute, container or other suitable collection system.

The machine is available in three versions: enamelled, enamelled with stainless steel hopper, or stainless steel.

Technical features

• Destemming screen: stainless steel;
• Rollers: self-adjusting aluminium rollers, 22 cm long;
• Motor: single-phase 1 HP (0.75 kW);
• Guards: enamelled sheet metal;
• Hourly output: approx. 1,200 kg/h (12 quintals/h);
• Hopper: enamelled sheet metal, 100 × 50 cm;
• Overall dimensions: 121 × 60 × 69 cm;
• Weight: 51 kg.

Available versions

• Enamelled;
• Enamelled with stainless steel hopper;
• Stainless steel.
