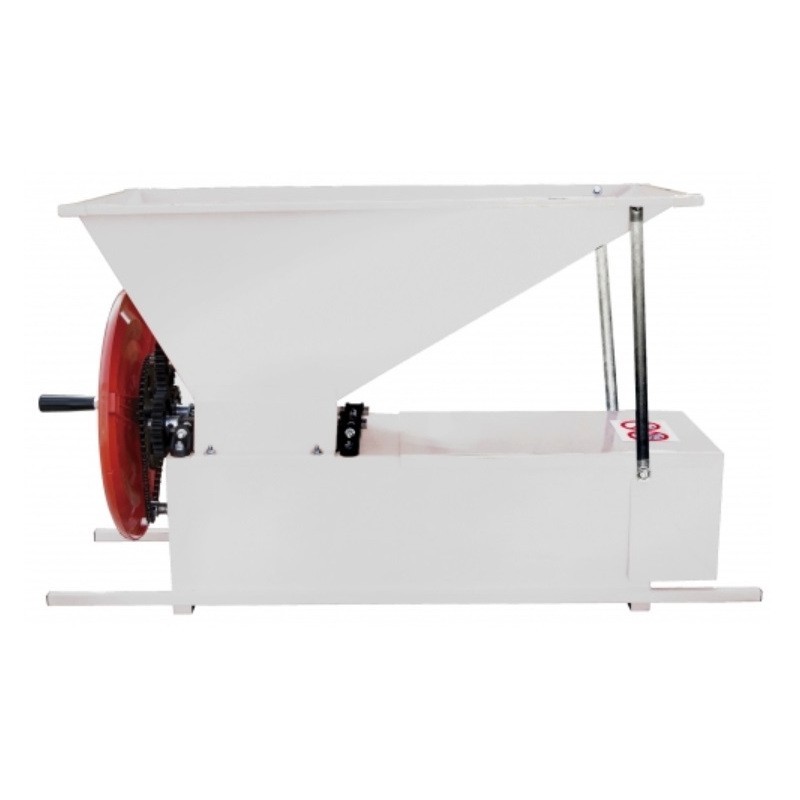

Manual Grape Crusher-Destemmer with Inclined Hopper - 1,000 kg/h
5 Reviews
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information
The manual grape crusher-destemmer with inclined hopper is designed for the first stage of grape processing in small-scale wine production, where the grapes need to be crushed and the stems separated before fermentation.
Manual operation via the drive flywheel makes it suitable for hobby winemakers, small producers and wineries that process limited quantities of grapes and do not require an electric crusher-destemmer or a model with a pump.
The inclined hopper helps with grape loading, while the self-adjusting aluminium rollers allow the crushing process to be managed. Their special mounting system helps adjust the crushing level and protects the rollers and gears if solid parts pass through.
The destemming screen is made of stainless steel and allows the berries to be separated from the stems. Indicative hourly output is approximately 1,000 kg/h (10 quintals/h), depending on the type of grapes, ripeness and the operator’s working pace.
The crusher-destemmer is available in several versions: enamelled, enamelled with stainless steel hopper, or stainless steel.
Technical features
- Destemming screen: stainless steel;
- Rollers: self-adjusting aluminium rollers, 22 cm long;
- Drive: manual flywheel;
- Guards: enamelled sheet metal;
- Hourly output: approx. 1,000 kg/h (10 quintals/h);
- Hopper: enamelled sheet metal, 100 × 50 cm;
- Overall dimensions with flywheel: 121 × 60 × 69 cm;
- Weight: 40 kg.
Available versions
- Enamelled;
- Enamelled with stainless steel hopper;
- Stainless steel.
- Processing capacity
- 1000 kg/h
- Material
- Enamel-coated sheet metal
Stainless steel
Stainless steel hopper auger - Destemming screen
- Stainless steel
- Motor
- No
- Overall dimensions
- 1210 × 550 × 690 mm
- Weight
- 40 kg
- Hopper dimensions
- 850 × 500 mm
- Crushing rollers
- Aluminium
- Power source
- Manual
- Pump
- Nothing
- Pump head
- N.D.
- Product type
- Grape crusher-destemmer
