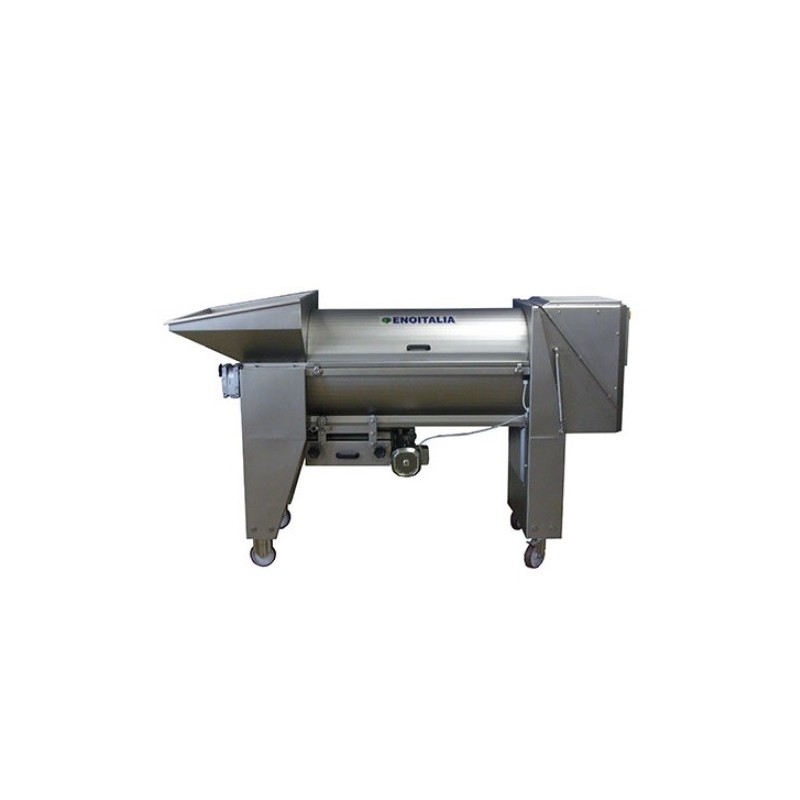

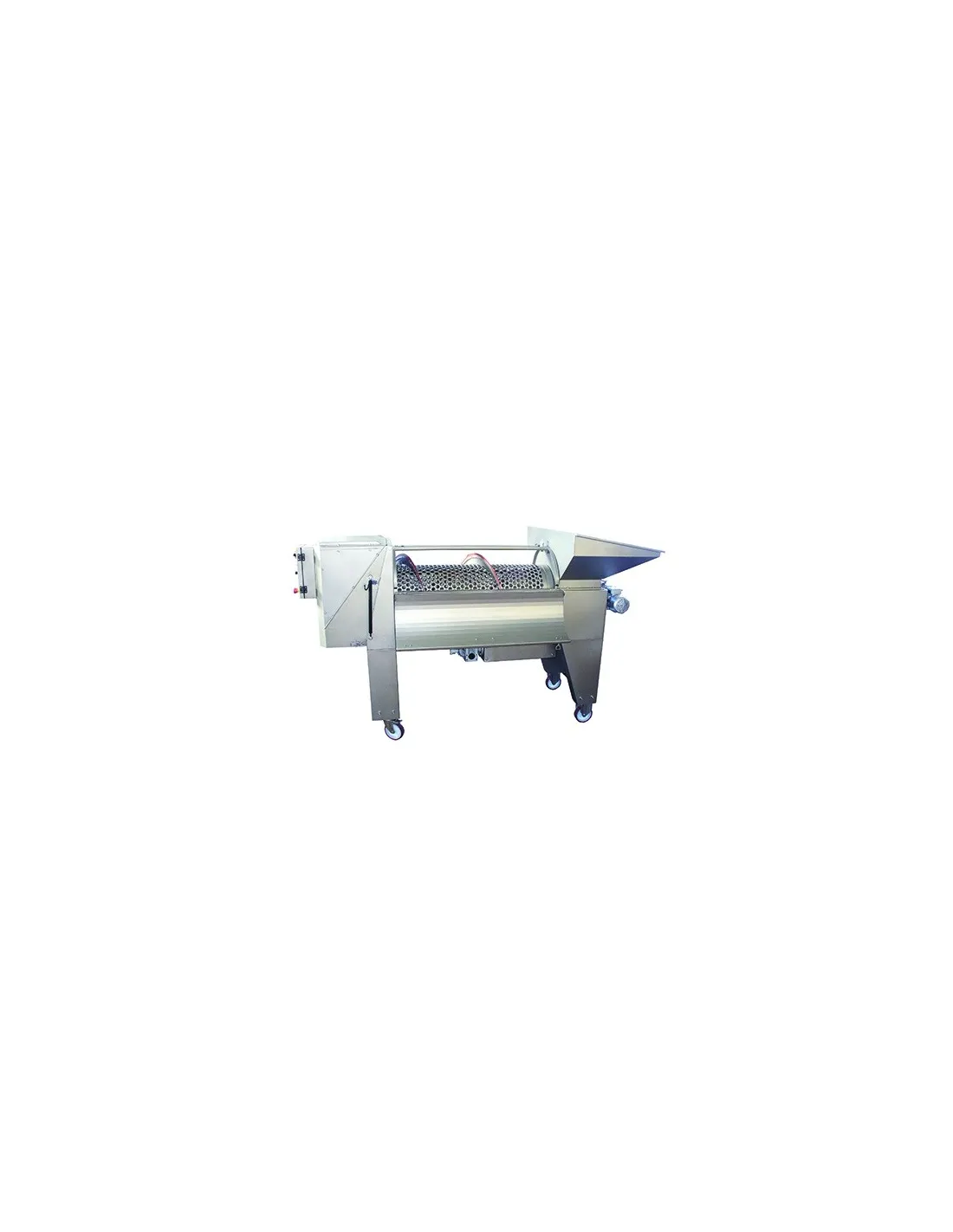

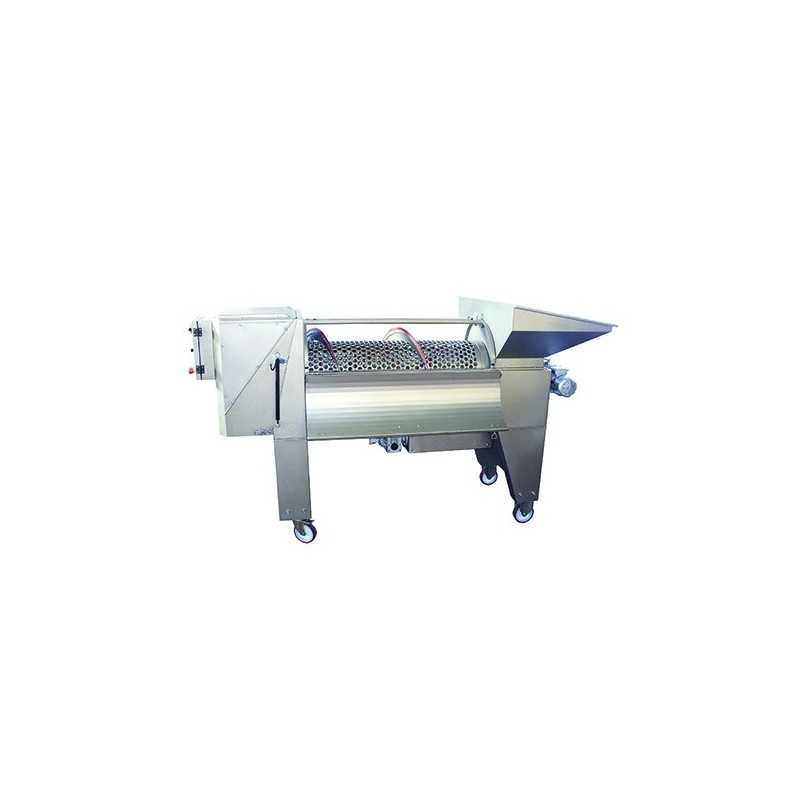

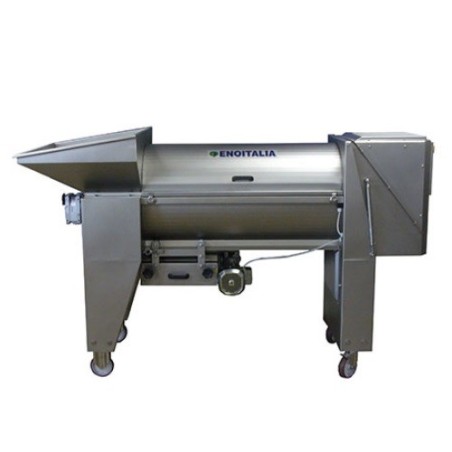

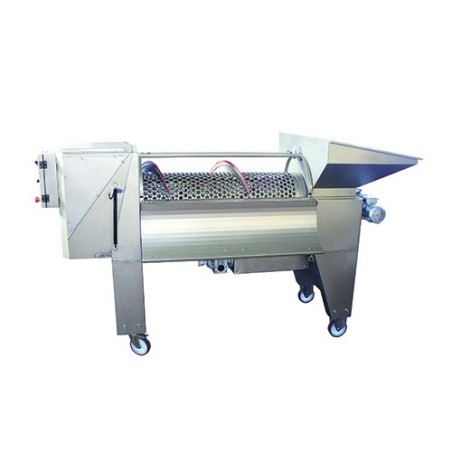

Centrifugal Grape Crusher-Destemmer - Stainless Steel - 180 q.li/h

This model of centrifugal destemmer without transfer pump is the ideal solution for medium and large wineries with production needs of 180 q.li/h. It is made entirely of high-quality stainless steel and manufactured in Italy. The 50 cm diameter destemming basket is of the anti-tear type with an exclusive rubber drive system.

Another important feature of this model is the set of adjustable and disengageable rubber rollers that allow gentle grape crushing. The destemming shaft is also designed to be non-aggressive on the berries, thanks to the rubber-coated cylinders.

This model of centrifugal grape crusher-destemmer is also equipped with a 2,2 kW mechanical gear speed variator, while the loading hopper features a filter for liquid extraction.

Technical features of the stainless steel centrifugal grape crusher-destemmer without pump 180 q.li/h:

• 7 HP motor (5,5 Kw)
• Stainless steel control panel with speed display and emergency stop
• Destemming shaft with adjustable rubber cylinders
• Shaft speed 350–650 RPM

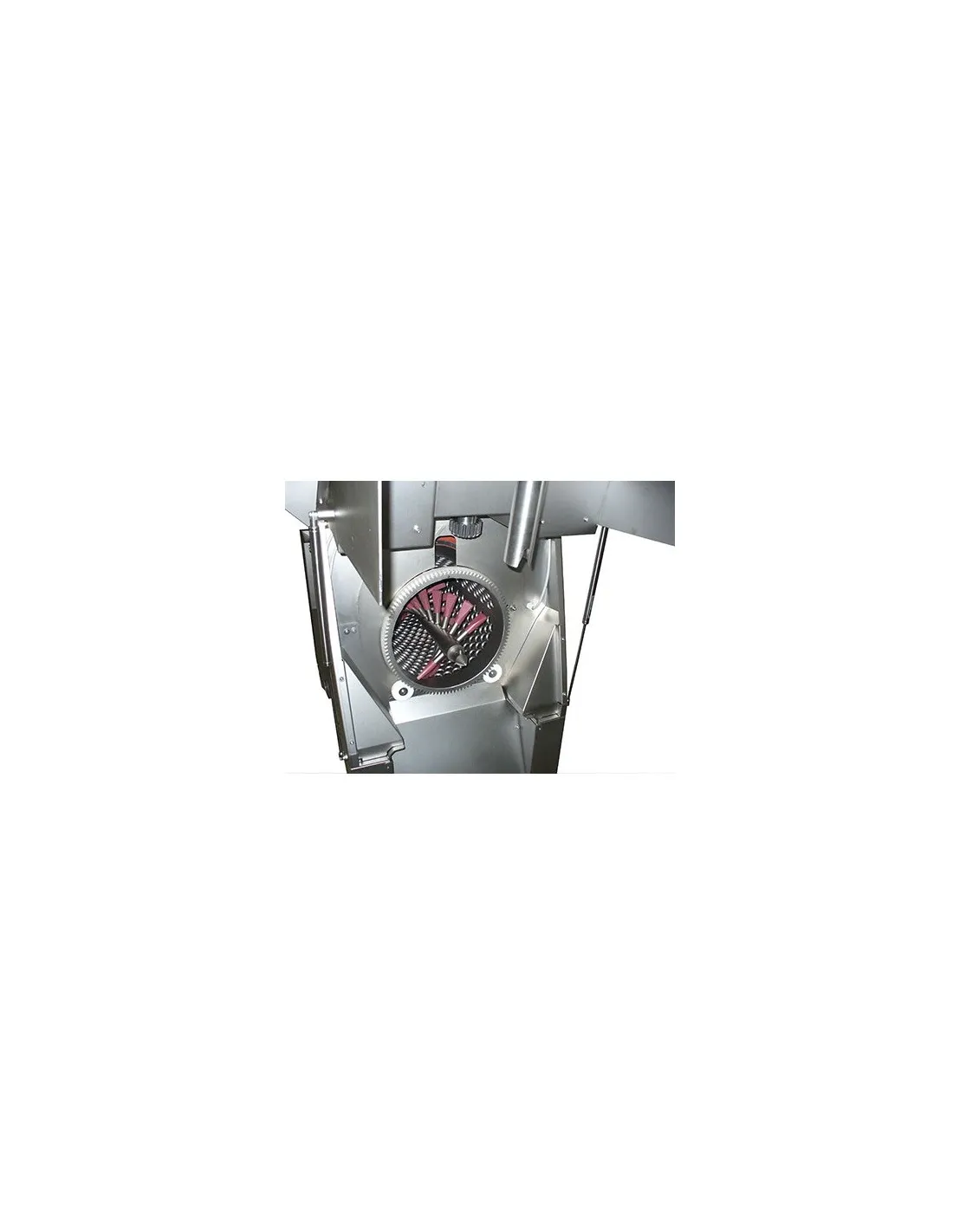

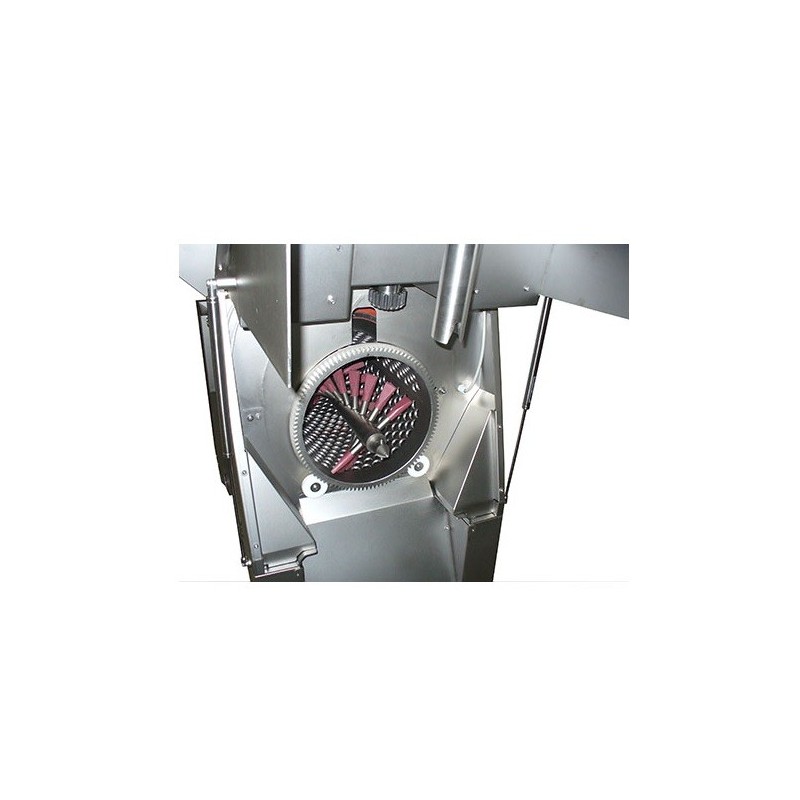

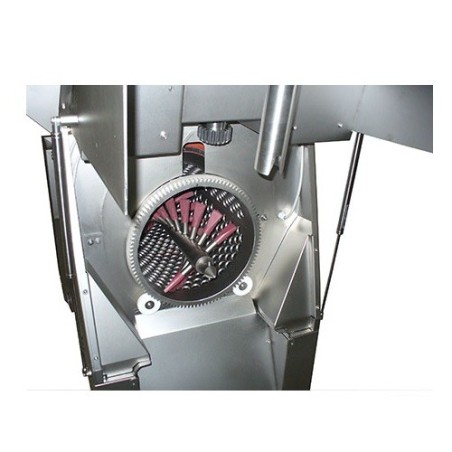

• Anti-tear stainless steel centrifugal basket with deep-drawn screen, 52 cm diameter – 24 mm perforation

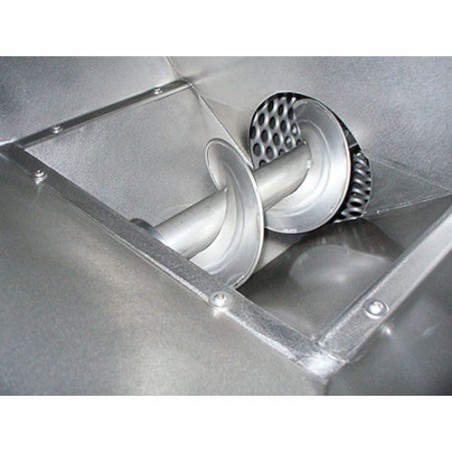

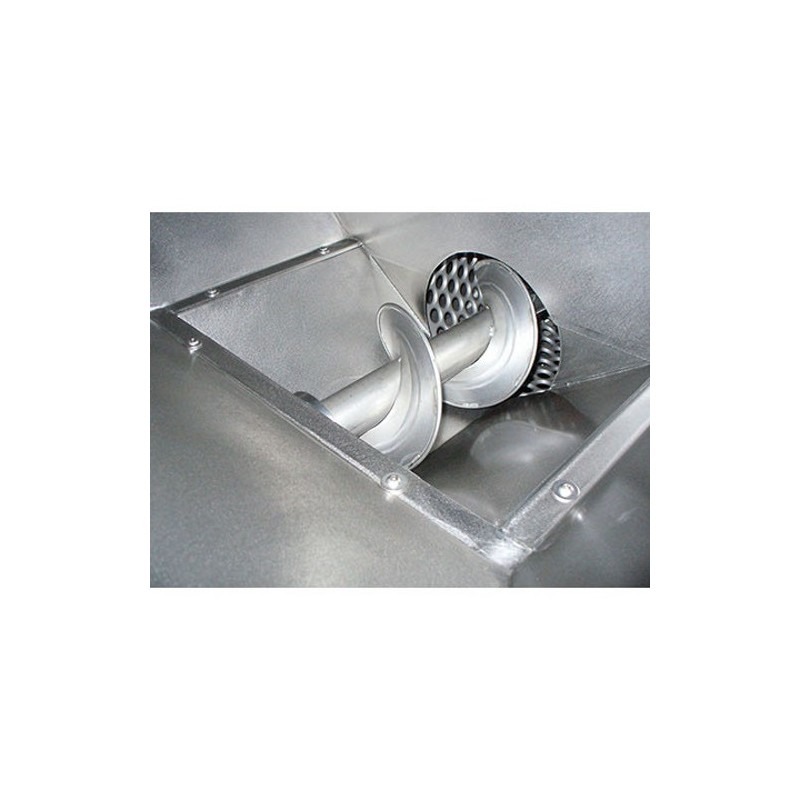

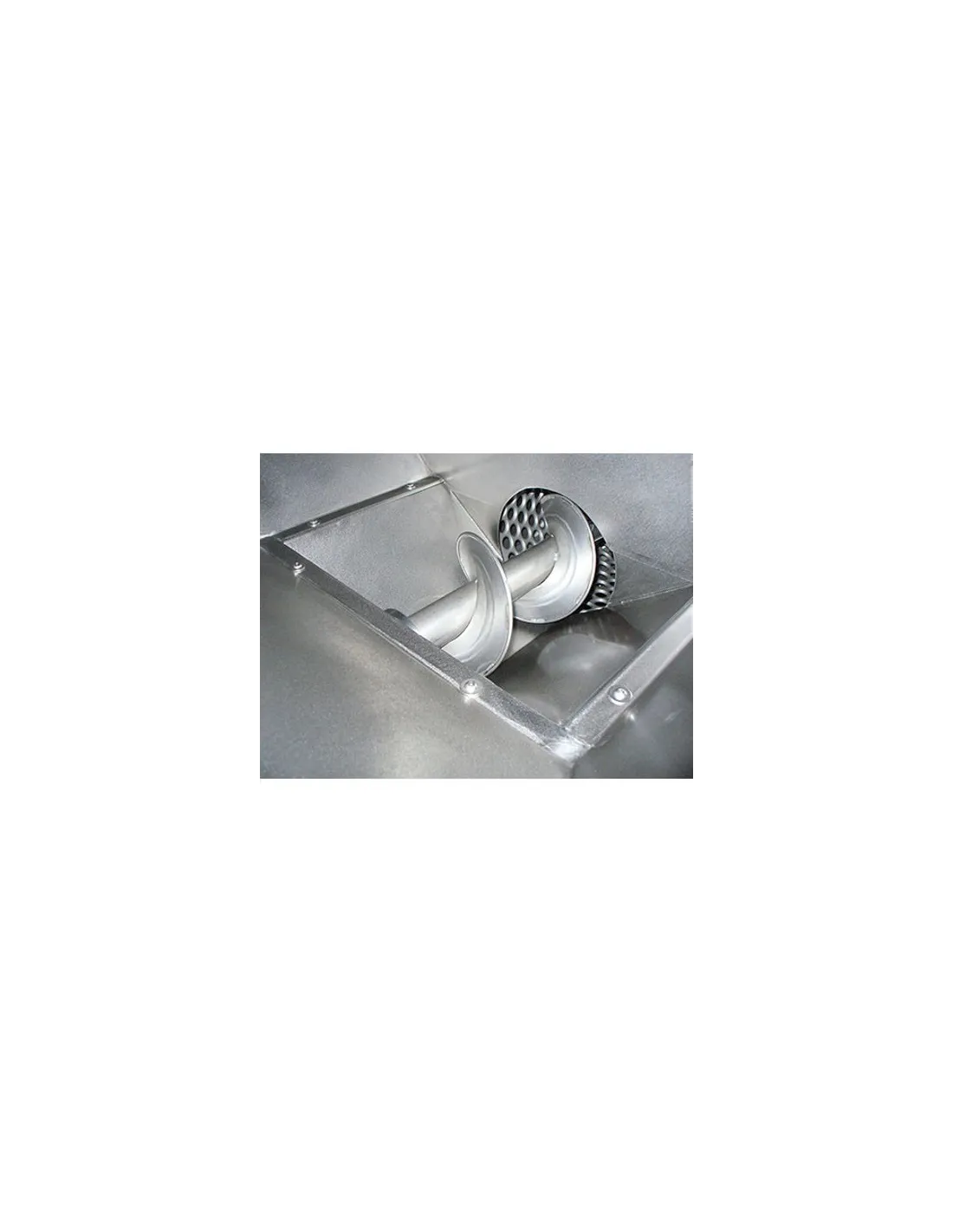

• Loading hopper with motorised screw and 0,37 kW speed variator
• Integrated automatic washing system
• Liquid extraction filter on loading hopper DN 50
• Electronic speed variator for basket and destemming shaft
• Rubber rollers with 1,5 HP motor, adjustable and disengageable
• CE safety housing
• Industry 4.0 ready
• Telescopic legs
• Rear opening and extraction of basket and destemming shaft
• Stainless steel side guards
• Output 15000–19000 kg/h
• Dimensions: 288 x 122 x 155/195 cm
• Weight 600 kg

Available options:

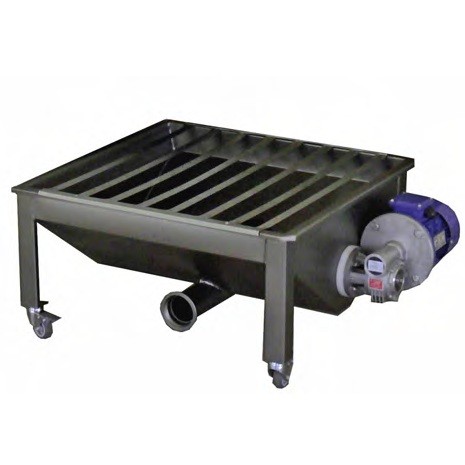

• Motorised collection tray with central screw conveyor
• Enlarged hopper for macrobin loading
