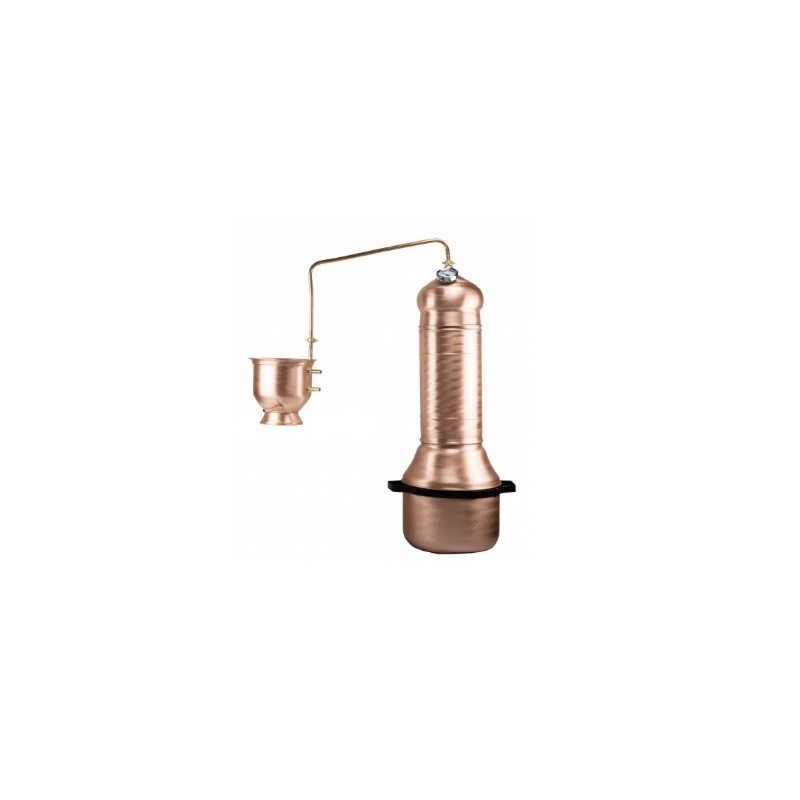

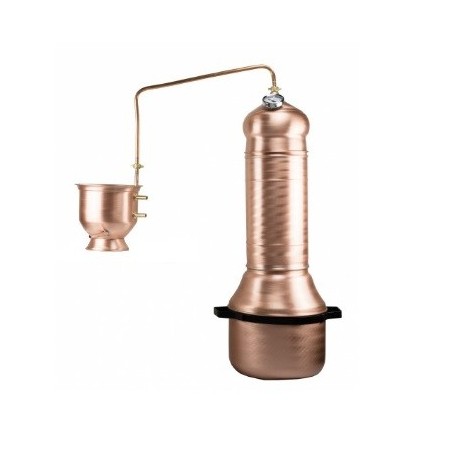

15-Liter Steam Distillation Still - Coil Condenser (Copper)

The 15-liter steam distillation still – coil condenser, also known as an essential oil distiller, uses a coil-cooling system and a filter column fitted between the boiler and the pre-chamber to improve reflux and filtration. Made entirely of copper, it includes a thermometer to read the boiler’s internal temperature so you can separate the heads, hearts, and tails of the run. Handcrafted by Italian master artisans, the base has a thickness of 1.03 mm. This setup is ideal for steam distillation/hydrodistillation of botanicals to obtain essential oils and aromatic water (hydrosol).

It is suitable for the production of essential oils (perfumes, liqueurs, remedies) and spirits (grappa, brandy, whisky, fruit distillates, etc.). It can also be used for high-proof alcohol such as vodka, where legally permitted.

We recommend pairing the extractor with a separating funnel to simplify the separation of essential oils from the aromatic water.

Features of the 15-liter coil-condenser steam distillation still:

• Made of copper;
• Analog thermometer;
• Coil cooling;
• Column for steam distillation (hydrodistillation);
• Boiler capacity: 15 L;
• Boiler dimensions: diameter 28 cm, height 35 cm;
• Head dimensions: diameter 19 cm, height 16 cm;
• Condenser dimensions: diameter 20 cm, height 20 cm;
• Filter column dimensions: height 39 cm, width 17 cm, volume 11 L;
• Water inlet/outlet fitting diameters: 12 and 16 mm;
• Copper thickness: 1.2 mm;
• Weight: 4 kg;
• Made in Italy.

NB: Still sold for ornamental purposes only. For production use, please contact us to evaluate the costs for the required formalities with the customs agency.
