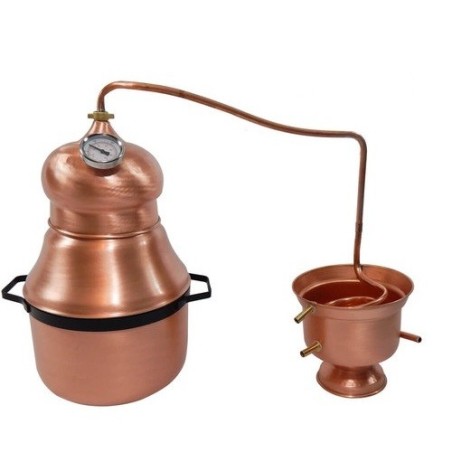

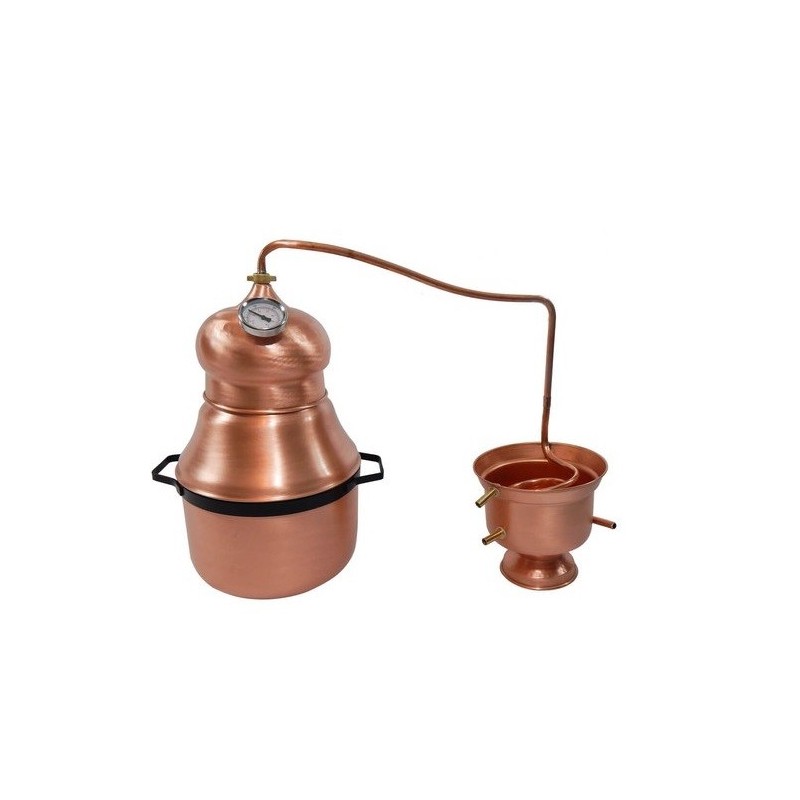

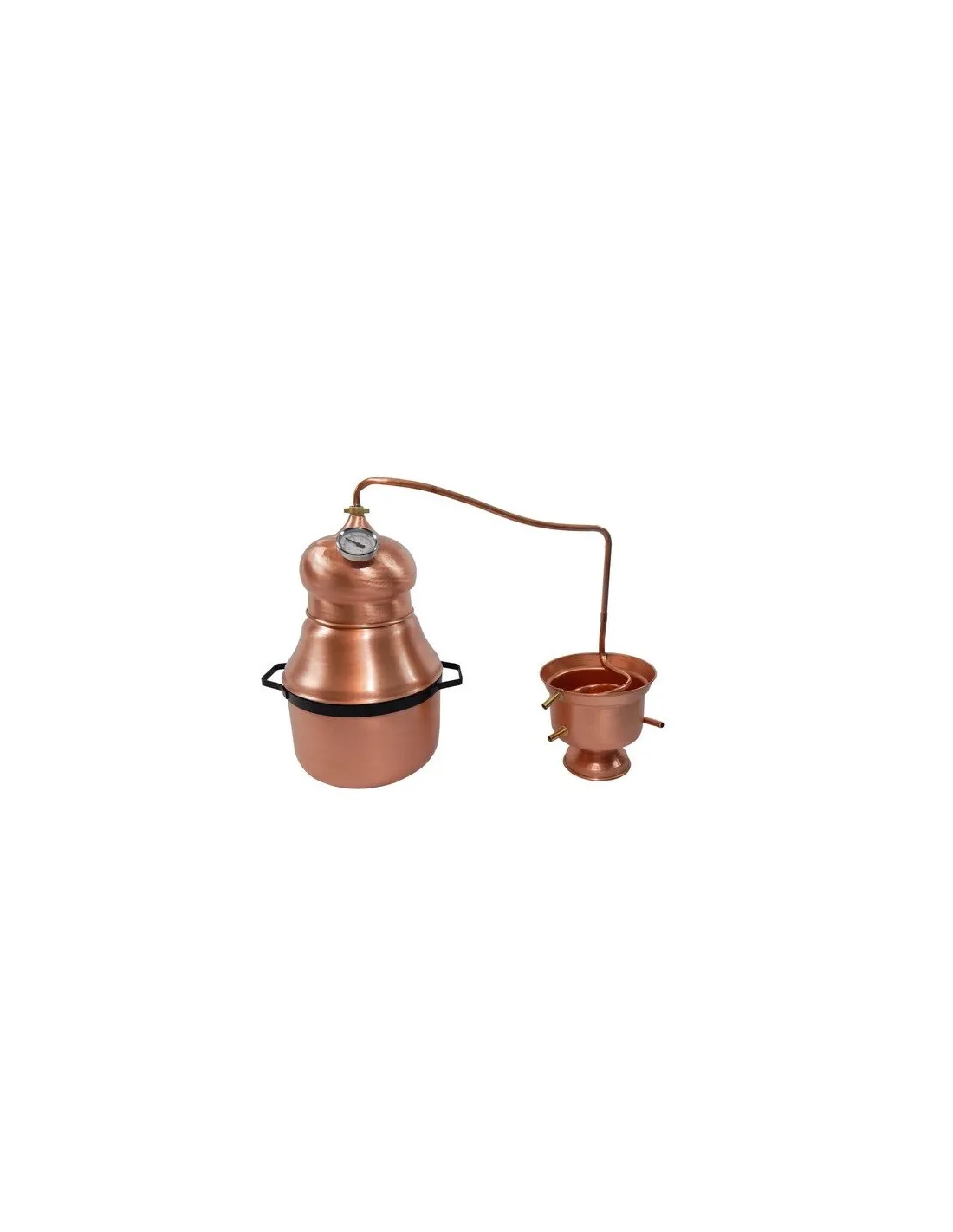

10-Liter Copper Pot Still - Coil Condenser

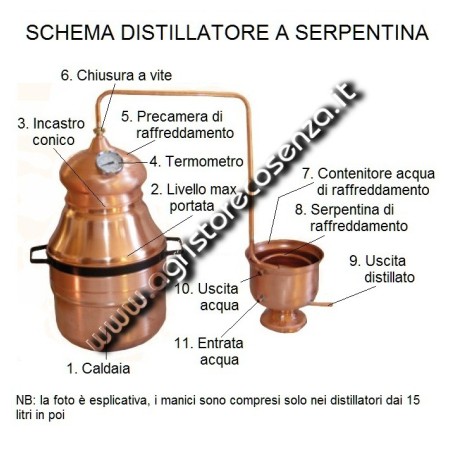

10-Liter Copper Pot Still – Coil (Worm) Condenser made entirely of copper, with a hand-forged iron stand supporting the boiler and the coil condenser. The still includes an analog thermometer to read the boiler’s internal temperature and make accurate cuts—heads, hearts, and tails. Handcrafted piece with a 1.03 mm copper base. Made in Italy.

Designed for the production of spirits (grappa, brandy, whisky, fruit distillates, etc.). It can also be used for essential oils (perfumes, liqueurs, remedies) and high-proof alcohol such as vodka, where legally permitted.

From the options menu, you can customize your alembic by adding a copper mesh or a pulp screen to prevent pomace from contacting the boiler bottom, or a filter column for steam distillation (all accessories are copper).

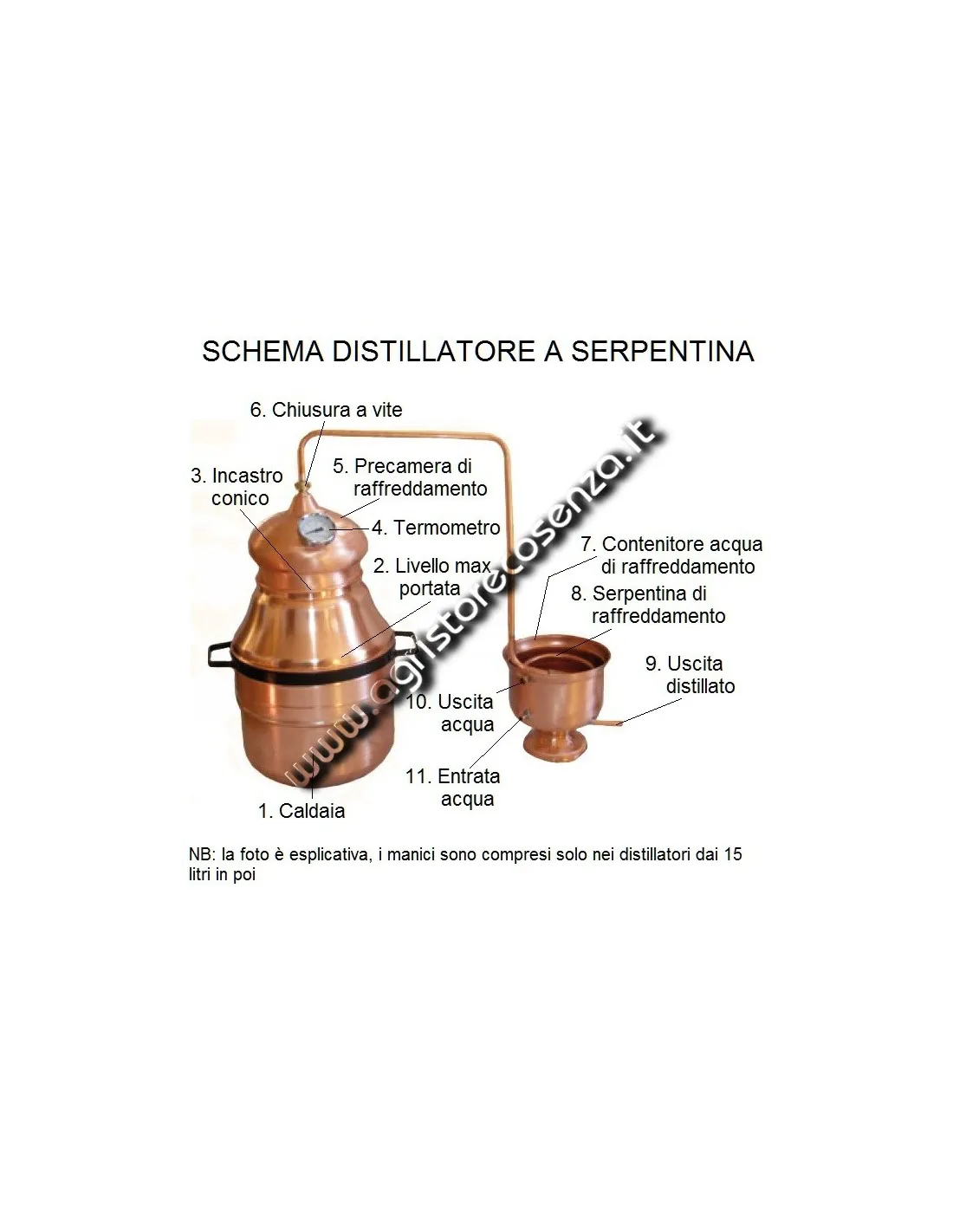

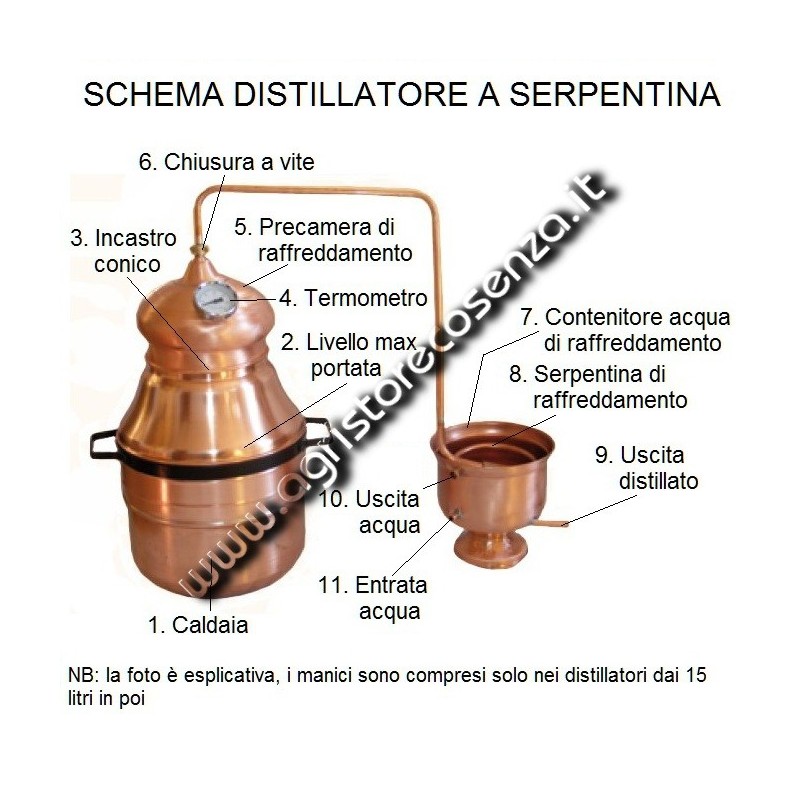

Features of the 10-liter copper pot still (coil/worm condenser):

• Made of copper;
• Analog thermometer;
• Coil (worm) condenser cooling;
• Boiler capacity: 10 L;
• Boiler dimensions: diameter 23 cm, height 27.5 cm;
• Head dimensions: diameter 19 cm, height 16 cm;
• Condenser dimensions: diameter 18.5 cm;
• Water inlet/outlet fitting diameters: 12 and 16 mm;
• Copper thickness: 1 mm (base 1.03 mm);
• Weight: 3.2 kg;
• Made in Italy.

Available options:

• Pulp screen: useful for distilling from solids (e.g., pomace, fruit pieces) to avoid direct contact with the boiler bottom;
• Filter column: typically used to extract essential oils for steam distillation (botanicals not immersed in water). It can also be used for spirits to improve dephlegmation.

NB: Still sold for ornamental purposes only. For production use, please contact us to evaluate the costs for the required formalities with the customs agency.
