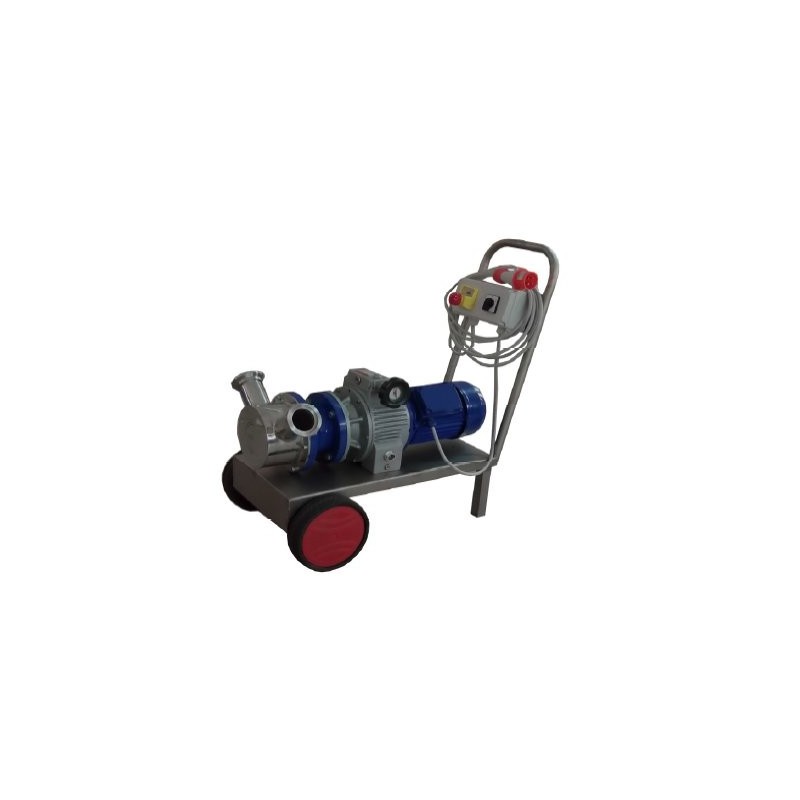

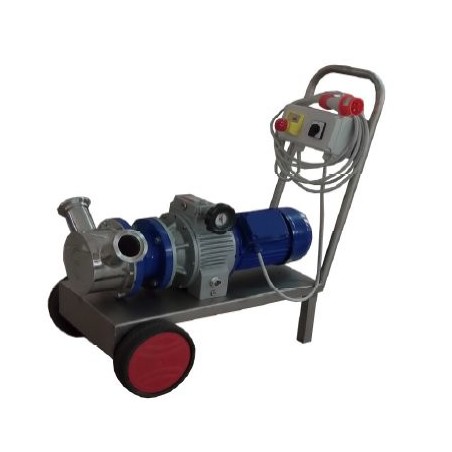

Volumetric Flexible Impeller Pump with Mechanical Variator

The volumetric flexible impeller pump with mechanical variator is a self-priming pump with a low impeller rotation speed and is particularly suitable for transferring liquids that are dense and/or contain suspended solids.

It is equipped with a flexible rubber impeller that transfers the liquid continuously without altering its characteristics and with a mechanical indicator of the operating speed.

This volumetric pump is widely used for transferring wine, must (even with grape residues), and in the oil sector and, more generally, in the food industry, especially for beer, fruit juices, milk and yogurt. It is also useful for feeding a filter.

It is additionally used in the chemical and pharmaceutical fields.

The electrical system is external, with motor overload protection.

Available versions:

• 20;
• 30;
• 40;
• 50;
• 60.

Common technical features:

• Mechanical speed variator;
• CE-compliant electrical panel;
• Mechanical seal in stainless steel–graphite–NBR;
• Food-grade rubber impeller “NBSB”;
• Stainless steel shaft;
• Stainless steel trolley;
• No. 2 hose-tail fittings with clamps and gaskets;
• Power supply: three-phase.

Optional

• Bypass

The following accessories can be installed on this pump upon request:

• CE three-phase electrical system with 24 V NC output for connection to pressure switches or external probes;
• CE three-phase electrical system with flow sensor and stainless steel connection fitting;
• CE three-phase electrical system with timer.

Below are the detailed specifications of the available versions.

Volumetric flexible impeller pump with mechanical variator – size 20

• Motor: 0.5 HP;
• Speed range: from 175 to 900 rpm;
• Flow rate: from 230 to 1000 litres/hour;
• Connections: size 20;
• Dimensions: 55 x 35 x 60 cm;
• Weight: 22 kg.

Volumetric flexible impeller pump with mechanical variator – size 30

• Motor: 1.2 HP;
• Speed range: from 175 to 900 rpm;
• Flow rate: from 1100 to 5000 litres/hour;
• Connections: size 30;
• Dimensions: 70 x 41 x 65 cm;
• Weight: 30 kg.

Volumetric flexible impeller pump with mechanical variator – size 40

• Motor: 1.2 HP;
• Speed range: from 175 to 900 rpm;
• Flow rate: from 1950 to 9500 litres/hour;
• Connections: size 40;
• Dimensions: 70 x 41 x 65 cm;
• Weight: 31 kg.

Volumetric flexible impeller pump with mechanical variator – size 50

• Motor: 2.5 HP;
• Speed range: from 175 to 900 rpm;
• Flow rate: from 3900 to 15000 litres/hour;
• Connections: size 50;
• Dimensions: 81 x 41 x 65 cm;
• Weight: 41 kg.

Volumetric flexible impeller pump with mechanical variator – size 60

• Motor: 2.5 HP;
• Speed range: from 175 to 900 rpm;
• Flow rate: from 4800 to 24000 litres/hour;
• Connections: size 60;
• Dimensions: 81 x 41 x 65 cm;
• Weight: 47 kg.
