Volumetric Electric Pump with Electronic Inverter

The volumetric flexible impeller pump with electronic inverter is a self-priming pump with a low-speed flexible impeller, designed especially for transferring viscous liquids and products containing suspended solids.

The pump is equipped with a flexible rubber impeller that transfers the liquid continuously without altering its characteristics.

It is widely used for transferring wine and grape must (even with skins and solids), and in the olive oil sector and the food industry in general, especially for beer, fruit juices, milk and yogurt. It is also used in the chemical and pharmaceutical fields.

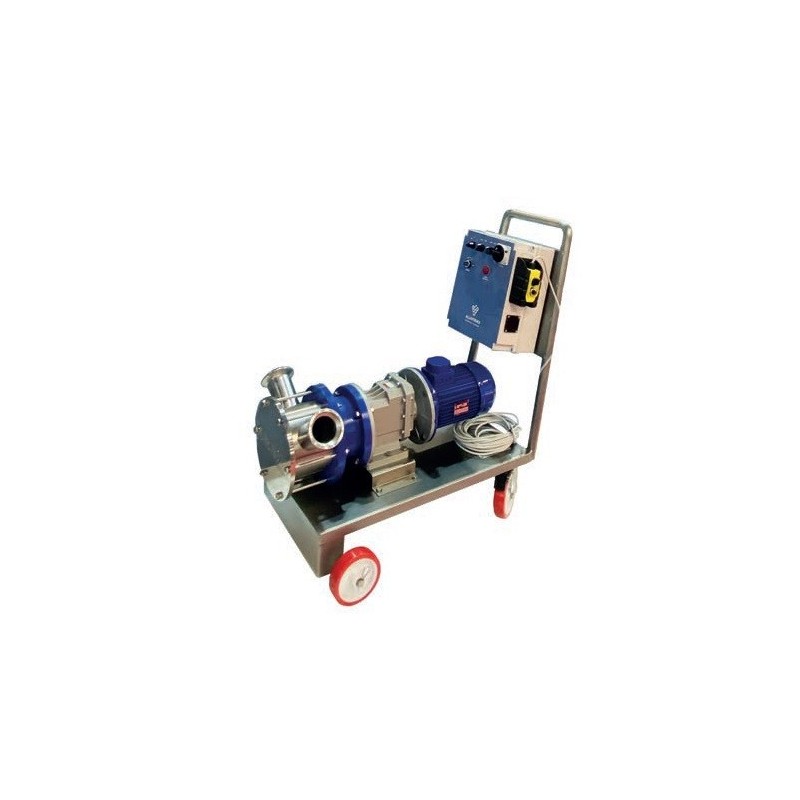

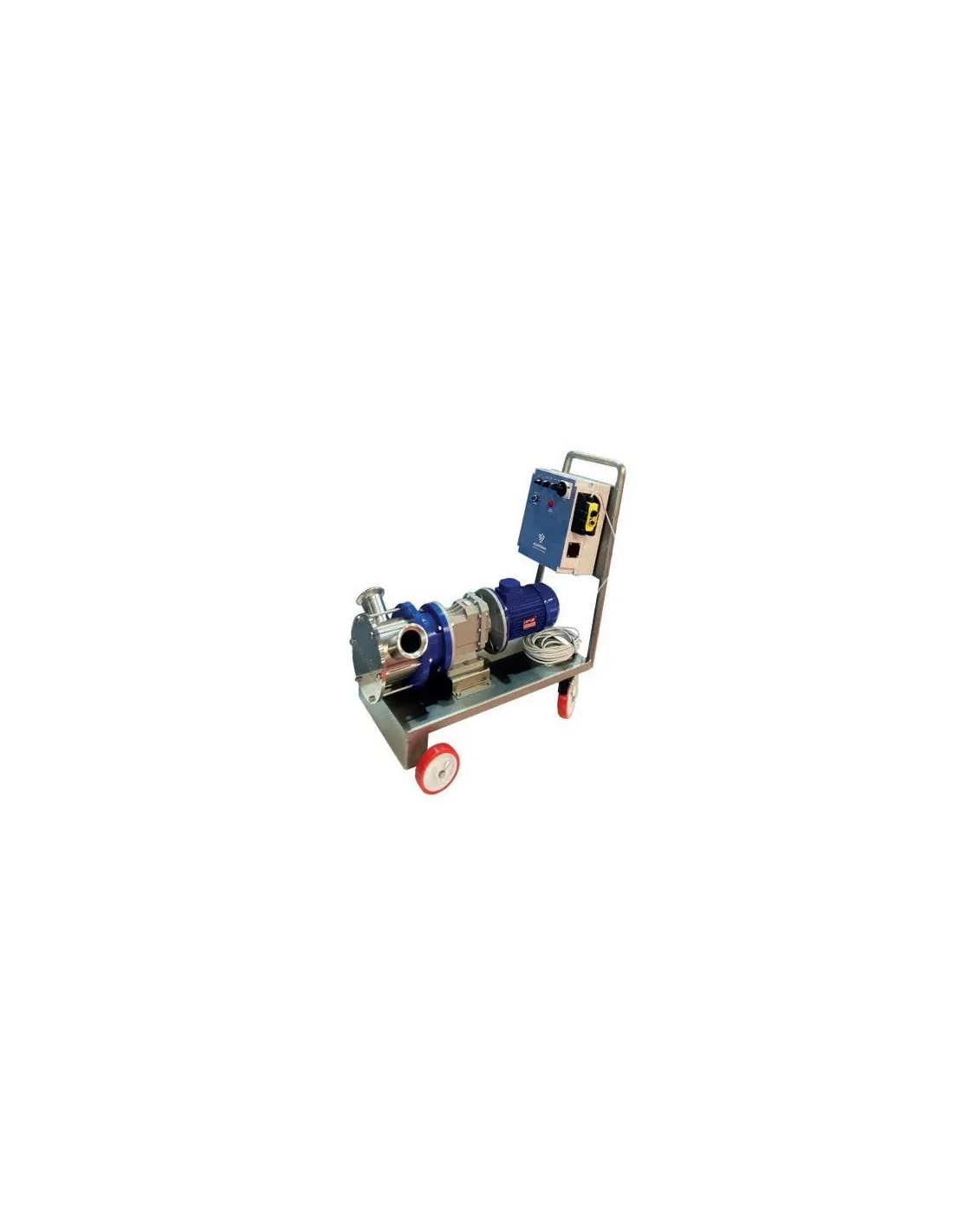

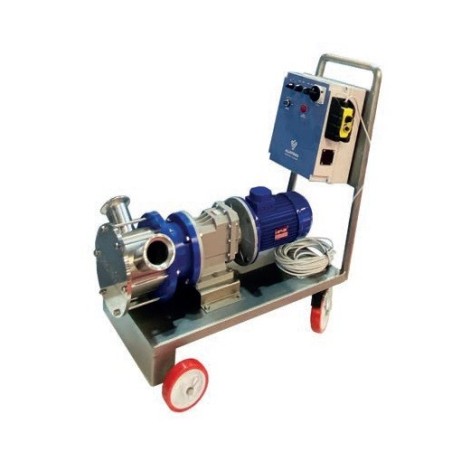

The volumetric pump with electronic speed control is made entirely of AISI 304 stainless steel. It is equipped with an electronic system with inverter that allows the pump speed to be adjusted from 0 up to 1000 rpm. It comes complete with a wired remote control with 12 m cable. The electric motor is force-ventilated, which allows the pump to stop at 0 rpm and also run for long periods at low speed without causing damage or overheating.

The pump trolley allows quick removal of all electrical components, making cleaning operations safe and easy.

Available versions:

• 30;
• 40;
• 50;
• 60.

Technical features common to all versions:

• Speed from 0 to 1000 rpm;
• Control panel with selector switch;
• Two quick-connect plugs;

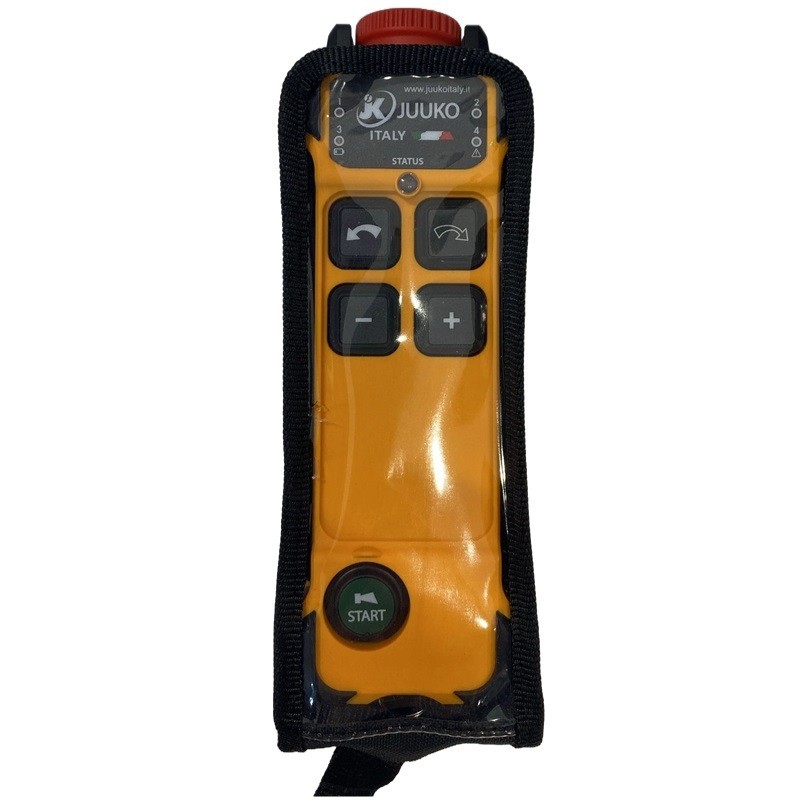

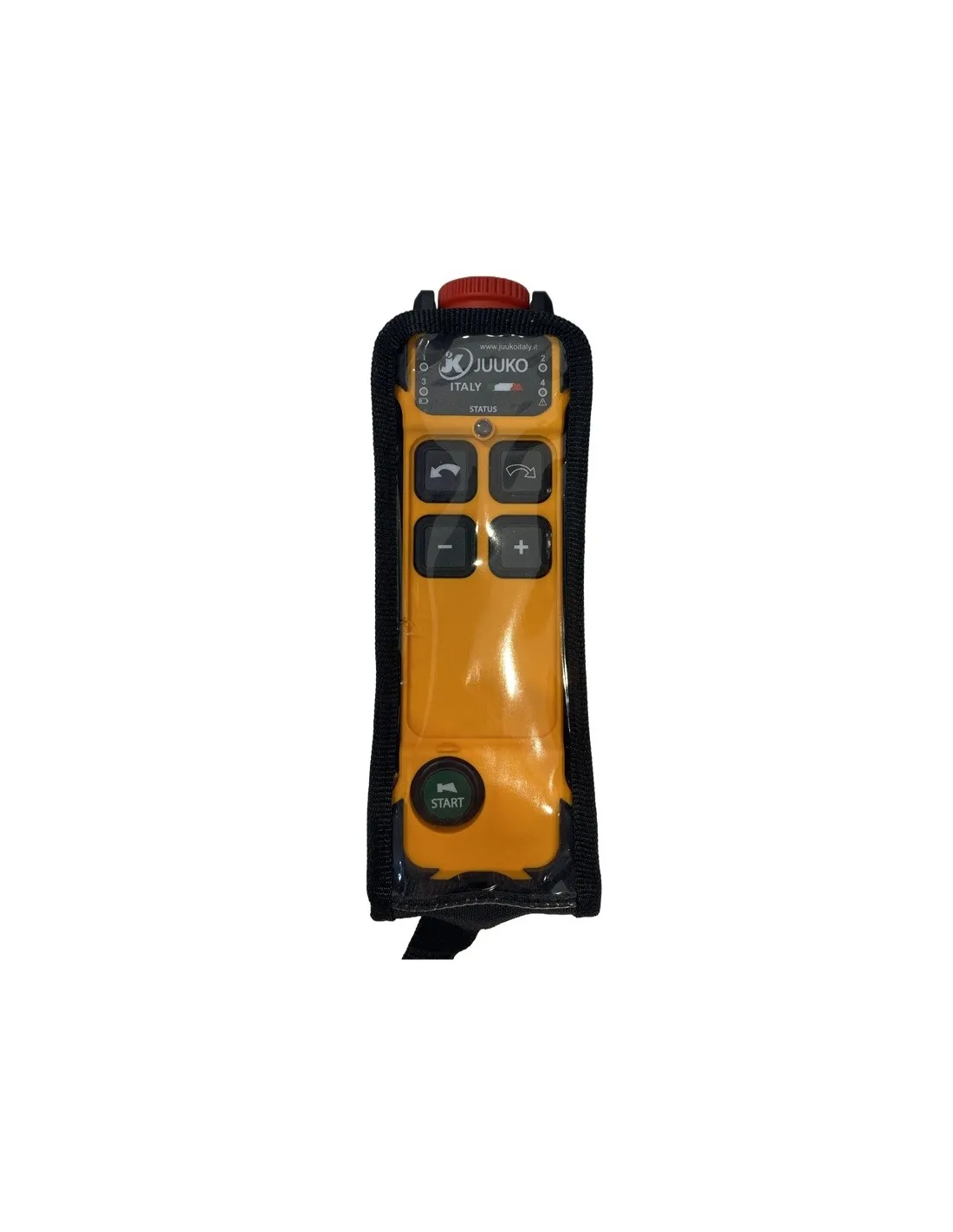

• 12 m wired remote control;
• Stainless steel trolley;
• Food-grade rubber impeller;
• Two hose-tail fittings, clamps and gaskets.

Below are the specific technical features of each version.

Volumetric pump with electronic inverter – model 30

• Force-ventilated electric motor 1.5 kW;
• Speed from 0 to 1000 rpm;
• Flow rate: from 1 to 5500 l/h (single-phase) – from 0 to 5500 l/h (three-phase);
• Inlet/outlet size 30;
• Dimensions: 74 x 40 x 65 cm;
• Weight: 32 kg.

Optional accessories available on request for this pump:

• Remote control (radio control);
• 24 V NC output for connection to pressure switch or external probes;
• Three-phase electrical system with timer;
• Stainless steel electrical control box.

NB: the single-phase version is supplied with a gear reducer and without forced ventilation.

Volumetric pump with electronic inverter – model 40

• Force-ventilated electric motor 2 kW;
• Speed from 0 to 1000 rpm;
• Flow rate: from 1 to 9500 l/h (single-phase) – from 0 to 9500 l/h (three-phase);
• Inlet/outlet size 40;
• Dimensions: 102 x 56 x 90 cm;
• Weight: 36 kg.

Optional accessories available on request for this pump:

• Remote control (radio control);
• 24 V NC output for connection to pressure switch or external probes;
• Three-phase electrical system with timer;
• Stainless steel electrical control box.

NB: the single-phase version is supplied with a gear reducer and without forced ventilation.

Volumetric pump with electronic inverter – model 50

• Force-ventilated electric motor 4 kW;
• Speed from 0 to 1000 rpm;
• Flow rate: from 0 to 15,000 l/h;
• Inlet/outlet size 50;
• Dimensions: 102 x 56 x 90 cm;
• Weight: 48 kg.

Optional accessories available on request for this pump:

• Remote control (radio control);
• 24 V NC output for connection to pressure switch or external probes;
• Flow sensor complete with stainless steel connection fitting;
• Three-phase electrical system with timer;
• Trolley with pneumatic wheels;
• Stainless steel electrical control box.

NB: the single-phase version is supplied with a gear reducer and without forced ventilation.

Volumetric pump with electronic inverter – model 60

• Force-ventilated electric motor 4 kW;
• Speed from 0 to 1000 rpm;
• Flow rate: from 0 to 25,000 l/h;
• Inlet/outlet size 60;
• Dimensions: 102 x 56 x 90 cm;
• Weight: 58 kg.

Optional accessories available on request for this pump:

• Remote control (radio control);
• 24 V NC output for connection to pressure switch or external probes;
• Flow sensor complete with stainless steel connection fitting;
• Three-phase electrical system with timer;
• Trolley with pneumatic wheels;
• Stainless steel electrical control box.

NB: the single-phase versions of the 50 and 60 pumps are supplied with a gear reducer and without forced ventilation.
