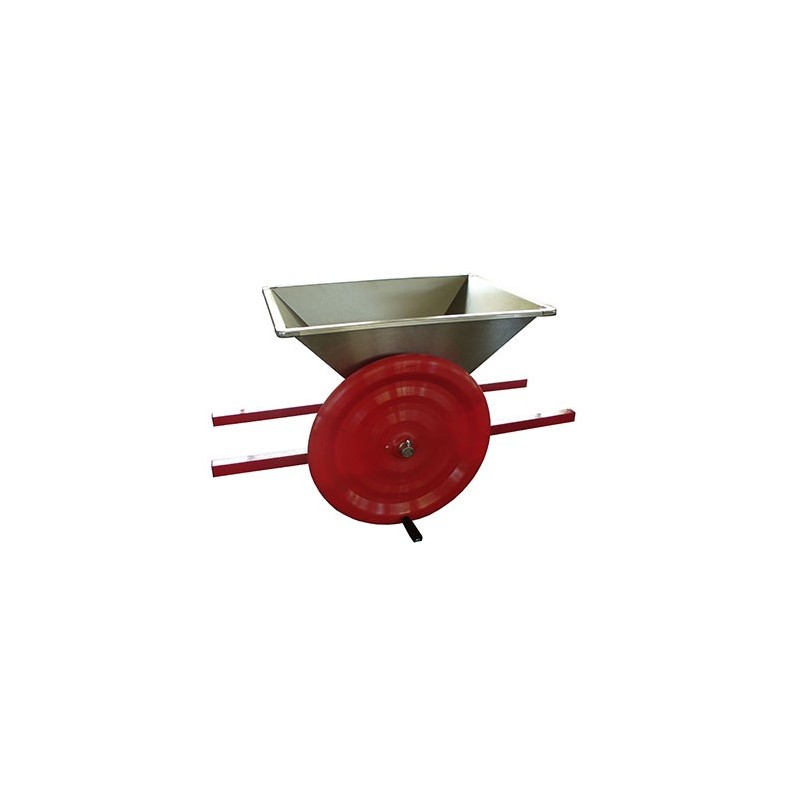

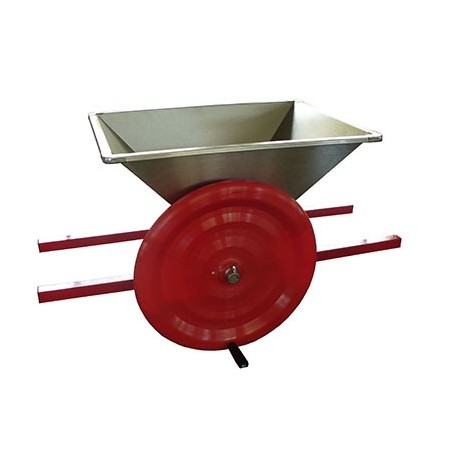

Small Manual Grape Crusher with Flywheel, Stainless Steel Hopper & Agitator - 300–500 kg/h

The small manual grape crusher with stainless steel hopper is a simple and compact machine designed for small producers, hobbyists and farms processing limited quantities of grapes during harvest.

The machine operates without electricity. The side flywheel manually drives the rollers and agitator, helping the grapes move towards the crushing area. The berries are progressively crushed, allowing the must to flow into a container positioned underneath the machine.

This model is designed for users looking for a hand-operated grape crusher equipped with an AISI 304 stainless steel loading hopper and agitator. The main body is made of enamelled sheet metal with a non-toxic coating suitable for food use.

Its indicative hourly output is 300–500 kg/h, making it suitable for small-scale home, hobby and artisanal grape processing. The self-adjusting aluminium rollers help manage the crushing process and are mounted using a special system designed to protect the rollers and gears from damage caused by solid parts passing through the machine.

This machine performs grape crushing only and does not automatically separate the stems from the berries. If destemming is also required, a grape crusher-destemmer or grape destemmer is the more appropriate type of machine.

Technical features

• Made in Italy
• Body: enamelled sheet metal with non-toxic coating
• Loading hopper: AISI 304 stainless steel
• Rollers: self-adjusting aluminium rollers, 22 cm long
• Hopper size: 65 × 47 cm
• Agitator: AISI 304 stainless steel
• Hourly output: 300–500 kg/h
• Overall dimensions with flywheel: 100 × 39 × 49 cm
• Weight with flywheel: 18 kg
