Immersion Coil Chiller for Vats & Tanks
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information

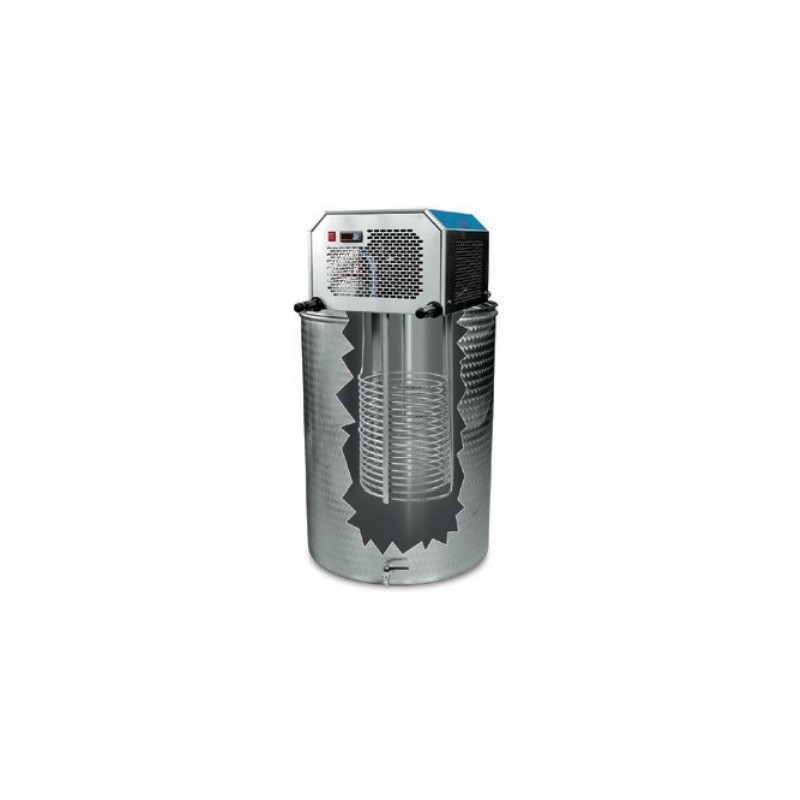

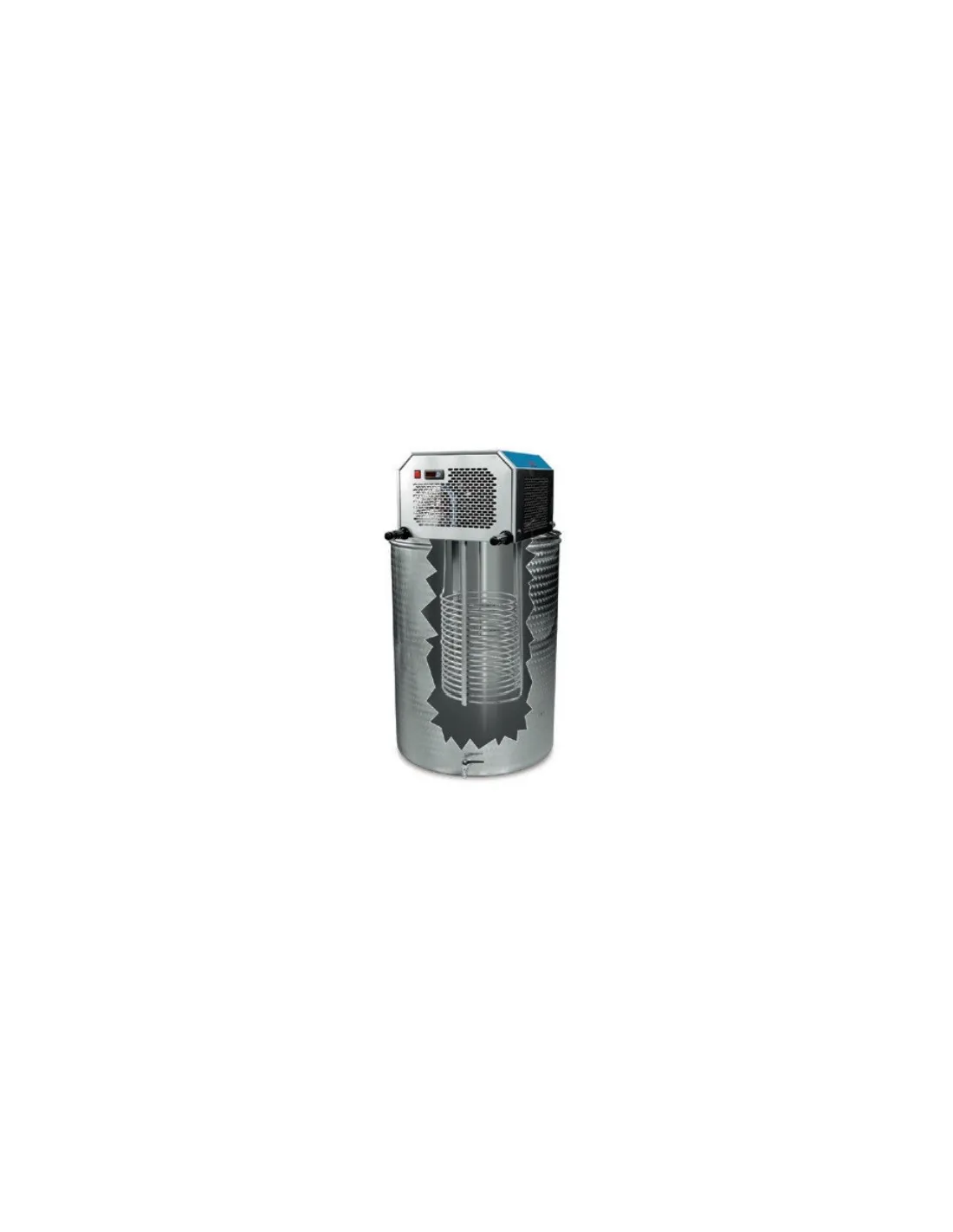

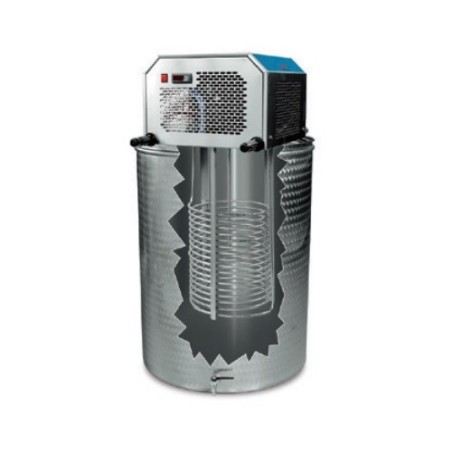

Practical cooling system ideal for tanks, stainless steel barrels and vats. It features a direct-expansion immersion cooling coil and, once inserted into the vessel, it automatically controls the product temperature thanks to the thermostat and probe.
An optional dust cover with pre-drilled hole can be paired with the chiller, specifically designed for use with this system. You can choose it according to the diameter of your containers.
Other optional accessories include a 1” 1/2 PVC air vent valve and a liquid/pomace separation grid.
Technical specifications of the immersion coil chiller for vats and tanks:
- Stainless steel;
- Cooling capacity: 1.4 kW (with fermenting wine at 19°C and ambient temperature of 25°C);
- Power consumption: 0.45 kW;
- Adjustable temperature range: -5°C to 25°C;
- Power supply: 230 V - 1 ph - 50 Hz;
- Refrigerant gas: R-404A (ozone friendly);
- Fermentation volume under temperature control: ≤ 3700 L;
- Overall dimensions: L 50 x D 49 x H 101;
- Weight: 43 kg.
Dust cover available in the following versions (price on request):
- 640 mm for 300 L containers;
- 720 mm for 400 L containers;
- 720 mm for 500 L containers;
- 800 mm for 600 L containers;
- 930 mm for 800 L containers.
