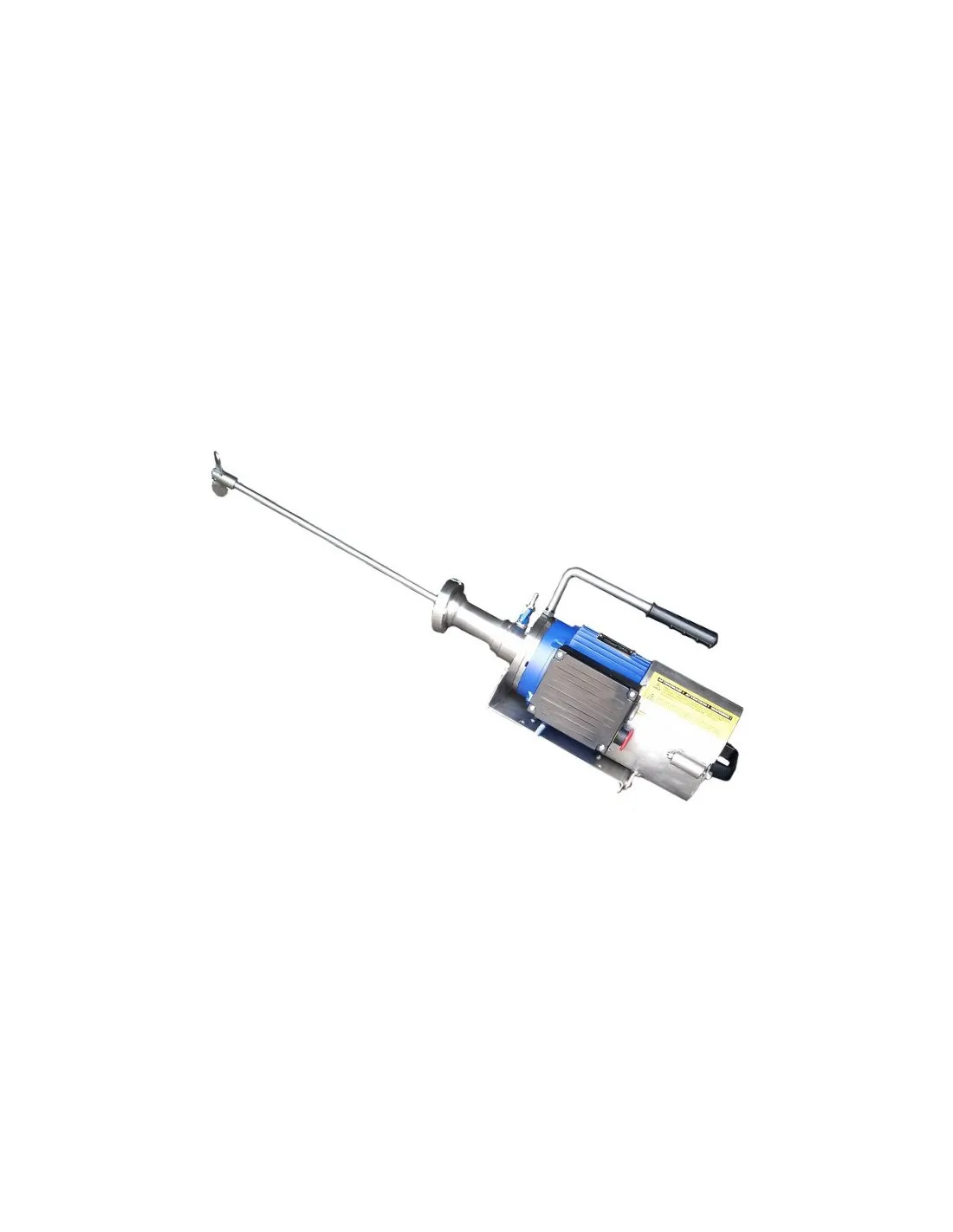

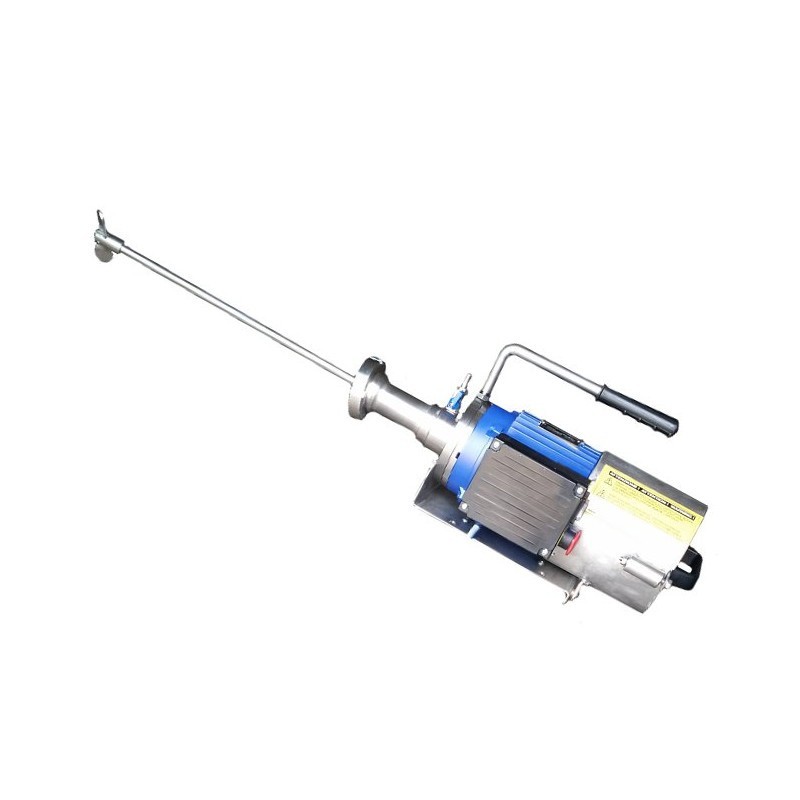

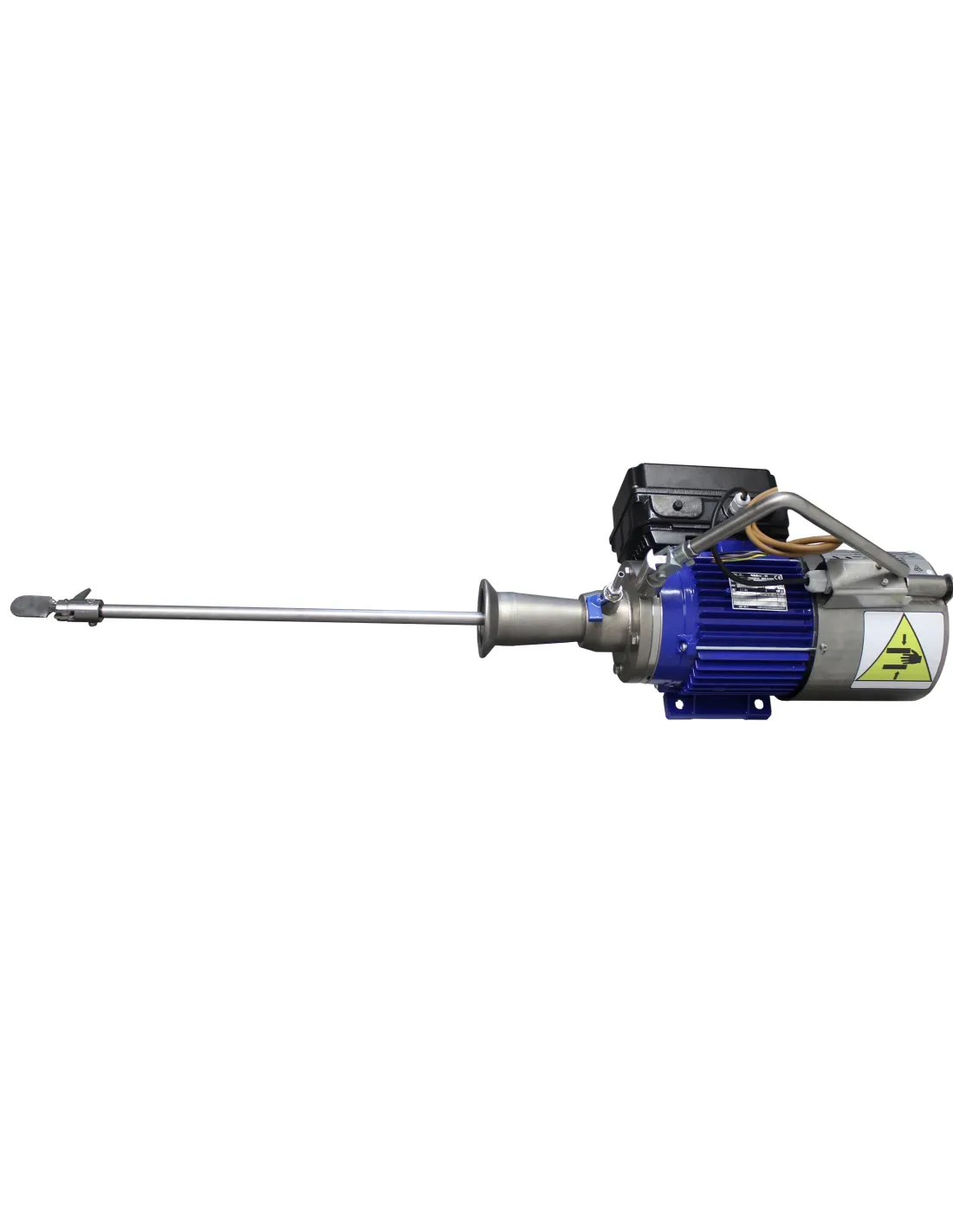

Universal vertical tank agitator

The universal vertical tank agitator is a practical and compact mixer designed to stir and homogenize liquids inside large-capacity tanks.

Benefits of Using a Tank Agitator

This mixer, entirely Made in Italy, is engineered to keep low-viscosity liquids homogeneous, such as wine, beer, fruit juices, and olive oil.

Used as a wine mixer or for other low-viscosity liquids, it allows operators to mix the contents of a full tank directly through a full-bore valve, eliminating the risk of product loss. The result is a perfectly homogeneous liquid, processed in total safety and hygiene, since all food-contact parts are made of stainless steel.

It is equipped with a 1 HP (0.75 kW) three-phase electric motor capable of reaching 1400 RPM. This ensures excellent mixing performance while preserving the organoleptic properties of the liquid.

In addition, the agitator features a mechanical seal, a retractable stainless steel shaft (65 cm length), and a folding impeller (15 cm width). A vent valve is also included. The electrical system is CE-certified and equipped with an emergency stop button.

How to Use Vertical Tank Agitators

Operation is extremely simple. The agitator is connected to the tank through a Garolla 50 valve and activated (on request, custom connections can be manufactured according to client specifications). Optionally, the agitator can be supplied with a height-adjustable stainless steel trolley or a telescopic stand.

Main Features of the Tank Agitator

• All food-contact parts in AISI 304 stainless steel;
• Three-phase electric motor 1 HP (0.75 kW) – 1400 RPM;
• CE-certified electrical system with emergency stop;
• Stainless steel mechanical seal;
• Retractable AISI 304 stainless steel shaft – 65 cm length;

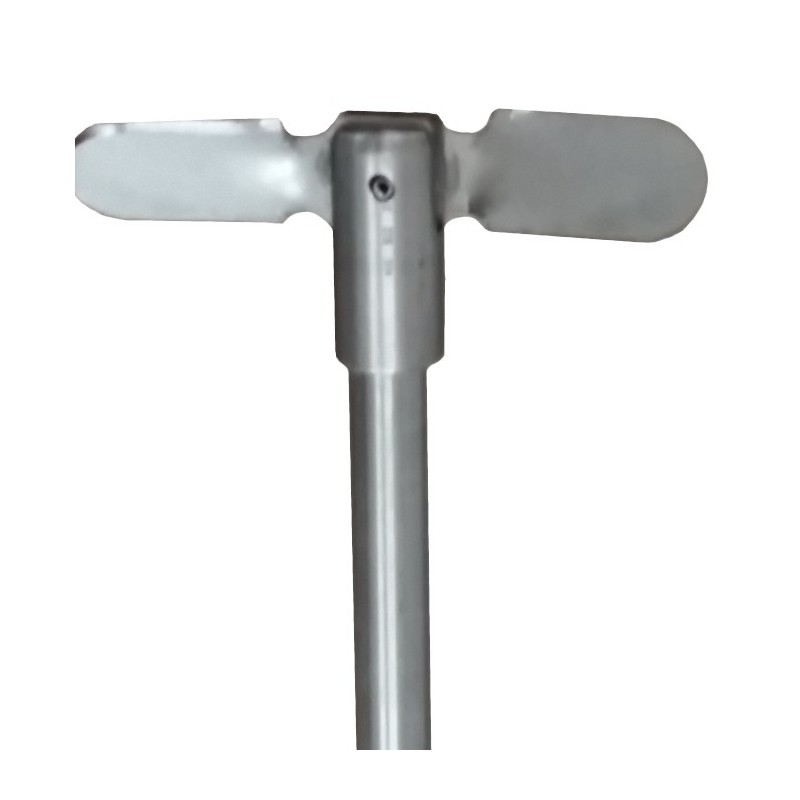

• Automatic-opening folding impeller – 15 cm wide;
• Vent valve;
• Garolla 50 connection fitting (customizable on request);
• Maximum tank capacity: 20,000 liters;
• Dimensions: 23 x 25 x 96 cm.

Available Options

• Stainless steel stand with telescopic height adjustment (photo 3);
• Dosing pump EURO 20, 0.5 HP rubber impeller, mounted on trolley (to be combined with stainless steel stand);
• Single-phase electronic speed variator;
• Three-phase electronic speed variator;
• Inclined-valve mounting system for stainless steel support (to be combined with stainless steel stand);
• Additional mechanical seal.
