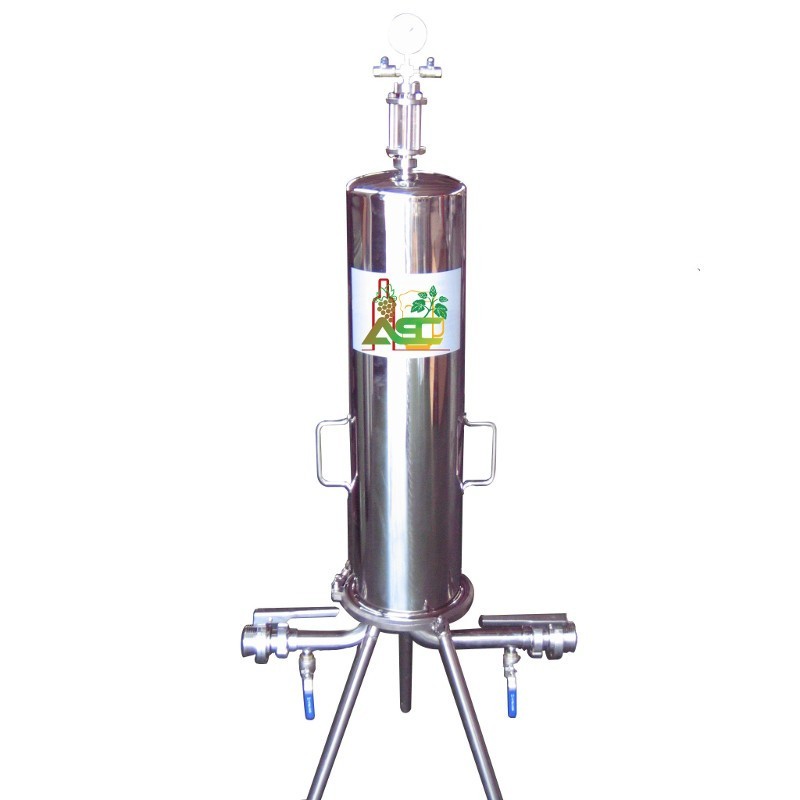

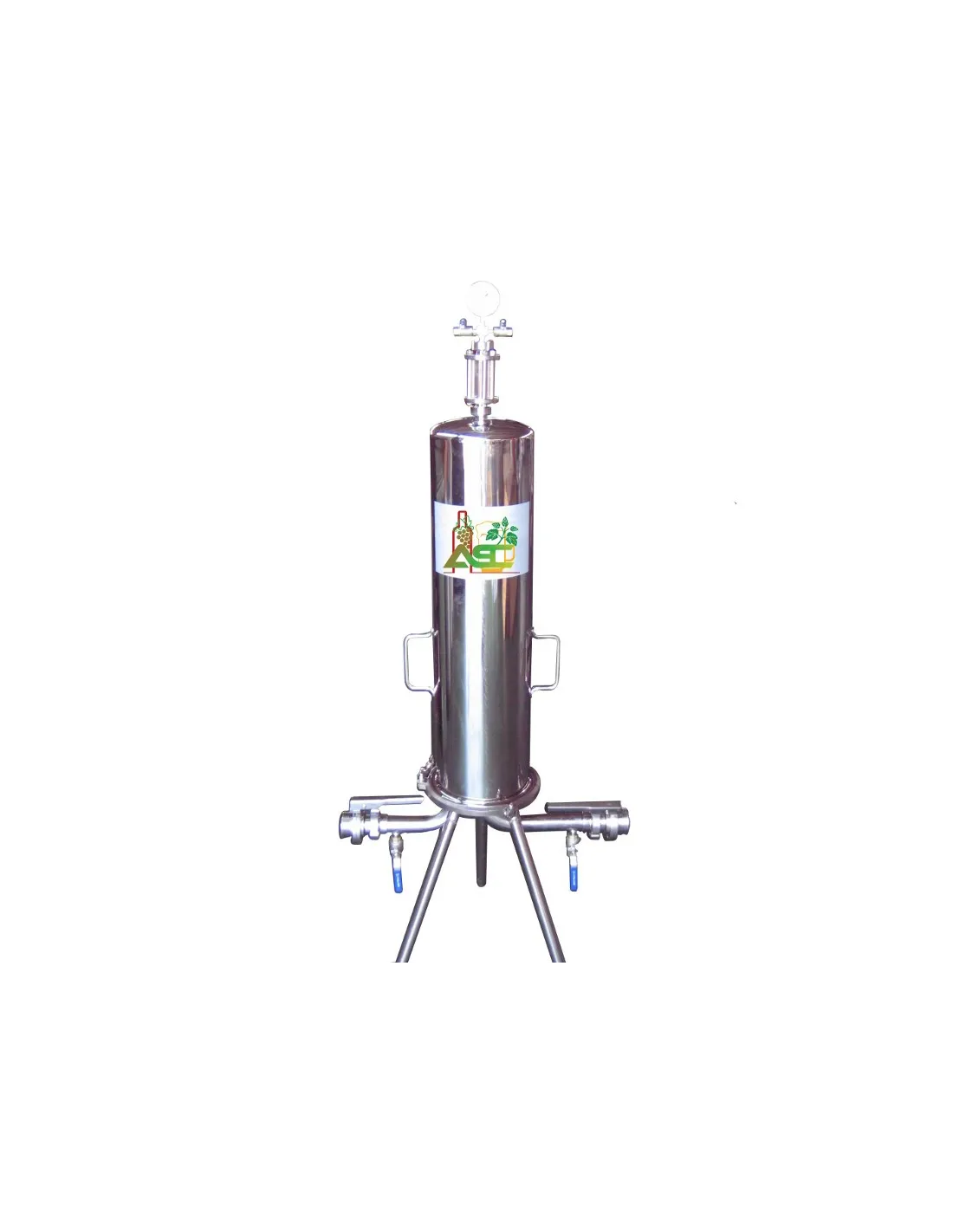

Filter Housing for Wine & Beer

The microfiltration filter housing is manufactured in Italy according to the highest construction standards, using premium AISI 316 stainless steel to ensure professional quality. It is a more advanced system than classic sheet filters and is an essential tool for wineries and breweries focused on product quality.

What it is used for and why

This filtration system is typically used in winemaking to polish wines before bottling, achieving cold sterilization down to 0.45 μm.

The filter housing allows cold sterilization of beverages and is suitable not only for use in the wine industry, but also for filtering beer and fruit juices.

The cartridges can be made of polypropylene or stainless steel and are interchangeable. The most commonly used in the wine sector is the 30" cartridge.

Technical features of the basic filter housing version:

• 1 stainless steel AISI 316L cartridge housing
• Suitable for 30" cartridges with code 7 connection
• Upper group with stainless steel pressure gauge in glycerin bath
• In-line sight glass
• Stainless steel legs, height 300 mm
• Investment-cast drain/sample valves mounted on inlet and outlet bends
• Butterfly valves on product inlet and outlet
• Hourly capacity 1000 liters
• Housing chamber volume 4.3 liters
• Tube diameter 28 mm
• DIN 25F fittings
• Overall dimensions: 250 x 380 x h1550 mm
• Note: filter cartridge not included

Available versions:

• 3-cartridge version with hourly capacity of 3000 liters, 40 mm tubes, DIN 40F fittings
• 5-cartridge version with hourly capacity of 5000 liters, 40 mm tubes, DIN 40F fittings
• 8-cartridge version with hourly capacity of 8000 liters, 50 mm tubes, DIN 50F fittings
• 12-cartridge version with hourly capacity of 12000 liters, 50 mm tubes, DIN 50F fittings

Optional accessories:

• Bypass for housing with one valve
• AISI 304 stainless steel tank with 4 wheels
• Flexible-impeller pump 0–70 hl/h with gearmotor (0–900 rpm) on GA 50 or DIN trolley
• Flexible-impeller pump 0–120 hl/h with gearmotor (0–900 rpm) on GA 50 or DIN trolley
