Wine Filling System for Demijohns and Carboys
Right of withdrawal
You have 14 calendar days to withdraw from your purchase, with no need to give a reason. More information

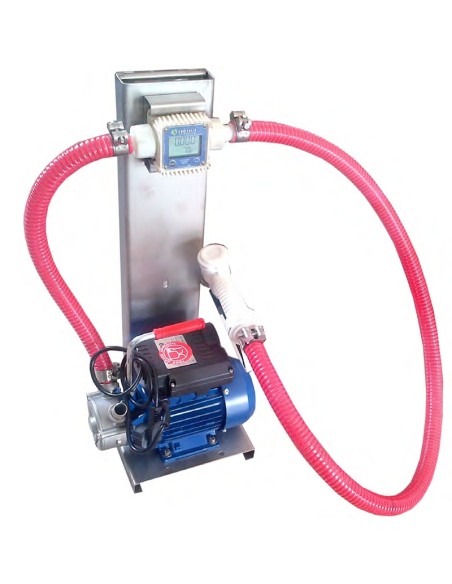

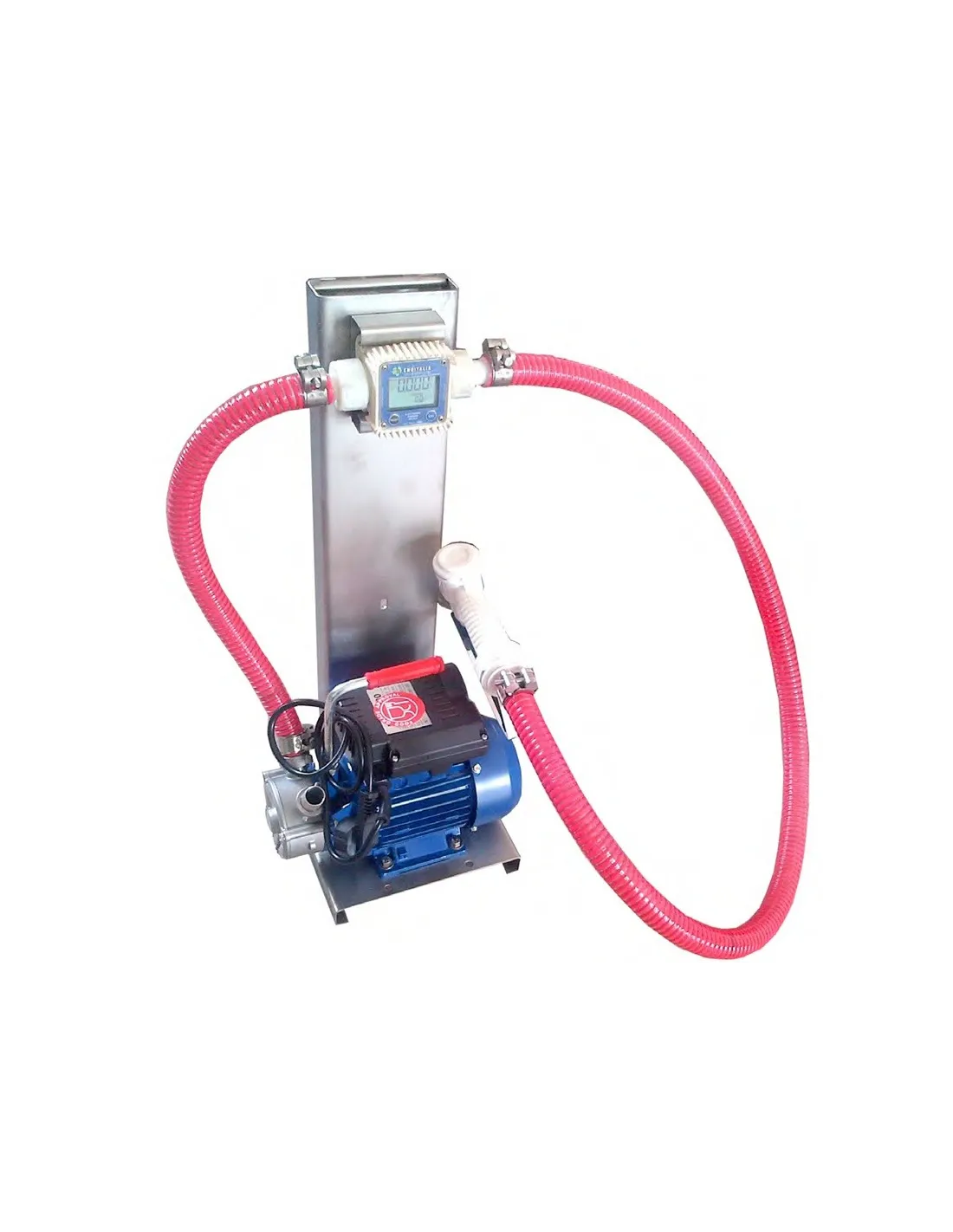

The wine filling system is manufactured entirely in Italy and is suitable for filling different types of containers, particularly demijohns and carboys.
In its standard configuration, the system is equipped with a stainless steel centrifugal electric pump, a digital turbine flow meter, a polypropylene dispensing gun and food-grade hoses.
The standard version is specifically designed for filling wine.
Technical features
- Power: 0.33 kW
- Dispensing gun: polypropylene
- Flow meter: digital turbine flow meter
- Pump: liquid-ring centrifugal electric pump with mechanical seal, stainless steel impeller and body
- Pump flow rate: 1,680 L/h
- Pump speed: 2,800 rpm
- Frame: AISI 304 stainless steel, without wheels
- Hoses: food-grade PVC
- Suitable containers: demijohns, carboys and similar containers
- System capacity: 1,600 L/h
- Power supply: 220 V, 50 Hz, single-phase
- Dimensions: 22 x 30 x 60 cm
- Weight: 15 kg
Available versions
- With centrifugal electric pump: 1,680 L/h, 2,800 rpm, 0.33 kW
- With centrifugal electric pump: 2,460 L/h, 1,400 rpm, 0.35 kW
Optional equipment
- Stainless steel dispensing gun
- Bag-in-Box filling accessory with tap-closing lever (photo no. 2)
- Centrifugal pump: 2,460 L/h, 0.35 kW
- Applications
- Wine
- Typology
- Dispenser
- Container type
- Bag-in-box bags
Demijohns
