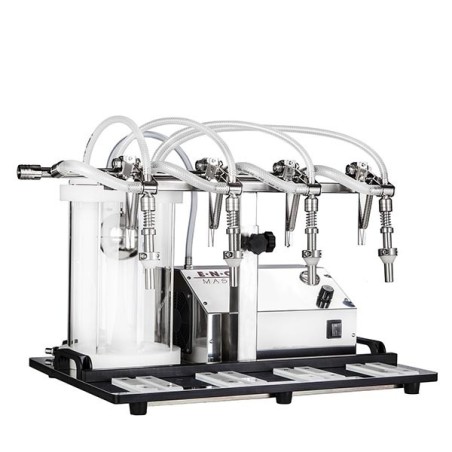

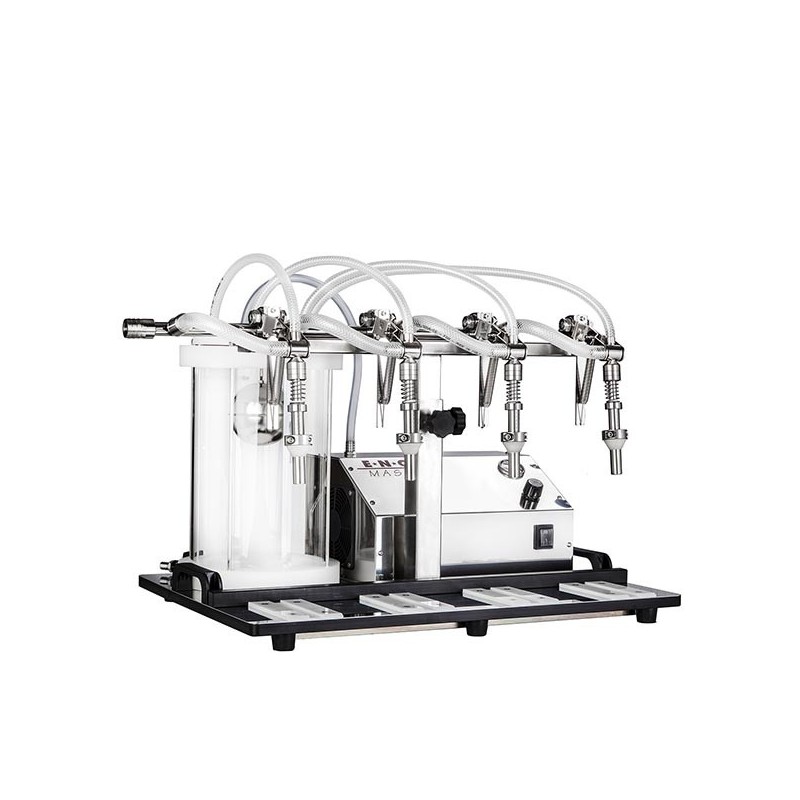

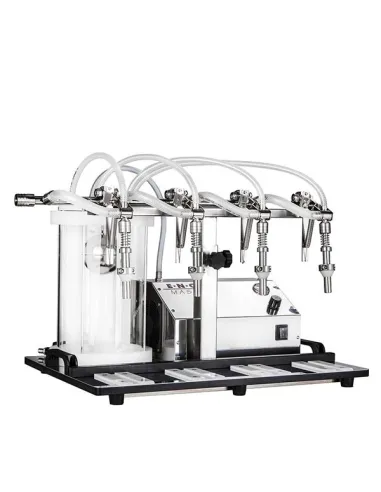

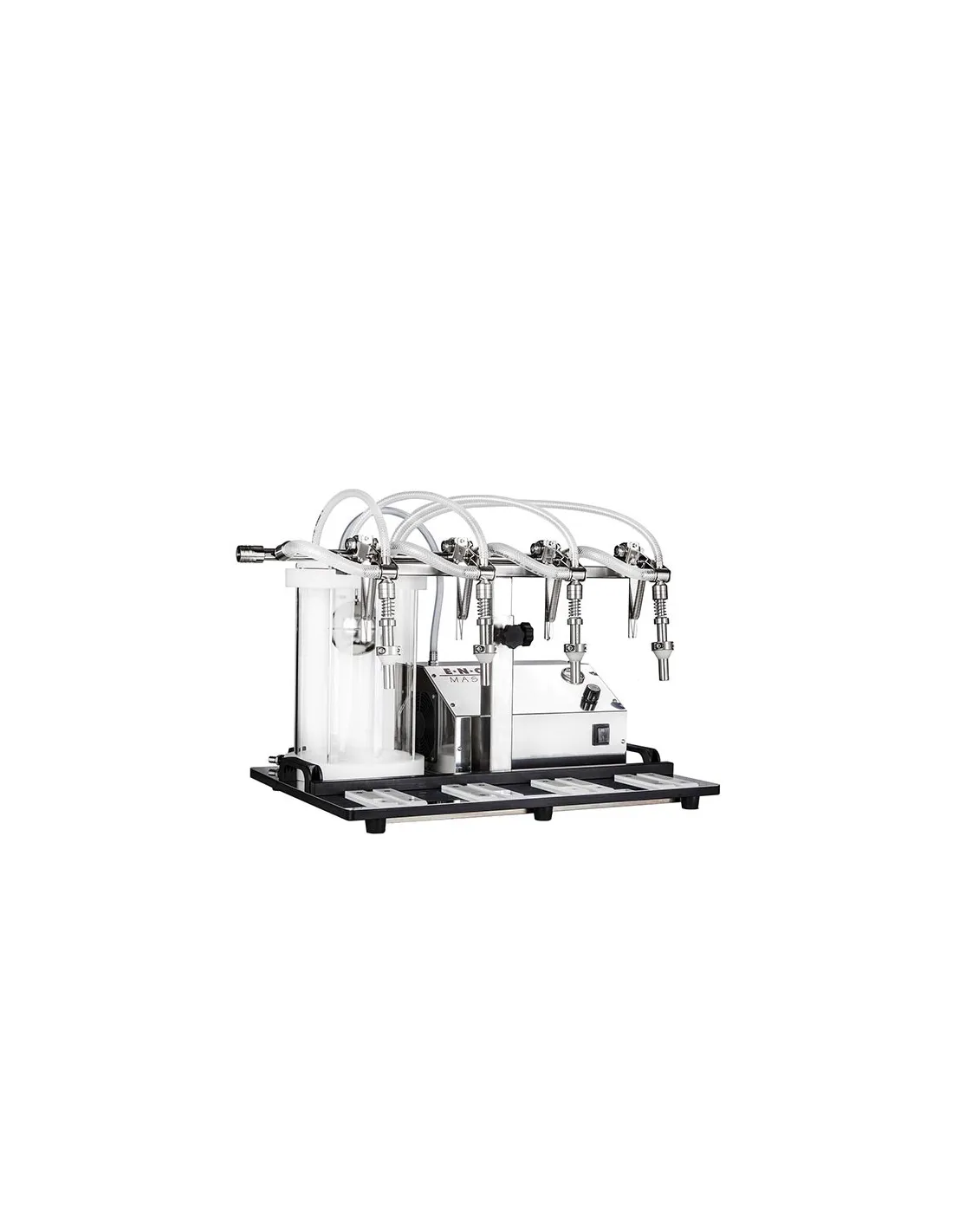

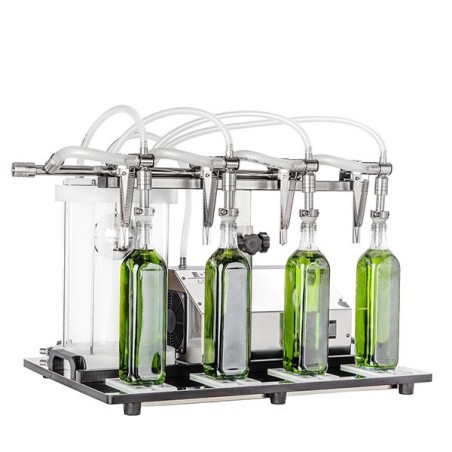

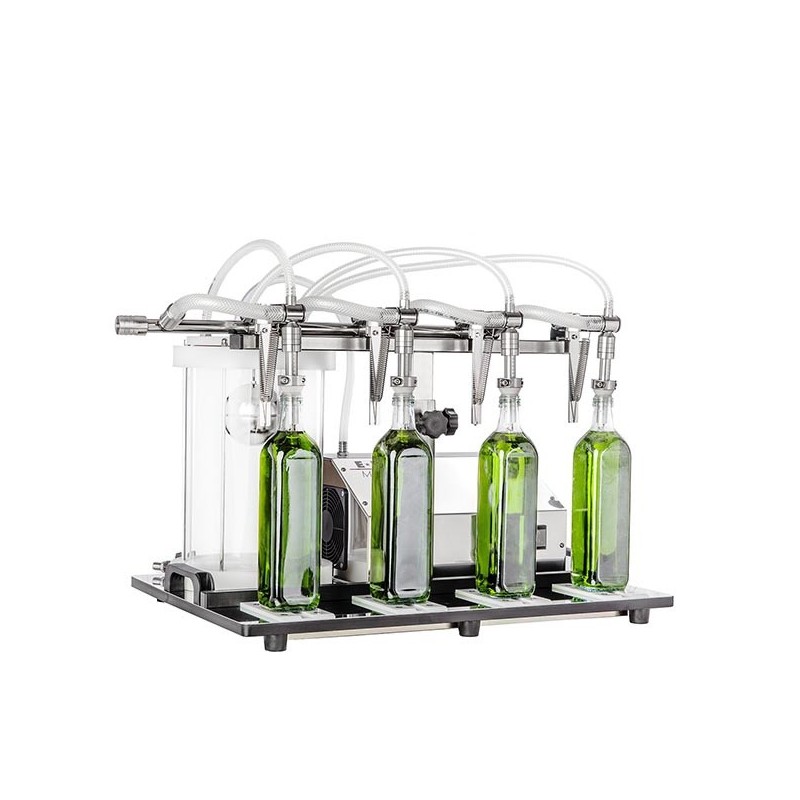

Enolmaster 4-Spout Vacuum Bottle Filler

The Enolmaster 4-spout vacuum bottle filler is a stainless steel filling machine for wineries and other producers handling compatible bottled liquids. Four filling spouts allow up to four bottles to be filled at the same time.

A vacuum pump draws the liquid from its supply container into the bottles without the product passing through the pump's mechanical components. The filling controls allow the operator to adjust the process to the bottling requirements.

Four-spout vacuum filling

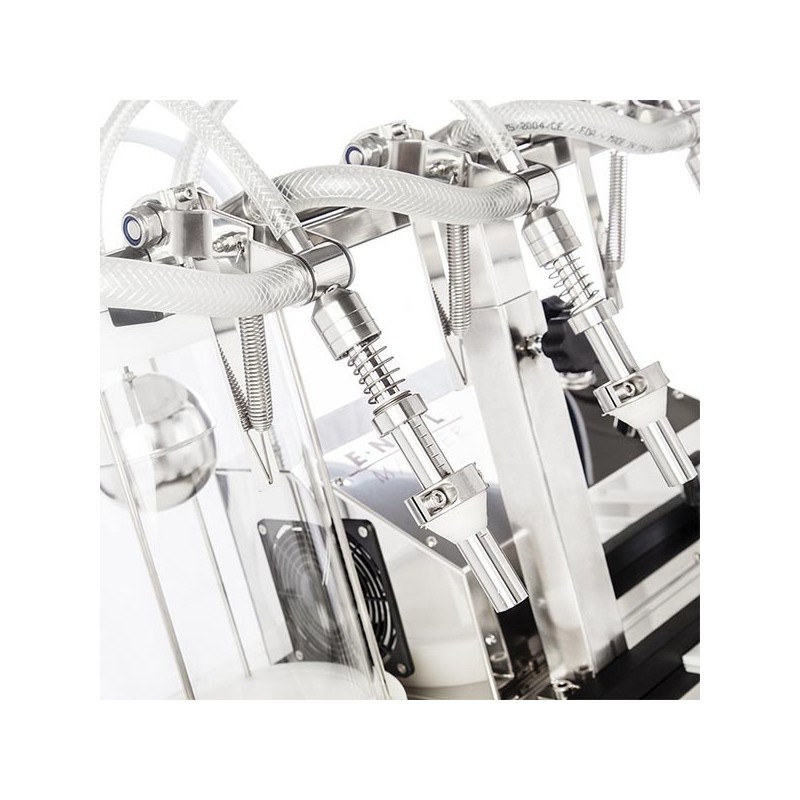

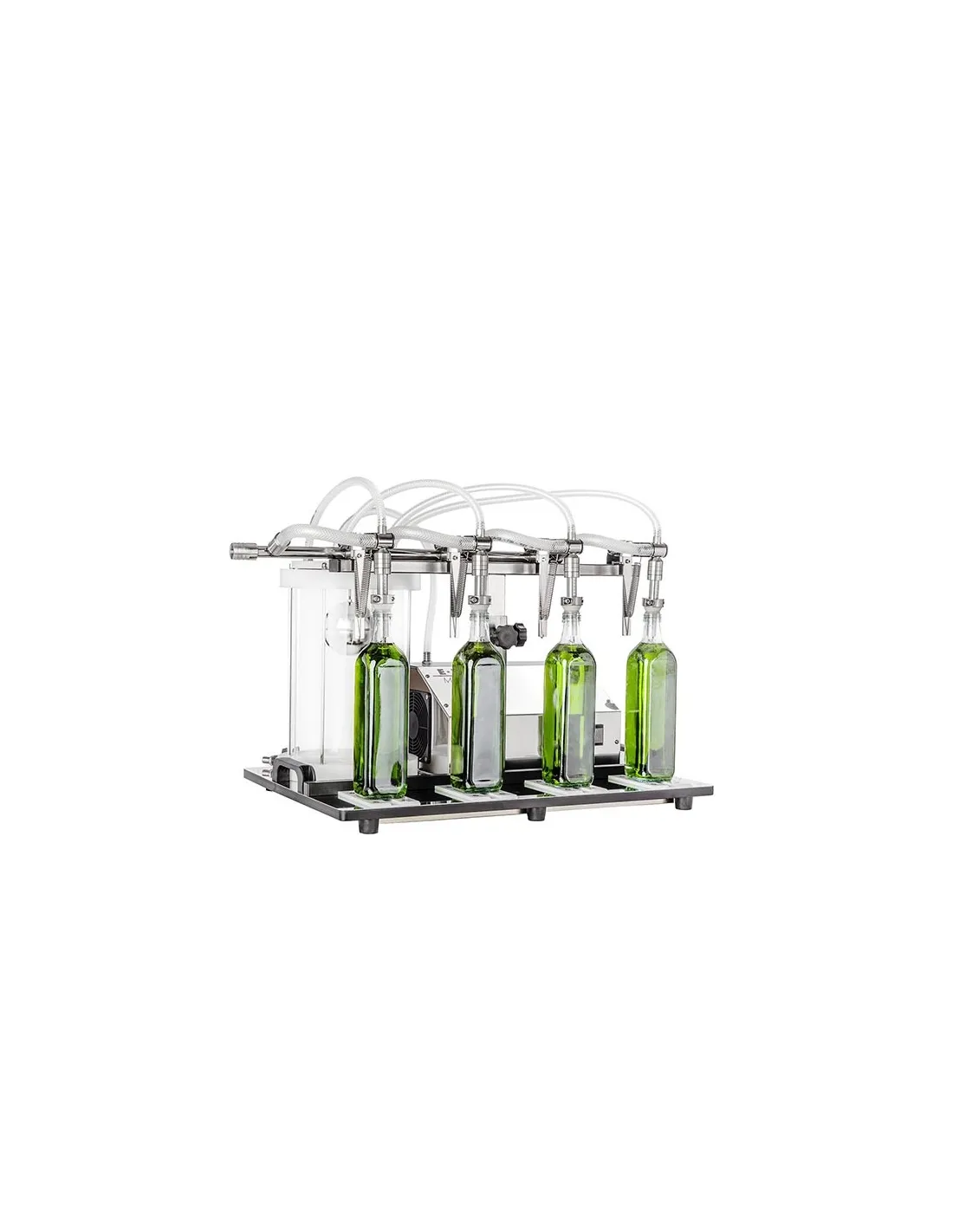

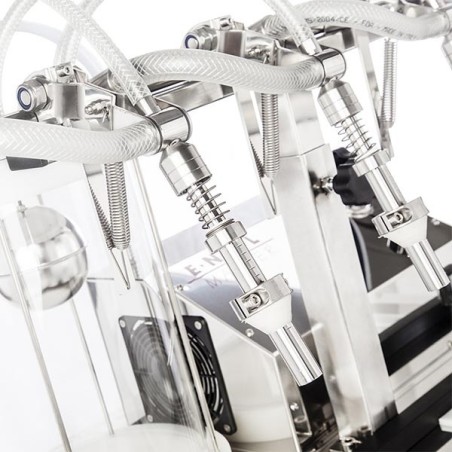

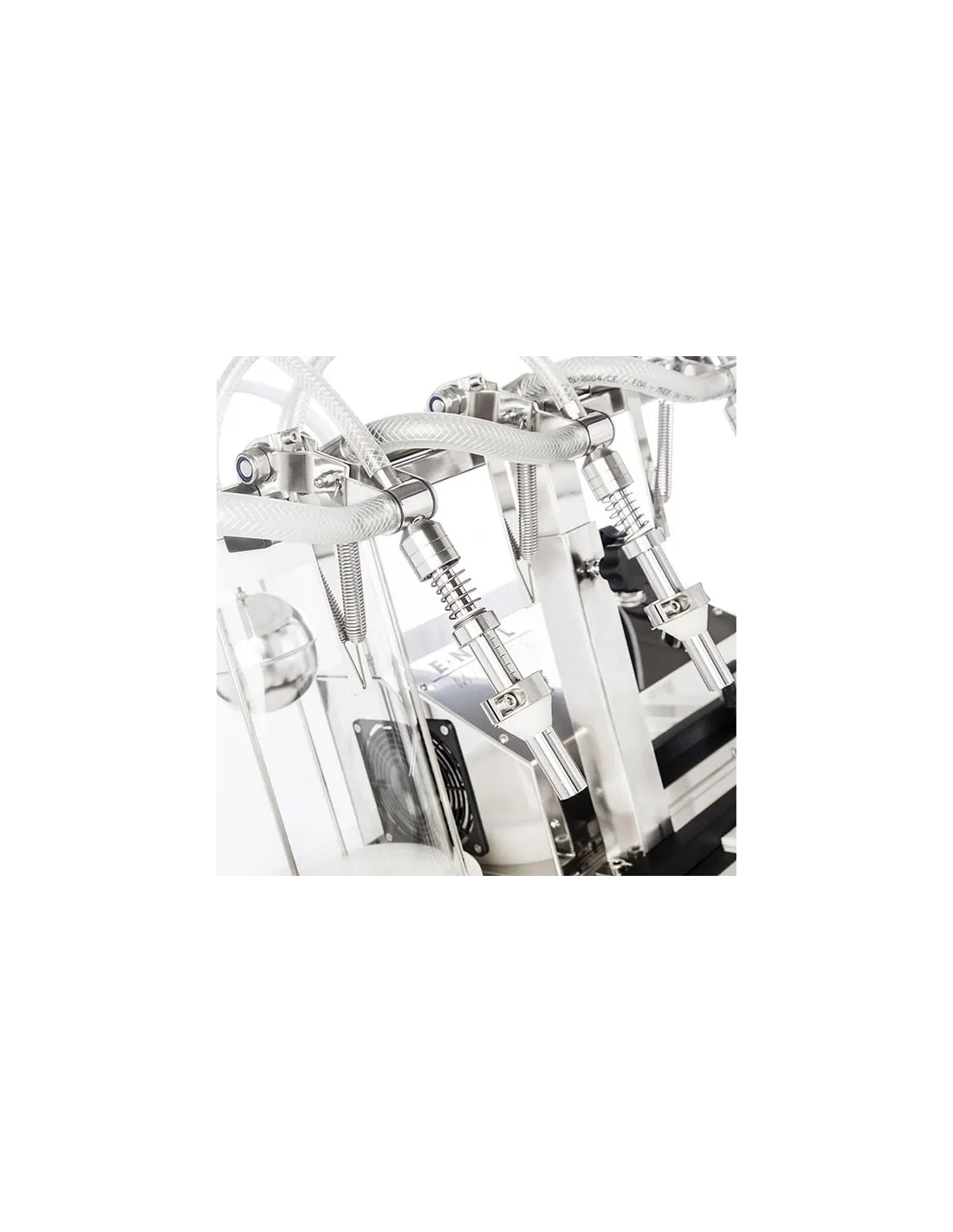

• Four filling spouts: fill up to four bottles simultaneously.
• Vacuum operation: draws the product into the bottles without passing it through the pump's mechanical components.
• Stainless steel structure: designed for bottling applications.
• Adjustable operation: controls allow the filling process to be set according to the product and bottle.

Technical specifications

• Structure: stainless steel.
• Number of filling spouts: 4.
• Power supply: 220 V, 50/60 Hz.
• Power consumption: 120 W.
• Indicative output with wine: up to 600 bottles/hour.
• Indicative output with oil: up to 500 bottles/hour.
• Compatible internal bottle-neck diameter: 16-28 mm.
• Bottle height: 180-350 mm.
• Dimensions: 650 x 460 x 450 mm.

Output figures are indicative, not guaranteed production rates. Check that your bottle dimensions and selected filler version match the intended application.

Choose the version before ordering

The Enolmaster is offered in separate versions for wine, oil and beer. Select the version suited to the liquid you intend to bottle before completing your purchase.

Optional equipment for liquids above 20% alcohol

• Pyrex recovery vessel: listed as an option for bottling liquids with an alcohol content above 20%.
• Tandem filter holder: listed as an option for bottling liquids with an alcohol content above 20%.

These accessories are optional and are not included in the standard configuration. For liquids above 20% alcohol, confirm the complete machine configuration and its suitability with AgriStore before ordering.
