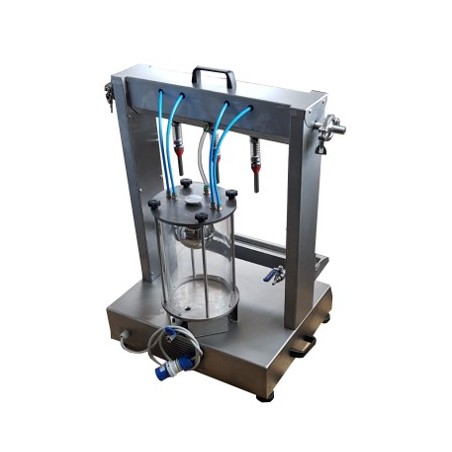

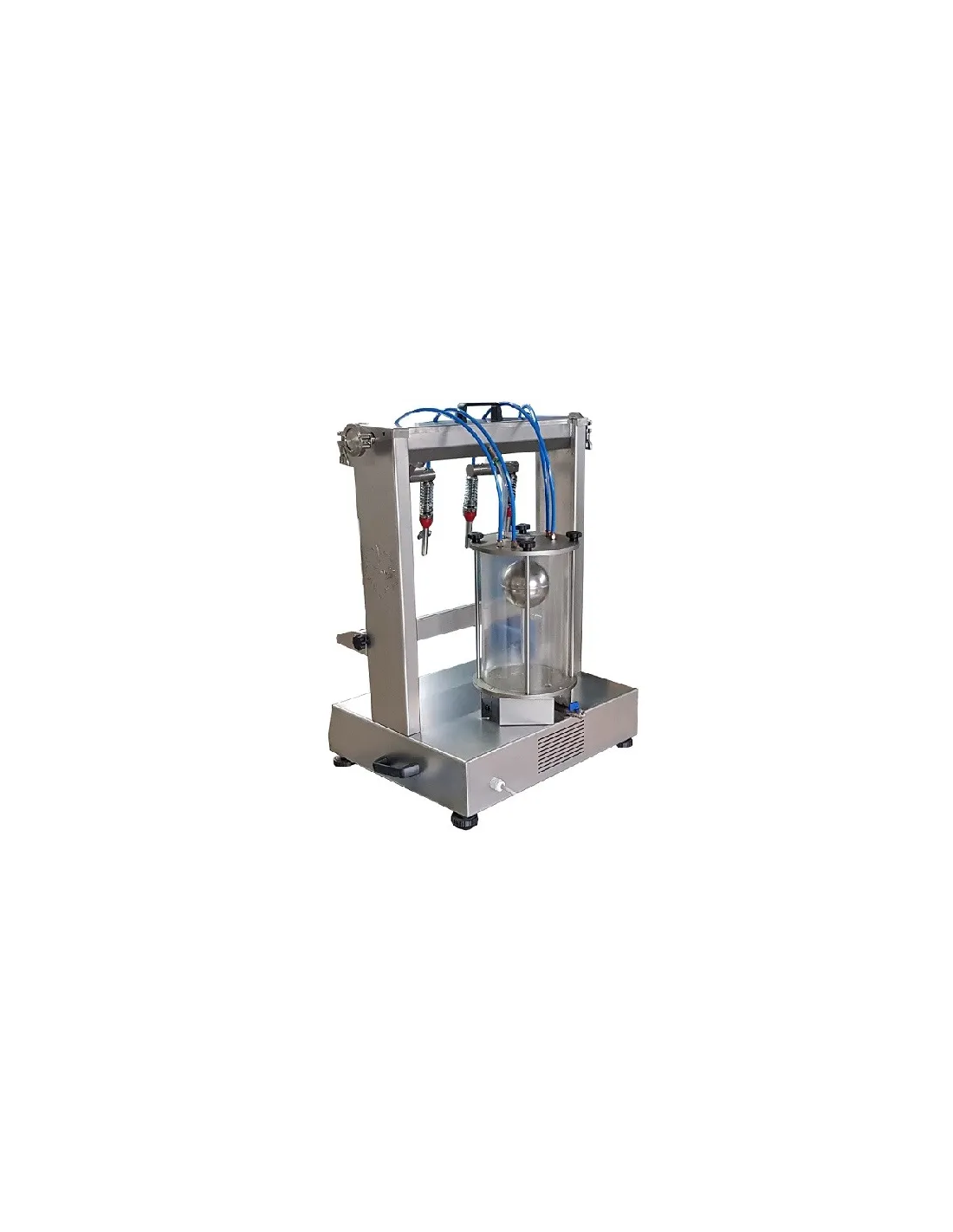

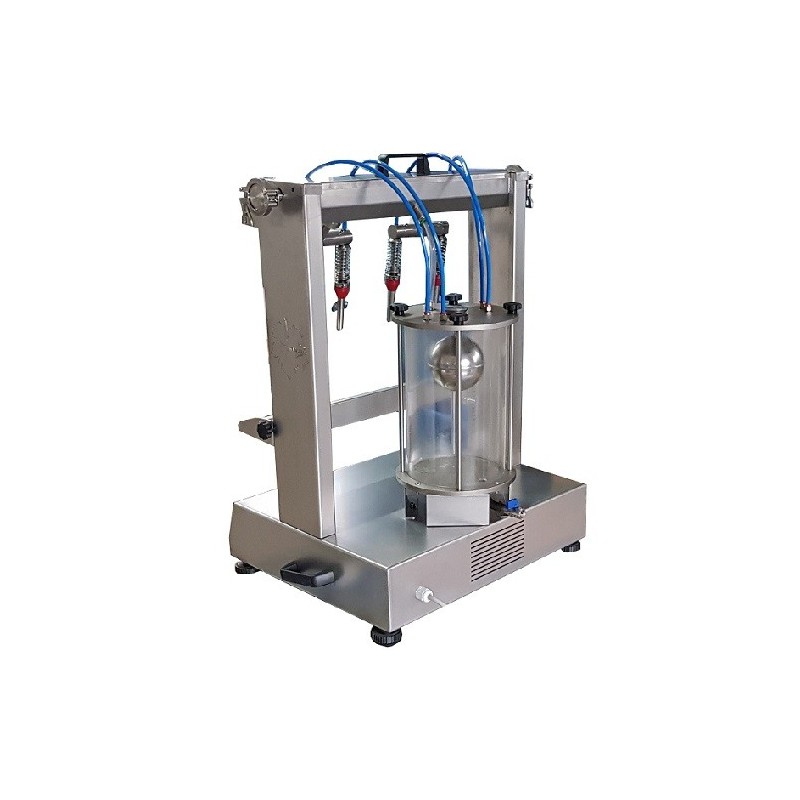

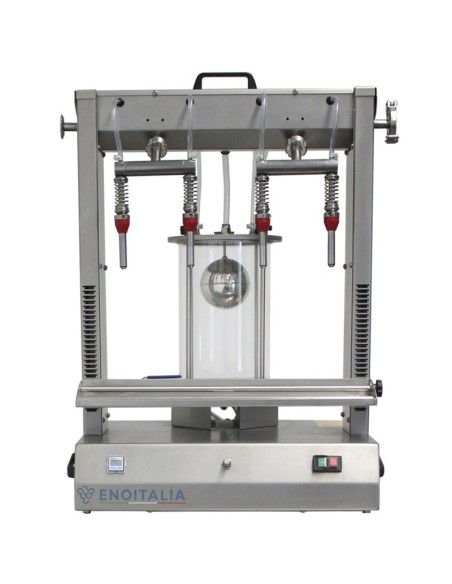

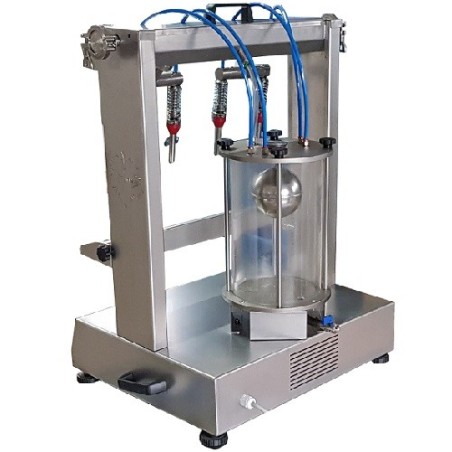

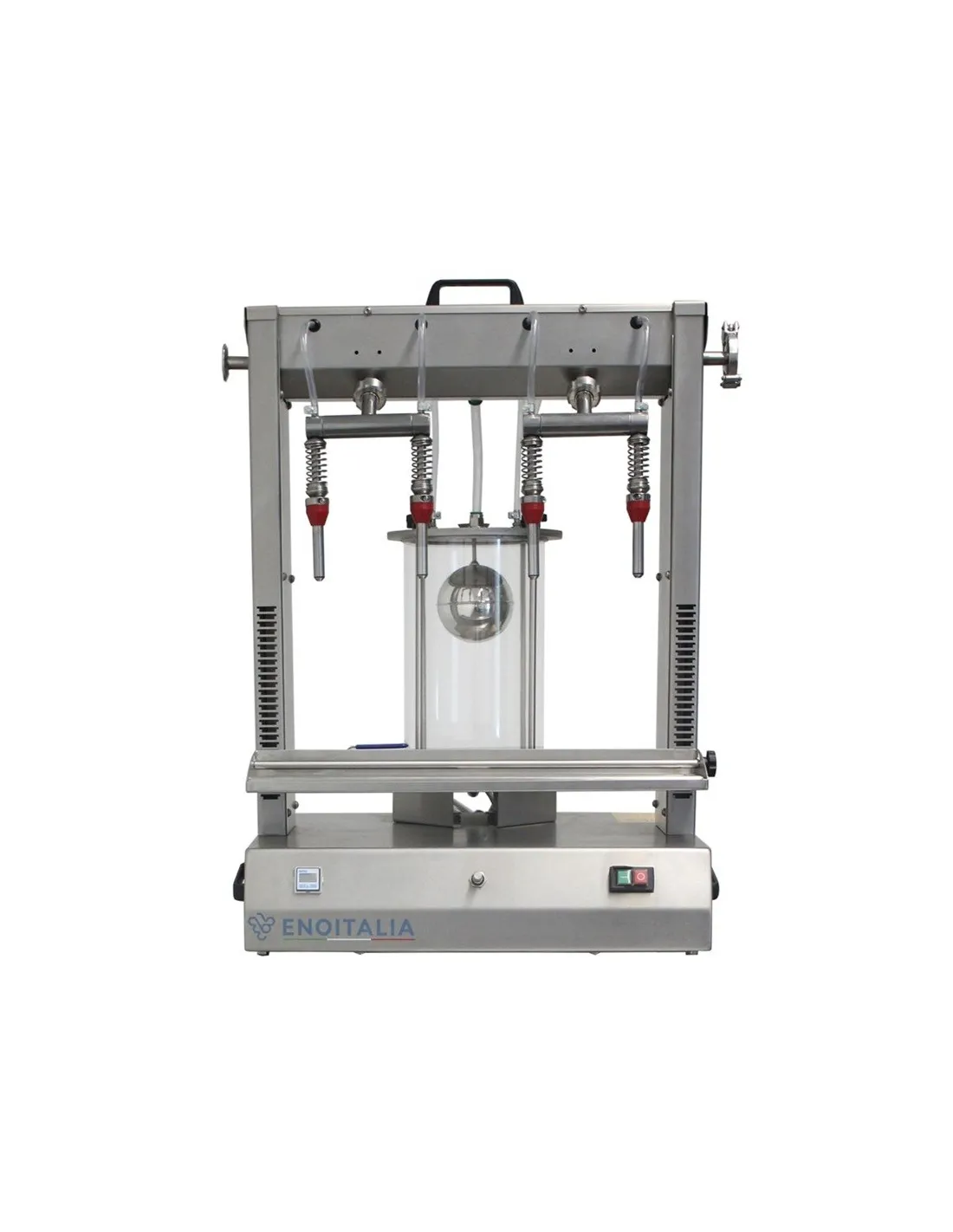

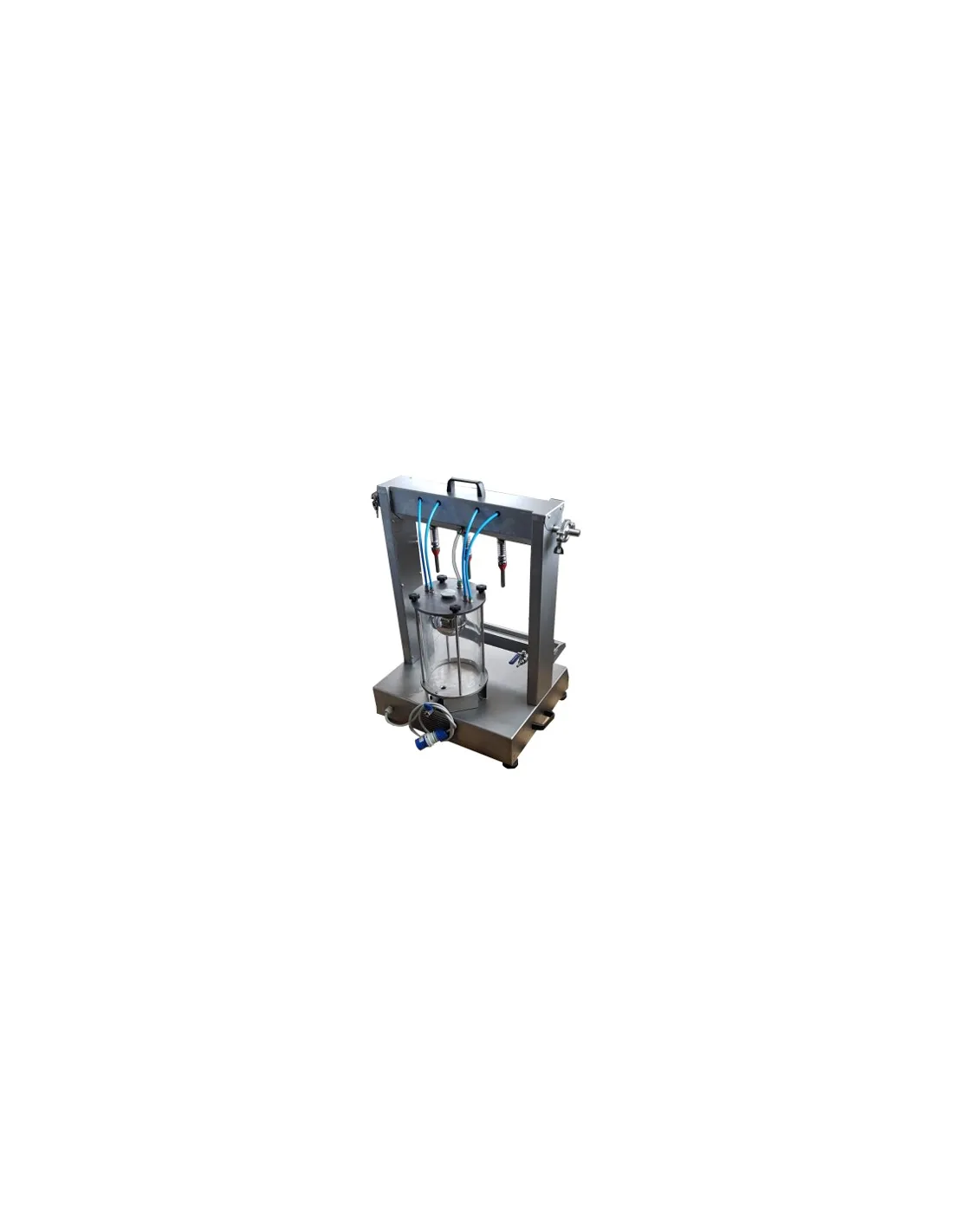

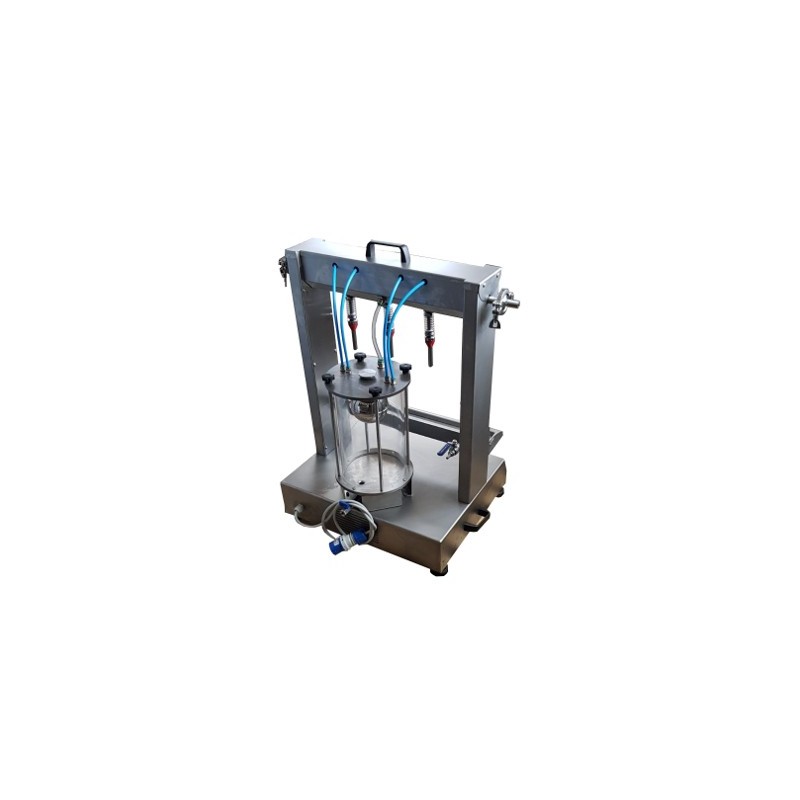

Bench-Top 4-Nozzle Vacuum Bottle Filler

The bench-top 4-nozzle vacuum bottle filler is an AISI 304 stainless steel machine for filling compatible food liquids into rigid bottles. Its electric vacuum system creates negative pressure inside each bottle to draw in the liquid without passing it through a liquid-transfer pump. The air-suction and product circuits remain separate for controlled, continuous operation.

With four Ø15 mm filling nozzles, the machine handles standard bottle formats from 0.2 to 5 L and has an indicative working capacity of 500 L/h. The digital display and vacuum regulator let the operator adjust the filling conditions, while a stainless steel adjustment ring sets the fill level.

Vacuum filling and bottle adjustment

• Gentle liquid transfer: vacuum draws the product into the bottles without a separate pump moving the liquid through mechanical pumping components.
• Adjustable operation: digital display, vacuum gauge and filling-speed regulator help set the filling conditions.
• Adjustable fill level: stainless steel adjustment rings allow the fill height to be set for the chosen bottle.
• Bottle support: stainless steel table adjustable in height and tilt.
• Overflow protection: transparent accumulator vessel with stainless steel float, automatic overfill shut-off and full-drain valve.
• Separated circuits: air suction and product intake remain separate.

Technical specifications

• AISI 304 stainless steel frame.
• Four filling nozzles, Ø15 mm, with DIN 15 fittings.
• Standard EPDM seals; NBR seals available for oil applications.
• Standard bottle capacity: 0.2 to 5 L.
• Indicative working capacity: 500 L/h.
• Digital adjustment display, vacuum pump, vacuum gauge and filling-speed regulator.
• Food-grade hoses with quick couplings for draining.
• Height- and tilt-adjustable bottle support.
• Control panel with electronic circuit breaker and protection against unintended restarting.
• Transparent accumulator vessel with stainless steel float and full-drain valve.
• Adjustable feet and lifting handles.
• Electrical specification: 20 W, 220 V, 50/60 Hz.
• Overall dimensions: 60 x 80 x 110 cm.
• Weight: 40 kg.

The standard filling setup is intended for rigid bottles. Check the liquid, bottle neck and seal compatibility before ordering. For oil, select the appropriate NBR seals rather than assuming that the standard EPDM configuration is suitable.

Optional accessories for different bottle formats

• Stainless steel trolley: 60 x 60 cm footprint, 100 cm high, with shelf.
• Mini-bottle kit: two stainless steel filling heads for formats from 5 mL. This capacity requires the optional kit and is not part of the standard 0.2 to 5 L range.
• Tall-bottle extension kit: stainless steel extensions for bottles over 330 mm high.
• Anti-foam pump-protection filter: optional accessory for the vacuum system.

Vacuum or gravity bottle filling?

This machine uses vacuum to draw liquid into rigid bottles and control the fill level. If you need a system in which liquid flows from a tank through filling heads under gravity, compare the stainless steel gravity bottle filler. You can also browse the bottle filling equipment range.

Frequently asked questions

Does the liquid pass through the vacuum pump?

No. The vacuum system creates suction inside the bottle, while the air and product circuits are kept separate.

Can this filler be used for olive oil?

Oil applications require the appropriate NBR seals, available as an alternative to the standard EPDM seals. Confirm the complete configuration for your product before ordering.

Can it fill 5 mL mini bottles?

Yes, with the optional two-head mini-bottle kit. The standard machine covers bottle capacities from 0.2 to 5 L.

Is the trolley included?

No. The stainless steel trolley is an optional accessory.
