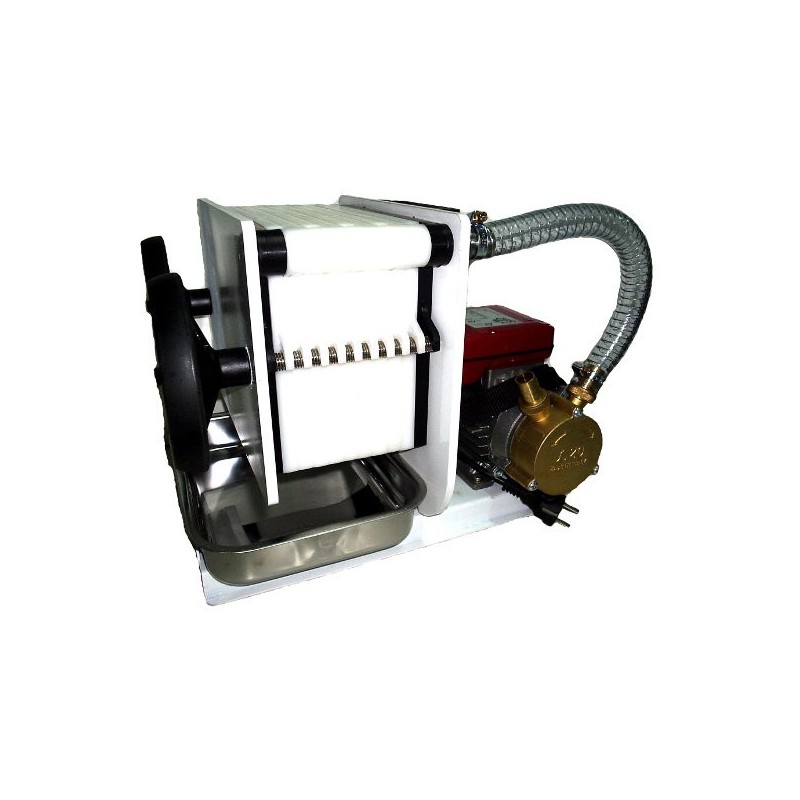

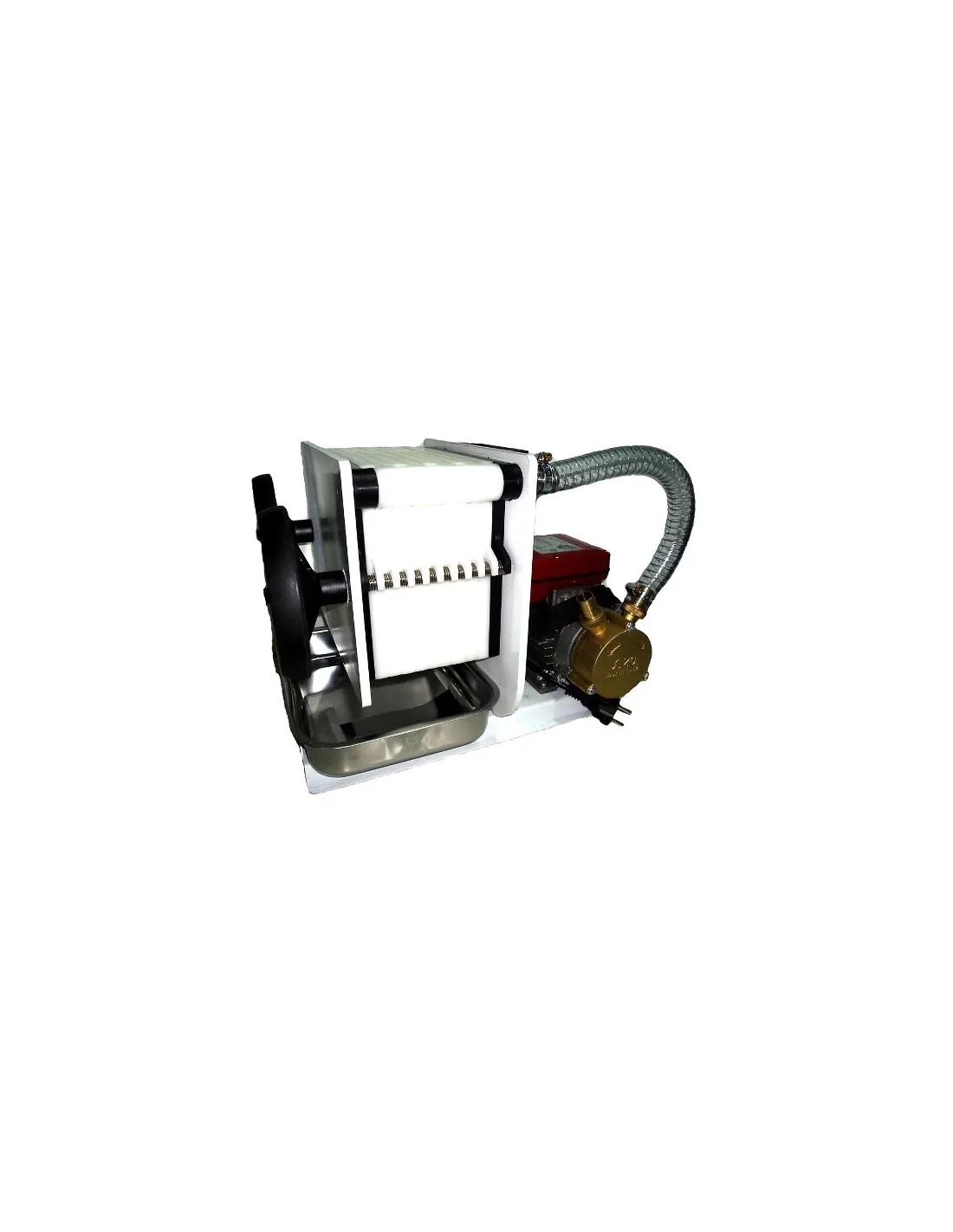

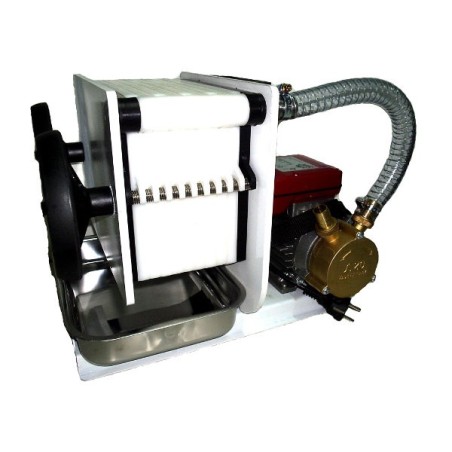

Enamelled Steel Plate Filter with Pump – 10 Plates

The 10-plate enamelled steel plate filter with pump is designed for filtering wine, beer, liqueurs and other beverages in small and medium wineries, wine shops and craft production settings. Its food-grade enamelled steel frame and self-priming bronze pump provide a compact filtration solution with easy handling.

The plate filter uses interchangeable filter sheets in coarse, polishing and sterile grades, allowing the filtration level to be selected according to the product and the desired result. The 10 filter plates use 20 x 20 cm filter sheets, providing a filtration surface of approximately 0.4 m².

A stainless steel drip tray is positioned beneath the filter pack to collect product losses and help keep the working area clean. The self-priming bronze electric pump has a suction capacity of up to 9 metres.

Main features of the 10-plate enamelled steel filter

• Food-grade enamelled steel frame;
• 10 filter plates for 20 x 20 cm filter sheets;
• Compatible with coarse, polishing and sterile filter sheets;
• Self-priming bronze pump;
• Suction capacity up to 9 m;
• Stainless steel drip tray;
• Suitable for wine, beer, liqueurs and other beverages.

Technical data

• Frame: food-grade enamelled steel;
• Number of plates: 10;
• Filter sheet size: 20 x 20 cm;
• Filtration surface: approx. 0.4 m²;
• Indicative flow rate: up to 300 L/h, depending on sheet grade and product;
• Maximum operating pressure: 3 bar;
• Pump: bronze electric pump, 220 V – 0.5 HP (0.37 kW);
• Suction capacity: up to 9 m;
• Connections: stainless steel hose tails Ø 20 mm;
• Drip tray: stainless steel recovery tray beneath the filter pack;
• Dimensions: 40 x 29 x 34 cm;
• Weight: approx. 20 kg.

Note: filter sheets are not included and must be ordered separately according to the required filtration grade.
