Oil Filling Machine

This oil filling machine is a practical solution for anyone who needs to fill oil containers without fully automating the process. It’s the ideal compromise to keep operations simple and intuitive while maintaining high quality, without altering the product’s organoleptic properties.

This Oil Filler is manufactured entirely in Italy to fully meet the needs of customers looking for a quality product.

The oil dispenser adapts to filling all types of containers, especially demijohns, carboys, etc.

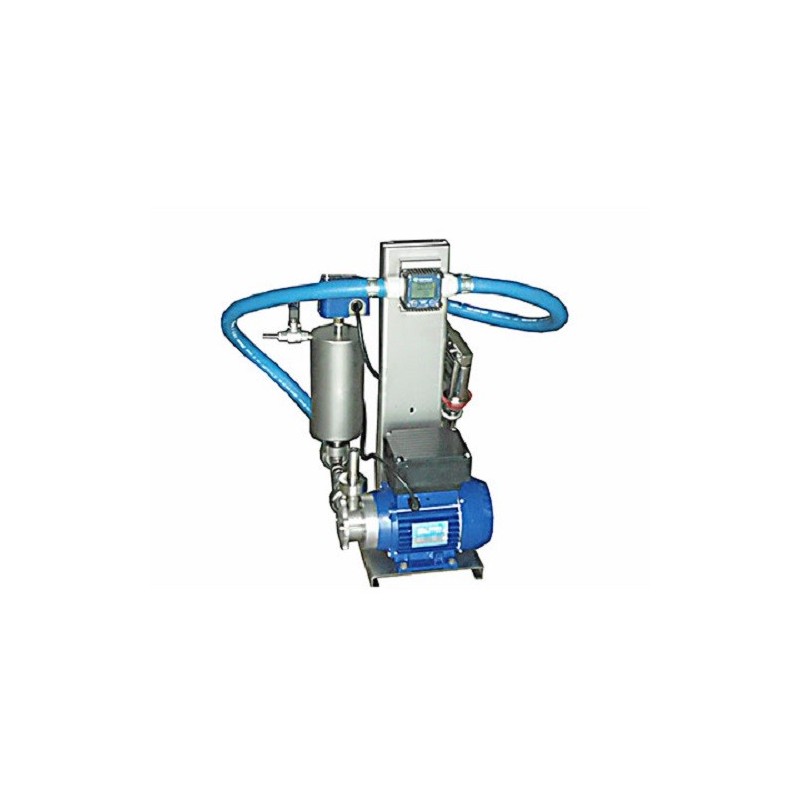

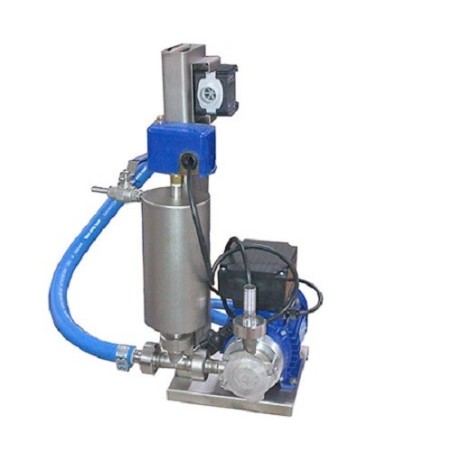

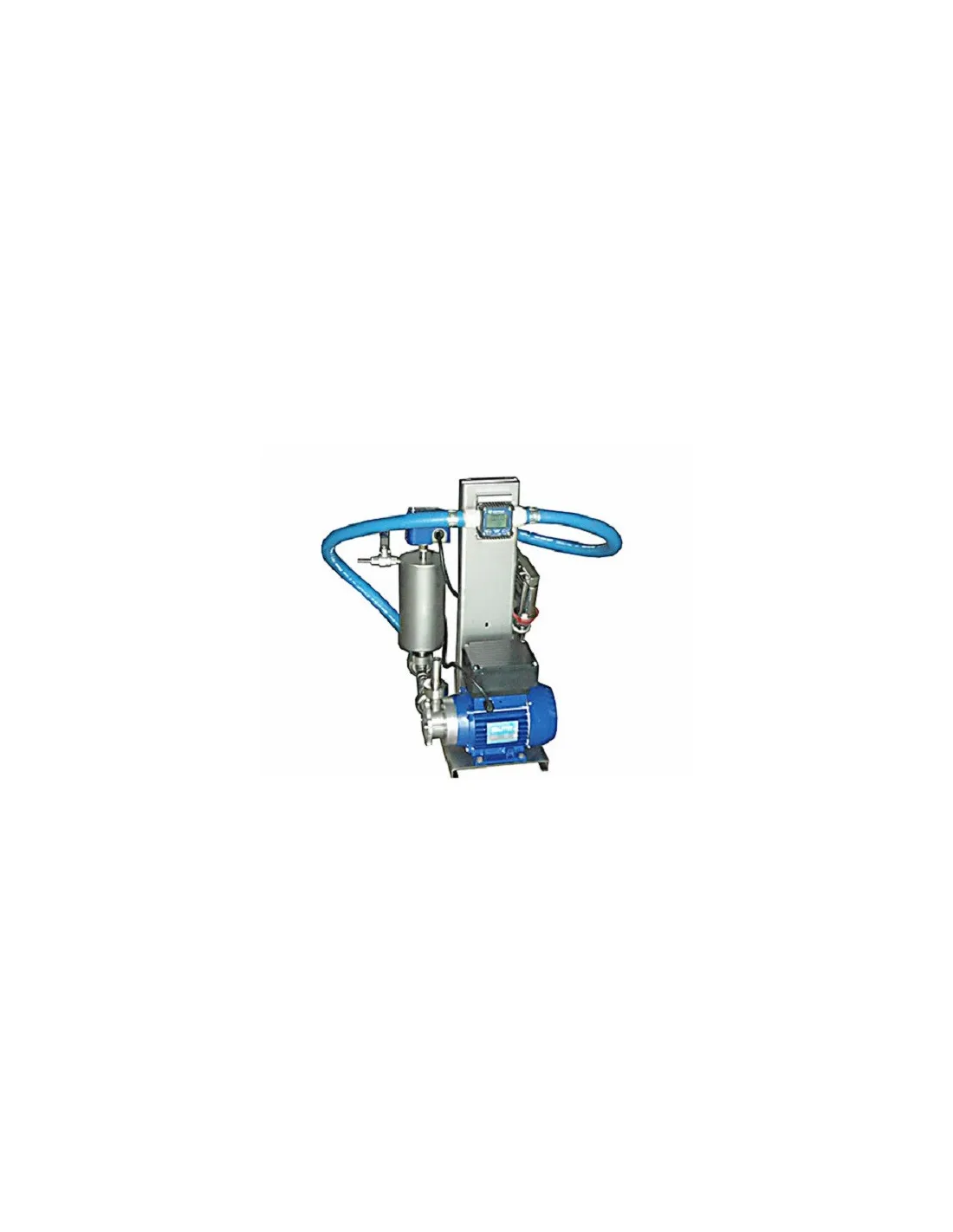

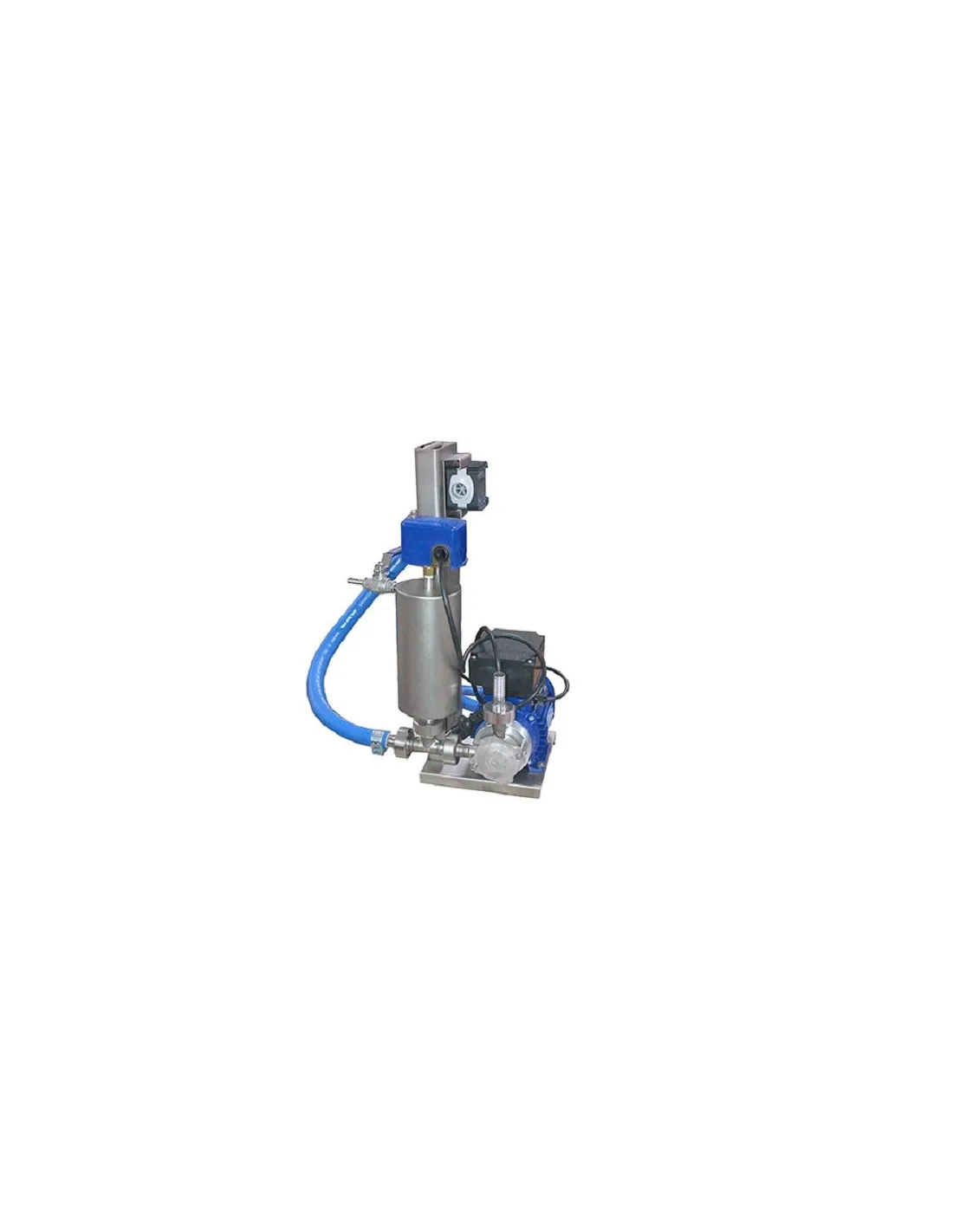

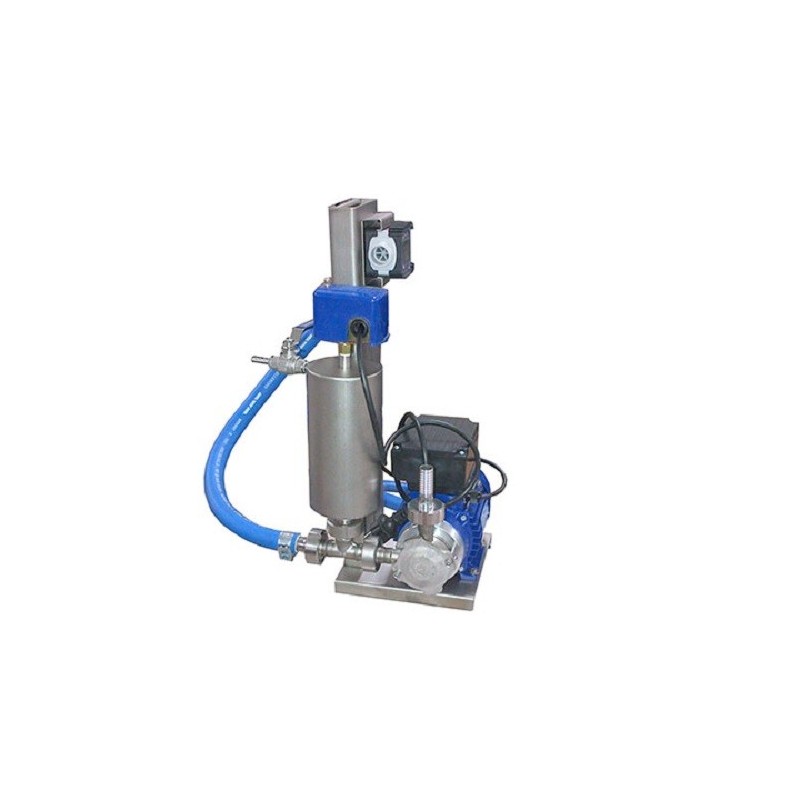

The Oil Filling Machine consists of a stainless-steel electric pump with food-grade rubber impeller and pressure switch, a gear-type litre counter, and a stainless-steel dispensing gun, all connected via food-grade rubber hoses to a stainless buffer tank. The pump and flowmeter are mounted on a stainless-steel stand, giving you a convenient, at-hand oil dispensing post.

Optionally, the oil filler can be paired with a Bag-in-Box filling kit consisting of an adjustable fork with cap-closing lever, as well as a stainless-steel trolley.

Technical Features (standard configuration):

• Power: 0.36 kW;
• Stainless-steel dispensing gun;
• Stainless-steel gear flowmeter;
• Stainless electric pump with food-grade rubber impeller, 1,000 L/h, 900 rpm – 0.5 HP;
• Stainless-steel buffer tank with anti-foam valve;
• Stainless-steel non-return valve;
• Automatic pressure switch;
• Air-purge system for the circuit;
• Foam-reduction system;
• Inlet/outlet fittings: DIN 20 and 25;
• Frame in AISI 304 stainless steel;
• Food-grade rubber hoses;
• Particularly suitable for demijohns, carboys, etc.;
• Capacity: 1,000 L/h;
• Dimensions: 24 × 30 × 43 cm;
• Weight: approx. 20 kg.

Options:

• Bag-in-Box filling accessory with cap-closing lever;
• Stainless-steel trolley.
